Limit Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Mounting Type | Termination Style | Ingress Protection | Features | Operating Force | Release Force | Operating Position | Pretravel | Differential Travel | Overtravel | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
V-151-1A6SWITCH SNAP ACTION SPDT 15A 250V |
0 |
|
Datasheet |
V | Bulk | Active | SPDT | On-Mom | 15A (AC), 600mA (DC) | 250 V | 125 V | Lever, Straight | Chassis Mount | Solder, Quick Connect - 0.187" (4.7mm) | IP40 | - | 400gf | 50gf | 0.600" (15.2mm) | 0.063" (1.6mm) | 0.025" (0.6mm) | 0.030" (0.76mm) | -25°C ~ 80°C |
|
83170442SWITCH SNAP ACTION SPDT 5A 250V |
0 |
|
Datasheet |
83170 | Bulk | Active | SPDT | On-Mom | 5A (AC) | 250 V | - | Lever, Roller | Chassis Mount | Solder Lug | - | Actuator Mounted Right Side | 41gf | 7.000gf | 0.571" (14.5mm) | - | 0.009" (0.23mm) | 0.029" (0.74mm) | -20°C ~ 130°C |
|
V-154-1C25-TSWITCH SNAP ACTION SPDT 15A 250V |
0 |
|
Datasheet |
V | Bulk | Active | SPDT | On-Mom | 15A (AC), 600mA (DC) | 250 V | 125 V | Lever, Simulated Roller | Chassis Mount | Quick Connect - 0.187" (4.7mm) | IP40 | - | 125gf | 14gf | - | 0.157" (4.0mm) | 0.060" (1.5mm) | 0.062" (1.6mm) | -25°C ~ 150°C |
|
V-152-1A5-TSWITCH SNAP ACTION SPDT 15A 250V |
5 |
|
Datasheet |
V | Bulk | Active | SPDT | On-Mom | 15A (AC), 600mA (DC) | 250 V | 125 V | Lever, Straight | Chassis Mount | Solder, Quick Connect - 0.187" (4.7mm) | IP40 | - | 125gf | 14gf | 0.579" (14.7mm) | 0.157" (4.0mm) | 0.060" (1.5mm) | 0.062" (1.6mm) | -25°C ~ 80°C |
|
ABV1625619RSWITCH SNAP ACT SPST-NC 3A 250V |
0 |
|
Datasheet |
ABV | Bulk | Active | SPST-NC | On-Mom | 3A (AC) | 250 V | - | Lever, Roller | Chassis Mount | Wire Leads | IP67 - Dust Tight, Waterproof | - | 320gf | 60gf | 0.815" (20.7mm) | 0.063" (1.6mm) | 0.020" (0.5mm) | 0.030" (0.76mm) | -40°C ~ 85°C |
|
D2HW-BL211MSWITCH SNAP ACT SPDT 0.1A 125V |
22 |
|
Datasheet |
D2HW | Tray | Active | SPDT | On-Mom | 100mA (AC), 2A (DC) | 125 V | 12 V | Lever, Straight | Chassis Mount | Wire Leads | IP67 - Dust Tight, Waterproof | Support Posts | 76gf | 7.138gf | 0.295" (7.5mm) | - | 0.020" (0.5mm) | 0.062" (1.6mm) | -40°C ~ 85°C |
|
D2HW-BR222MSWITCH SNP ACT SPST-NC 0.1A 125V |
18 |
|
Datasheet |
D2HW | Bulk | Active | SPST-NC | On-Mom | 100mA (AC), 2A (DC) | 125 V | 12 V | Lever, Straight | Chassis Mount | Wire Leads | IP67 - Dust Tight, Waterproof | Support Posts | 50gf | 3.059gf | 0.366" (9.3mm) | - | 0.031" (0.8mm) | 0.098" (2.5mm) | -40°C ~ 85°C |
|
SAJ53YXPP0STDSDTFLQSWITCH SNAP ACTION SPDT 3A 125V |
0 |
|
Datasheet |
SAJ5 | Bulk | Active | SPDT | On-Mom | 3A (AC/DC) | 125 V | 12 V | Round (Pin Plunger) | Chassis Mount | Wire Leads | IP67 - Dust Tight, Waterproof | - | 130gf | 13gf | 0.250" (6.4mm) | 0.037" (0.94mm) | 0.008" (0.2mm) | 0.031" (0.79mm) | -40°C ~ 85°C |
|
D2HW-C261MSWITCH SNAP ACT SPDT 0.1A 125V |
0 |
|
Datasheet |
D2HW | Bulk | Active | SPDT | On-Mom | 100mA (AC), 2A (DC) | 125 V | 12 V | Lever, Leaf | Chassis Mount | Wire Leads | IP67 - Dust Tight, Waterproof | - | 183gf | 20gf | 0.291" (7.4mm) | - | 0.020" (0.5mm) | 0.070" (1.8mm) | -40°C ~ 85°C |
|
ASQMR11620ASWITCH SNAP ACT FAIL DETECT 16V |
0 |
|
Datasheet |
ASQMR1 | Tray | Active | SPST-NC | On-Mom | 1mA (DC) | - | 16 V | Round (Pin Plunger) | Chassis Mount | Wire Leads | IP67 - Dust Tight, Waterproof | - | 122gf | - | 0.541" (13.75mm) | - | - | 0.063" (1.6mm) | -40°C ~ 85°C |
|
D2HW-BL212MRSWITCH SNP ACT SPST-NC 0.1A 125V |
1 |
|
Datasheet |
D2HW | Tray | Active | SPST-NC | On-Mom | 100mA (AC), 2A (DC) | 125 V | 12 V | Lever, Straight | Chassis Mount | Wire Leads | IP67 - Dust Tight, Waterproof | Support Posts | 76gf | 7.138gf | 0.295" (7.5mm) | - | 0.020" (0.5mm) | 0.062" (1.6mm) | -40°C ~ 85°C |
|
|
D2HW-BR221MSWITCH SNAP ACT SPDT 0.1A 125V |
20 |
|
Datasheet |
D2HW | Tray | Active | SPDT | On-Mom | 100mA (AC), 2A (DC) | 125 V | 12 V | Lever, Straight | Chassis Mount | Wire Leads | IP67 - Dust Tight, Waterproof | Support Posts | 50gf | 3.059gf | 0.366" (9.3mm) | - | 0.031" (0.8mm) | 0.098" (2.5mm) | -40°C ~ 85°C |
|
V-155-1A5-TSWITCH SNAP ACTION SPDT 15A 250V |
0 |
|
Datasheet |
V | Bulk | Active | SPDT | On-Mom | 15A (AC), 600mA (DC) | 250 V | 125 V | Lever, Roller | Chassis Mount | Solder, Quick Connect - 0.187" (4.7mm) | IP40 | - | 240gf | 50gf | 0.815" (20.7mm) | 0.063" (1.6mm) | 0.025" (0.6mm) | 0.030" (0.76mm) | -25°C ~ 150°C |
|

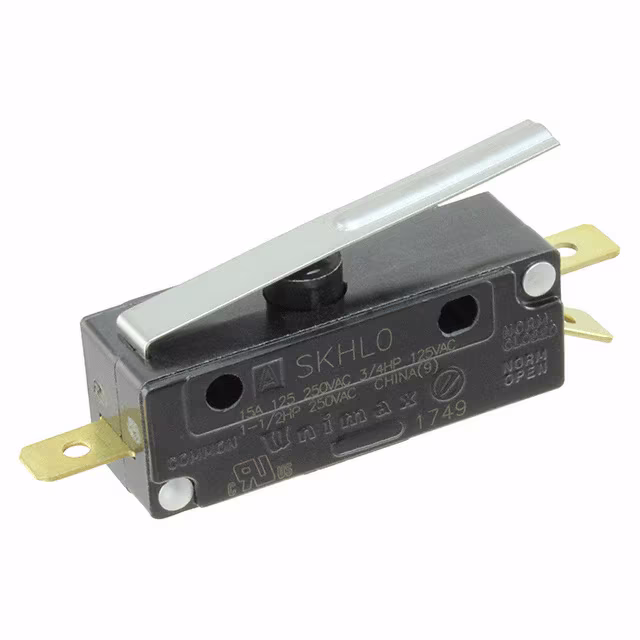

ASKHC2L04ACSWITCH SNAP ACTION SPDT 15A 125V |
0 |
|
Datasheet |
A | Tray | Active | SPDT | On-Mom | 15A (AC) | 125 V | - | Lever, Leaf | Chassis Mount | Quick Connect - 0.250" (6.3mm) | - | - | 340gf | 28gf | 0.312" (7.9mm) | 0.281" (7.14mm) | - | 0.062" (1.6mm) | -55°C ~ 85°C |
|
DS1F5AQ2SWITCH SNAP ACT SPDT 100MA 125V |
2 |
|
Datasheet |
DS | Bulk | Active | SPDT | On-Mom | 100mA (AC) | 125 V | - | Round (Pin Plunger) | Panel Mount, Snap-In | Quick Connect - 0.187" (4.7mm) | - | - | 425gf | - | 0.350" (8.9mm) | - | - | 0.125" (3.2mm) | -40°C ~ 85°C |
|
D2HW-BL281MSWITCH SNAP ACT SPDT 0.1A 125V |
24 |
|
Datasheet |
D2HW | Tray | Active | SPDT | On-Mom | 100mA (AC), 2A (DC) | 125 V | 12 V | Lever, Leaf | Chassis Mount | Wire Leads | IP67 - Dust Tight, Waterproof | Support Posts | 92gf | 5.099gf | 0.606" (15.4mm) | - | 0.027" (0.7mm) | 0.110" (2.8mm) | -40°C ~ 85°C |
|
VM3SCGF1803L00SWITCH LIMIT SPDT 10A 125V |
24 |
|
Datasheet |
VM3S | Box | Active | SPDT | On-Mom | 10A (AC), 6A (DC) | 125 V | 36 V | Round (Pin Plunger) | Chassis Mount | Wire Leads | IP67 - Dust Tight, Waterproof | - | 180gf | 100gf | 0.581" (14.75mm) | 0.063" (1.6mm) | 0.031" (0.8mm) | 0.031" (0.8mm) | -40°C ~ 120°C |
|
VM3SCGF1803L02SWITCH LIMIT SPDT 10A 125V |
22 |
|
Datasheet |
VM3S | Box | Active | SPDT | On-Mom | 10A (AC), 6A (DC) | 125 V | 36 V | Lever, Simulated Roller | Chassis Mount | Wire Leads | IP67 - Dust Tight, Waterproof | - | 120gf | 50gf | 0.736" (18.70mm) | 0.118" (3.0mm) | 0.050" (1.3mm) | 0.039" (1.0mm) | -40°C ~ 120°C |
|
83293001SWITCH SNAP ACTION SPDT 5A 250V |
0 |
|
Datasheet |
V3DS | Bulk | Active | SPDT | On-Mom | 5A (AC) | 250 V | - | Round (Pin Plunger) | Chassis Mount | Quick Connect - 0.250" (6.3mm) | IP67 - Dust Tight, Waterproof | - | 204gf | 20gf | 0.579" (14.7mm) | - | 0.020" (0.5mm) | 0.040" (1.0mm) | -40°C ~ 85°C |
|
AV622264SWITCH SNAP ACT SPST-NC 0.1A 30V |
13 |
|
Datasheet |
AV6 | Bulk | Active | SPST-NC | On-Mom | 100mA (DC) | - | 30 V | Lever, Straight | Chassis Mount | Connector | IP40 | - | 20gf | 2.039gf | 0.394" (10.0mm) | 0.102" (2.6mm) | 0.031" (0.8mm) | 0.047" (1.2mm) | -25°C ~ 85°C |
