Limit Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Mounting Type | Termination Style | Ingress Protection | Features | Operating Force | Release Force | Operating Position | Pretravel | Differential Travel | Overtravel | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
9007FTSB1SWITCH LIMIT SPDT 20A 120V |
1 |
|
Datasheet |
9007FT | Box | Active | SPDT (DB/DM) | On-Mom | 20A (AC), 5A (DC) | 120 V | 120 V | Side Rotary - No Lever | Chassis Mount | Screw Terminal | IP67 - Dust Tight, Waterproof | - | - | - | - | - | - | - | -23°C ~ 85°C |
|
WLCA2-RP55-NSWITCH SNAP ACTION SPDT 10A 125V |
1 |
|
Datasheet |
WL-N | Bulk | Active | SPDT (DB/DM) | On-Mom | 10A (AC), 6A (DC) | 125 V | 30 V | Side Rotary, Roller | Chassis Mount | Screw Terminal | IP67 - Dust Tight, Waterproof | Corrosion Resistance | 1360gf | 120gf | - | 15° | 12° | 70° | -10°C ~ 80°C |
|
1HM1SWITCH SNAP ACTION SPDT 5A 28V |
0 |
|
Datasheet |
HM | Bulk | Active | SPDT | On-Mom | 5A (DC) | - | 28 V | Lever, Straight | Chassis Mount | Solder Lug | - | Sealed - Hermetically | 198gf | 28gf | 0.330" (8.4mm) | 0.030" (0.8mm) | 0.006" (0.15mm) | 0.003" (0.076mm) | -65°C ~ 121°C |
|
OPD-AR30SWITCH SNAP ACTION DPDT 10A 125V |
1 |
|
Datasheet |
OP | Bulk | Active | DPDT | On-Mom | 10A (AC), 300mA (DC) | 125 V | 125 V | Side Rotary, Roller | Chassis Mount | Screw Terminal | - | Steel Roller, Back Mounted | 1247gf | - | - | 0.219" (5.6mm) | 0.110" (2.8mm) | 25° | - |
|

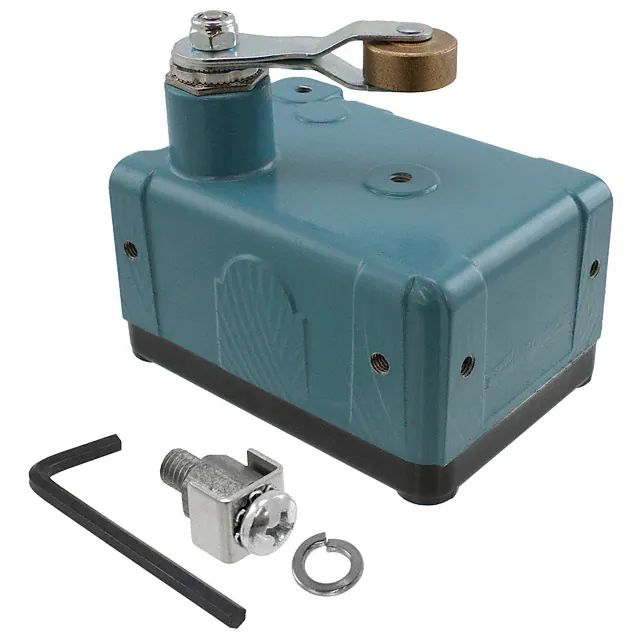

EX-AR8SWITCH SNAP ACTION SPDT 15A 125V |
0 |
|
Datasheet |
EX | Bulk | Active | SPDT | On-Mom | 15A (AC), 500mA (DC) | 125 V | 125 V | Side Rotary, Roller | Chassis Mount | Screw Terminal | - | Explosion Proof | 227 ~ 567gf | - | - | 0.219" (5.6mm) | 0.007" (0.18mm) | 90° | -40°C ~ 71°C |
|

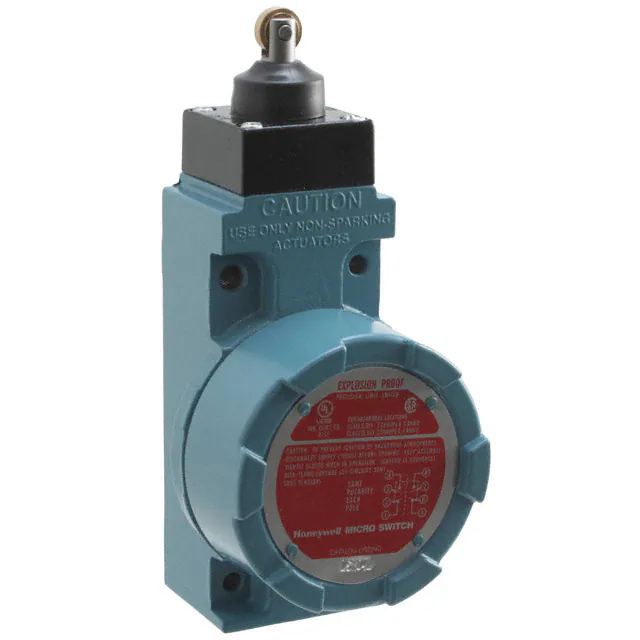

LSXD4LSWITCH SNAP ACTION DPDT 10A 120V |
0 |
|
Datasheet |
LSX | Bulk | Active | DPDT (DB/DM) | On-Mom | 10A (AC), 800mA (DC) | 120 V | 115 V | Roller Plunger | Chassis Mount | Screw Terminal | - | Explosion Proof | 1814gf | - | 2.700" (68.6mm) | 0.070" (1.78mm) | 0.020" (0.5mm) | 0.190" (4.8mm) | -12°C ~ 93°C |
|

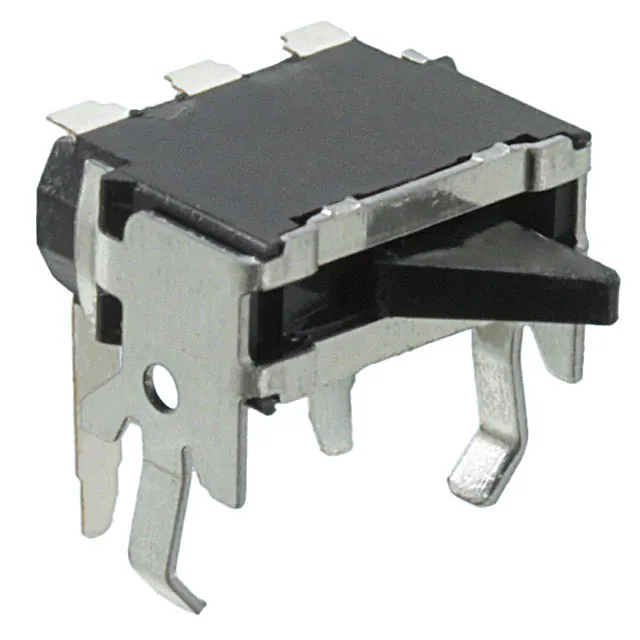

ESE-24CSH6SWITCH DETECTOR SPDT 0.01A 5V |
0 |
|
Datasheet |
ESE24 | Bulk | Active | SPDT | Mom-Off-Mom | 10mA (DC) | - | 5 V | Angled Toggle (Detector) | Through Hole, Right Angle | PC Pin | - | - | 35gf | - | 0.179" (4.55mm) | - | - | - | -40°C ~ 85°C |
|

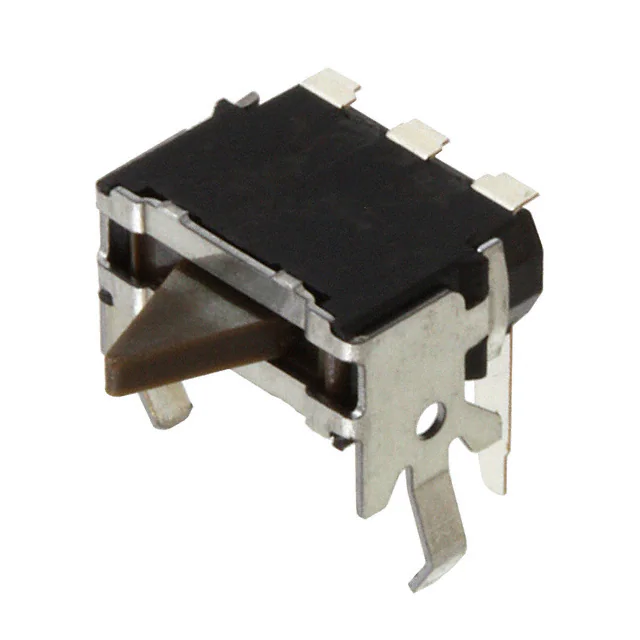

ESE-24CSH1SWITCH DETECTOR SPDT 0.01A 5V |
0 |
|
Datasheet |
ESE24 | Bulk | Active | SPDT | Mom-Off-Mom | 10mA (DC) | - | 5 V | Angled Toggle (Detector) | Through Hole, Right Angle | PC Pin | - | - | 35gf | - | 0.179" (4.55mm) | - | - | - | -40°C ~ 85°C |
|

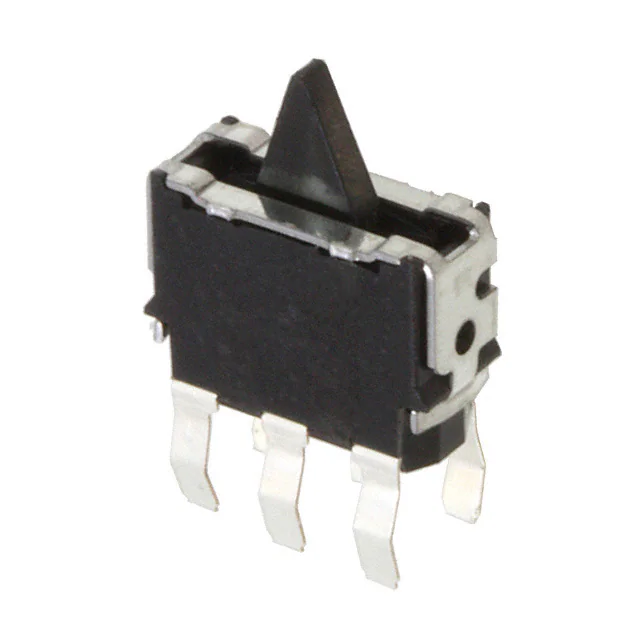

ESE-24SV6SWITCH DETECTOR SPDT 0.01A 5V |
0 |
|
Datasheet |
ESE24 | Bulk | Active | SPDT | Mom-Off-Mom | 10mA (DC) | - | 5 V | Angled Toggle (Detector) | Through Hole | PC Pin | - | - | 35gf | - | 0.317" (8.05mm) | - | - | - | -10°C ~ 70°C |
|

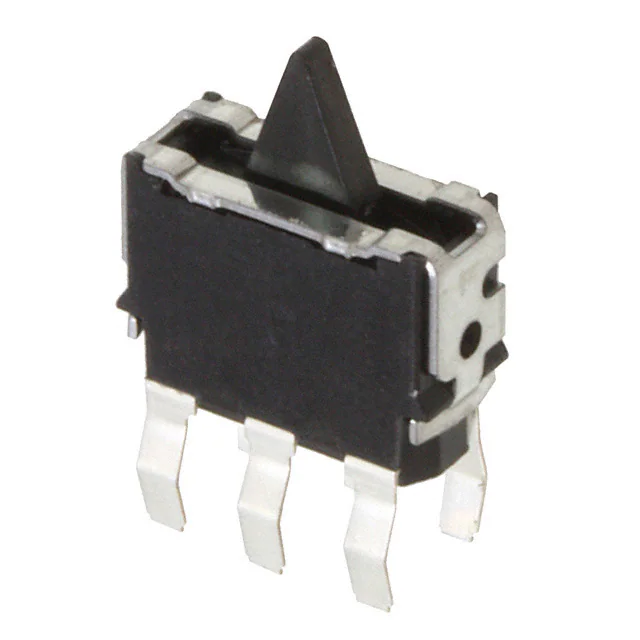

ESE-24CSV6SWITCH DETECTOR SPDT 0.01A 5V |
0 |
|
Datasheet |
ESE24 | Bulk | Active | SPDT | Mom-Off-Mom | 10mA (DC) | - | 5 V | Angled Toggle (Detector) | Through Hole | PC Pin | - | - | 35gf | - | 0.317" (8.05mm) | - | - | - | -40°C ~ 85°C |
|
ESE-24SH6SWITCH DETECTOR SPDT 0.01A 5V |
0 |
|
Datasheet |
ESE24 | Bulk | Active | SPDT | Mom-Off-Mom | 10mA (DC) | - | 5 V | Angled Toggle (Detector) | Through Hole, Right Angle | PC Pin | - | - | 35gf | - | 0.179" (4.55mm) | - | - | - | -10°C ~ 70°C |
|

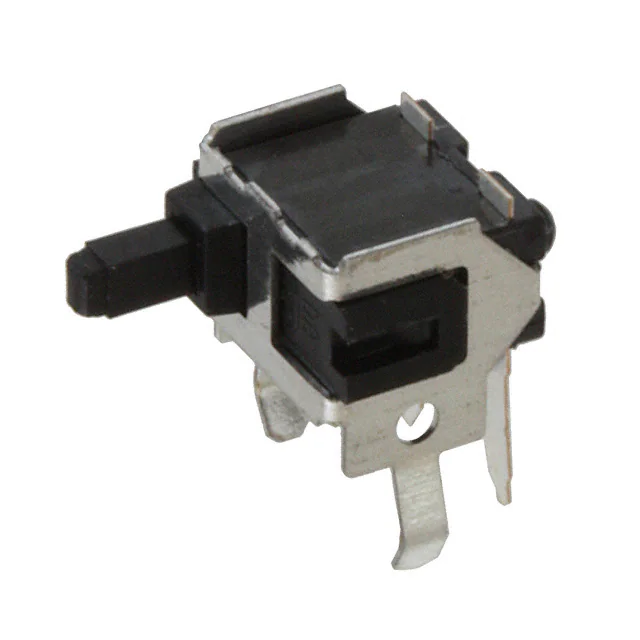

ESE-11SH6SWITCH DETECTOR SPST-NO 0.01A 5V |
0 |
|
Datasheet |
ESE11 | Bulk | Active | SPST-NO | Off-Mom | 10mA (DC) | - | 5 V | Overtravel Plunger | Through Hole, Right Angle | PC Pin | - | - | 35gf | - | 0.183" (4.65mm) | - | - | - | -10°C ~ 70°C |
|
ESE-24CMH6TSWITCH DETECTOR SPDT 0.01A 5V |
0 |
|
Datasheet |
ESE24 | Tape & Reel (TR) | Active | SPDT | Mom-Off-Mom | 10mA (DC) | - | 5 V | Angled Toggle (Detector) | Surface Mount, Right Angle | SMD (SMT) Tab | - | - | 35gf | - | 0.132" (3.35mm) | - | - | - | -40°C ~ 85°C |
|

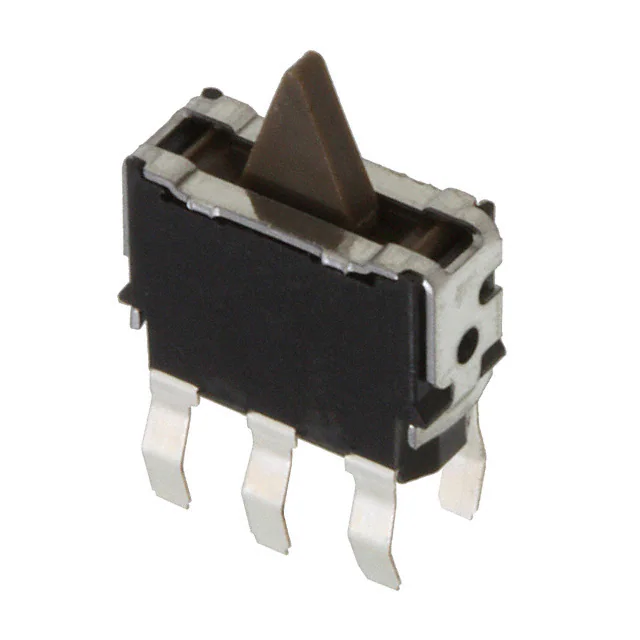

ESE-24CSV3SWITCH DETECTOR SPDT 0.01A 5V |
0 |
|
Datasheet |
ESE24 | Bulk | Active | SPDT | Mom-Off-Mom | 10mA (DC) | - | 5 V | Angled Toggle (Detector) | Through Hole | PC Pin | - | - | 35gf | - | 0.317" (8.05mm) | - | - | - | -40°C ~ 85°C |
|
|
AH166261SWITCH SNAP ACT SPDT 0.1A 125V |
0 |
|
Datasheet |
AH1 | Tube | Active | SPDT | On-Mom | 100mA (AC/DC) | 125 V | 30 V | Lever, Straight | Chassis Mount | Solder Lug | - | - | 50gf | 5.099gf | 0.268" (6.8mm) | 0.083" (2.1mm) | 0.020" (0.5mm) | 0.022" (0.55mm) | -25°C ~ 85°C |
|
ESE-23F005SWITCH DETECTOR SPDT 0.01A 5V |
0 |
|
Datasheet |
ESE23 | Tape & Reel (TR) | Active | SPDT | Mom-Off-Mom | 10mA (DC) | - | 5 V | Angled Toggle (Detector) | Surface Mount, Right Angle | SMD (SMT) Tab | - | - | 30gf | - | 0.087" (2.2mm) | - | - | - | -10°C ~ 60°C |
|
SS-5GL13-3DSWITCH SNAP ACT SPST-NO 5A 125V |
0 |
|
Datasheet |
SS | Bulk | Active | SPST-NO | Off-Mom | 5A (AC) | 125 V | - | Lever, Simulated Roller | Through Hole | PC Pin | IP40 | - | 50gf | 6.118gf | 0.420" (10.7mm) | - | 0.031" (0.8mm) | 0.047" (1.2mm) | -25°C ~ 85°C |
|
SS-01-F-2DSWITCH SNP ACT SPST-NC 0.1A 125V |
0 |
|
Datasheet |
SS | Bulk | Active | SPST-NC | On-Mom | 100mA (AC/DC) | 125 V | 30 V | Round (Pin Plunger) | Through Hole | PC Pin | IP40 | - | 50gf | 4.079gf | 0.330" (8.4mm) | 0.020" (0.5mm) | 0.004" (0.1mm) | 0.020" (0.5mm) | -25°C ~ 85°C |
|
AVT34223SWITCH SNAP ACTION SPDT 3A 125V |
0 |
|
Datasheet |
AVT3 | Bulk | Active | SPDT | On-Mom | 3A (AC/DC) | 125 V | 30 V | Lever, Straight | Through Hole | PC Pin | - | - | 16gf | 1.530gf | 0.345" (8.8mm) | 0.110" (2.8mm) | 0.031" (0.8mm) | 0.047" (1.2mm) | -25°C ~ 85°C |
|
|
AV32143SWITCH SNAP ACTION SPDT 3A 125V |
4 |
|
Datasheet |
AV3 | Bulk | Active | SPDT | On-Mom | 3A (AC/DC) | 125 V | 30 V | Lever, Straight | Chassis Mount | Solder Lug | IP40 | - | 40gf | 3.500gf | 0.345" (8.8mm) | 0.100" (2.5mm) | 0.020" (0.5mm) | 0.030" (0.76mm) | -25°C ~ 85°C |
Limit Switches Electronic Components
Frequently Asked Questions
Q1: What products are included in Limit Switches?
This category includes related Limit Switches subcategories and electronic components from multiple manufacturers. Select a lower-level category to view available part numbers.
Q2: Can I request a quotation for Limit Switches components?
Yes. Send us the part numbers and required quantities, and our team will provide sourcing and quotation support.
Q3: Are datasheets and technical information available?
Yes. Datasheets and technical information are available on supported final product pages and product listings.
Q4: Do you support BOM sourcing?
Yes. We support BOM matching, component procurement and alternative sourcing for Limit Switches and other electronic components.
