Limit Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Mounting Type | Termination Style | Ingress Protection | Features | Operating Force | Release Force | Operating Position | Pretravel | Differential Travel | Overtravel | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
D4A-1101N-FSWITCH SNAP ACTION SPDT 10A 125V |
1 |
|
Datasheet |
D4A | Bulk | Active | SPDT (DB/DM) | On-Mom | 10A (AC), 6A (DC) | 125 V | 30 V | Side Rotary - No Lever | Chassis Mount | Screw Terminal | IP67 - Dust Tight, Waterproof | - | 40gfm | 5.103gfm | - | 15° | 5° | 70° | -40°C ~ 100°C |
|
9007C54LSWITCH LIMIT SPDT 1.2A 600V |
1 |
|
Datasheet |
9007C | Box | Active | SPDT (DB/DM) | On-Mom | 1.2A (AC), 100mA (DC) | 600 V | 600 V | Spring, Wire | Chassis Mount | Screw Terminal | IP67 - Dust Tight, Waterproof | - | - | - | - | - | - | - | -29°C ~ 85°C |
|
|
WLD28-G-NSWITCH SNAP ACTION SPDT 10A 125V |
0 |
|
Datasheet |
WL | Bulk | Active | SPDT (DB/DM) | On-Mom | 10A (AC), 6A (DC) | 125 V | 30 V | Roller Plunger | Chassis Mount | Screw Terminal | IP67 - Dust Tight, Waterproof | - | 1700gf | 450gf | 1.732" (44.0mm) | 0.067" (1.7mm) | 0.040" (1.0mm) | 0.219" (5.6mm) | -10°C ~ 80°C |
|
XCKL102H7SWITCH LIMIT DPDT 3A 240V |
1 |
|
Datasheet |
XCKL | Box | Active | DPDT (DB/DM) | On-Mom, Off-Mom | 3A (AC), 270mA (DC) | 240 V | 250 V | Roller Plunger | Chassis Mount | Screw Terminal | IP66 - Dust Tight, Water Resistant | - | - | - | - | - | - | - | -25°C ~ 70°C |
|
WLCA12-LD-NSWITCH SNAP ACTION SPDT 10A 125V |
1 |
|
Datasheet |
WL-N | Bulk | Active | SPDT (DB/DM) | On-Mom | 10A (AC), 6A (DC) | 125 V | 30 V | Side Rotary, Adjustable Roller | Chassis Mount | Screw Terminal | IP67 - Dust Tight, Waterproof | Status Indicator | 1360gf | 120gf | - | 15° | 12° | 70° | -10°C ~ 80°C |
|
WLCL-2NLD-NSWITCH SNAP ACTION SPDT 10A 125V |
1 |
|
Datasheet |
WL-N | Bulk | Active | SPDT (DB/DM) | On-Mom | 10A (AC), 6A (DC) | 125 V | 30 V | Side Rotary, Adjustable Rod | Chassis Mount | Screw Terminal | IP67 - Dust Tight, Waterproof | Status Indicator | 142gf | 28gf | - | 20° | 10° | 70° | -10°C ~ 80°C |
|
WLNJ-2LD-NSWITCH SNAP ACTION SPDT 10A 125V |
0 |
|
Datasheet |
WL-N | Bulk | Active | SPDT (DB/DM) | On-Mom | 10A (AC), 6A (DC) | 125 V | 30 V | Spring, Rod | Chassis Mount | Screw Terminal | IP67 - Dust Tight, Waterproof | Status Indicator | 150gf | - | - | 1.575" (40.0mm) | - | - | -10°C ~ 80°C |
|
|
9007C52A2SWITCH LIMIT SPDT 6A 120V |
1 |
|
Datasheet |
9007AW | Box | Active | SPDT (DB/DM) | On-Mom | 6A (AC), 550mA (DC) | 120 V | 125 V | Side Rotary - No Lever | Chassis Mount | Screw Terminal | IP67 - Dust Tight, Waterproof | - | - | - | - | - | - | - | -29°C ~ 85°C |
|

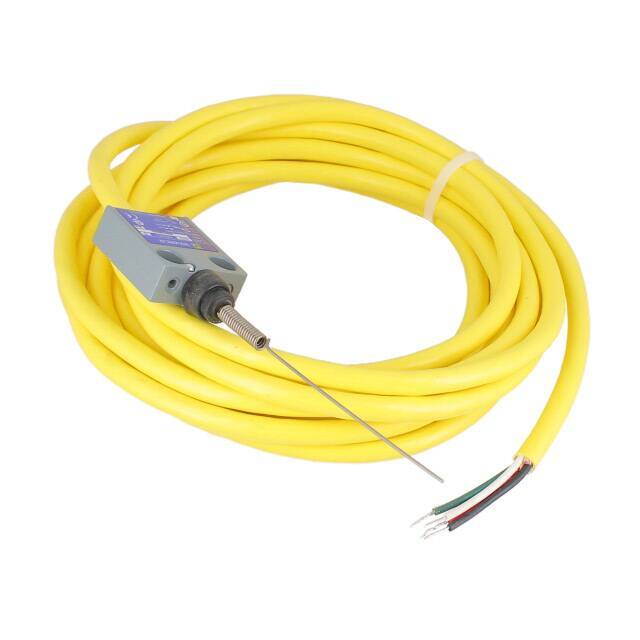

9007MS05S0500SWITCH LIMIT SPDT 6A 120V |
1 |
|
Datasheet |
9007MS | Box | Active | SPDT | On-Mom | 6A (AC), 5A (DC) | 120 V | 28 V | Spring, Wire | Chassis Mount | Cable Leads | IP54 - Dust Protected, Water Resistant | - | - | - | - | - | - | - | -40°C ~ 104°C |
|
WLCA12-2LD-NSWITCH SNAP ACTION SPDT 10A 125V |
0 |
|
Datasheet |
WL-N | Bulk | Active | SPDT (DB/DM) | On-Mom | 10A (AC), 6A (DC) | 125 V | 30 V | Side Rotary, Adjustable Roller | Chassis Mount | Screw Terminal | IP67 - Dust Tight, Waterproof | Status Indicator | 1360gf | 120gf | - | 25° | 16° | 60° | -10°C ~ 80°C |
|
|
9007C52B2SWITCH LIMIT SPDT 6A 120V |
1 |
|
Datasheet |
9007AW | Box | Active | SPDT (DB/DM) | On-Mom | 6A (AC), 550mA (DC) | 120 V | 125 V | Side Rotary - No Lever | Chassis Mount | Screw Terminal | IP67 - Dust Tight, Waterproof | - | - | - | - | - | - | - | -29°C ~ 85°C |
|
|
9007C54BSWITCH SNAP ACTION SPDT 10A 600V |
1 |
|
Datasheet |
9007C | Box | Active | SPDT (DB/DM) | On-Mom | 10A (AC) | 600 V | - | Side Rotary - No Lever | Chassis Mount | Screw Terminal | - | - | - | - | - | - | - | - | - |
|

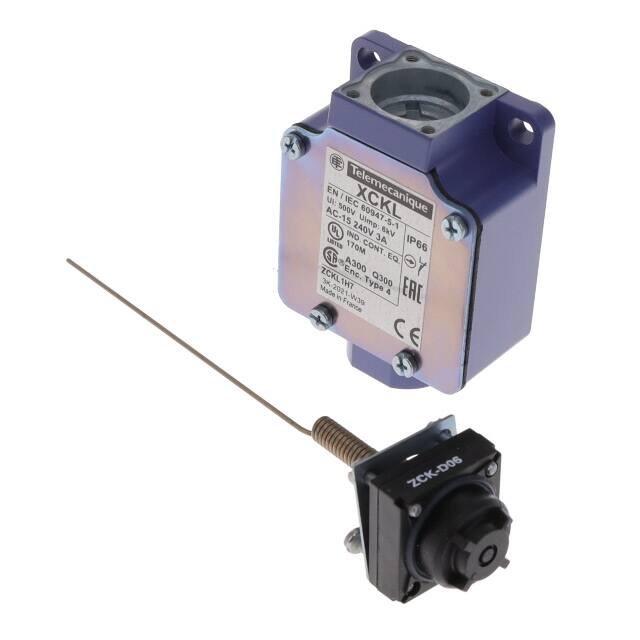

XCKL106H7SWITCH LIMIT DPDT 3A 240V |
1 |
|
Datasheet |
XCKL | Box | Active | DPDT (DB/DM) | On-Mom, Off-Mom | 3A (AC), 270mA (DC) | 240 V | 250 V | Spring, Cat Whisker | Chassis Mount | Screw Terminal | IP66 - Dust Tight, Water Resistant | - | - | - | - | - | - | - | -25°C ~ 70°C |
|
D4C-6202SWITCH SNAP ACTION SPDT 0.1A 30V |
1 |
|
Datasheet |
D4C | Bulk | Active | SPDT | On-Mom | 100mA (DC) | - | 30 V | Roller Plunger | Chassis Mount | Cable Leads | IP67 - Dust Tight, Waterproof | Oil Resistant Cable 3m, Status Indicator | 1200gf | 450gf | 1.122" (28.5mm) | 0.071" (1.8mm) | 0.008" (0.2mm) | 0.118" (3.0mm) | -10°C ~ 70°C |
|
9007CB33S1SWITCH SNAP ACTION DPDT 3A 120V |
1 |
|
Datasheet |
9007C | Box | Active | DPDT (DB/DM) | On-Mom | 3A (AC), 200mA (DC) | 120 V | 125 V | Lever, Roller | Chassis Mount | Screw Terminal | IP20 | - | - | - | - | - | - | - | -29°C ~ 85°C |
|
ZV2-N-2SWITCH SNAP ACTION SPDT 15A 125V |
1 |
|
Datasheet |
ZV2 | Bulk | Active | SPDT | On-Mom | 15A (AC), 500mA (DC) | 125 V | 125 V | Round (Pin Plunger) | Chassis Mount | Screw Terminal | IP65 - Dust Tight, Water Resistant | - | 800gf | 240gf | 1.256" (31.9mm) | 0.080" (2.0mm) | 0.004" (0.1mm) | 0.197" (5.0mm) | -10°C ~ 80°C |
|

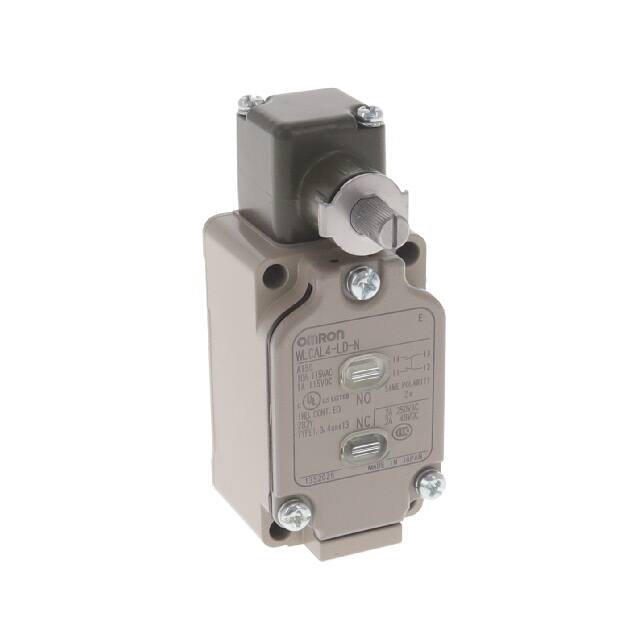

WLCAL4-LD-NSWITCH SNAP ACTION SPDT 10A 125V |
1 |
|
Datasheet |
WL-N | Bulk | Active | SPDT (DB/DM) | On-Mom | 10A (AC), 6A (DC) | 125 V | 30 V | Side Rotary, Adjustable Rod | Chassis Mount | Screw Terminal | IP67 - Dust Tight, Waterproof | Status Indicator | 100gf | 15gf | - | 15° | 12° | 70° | -10°C ~ 80°C |
|
|
9007MS01S0306SWITCH LIMIT SPDT 6A 120V |
1 |
|
Datasheet |
9007MS | Box | Active | SPDT | On-Mom | 6A (AC), 5A (DC) | 120 V | 28 V | Round (Pin Plunger) | Chassis Mount | Cable Leads | IP67 - Dust Tight, Waterproof | - | - | - | - | - | - | - | -40°C ~ 104°C |
|
3SE51120CD02SWITCH SNAP ACTION DPST 6A 125V |
1 |
|
Datasheet |
SIRIUS | Box | Active | DPST-NO/NC | On-Mom, Off-Mom | 6A (AC), 3A (DC) | 125 V | 24 V | Roller Plunger | Chassis Mount | Screw Terminal | IP66/IP67 - Dust Tight, Water Resistant, Waterproof | - | 2039gf | - | - | - | - | 0.118" (3.0mm) | -25°C ~ 85°C |
|
D4CC-9137SWITCH LIMIT SPDT SNAP ACTN LEVR |
1 |
|
Datasheet |
D4CC | Bulk | Active | SPDT | On-Mom | - | - | - | Side Rotary, Roller | Chassis Mount | Connector | IP67 - Dust Tight, Waterproof | - | - | - | - | - | - | - | -10°C ~ 70°C |
Limit Switches Electronic Components
Frequently Asked Questions
Q1: What products are included in Limit Switches?
This category includes related Limit Switches subcategories and electronic components from multiple manufacturers. Select a lower-level category to view available part numbers.
Q2: Can I request a quotation for Limit Switches components?
Yes. Send us the part numbers and required quantities, and our team will provide sourcing and quotation support.
Q3: Are datasheets and technical information available?
Yes. Datasheets and technical information are available on supported final product pages and product listings.
Q4: Do you support BOM sourcing?
Yes. We support BOM matching, component procurement and alternative sourcing for Limit Switches and other electronic components.
