Limit Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Mounting Type | Termination Style | Ingress Protection | Features | Operating Force | Release Force | Operating Position | Pretravel | Differential Travel | Overtravel | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
9007C52JSWITCH SNAP ACTION SPDT 6A 120V |
1 |
|
Datasheet |
9007AW | Box | Active | SPDT (DB/DM) | On-Mom | 6A (AC), 550mA (DC) | 120 V | 125 V | Spring, Rod | Chassis Mount | Screw Terminal | IP67 - Dust Tight, Waterproof | - | - | - | - | - | - | - | -29°C ~ 85°C |
|
9007C66B2SWITCH LIMIT DPDT 6A 120V |
1 |
|
Datasheet |
9007C | Box | Active | DPDT (DB/DM) | On-Mom | 6A (AC), 550mA (DC) | 120 V | 125 V | Side Rotary - No Lever | Chassis Mount | Screw Terminal | IP67 - Dust Tight, Waterproof | - | - | - | - | - | - | - | -29°C ~ 85°C |
|
|
3SE03AR1SWITCH LIMIT SIDE ROTARY |
1 |
|
Datasheet |
- | Box | Active | DPST-NO/NC | On-Mom, Off-Mom | - | - | - | Side Rotary - No Lever | Chassis Mount | Screw Terminal | - | - | - | - | - | - | - | - | - |
|
D4F-320-3RSWITCH SNAP ACTION 4PST 15A 120V |
0 |
|
Datasheet |
D4F | Bulk | Active | 4PST-2NO/2NC | On-Mom, Off-Mom | 15A (AC), 550mA (DC) | 120 V | 125 V | Side Rotary, Roller | Chassis Mount | Cable Leads | IP67 - Dust Tight, Waterproof | Cable Length 3m | 510gf | 51gf | - | 12° | - | 40° | -30°C ~ 70°C |
|
D4A-5101NSWITCH SNAP ACTION SPDT 10A 125V |
1 |
|
Datasheet |
D4A | Bulk | Active | SPDT (DB/DM) | On-Mom | 10A (AC), 6A (DC) | 125 V | 30 V | Side Rotary - No Lever | Chassis Mount | Screw Terminal | IP67 - Dust Tight, Waterproof | - | 40gfm | 5.103gfm | - | 15° | 5° | 70° | -40°C ~ 100°C |
|
|
9007C52GSWITCH NEMA LIMIT SPDT 6A 120V |
1 |
|
Datasheet |
9007AW | Box | Active | SPDT (DB/DM) | On-Mom | 6A (AC), 550mA (DC) | 120 V | 125 V | Round (Pin Plunger) | Chassis Mount | Screw Terminal | IP67 - Dust Tight, Waterproof | - | - | - | - | - | - | - | -29°C ~ 85°C |
|
|
9007C52DSWITCH SNAP ACTION SPDT 6A 120V |
1 |
|
Datasheet |
9007AW | Box | Active | SPDT (DB/DM) | On-Mom | 6A (AC), 550mA (DC) | 120 V | 125 V | Roller Plunger | Chassis Mount | Screw Terminal | IP67 - Dust Tight, Waterproof | - | - | - | - | - | - | - | -29°C ~ 85°C |
|

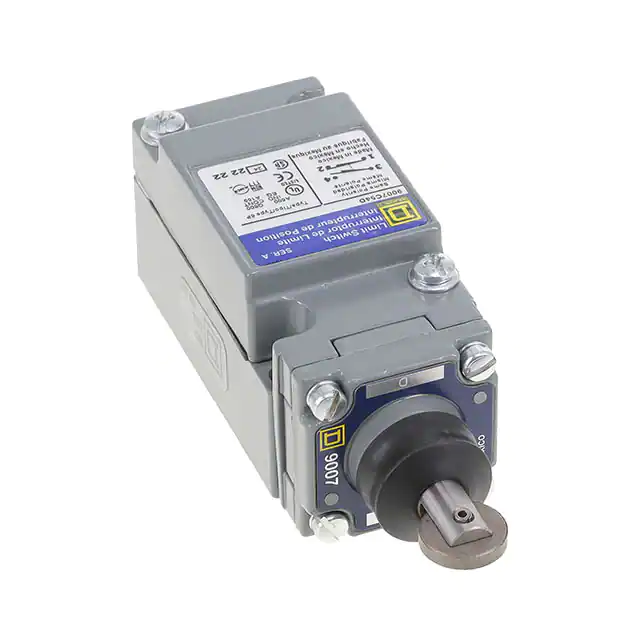

9007C54DSWITCH LIMIT SPDT 1.2A 600V |
1 |
|
Datasheet |
9007C | Box | Active | SPDT (DB/DM) | On-Mom | 1.2A (AC), 100mA (DC) | 600 V | 600 V | Roller Plunger | Chassis Mount | Screw Terminal | IP67 - Dust Tight, Waterproof | - | - | - | - | - | - | - | -29°C ~ 85°C |
|
GSAB20A1BSWITCH SNAP ACTION 4PST 6A 120V |
0 |
|
Datasheet |
GSA | Bulk | Active | 4PST-2NO/2NC | On-Mom, Off-Mom | 6A (AC), 2.8A (DC) | 120 V | 24 V | Side Rotary, Roller | Chassis Mount | Screw Terminal | IP67 - Dust Tight, Waterproof | Metal Roller | 33gfm | 40gfm | 2.638" (67.0mm) | - | 12° | 85° | -40°C ~ 85°C |
|
WLCA32-43TS-NSWITCH SNAP ACTION SPDT 10A 125V |
0 |
|
Datasheet |
WL-N | Bulk | Active | SPDT (DB/DM) | On-Mom | 10A (AC), 6A (DC) | 125 V | 30 V | Side Rotary, Fork Lever Lock (Yoke) | Chassis Mount | Screw Terminal | IP67 - Dust Tight, Waterproof | - | 1200gf | - | - | 55° | - | 35° | -10°C ~ 80°C |
|
GSAC20CSWITCH SNAP ACTION 4PST 6A 120V |
0 |
|
Datasheet |
GSA | Bulk | Active | 4PST-2NO/2NC | On-Mom, Off-Mom | 6A (AC), 2.8A (DC) | 120 V | 24 V | Roller Plunger | Chassis Mount | Screw Terminal | IP67 - Dust Tight, Waterproof | - | 1632gf | 3773gf | 1.890" (48.0mm) | - | 0.035" (0.9mm) | - | -25°C ~ 85°C |
|
D4F-102-5RSWITCH SNAP ACTION DPST 15A 120V |
1 |
|
Datasheet |
D4F | Bulk | Active | DPST-NO/NC | On-Mom, Off-Mom | 15A (AC), 550mA (DC) | 120 V | 125 V | Roller Plunger | Chassis Mount | Cable Leads | IP67 - Dust Tight, Waterproof | Cable Length 5m | 1224gf | 153gf | 1.156" (29.4mm) | 0.047" (1.2mm) | - | 0.125" (3.2mm) | -30°C ~ 70°C |
|
|
9007C54GDSWITCH SNAP ACT SPDT 1.2A 600V |
0 |
|
Datasheet |
9007C | Box | Active | SPDT (DB/DM) | On-Mom | 1.2A (AC), 100mA (DC) | 600 V | 600 V | Adjustable Side Plunger | Chassis Mount | Screw Terminal | IP67 - Dust Tight, Waterproof | - | - | - | - | - | - | - | -29°C ~ 85°C |
|
|
L100WNS2M26SWITCH LIMIT DPST 20A 120V |
0 |
|
Datasheet |
- | Box | Active | DPST-NO (DM) | Off-Mom | 20A (AC), 5A (DC) | 120 V | 120 V | Side Rotary - No Lever | Chassis Mount | Screw Terminal | IP67 - Dust Tight, Waterproof | - | - | - | - | - | - | - | -23°C ~ 85°C |
|
D4F-202-1RSWITCH SNAP ACT DPST-NC 15A 120V |
0 |
|
Datasheet |
D4F | Bulk | Active | DPST-NC | On-Mom | 15A (AC), 550mA (DC) | 120 V | 125 V | Roller Plunger | Chassis Mount | Cable Leads | IP67 - Dust Tight, Waterproof | Cable Length 1m | 1224gf | 153gf | 1.156" (29.4mm) | 0.047" (1.2mm) | - | 0.125" (3.2mm) | -30°C ~ 70°C |
|
|
9007TUB1SWITCH NEMA LIMIT SPDT 20A 120V |
0 |
|
Datasheet |
9007T | Box | Active | SPDT (DB/DM) | On-Mom | 20A (AC), 5A (DC) | 120 V | 120 V | Side Rotary - No Lever | Chassis Mount | Screw Terminal | IP67 - Dust Tight, Waterproof | - | - | - | - | - | - | - | -23°C ~ 85°C |
|
WLCA2-LD-M1GJ-NSWITCH SNAP ACTION SPDT 10A 125V |
1 |
|
Datasheet |
WL-N | Bulk | Active | SPDT (DB/DM) | On-Mom | 10A (AC), 6A (DC) | 125 V | 30 V | Side Rotary, Roller | Chassis Mount | Cable with Connector | IP67 - Dust Tight, Waterproof | Status Indicator | 1360gf | 120gf | - | 15° | 12° | 70° | -10°C ~ 80°C |
|

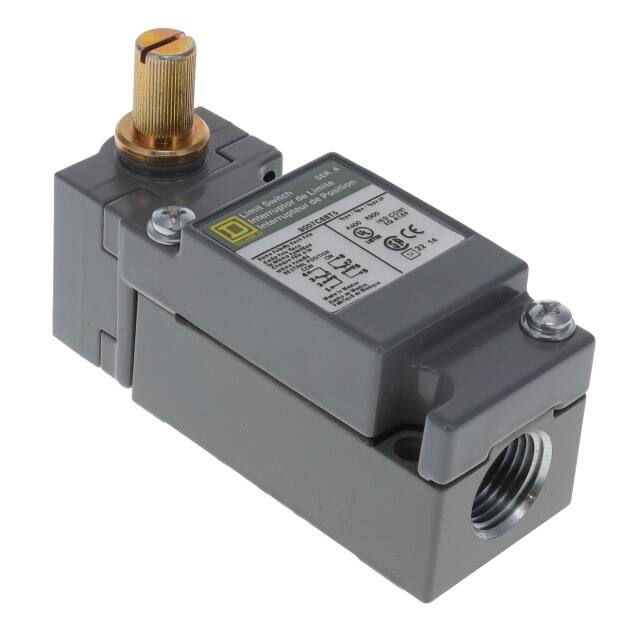

9007C68T5SWITCH LIMIT DPDT 1.2A 600V |
1 |
|
Datasheet |
9007C | Box | Active | DPDT (DB/DM) | On-Mom | 1.2A (AC), 110mA (DC) | 600 V | 250 V | Side Rotary - No Lever | Chassis Mount | Screw Terminal | IP67 - Dust Tight, Waterproof | - | - | - | - | - | - | - | -29°C ~ 85°C |
|
VB-2111SWITCH SNAP ACT SPDTX2 10A 125V |
1 |
|
Datasheet |
VB | Bulk | Active | SPDT x 2 | On-Mom | 10A (AC), 600mA (DC) | 125 V | 125 V | Bevel Plunger | Chassis Mount | Screw Terminal | IP67 - Dust Tight, Waterproof | - | 1500gf | 500gf | 1.024" (26.0mm) | 0.060" (1.5mm) | 0.020" (0.5mm) | 0.138" (3.5mm) | -10°C ~ 80°C |
|
|
9007C54B2Y1901SWITCH LIMIT SPDT 6A 120V |
1 |
|
Datasheet |
9007C | Box | Active | SPDT (DB/DM) | On-Mom | 6A (AC), 550mA (DC) | 120 V | 120 V | Side Rotary - No Lever | Chassis Mount | Connector | IP67 - Dust Tight, Waterproof | - | - | - | - | - | - | - | -29°C ~ 85°C |
Limit Switches Electronic Components
Frequently Asked Questions
Q1: What products are included in Limit Switches?
This category includes related Limit Switches subcategories and electronic components from multiple manufacturers. Select a lower-level category to view available part numbers.
Q2: Can I request a quotation for Limit Switches components?
Yes. Send us the part numbers and required quantities, and our team will provide sourcing and quotation support.
Q3: Are datasheets and technical information available?
Yes. Datasheets and technical information are available on supported final product pages and product listings.
Q4: Do you support BOM sourcing?
Yes. We support BOM matching, component procurement and alternative sourcing for Limit Switches and other electronic components.
