Limit Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Mounting Type | Termination Style | Ingress Protection | Features | Operating Force | Release Force | Operating Position | Pretravel | Differential Travel | Overtravel | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
D4N-2122SWITCH SNAP ACTION DPST 3A 240V |
2 |
|
Datasheet |
D4N | Bulk | Active | DPST-NO/NC | On-Mom, Off-Mom | 3A (AC), 270mA (DC) | 240 V | 250 V | Side Rotary, Roller | Chassis Mount | Screw Terminal | IP67 - Dust Tight, Waterproof | Metal Lever, Resin Roller | 510gf | 51gf | - | 18° | 14° | 40° | -30°C ~ 70°C |
|
D4N-112HSWITCH SNAP ACTION DPST 3A 240V |
6 |
|
Datasheet |
D4N | Bulk | Active | DPST-NO/NC | On-Mom, Off-Mom | 3A (AC), 270mA (DC) | 240 V | 250 V | Side Rotary, Adjustable Roller | Chassis Mount | Screw Terminal | IP67 - Dust Tight, Waterproof | Metal Lever, Rubber Roller | 459gf | 41gf | - | 18° | 14° | 40° | -30°C ~ 70°C |
|
D4N-2F32SWITCH SNAP ACTION 3PST 3A 240V |
9 |
|
Datasheet |
D4N | Bulk | Active | 3PST-2NC/1NO (MBB) | On-Mom, Off-Mom | 3A (AC), 270mA (DC) | 240 V | 250 V | Roller Plunger | Chassis Mount | Screw Terminal | IP67 - Dust Tight, Waterproof | - | 663gf | 153gf | 1.100" (28.0mm) | 0.110" (2.8mm) | - | 0.158" (4.0mm) | -30°C ~ 70°C |
|

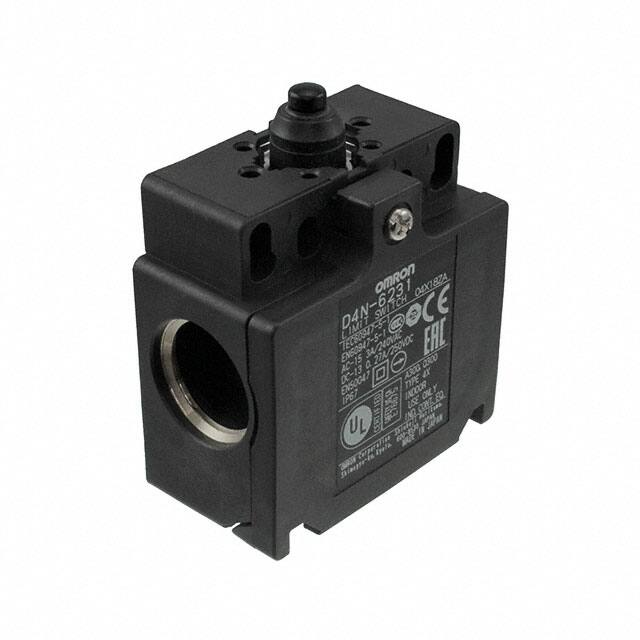

D4N-6231SWITCH SNAP ACT DPST-NC 3A 240V |
7 |
|
Datasheet |
D4N | Bulk | Active | DPST-NC | On-Mom | 3A (AC), 270mA (DC) | 240 V | 250 V | Round (Pin Plunger) | Chassis Mount | Screw Terminal | IP67 - Dust Tight, Waterproof | - | 663gf | 153gf | 0.710" (18.0mm) | 0.080" (2.0mm) | 0.040" (1.0mm) | 0.158" (4.0mm) | -30°C ~ 70°C |
|
D4N-4132NPTSWITCH SNAP ACTION DPST 3A 240V |
11 |
|
Datasheet |
D4N | Bulk | Active | DPST-NO/NC | On-Mom, Off-Mom | 3A (AC), 270mA (DC) | 240 V | 250 V | Roller Plunger | Chassis Mount | Screw Terminal | IP67 - Dust Tight, Waterproof | - | 663gf | 153gf | 1.125" (28.6mm) | 0.080" (2.0mm) | 0.040" (1.0mm) | 0.158" (4.0mm) | -30°C ~ 70°C |
|
83581101SWITCH SNAP ACTION SPDT 10A 250V |
6 |
|
Datasheet |
83581 | Bulk | Active | SPDT | On-Mom | 10A (AC) | 250 V | - | Roller Plunger | Panel Mount | Wire Leads | IP67 - Dust Tight, Waterproof | Cable Length 0.5m | 510gf | - | - | - | 0.040" (1.0mm) | 0.098" (2.5mm) | -20°C ~ 85°C |
|
Z-15GNJ55-MR3 0.5MSWITCH BASIC |
6 |
|
Datasheet |
Z | Bulk | Active | - | - | - | - | - | Spring, Rod | - | - | - | - | - | - | - | - | - | - | - |
|
D4N-4122-NPTSWITCH SNAP ACTION DPST 3A 240V |
5 |
|
Datasheet |
D4N | Bulk | Active | DPST-NO/NC | On-Mom, Off-Mom | 3A (AC), 270mA (DC) | 240 V | 250 V | Side Rotary, Roller | Chassis Mount | Screw Terminal | IP67 - Dust Tight, Waterproof | Metal Lever, Resin Roller | 510gf | 51gf | - | 18° | 14° | 40° | -30°C ~ 70°C |
|
D4N-2A2GSWITCH SNAP ACTION DPST 3A 240V |
2 |
|
Datasheet |
D4N | Bulk | Active | DPST-NO/NC | On-Mom, Off-Mom | 3A (AC), 270mA (DC) | 240 V | 250 V | Side Rotary, Adjustable Roller | Chassis Mount | Screw Terminal | IP67 - Dust Tight, Waterproof | Metal Lever, Resin Roller | 459gf | 41gf | - | 18° | - | 40° | -30°C ~ 70°C |
|
Z-15GQ55-ML 1MSWITCH SNAP ACTION SPDT 15A 125V |
4 |
|
Datasheet |
Z | Bulk | Active | SPDT | On-Mom | 15A (AC), 6A (DC) | 125 V | 30 V | Overtravel Plunger | Panel Mount | Cable Leads | IP62 | Cable Length 1m | 540gf | 114gf | 0.859" (21.8mm) | 0.071" (1.8mm) | 0.002" (0.05mm) | 0.217" (5.5mm) | -15°C ~ 80°C |
|
VB-S101NSWITCH SNAP ACTION SPDT 10A 125V |
5 |
|
Datasheet |
VB | Bulk | Active | SPDT | On-Mom | 10A (AC), 600mA (DC) | 125 V | 125 V | - | Chassis Mount | Screw Terminal | IP67 - Dust Tight, Waterproof | - | 1500gf | 500gf | - | 0.060" (1.5mm) | 0.020" (0.5mm) | 0.138" (3.5mm) | -10°C ~ 80°C |
|
D4N-6162SWITCH SNAP ACTION DPST 3A 240V |
2 |
|
Datasheet |
D4N | Bulk | Active | DPST-NO/NC | On-Mom, Off-Mom | 3A (AC), 270mA (DC) | 240 V | 250 V | Lever, Roller | Chassis Mount | Screw Terminal | IP67 - Dust Tight, Waterproof | - | 510gf | 82gf | 1.457" (37.0mm) | 0.157" (4.0mm) | 0.060" (1.5mm) | 0.197" (5.0mm) | -30°C ~ 70°C |
|
D4N-2125SWITCH SNAP ACTION DPST 3A 240V |
3 |
|
Datasheet |
D4N | Bulk | Active | DPST-NO/NC | On-Mom, Off-Mom | 3A (AC), 270mA (DC) | 240 V | 250 V | Side Rotary, Roller | Chassis Mount | Screw Terminal | IP67 - Dust Tight, Waterproof | Metal Lever, Metal Roller | 510gf | 51gf | - | 18° | 14° | 40° | -30°C ~ 70°C |
|

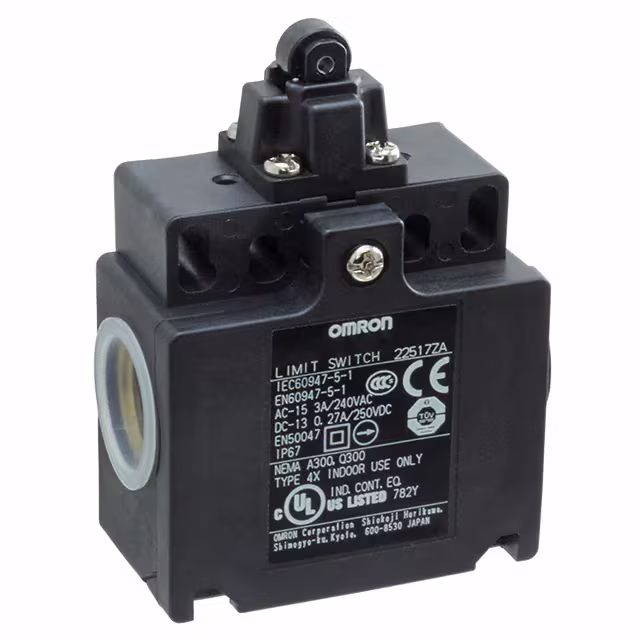

D4N-6A32SWITCH SNAP ACTION DPST 3A 240V |
2 |
|
Datasheet |
D4N | Bulk | Active | DPST-NO/NC | On-Mom, Off-Mom | 3A (AC), 270mA (DC) | 240 V | 250 V | Roller Plunger | Chassis Mount | Screw Terminal | IP67 - Dust Tight, Waterproof | - | 663gf | 153gf | 1.110" (28.2mm) | 0.080" (2.0mm) | - | 0.158" (4.0mm) | -30°C ~ 70°C |
|
SHL-W255-01SWITCH SNAP ACT SPDT 0.1A 125V |
4 |
|
Datasheet |
SHL | Bulk | Active | SPDT | On-Mom | 100mA (AC/DC) | 125 V | 30 V | Lever, Roller | Chassis Mount | Screw Terminal | IP67 - Dust Tight, Waterproof | - | 400gf | 80gf | 1.300" (33.0mm) | 0.315" (8.0mm) | 0.098" (2.5mm) | 0.118" (3.0mm) | -10°C ~ 80°C |
|
D4N-6120SWITCH SNAP ACTION DPST 3A 240V |
5 |
|
Datasheet |
D4N | Bulk | Active | DPST-NO/NC | On-Mom, Off-Mom | 3A (AC), 270mA (DC) | 240 V | 250 V | Side Rotary, Roller | Chassis Mount | Screw Terminal | IP67 - Dust Tight, Waterproof | Resin Lever, Resin Roller | 510gf | 51gf | - | 18° | 14° | 40° | -30°C ~ 70°C |
|
D4N-6A31SWITCH SNAP ACTION DPST 3A 240V |
3 |
|
Datasheet |
D4N | Bulk | Active | DPST-NO/NC | On-Mom, Off-Mom | 3A (AC), 270mA (DC) | 240 V | 250 V | Round (Pin Plunger) | Chassis Mount | Screw Terminal | IP67 - Dust Tight, Waterproof | - | 663gf | 153gf | 0.710" (18.0mm) | 0.080" (2.0mm) | - | 0.158" (4.0mm) | -30°C ~ 70°C |
|
X-10GW29SWITCH BASIC |
4 |
|
Datasheet |
X | - | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
D4N-2187SWITCH SNAP ACTION DPST 3A 240V |
13 |
|
Datasheet |
D4N | Bulk | Active | DPST-NO/NC | On-Mom, Off-Mom | 3A (AC), 270mA (DC) | 240 V | 250 V | Spring, Rod | Chassis Mount | Screw Terminal | IP67 - Dust Tight, Waterproof | - | 153gf | - | - | 15° | - | - | -30°C ~ 70°C |
|
Z-01HQ2255-BSWITCH SNAP ACT SPDT 0.1A 125V |
5 |
|
Datasheet |
Z | Bulk | Active | SPDT | On-Mom | 100mA (AC/DC) | 125 V | 30 V | Roller Plunger | Panel Mount | Screw Terminal | IP62 | - | 200 ~ 285gf | 114gf | 1.313" (33.4mm) | 0.012" (0.3mm) | 0.001" (0.025mm) | 0.141" (3.6mm) | -15°C ~ 80°C |
