Limit Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Mounting Type | Termination Style | Ingress Protection | Features | Operating Force | Release Force | Operating Position | Pretravel | Differential Travel | Overtravel | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
D2VW-01L3-1MSSWITCH SNAP ACT SPDT 0.1A 125V |
10 |
|
Datasheet |
D2VW | Tray | Active | SPDT | On-Mom | 100mA (AC/DC) | 125 V | 30 V | Lever, Simulated Roller | Chassis Mount | Wire Leads | IP67 - Dust Tight, Waterproof | - | 120gf | 15gf | 0.738" (18.7mm) | 0.157" (4.0mm) | 0.031" (0.8mm) | 0.062" (1.6mm) | -40°C ~ 85°C |
|

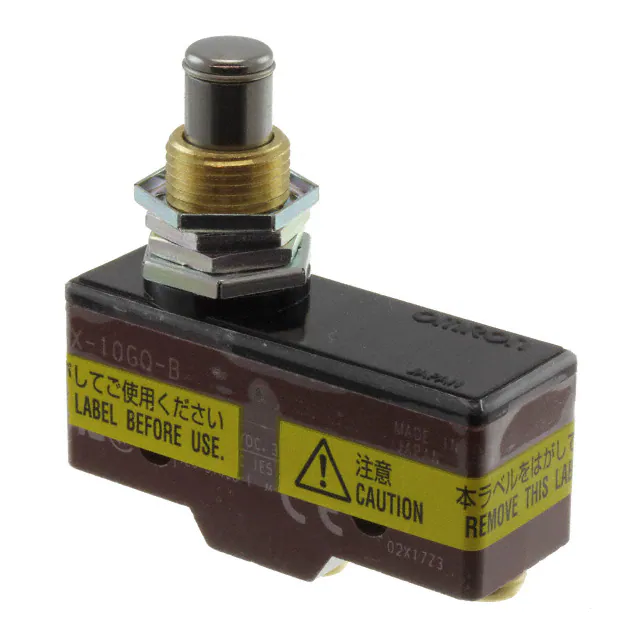

X-10GQ-BSWITCH SNAP ACTION SPDT 10A 30V |
96 |
|
Datasheet |
X | Bulk | Active | SPDT | On-Mom | 10A (DC) | - | 30 V | Round (Pin Plunger) | Panel Mount | Screw Terminal | IP00 | - | 510gf | 114gf | 0.859" (21.8mm) | 0.035" (0.9mm) | 0.007" (0.18mm) | 0.217" (5.5mm) | -25°C ~ 80°C |
|
Z-15GW2277SWITCH SNAP ACTION SPDT 15A 125V |
25 |
|
Datasheet |
Z | Tray | Active | SPDT | On-Mom | 15A (AC), 6A (DC) | 125 V | 30 V | Lever, Roller | Chassis Mount | Solder Lug | IP00 | - | 180gf | 50gf | 1.625" (41.3mm) | - | 0.031" (0.8mm) | 0.094" (2.4mm) | -25°C ~ 80°C |
|
Z-15GW2277-B7-KSWITCH SNAP ACTION SPDT 15A 125V |
10 |
|
Datasheet |
Z | Bulk | Active | SPDT | On-Mom | 15A (AC), 6A (DC) | 125 V | 30 V | Lever, Roller | Chassis Mount | Screw Terminal | IP00 | - | 180gf | 50gf | 1.625" (41.3mm) | - | 0.031" (0.8mm) | 0.094" (2.4mm) | -25°C ~ 80°C |
|
X0228023SWITCH SNAP ACTION SPDT 10A 250V |
33 |
|
Datasheet |
83106 | Bulk | Active | SPDT (DB/DM) | On-On | 10A (AC) | 250 V | - | Round (Pin Plunger) | Chassis Mount | Quick Connect - 0.250" (6.3mm) | - | Reset Plunger on Bottom | 204gf | - | - | - | - | - | -20°C ~ 85°C |
|
Z-15GQ21SWITCH SNAP ACTION SPDT 15A 125V |
6 |
|
Datasheet |
Z | Tray | Active | SPDT | On-Mom | 15A (AC), 6A (DC) | 125 V | 30 V | Cross Roller Plunger | Panel Mount | Solder Lug | IP00 | - | 250 ~ 350gf | 114gf | 1.313" (33.4mm) | 0.015" (0.4mm) | 0.002" (0.05mm) | 0.141" (3.6mm) | -25°C ~ 80°C |
|
Z-01H-BSWITCH SNAP ACT SPDT 0.1A 125V |
87 |
|
Datasheet |
Z | Bulk | Active | SPDT | On-Mom | 100mA (AC/DC) | 125 V | 30 V | Round (Pin Plunger) | Chassis Mount | Screw Terminal | IP00 | - | 250gf | 80gf | 0.625" (15.9mm) | 0.020" (0.5mm) | 0.002" (0.05mm) | 0.005" (0.13mm) | -25°C ~ 80°C |
|
SZL-VL-S-D-N-MSWITCH SNAP ACT SPDT 0.5A 380V |
63 |
|
Datasheet |
SZL-VL-S | Bulk | Active | SPDT (DB/DM) | On-Mom | 500mA (AC), 50mA (DC) | 380 V | 220 V | Round (Pin Plunger) | Chassis Mount | Screw Terminal | IP67 - Dust Tight, Waterproof | - | 918gf | - | - | 0.080" (2.0mm) | 0.060" (1.5mm) | 0.138" (3.5mm) | -20°C ~ 70°C |
|
Z-15ESRSWITCH SNAP ACTION SPDT 15A 125V |
9 |
|
Datasheet |
Z | Bulk | Active | SPDT | On-On | 15A (AC/DC) | 125 V | 30 V | Round (Pin Plunger) | Chassis Mount | Solder Lug | IP00 | Reset Plunger on Bottom | 270gf | 285gf | 1.110" (28.2mm) | 0.015" (0.4mm) | - | 0.062" (1.6mm) | -25°C ~ 80°C |
|
X-10GW2SWITCH SNAP ACTION SPDT 10A 30V |
6 |
|
Datasheet |
X | Tray | Active | SPDT | On-Mom | 10A (DC) | - | 30 V | Lever, Roller | Chassis Mount | Solder Lug | IP00 | - | 145gf | 21gf | 1.266" (32.2mm) | - | 0.118" (3.0mm) | 0.158" (4.0mm) | -25°C ~ 80°C |
|
Z-15GW2255-BSWITCH SNAP ACTION SPDT 15A 125V |
50 |
|
Datasheet |
Z | Tray | Active | SPDT | On-Mom | 15A (AC), 6A (DC) | 125 V | 30 V | Lever, Roller | Chassis Mount | Screw Terminal | IP62 | - | 200gf | 42gf | 1.188" (30.2mm) | - | 0.031" (0.8mm) | 0.094" (2.4mm) | -15°C ~ 80°C |
|
Z-15GW255-BSWITCH SNAP ACTION SPDT 15A 125V |
41 |
|
Datasheet |
Z | Bulk | Active | SPDT | On-Mom | 15A (AC), 6A (DC) | 125 V | 30 V | Lever, Roller | Chassis Mount | Screw Terminal | IP62 | - | 130gf | 21gf | 1.188" (30.2mm) | - | 0.062" (1.6mm) | 0.158" (4.0mm) | -15°C ~ 80°C |
|
Z-15GW255-B7-KSWITCH SNAP ACTION SPDT 15A 125V |
6 |
|
Datasheet |
Z | Bulk | Active | SPDT | On-Mom | 15A (AC), 6A (DC) | 125 V | 30 V | Lever, Roller | Chassis Mount | Screw Terminal | IP62 | - | 130gf | 21gf | 1.188" (30.2mm) | - | 0.062" (1.6mm) | 0.158" (4.0mm) | -15°C ~ 80°C |
|
D2VW-01L1B-1MS-0SWITCH SNAP ACT SPDT 0.1A 125V |
75 |
|
Datasheet |
D2VW | Bulk | Active | SPDT | On-Mom | 100mA (AC/DC) | 125 V | 30 V | Lever, Straight | Chassis Mount | Wire Leads | IP67 - Dust Tight, Waterproof | - | 60gf | 5.099gf | 0.600" (15.2mm) | 0.354" (9.0mm) | 0.080" (2.0mm) | 0.125" (3.2mm) | -40°C ~ 85°C |
|
Z-15GW255-B6-106-KSWITCH SNAP ACTION SPDT 15A 125V |
7 |
|
Datasheet |
Z | Bulk | Active | SPDT | On-Mom | 15A (AC), 6A (DC) | 125 V | 30 V | Lever, Roller | Chassis Mount | Screw Terminal | IP62 | - | 130gf | 21gf | 1.188" (30.2mm) | - | 0.062" (1.6mm) | 0.158" (4.0mm) | -15°C ~ 80°C |
|
BZ-2RW53-A2SWITCH SNAP ACTION SPDT 15A 125V |
62 |
|
Datasheet |
BZ | Bulk | Active | SPDT | On-Mom | 15A (AC), 500mA (DC) | 125 V | 125 V | Lever, Straight | Chassis Mount | Screw Terminal | - | - | - | - | 1.000" (25.4mm) | - | - | - | -55°C ~ 85°C |
|
X-10GW3-BSWITCH BASIC |
13 |
|
Datasheet |
X | - | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
X-10GM2SWITCH SNAP ACTION SPDT 10A 30V |
20 |
|
Datasheet |
X | Tray | Active | SPDT | On-Mom | 10A (DC) | - | 30 V | Lever, Roller | Chassis Mount | Solder Lug | IP00 | - | 320gf | 50gf | 1.266" (32.2mm) | - | 0.060" (1.5mm) | 0.158" (4.0mm) | -25°C ~ 80°C |
|
X-10GW21SWITCH SNAP ACTION SPDT 10A 30V |
7 |
|
Datasheet |
X | Bulk | Active | SPDT | On-Mom | 10A (DC) | - | 30 V | Lever, Straight | Chassis Mount | Solder Lug | IP00 | - | 250gf | 32gf | 0.815" (20.7mm) | - | 0.065" (1.7mm) | 0.083" (2.1mm) | -25°C ~ 80°C |
|
X-10GW22-B7DSWITCH SNAP ACTION SPDT 10A 30V |
27 |
|
Datasheet |
X | Tray | Active | SPDT | On-Mom | 10A (DC) | - | 30 V | Lever, Roller | Chassis Mount | Screw Terminal | IP00 | - | 220gf | 35gf | 1.266" (32.2mm) | - | 0.065" (1.7mm) | 0.094" (2.4mm) | -25°C ~ 80°C |
Limit Switches Electronic Components
Frequently Asked Questions
Q1: What products are included in Limit Switches?
This category includes related Limit Switches subcategories and electronic components from multiple manufacturers. Select a lower-level category to view available part numbers.
Q2: Can I request a quotation for Limit Switches components?
Yes. Send us the part numbers and required quantities, and our team will provide sourcing and quotation support.
Q3: Are datasheets and technical information available?
Yes. Datasheets and technical information are available on supported final product pages and product listings.
Q4: Do you support BOM sourcing?
Yes. We support BOM matching, component procurement and alternative sourcing for Limit Switches and other electronic components.
