Limit Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Mounting Type | Termination Style | Ingress Protection | Features | Operating Force | Release Force | Operating Position | Pretravel | Differential Travel | Overtravel | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
GLDA01A4JSWITCH SNAP ACTION SPDT 6A 120V |
10 |
|
Datasheet |
GLS | Bulk | Active | SPDT | On-Mom | 6A (AC), 550mA (DC) | 120 V | 125 V | Side Rotary, Adjustable Rod | Chassis Mount | Screw Terminal | IP67 - Dust Tight, Waterproof | - | 12gfm | - | 26° | 26° | 12° | 49° | -40°C ~ 85°C |
|
XCMD2110M12SWITCH LIMIT SPDT 1.5A 240V |
2 |
|
Datasheet |
XCMD | Box | Active | SPDT | On-Mom | 1.5A (AC), 100mA (DC) | 240 V | 250 V | Round (Pin Plunger) | Chassis Mount | Connector | IP66/IP67/IP68 - Dust Tight, Water Resistant, Waterproof | - | - | - | - | - | - | - | -25°C ~ 70°C |
|
83733310SWITCH SNAP ACTION SPDT 5A 50V |
10 |
|
Datasheet |
83733 | Bulk | Active | SPDT | On-Mom | 5A (AC) | 50 V | - | Round (Pin Plunger) | Panel Mount | Cable Leads | IP56 - Dust Protected, Water Resistant | Cable Length 2m | 612gf | - | - | - | 0.008" (0.2mm) | - | -5°C ~ 70°C |
|
ZC-W2155SWITCH SNAP ACTION SPDT 10A 125V |
5 |
|
Datasheet |
ZC | Bulk | Active | SPDT | On-Mom | 10A (AC), 6A (DC) | 125 V | 30 V | Lever, Roller | Chassis Mount | Screw Terminal | IP67 - Dust Tight, Waterproof | - | 280gf | 60gf | 1.693" (43.0mm) | - | 0.055" (1.4mm) | 0.331" (8.4mm) | -10°C ~ 80°C |
|
D4N-4B20R-NPTSWITCH SNAP ACT DPST-NC 10A 120V |
7 |
|
Datasheet |
D4N-R | Bulk | Active | DPST-NC | On-Off | 10A (AC), 2.5A (DC) | 120 V | 125 V | Lever, Roller | Chassis Mount | Screw Terminal | IP67 - Dust Tight, Waterproof | Resin Lever, Resin Roller | 653gf | - | - | 18° | - | - | -30°C ~ 70°C |
|
ZC-W155SWITCH SNAP ACTION SPDT 10A 125V |
3 |
|
Datasheet |
ZC | Bulk | Active | SPDT | On-Mom | 10A (AC), 6A (DC) | 125 V | 30 V | Lever, Straight | Chassis Mount | Screw Terminal | IP67 - Dust Tight, Waterproof | - | 280gf | 60gf | 1.122" (28.5mm) | - | 0.055" (1.4mm) | 0.331" (8.4mm) | -10°C ~ 80°C |
|
ZE-Q-2SWITCH SNAP ACTION SPDT 15A 125V |
3 |
|
Datasheet |
ZE | Bulk | Active | SPDT | On-Mom | 15A (AC), 500mA (DC) | 125 V | 125 V | Round (Pin Plunger) | Chassis Mount | Screw Terminal | IP60 - Dust Tight | - | 250 ~ 350gf | 114gf | 1.500" (38.1mm) | 0.015" (0.4mm) | 0.002" (0.05mm) | 0.217" (5.5mm) | -10°C ~ 80°C |
|
D4N-4B32R-NPTSWITCH SNAP ACT DPST-NC 10A 120V |
3 |
|
Datasheet |
D4N-R | Bulk | Active | DPST-NC | On-Off | 10A (AC), 2.5A (DC) | 120 V | 125 V | Roller Plunger | Chassis Mount | Screw Terminal | IP67 - Dust Tight, Waterproof | Reset Function | 1101gf | - | 1.748" (44.4mm) | 0.080" (2.0mm) | - | - | -30°C ~ 70°C |
|
D4C-1610SWITCH SNAP ACTION SPDT 5A 250V |
2 |
|
Datasheet |
D4C | Bulk | Active | SPDT | On-Mom | 5A (AC), 4A (DC) | 250 V | 30 V | Bevel Plunger | Chassis Mount | Cable Leads | IP67 - Dust Tight, Waterproof | Cable Length 3m | 1200gf | 450gf | 1.122" (28.5mm) | 0.071" (1.8mm) | 0.008" (0.2mm) | 0.118" (3.0mm) | -10°C ~ 70°C |
|
D4N-9122SWITCH SNAP ACTION DPST 3A 240V |
4 |
|
Datasheet |
D4N | Bulk | Active | DPST-NO/NC | On-Mom, Off-Mom | 3A (AC), 270mA (DC) | 240 V | 250 V | Side Rotary, Roller | Chassis Mount | Connector | IP67 - Dust Tight, Waterproof | Metal Lever, Resin Roller | 510gf | 51gf | - | 18° | 14° | 40° | -30°C ~ 70°C |
|
D4C-1902SWITCH SNAP ACTION SPDT 5A 250V |
3 |
|
Datasheet |
D4C | Bulk | Active | SPDT | On-Mom | 5A (AC), 4A (DC) | 250 V | 30 V | Roller Plunger | Chassis Mount | Cable Leads | IP67 - Dust Tight, Waterproof | Cable Length 2m | 1200gf | 450gf | 1.122" (28.5mm) | 0.071" (1.8mm) | 0.008" (0.2mm) | 0.118" (3.0mm) | -10°C ~ 70°C |
|
ZC-W255SWITCH SNAP ACTION SPDT 10A 125V |
14 |
|
Datasheet |
ZC | Bulk | Active | SPDT | On-Mom | 10A (AC), 6A (DC) | 125 V | 30 V | Lever, Roller | Chassis Mount | Screw Terminal | IP67 - Dust Tight, Waterproof | - | 400gf | 80gf | 1.693" (43.0mm) | - | 0.040" (1.0mm) | 0.235" (6.0mm) | -10°C ~ 80°C |
|

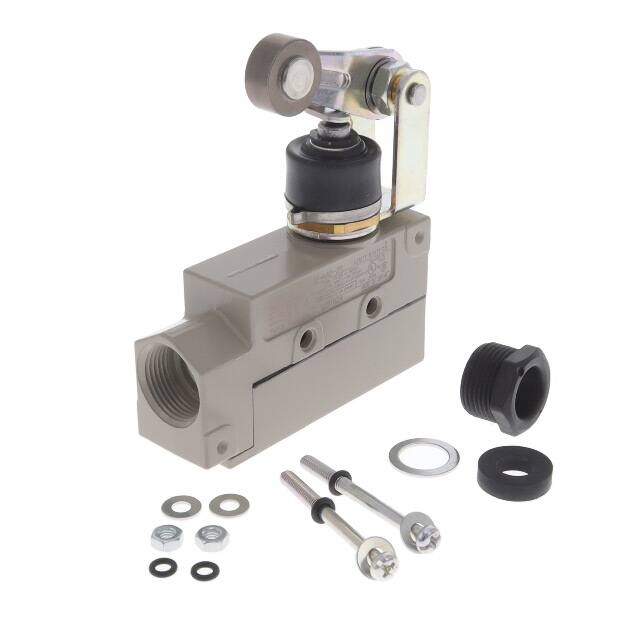

ZE-NA2-2GSWITCH SNAP ACTION SPDT 15A 125V |
16 |
|
Datasheet |
ZE | Bulk | Active | SPDT | On-Mom | 15A (AC), 500mA (DC) | 125 V | 125 V | Lever, Roller | Chassis Mount | Screw Terminal | IP65 - Dust Tight, Water Resistant | - | 640gf | 230gf | - | 0.197" (5.0mm) | 0.016" (0.4mm) | 0.235" (6.0mm) | -10°C ~ 80°C |
|
3SE52320HC05SWITCH LIMIT DPST 6A 125V |
14 |
|
Datasheet |
3SE5 | Bulk | Active | DPST-NO/NC | On-Mom, Off-Mom | 6A (AC), 550mA (DC) | 125 V | 125 V | Round (Pin Plunger) | Chassis Mount | Screw Terminal | IP65 - Dust Tight, Water Resistant | - | 2039gf | - | - | - | - | - | - |
|
83871101SWITCH SNAP ACTION DPST 6A 120V |
20 |
|
Datasheet |
83870 | Bulk | Active | DPST-NO/NC | On-Mom, Off-Mom | 6A (AC), 550mA (DC) | 120 V | 125 V | Roller Plunger | Chassis Mount | Cable Leads | IP67 - Dust Tight, Waterproof | Cable Length 1m | 1020gf | - | - | - | - | - | -25°C ~ 70°C |
|
ZV-NCL-2SSWITCH SNAP ACTION SPDT 15A 125V |
3 |
|
Datasheet |
ZV | Bulk | Active | SPDT | On-Mom | 15A (AC), 500mA (DC) | 125 V | 125 V | Adjustable Rod | Chassis Mount | Screw Terminal | IP65 - Dust Tight, Water Resistant | - | 170gf | 60gf | - | 0.728" (18.5mm) | 0.060" (1.5mm) | 0.866" (22.0mm) | -10°C ~ 80°C |
|
D5B-8015SWITCH SNP ACT SPST-NC 0.03A 30V |
4 |
|
Datasheet |
D5B | Bulk | Active | SPST-NC | On-Mom | 30mA (DC) | - | 30 V | Domed | Panel Mount | Cable Leads | IP67 - Dust Tight, Waterproof | Cable Length 5m | 75gf | - | - | 0.024" (0.6mm) | - | - | -10°C ~ 70°C |
|
ZE-QCL-2SSWITCH SNAP ACTION SPDT 15A 125V |
2 |
|
Datasheet |
ZE | Bulk | Active | SPDT | On-Mom | 15A (AC), 500mA (DC) | 125 V | 125 V | Adjustable Rod | Chassis Mount | Screw Terminal | IP60 - Dust Tight | - | 153gf | 45gf | - | 0.591" (15.0mm) | 0.060" (1.5mm) | 0.866" (22.0mm) | -10°C ~ 80°C |
|

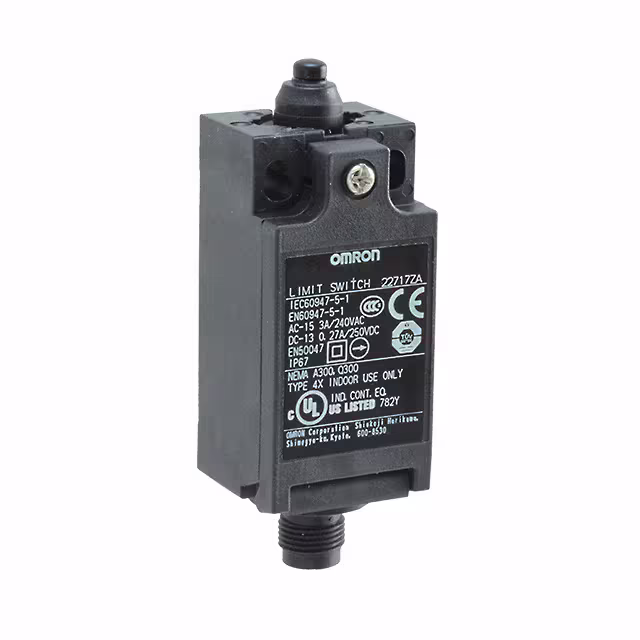

D4N-9A31SWITCH SNAP ACTION DPST 3A 240V |
2 |
|
Datasheet |
D4N | Bulk | Active | DPST-NO/NC | On-Mom, Off-Mom | 3A (AC), 270mA (DC) | 240 V | 250 V | Round (Pin Plunger) | Chassis Mount | Connector | IP67 - Dust Tight, Waterproof | - | 663gf | 153gf | 0.715" (18.2mm) | 0.080" (2.0mm) | - | 0.158" (4.0mm) | -30°C ~ 70°C |
|
3SE03EB06SWITCH LIMIT BOOTED PLUNGER FORM |
2 |
|
- |
- | Box | Active | DPST-NO/NC | - | - | - | - | Round (Pin Plunger) | Chassis Mount | Screw Terminal | - | - | - | - | - | - | - | - | - |
Limit Switches Electronic Components
Frequently Asked Questions
Q1: What products are included in Limit Switches?
This category includes related Limit Switches subcategories and electronic components from multiple manufacturers. Select a lower-level category to view available part numbers.
Q2: Can I request a quotation for Limit Switches components?
Yes. Send us the part numbers and required quantities, and our team will provide sourcing and quotation support.
Q3: Are datasheets and technical information available?
Yes. Datasheets and technical information are available on supported final product pages and product listings.
Q4: Do you support BOM sourcing?
Yes. We support BOM matching, component procurement and alternative sourcing for Limit Switches and other electronic components.
