Limit Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Mounting Type | Termination Style | Ingress Protection | Features | Operating Force | Release Force | Operating Position | Pretravel | Differential Travel | Overtravel | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
V-156-1B5SWITCH SNAP ACTION SPDT 15A 250V |
60 |
|
Datasheet |
V | Bulk | Active | SPDT | On-Mom | 15A (AC), 600mA (DC) | 250 V | 125 V | Lever, Roller | Chassis Mount | Screw Terminal | IP40 | - | 125gf | 14gf | 0.815" (20.7mm) | 0.157" (4.0mm) | 0.060" (1.5mm) | 0.062" (1.6mm) | -25°C ~ 80°C |
|
V-156-1A6SWITCH SNAP ACTION SPDT 15A 250V |
78 |
|
Datasheet |
V | Bulk | Active | SPDT | On-Mom | 15A (AC), 600mA (DC) | 250 V | 125 V | Lever, Roller | Chassis Mount | Solder, Quick Connect - 0.187" (4.7mm) | IP40 | - | 400gf | 25gf | 0.815" (20.7mm) | 0.157" (4.0mm) | 0.060" (1.5mm) | 0.062" (1.6mm) | -25°C ~ 80°C |
|
D2VW-01L2A-1HSSWITCH SNAP ACT SPDT 0.1A 125V |
100 |
|
Datasheet |
D2VW | Tray | Active | SPDT | On-Mom | 100mA (AC/DC) | 125 V | 30 V | Lever, Roller | Chassis Mount | Solder, Quick Connect - 0.187" (4.7mm) | IP67 - Dust Tight, Waterproof | Resin Roller | 230gf | 20gf | 0.815" (20.7mm) | 0.063" (1.6mm) | 0.020" (0.5mm) | 0.030" (0.76mm) | -40°C ~ 85°C |
|
D2HW-BR213MLSWITCH SNP ACT SPST-NO 0.1A 125V |
69 |
|
Datasheet |
D2HW | Tray | Active | SPST-NO | Off-Mom | 100mA (AC), 2A (DC) | 125 V | 12 V | Lever, Straight | Chassis Mount | Wire Leads | IP67 - Dust Tight, Waterproof | Support Posts | 76gf | 7.138gf | 0.295" (7.5mm) | - | 0.020" (0.5mm) | 0.062" (1.6mm) | -40°C ~ 85°C |
|
D2HW-BR261MSWITCH SNAP ACT SPDT 0.1A 125V |
50 |
|
Datasheet |
D2HW | Tray | Active | SPDT | On-Mom | 100mA (AC), 2A (DC) | 125 V | 12 V | Lever, Leaf | Chassis Mount | Wire Leads | IP67 - Dust Tight, Waterproof | Support Posts | 183gf | 20gf | 0.291" (7.4mm) | - | 0.020" (0.5mm) | 0.070" (1.8mm) | -40°C ~ 85°C |
|
D2HW-BL223MSWITCH SNP ACT SPST-NO 0.1A 125V |
0 |
|
Datasheet |
D2HW | Bulk | Active | SPST-NO | Off-Mom | 100mA (AC), 2A (DC) | 125 V | 12 V | Lever, Straight | Chassis Mount | Wire Leads | IP67 - Dust Tight, Waterproof | Support Posts | 50gf | 3.059gf | 0.366" (9.3mm) | - | 0.031" (0.8mm) | 0.098" (2.5mm) | -40°C ~ 85°C |
|

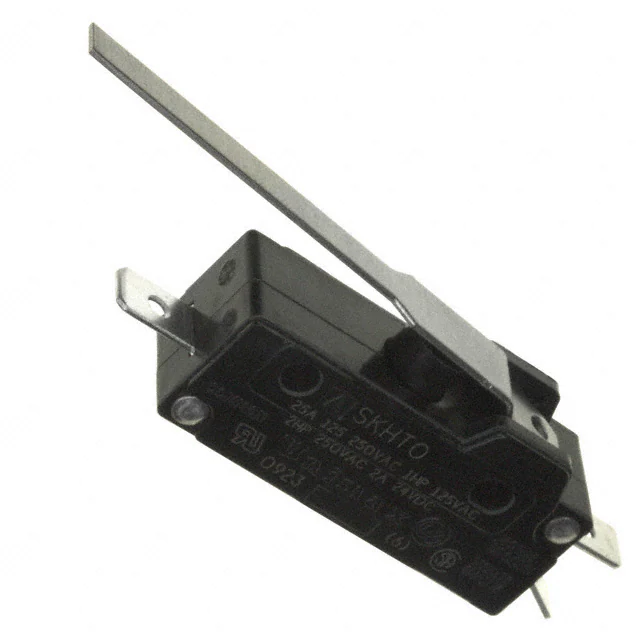

ASKHF3T04ACSWITCH SNAP ACTION SPDT 25A 125V |
47 |
|
Datasheet |
A | Bulk | Active | SPDT | On-Mom | 25A (AC), 2A (DC) | 125 V | 24 V | Lever, Straight | Chassis Mount | Quick Connect - 0.250" (6.3mm) | - | - | 113gf | 14gf | 0.312" (7.9mm) | 0.312" (7.9mm) | - | 0.187" (4.75mm) | -55°C ~ 85°C |
|
TFCDK6ST2640CSWITCH SNAP ACTION SPDT 11A 277V |
68 |
|
Datasheet |
TF | Bulk | Active | SPDT | On-Mom | 11A (AC), 500mA (DC) | 277 V | 125 V | Lever, Straight | Chassis Mount | Quick Connect - 0.187" (4.7mm) | - | - | 4.000gf | 1.000gf | 0.600" (15.2mm) | 0.500" (12.7mm) | 0.100" (2.54mm) | 0.235" (6.0mm) | -40°C ~ 85°C |
|
ASKHC2A04ACSWITCH SNAP ACTION SPDT 15A 125V |
59 |
|
Datasheet |
A | Bulk | Active | SPDT | On-Mom | 15A (AC) | 125 V | - | Lever, Roller | Chassis Mount | Quick Connect - 0.250" (6.3mm) | - | - | 113gf | 14gf | 0.718" (18.24mm) | 0.312" (7.9mm) | - | 0.312" (7.9mm) | -55°C ~ 85°C |
|
TMCGD6SA1040CSWITCH SNAP ACTION SPDT 10A 125V |
37 |
|
Datasheet |
TM | Bulk | Active | SPDT | On-Mom | 10A (AC), 500mA (DC) | 125 V | 125 V | Lever, Roller | Chassis Mount | Quick Connect - 0.187" (4.7mm) | - | - | 90gf | 28gf | 0.812" (20.6mm) | 0.071" (1.8mm) | 0.013" (0.33mm) | 0.035" (0.9mm) | -55°C ~ 150°C |
|
D2HW-BR203MRSSWITCH SNP ACT SPST-NO 0.1A 125V |
100 |
|
Datasheet |
D2HW | Bulk | Active | SPST-NO | Off-Mom | 100mA (AC), 2A (DC) | 125 V | 12 V | Round (Pin Plunger) | Chassis Mount | Wire Leads | IP67 - Dust Tight, Waterproof | Support Posts | 76gf | 10gf | 0.250" (6.4mm) | - | 0.010" (0.25mm) | 0.055" (1.4mm) | -40°C ~ 85°C |
|
V7-7B10D8-274SWITCH SNAP ACTION SPDT 11A 125V |
87 |
|
Datasheet |
V7 | Bulk | Active | SPDT | On-Mom | 11A (AC), 500mA (DC) | 125 V | 125 V | Lever, Simulated Roller | Chassis Mount | Quick Connect - 0.187" (4.7mm) | - | - | 141gf | 28gf | 0.730" (18.5mm) | 0.110" (2.8mm) | 0.032" (0.81mm) | 0.075" (1.9mm) | -40°C ~ 85°C |
|
ASKHC2W04ACSWITCH SNAP ACTION SPDT 15A 125V |
45 |
|
Datasheet |
A | Tray | Active | SPDT | On-Mom | 15A (AC) | 125 V | - | Lever, Roller | Chassis Mount | Quick Connect - 0.250" (6.3mm) | - | - | 340gf | 28gf | 0.718" (18.24mm) | 0.281" (7.14mm) | - | 0.062" (1.6mm) | -55°C ~ 85°C |
|
D2HW-BR233MRSWITCH SNP ACT SPST-NO 0.1A 125V |
57 |
|
Datasheet |
D2HW | Bulk | Active | SPST-NO | Off-Mom | 100mA (AC), 2A (DC) | 125 V | 12 V | Lever, Simulated Roller | Chassis Mount | Wire Leads | IP67 - Dust Tight, Waterproof | Support Posts | 66gf | 5.099gf | 0.440" (11.2mm) | - | 0.020" (0.5mm) | 0.075" (1.9mm) | -40°C ~ 85°C |
|

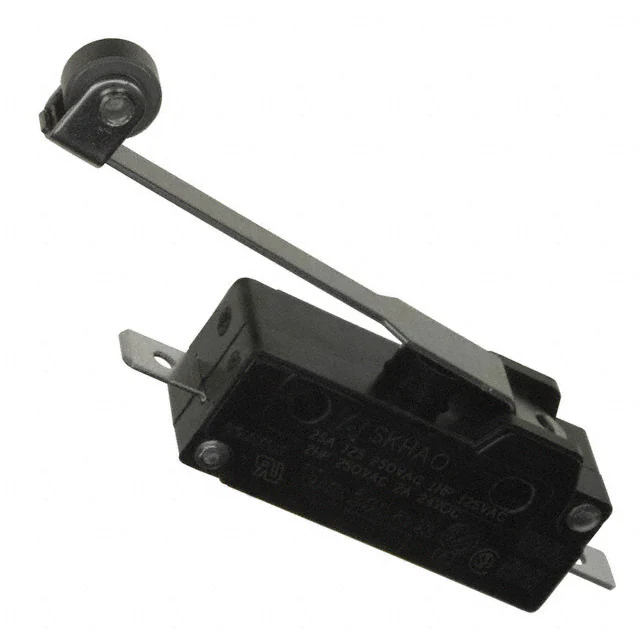

ASKHF3A04AYSWITCH SNAP ACT SPST-NO 25A 125V |
54 |
|
Datasheet |
A | Bulk | Active | SPST-NO | Off-Mom | 25A (AC), 2A (DC) | 125 V | 24 V | Lever, Roller | Chassis Mount | Quick Connect - 0.250" (6.3mm) | - | - | 113gf | 14gf | 0.718" (18.24mm) | 0.312" (7.9mm) | - | 0.312" (7.9mm) | -55°C ~ 85°C |
|
VM3SCQF1803L03SWITCH LIMIT SPDT 10A 125V |
60 |
|
Datasheet |
VM3S | Box | Active | SPDT | On-Mom | 10A (AC), 6A (DC) | 125 V | 36 V | Lever, Straight | Chassis Mount | Wire Leads | IP67 - Dust Tight, Waterproof | - | 120gf | 40gf | 0.602" (15.30mm) | 0.138" (3.5mm) | 0.060" (1.5mm) | 0.039" (1.0mm) | -40°C ~ 120°C |
|
D2HW-C262MSWITCH SNP ACT SPST-NC 0.1A 125V |
15 |
|
Datasheet |
D2HW | Bulk | Active | SPST-NC | On-Mom | 100mA (AC), 2A (DC) | 125 V | 12 V | Lever, Leaf | Chassis Mount | Wire Leads | IP67 - Dust Tight, Waterproof | - | 183gf | 20gf | 0.291" (7.4mm) | - | 0.020" (0.5mm) | 0.070" (1.8mm) | -40°C ~ 85°C |
|
D2HW-C271MSWITCH SNAP ACT SPDT 0.1A 125V |
10 |
|
Datasheet |
D2HW | Bulk | Active | SPDT | On-Mom | 100mA (AC), 2A (DC) | 125 V | 12 V | Lever, Simulated Roller | Chassis Mount | Wire Leads | IP67 - Dust Tight, Waterproof | - | 183gf | 20gf | 0.425" (10.8mm) | - | 0.020" (0.5mm) | 0.079" (2.0mm) | -40°C ~ 85°C |
|
D2HW-C232MRSWITCH SNP ACT SPST-NC 0.1A 125V |
13 |
|
Datasheet |
D2HW | Bulk | Active | SPST-NC | On-Mom | 100mA (AC), 2A (DC) | 125 V | 12 V | Lever, Simulated Roller | Chassis Mount | Wire Leads | IP67 - Dust Tight, Waterproof | - | 66gf | 5.099gf | 0.440" (11.2mm) | - | 0.020" (0.5mm) | 0.075" (1.9mm) | -40°C ~ 85°C |
|
D2SW-P01MSWITCH SNAP ACT SPDT 0.1A 125V |
16 |
|
Datasheet |
D2SW-P | Bulk | Active | SPDT | On-Mom | 100mA (AC/DC) | 125 V | 30 V | Round (Pin Plunger) | Chassis Mount | Wire Leads | IP67 - Dust Tight, Waterproof | - | 183gf | 20gf | 0.330" (8.4mm) | 0.024" (0.6mm) | 0.006" (0.15mm) | 0.015" (0.4mm) | -20°C ~ 70°C |
Limit Switches Electronic Components
Frequently Asked Questions
Q1: What products are included in Limit Switches?
This category includes related Limit Switches subcategories and electronic components from multiple manufacturers. Select a lower-level category to view available part numbers.
Q2: Can I request a quotation for Limit Switches components?
Yes. Send us the part numbers and required quantities, and our team will provide sourcing and quotation support.
Q3: Are datasheets and technical information available?
Yes. Datasheets and technical information are available on supported final product pages and product listings.
Q4: Do you support BOM sourcing?
Yes. We support BOM matching, component procurement and alternative sourcing for Limit Switches and other electronic components.
