Limit Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Mounting Type | Termination Style | Ingress Protection | Features | Operating Force | Release Force | Operating Position | Pretravel | Differential Travel | Overtravel | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ABV1210613SWITCH SNAP ACTION SPDT 3A 250V |
86 |
|
Datasheet |
ABV | Bulk | Active | SPDT | On-Mom | 3A (AC) | 250 V | - | Round (Pin Plunger) | Chassis Mount | Solder, Quick Connect - 0.187" (4.7mm) | IP50 - Dust Protected | - | 300gf | 60gf | 0.579" (14.7mm) | 0.063" (1.6mm) | 0.016" (0.4mm) | 0.030" (0.76mm) | -40°C ~ 85°C |
|
VX-55-1A3SWITCH SNAP ACTION SPDT 5A 125V |
50 |
|
Datasheet |
VX | Bulk | Active | SPDT | On-Mom | 5A (AC/DC) | 125 V | 30 V | Lever, Roller | Chassis Mount | Solder, Quick Connect - 0.187" (4.7mm) | IP40 | - | 60gf | 4.079gf | 0.815" (20.7mm) | 0.063" (1.6mm) | 0.020" (0.5mm) | 0.030" (0.76mm) | -25°C ~ 80°C |
|
ABS1516413SWITCH SNAP ACT SPDT 0.1A 125V |
97 |
|
Datasheet |
ABS | Bulk | Active | SPDT | On-Mom | 100mA (AC/DC) | 125 V | 30 V | Lever, Roller | Through Hole | PC Pin | IP50 - Dust Protected | - | 40gf | 3.500gf | 0.571" (14.5mm) | 0.100" (2.5mm) | 0.020" (0.5mm) | 0.032" (0.81mm) | -40°C ~ 85°C |
|
ASQ10627SWITCH SNAP ACT SPST-NC 0.1A 30V |
72 |
|
Datasheet |
ASQ1 | Bulk | Active | SPST-NC | On-Mom | 100mA (DC) | - | 30 V | Lever, Straight | Chassis Mount | Wire Leads | IP67 - Dust Tight, Waterproof | - | 173gf | - | 0.366" (9.3mm) | - | - | 0.102" (2.6mm) | -40°C ~ 85°C |
|
V7-2B17D8-162SWITCH SNAP ACTION SPDT 11A 125V |
87 |
|
Datasheet |
V7 | Bulk | Active | SPDT | On-Mom | 11A (AC), 500mA (DC) | 125 V | 125 V | Lever, Straight | Chassis Mount | Quick Connect - 0.187" (4.7mm) | - | - | 10gf | 0.510gf | 0.600" (15.2mm) | 0.650" (16.5mm) | 0.170" (4.3mm) | 0.380" (9.65mm) | -40°C ~ 85°C |
|
V-106-1C24SWITCH SNAP ACTION SPDT 10A 250V |
90 |
|
Datasheet |
V | Bulk | Active | SPDT | On-Mom | 10A (AC), 600mA (DC) | 250 V | 125 V | Lever, Roller | Chassis Mount | Quick Connect - 0.187" (4.7mm) | IP40 | - | 60gf | 6.118gf | 0.815" (20.7mm) | 0.157" (4.0mm) | 0.060" (1.5mm) | 0.062" (1.6mm) | -25°C ~ 80°C |
|
VX-013-1A3SWITCH SNAP ACT SPDT 0.1A 125V |
89 |
|
Datasheet |
VX | Tray | Active | SPDT | On-Mom | 100mA (AC/DC) | 125 V | 30 V | Lever, Straight | Chassis Mount | Solder, Quick Connect - 0.187" (4.7mm) | IP40 | - | 20gf | - | 0.600" (15.2mm) | 0.354" (9.0mm) | 0.080" (2.0mm) | 0.125" (3.2mm) | -25°C ~ 80°C |
|
|
ASQ10617SWITCH SNAP ACTION SPDT 0.1A 30V |
98 |
|
Datasheet |
ASQ1 | Bulk | Active | SPDT | On-Mom | 100mA (DC) | - | 30 V | Lever, Straight | Chassis Mount | Wire Leads | IP67 - Dust Tight, Waterproof | - | 173gf | - | 0.366" (9.3mm) | - | - | 0.102" (2.6mm) | -40°C ~ 85°C |
|
SS-01-E-3TSWITCH SNP ACT SPST-NO 0.1A 125V |
53 |
|
Datasheet |
SS | Bulk | Active | SPST-NO | Off-Mom | 100mA (AC/DC) | 125 V | 30 V | Round (Pin Plunger) | Chassis Mount | Quick Connect - 0.110" (2.8mm) | IP40 | - | 25gf | 2.039gf | 0.330" (8.4mm) | 0.020" (0.5mm) | 0.004" (0.1mm) | 0.020" (0.5mm) | -25°C ~ 85°C |
|
V-103-1A4SWITCH SNAP ACTION SPDT 10A 250V |
96 |
|
Datasheet |
V | Bulk | Active | SPDT | On-Mom | 10A (AC), 600mA (DC) | 250 V | 125 V | Lever, Straight | Chassis Mount | Solder, Quick Connect - 0.187" (4.7mm) | IP40 | - | 35gf | - | 0.600" (15.2mm) | 0.354" (9.0mm) | 0.110" (2.8mm) | 0.125" (3.2mm) | -25°C ~ 80°C |
|
VM3SBQF1802L00SWITCH LIMIT SPST-NC 10A 125V |
65 |
|
Datasheet |
VM3S | Tray | Active | SPST-NC | On-Mom | 10A (AC), 6A (DC) | 125 V | 36 V | Round (Pin Plunger) | Chassis Mount | Quick Connect - 0.187" (4.7mm) | IP67 - Dust Tight, Waterproof | - | 180gf | 100gf | 0.581" (14.75mm) | 0.063" (1.6mm) | 0.031" (0.8mm) | 0.031" (0.8mm) | -40°C ~ 120°C |
|
TMCGD6ST1440CSWITCH SNAP ACTION SPDT 10A 125V |
99 |
|
Datasheet |
TM | Bulk | Active | SPDT | On-Mom | 10A (AC), 500mA (DC) | 125 V | 125 V | Lever, Simulated Roller | Chassis Mount | Quick Connect - 0.187" (4.7mm) | - | - | 50gf | 10gf | 0.745" (18.9mm) | 0.140" (3.6mm) | 0.050" (1.3mm) | 0.062" (1.6mm) | -55°C ~ 150°C |
|
V-155-1B6SWITCH SNAP ACTION SPDT 15A 250V |
45 |
|
Datasheet |
V | Bulk | Active | SPDT | On-Mom | 15A (AC), 600mA (DC) | 250 V | 125 V | Lever, Roller | Chassis Mount | Screw Terminal | IP40 | - | 480gf | 50gf | 0.815" (20.7mm) | 0.063" (1.6mm) | 0.025" (0.6mm) | 0.030" (0.76mm) | -25°C ~ 80°C |
|
|
ABS161154SWITCH SNAP ACTION SPDT 0.1A 30V |
46 |
|
Datasheet |
ABS | Bulk | Active | SPDT | On-Mom | 100mA (DC) | - | 30 V | Lever, Straight | Chassis Mount | Wire Leads | IP67 - Dust Tight, Waterproof | - | 60gf | 4.079gf | 0.345" (8.8mm) | 0.100" (2.5mm) | 0.020" (0.5mm) | 0.032" (0.81mm) | -40°C ~ 85°C |
|
VM3SAQF1802L02SWITCH LIMIT SPST-NO 10A 125V |
57 |
|
Datasheet |
VM3S | Tray | Active | SPST-NO | Off-Mom | 10A (AC), 6A (DC) | 125 V | 36 V | Lever, Simulated Roller | Chassis Mount | Quick Connect - 0.187" (4.7mm) | IP67 - Dust Tight, Waterproof | - | 120gf | 50gf | 0.736" (18.70mm) | 0.118" (3.0mm) | 0.050" (1.3mm) | 0.039" (1.0mm) | -40°C ~ 120°C |
|

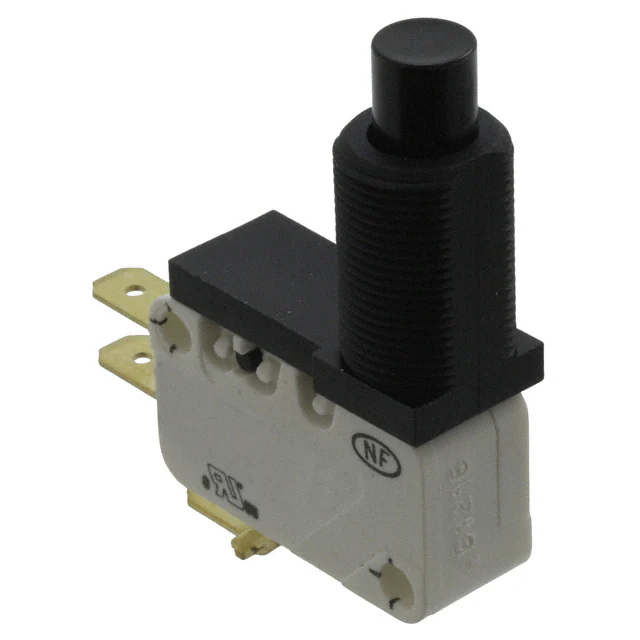

83161352SWITCH SNAP ACTION SPDT 16A 250V |
36 |
|
Datasheet |
83161 | Bulk | Active | SPDT | On-Mom | 16A (AC) | 250 V | - | Telescopic Plunger | Panel Mount | Quick Connect - 0.187" (4.7mm) | - | - | 82gf | 20gf | 0.846" (21.5mm) | - | 0.014" (0.35mm) | 0.047" (1.2mm) | -20°C ~ 125°C |
|
VM3SAQF1802L01SWITCH LIMIT SPST-NO 10A 125V |
65 |
|
Datasheet |
VM3S | Tray | Active | SPST-NO | Off-Mom | 10A (AC), 6A (DC) | 125 V | 36 V | Lever, Roller | Chassis Mount | Quick Connect - 0.187" (4.7mm) | IP67 - Dust Tight, Waterproof | - | 140gf | 50gf | 0.807" (20.50mm) | 0.100" (2.5mm) | 0.050" (1.3mm) | 0.039" (1.0mm) | -40°C ~ 120°C |
|
D3V-21G6-1C4A-KSWITCH SNAP ACT SPDT 21A 250V |
92 |
|
Datasheet |
D3V | Bulk | Active | SPDT | On-Mom | 20A (AC) | 250 V | - | Lever, Roller | Chassis Mount | Quick Connect - 0.250" (6.3mm) | IP40 | - | 80gf | 5.099gf | 0.815" (20.7mm) | 0.157" (4.0mm) | 0.031" (0.8mm) | 0.062" (1.6mm) | -25°C ~ 85°C |
|
VM3SCQF1803L01SWITCH LIMIT SPDT 10A 125V |
86 |
|
Datasheet |
VM3S | Box | Active | SPDT | On-Mom | 10A (AC), 6A (DC) | 125 V | 36 V | Lever, Roller | Chassis Mount | Wire Leads | IP67 - Dust Tight, Waterproof | - | 140gf | 50gf | 0.807" (20.50mm) | 0.100" (2.5mm) | 0.050" (1.3mm) | 0.039" (1.0mm) | -40°C ~ 120°C |
|
VX-014-1A3SWITCH SNAP ACT SPDT 0.1A 125V |
89 |
|
Datasheet |
VX | Tray | Active | SPDT | On-Mom | 100mA (AC/DC) | 125 V | 30 V | Lever, Simulated Roller | Chassis Mount | Solder, Quick Connect - 0.187" (4.7mm) | IP40 | - | 30gf | 2.039gfm | 0.738" (18.7mm) | 0.157" (4.0mm) | 0.031" (0.8mm) | 0.062" (1.6mm) | -25°C ~ 80°C |
Limit Switches Electronic Components
Frequently Asked Questions
Q1: What products are included in Limit Switches?
This category includes related Limit Switches subcategories and electronic components from multiple manufacturers. Select a lower-level category to view available part numbers.
Q2: Can I request a quotation for Limit Switches components?
Yes. Send us the part numbers and required quantities, and our team will provide sourcing and quotation support.
Q3: Are datasheets and technical information available?
Yes. Datasheets and technical information are available on supported final product pages and product listings.
Q4: Do you support BOM sourcing?
Yes. We support BOM matching, component procurement and alternative sourcing for Limit Switches and other electronic components.
