Limit Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Mounting Type | Termination Style | Ingress Protection | Features | Operating Force | Release Force | Operating Position | Pretravel | Differential Travel | Overtravel | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ABS1514513SWITCH SNAP ACT SPDT 0.1A 125V |
82 |
|
Datasheet |
ABS | Bulk | Active | SPDT | On-Mom | 100mA (AC/DC) | 125 V | 30 V | Lever, Simulated Roller | Through Hole | PC Pin | IP50 - Dust Protected | - | 55gf | 3.500gf | 0.460" (11.7mm) | 0.110" (2.8mm) | 0.031" (0.8mm) | 0.047" (1.2mm) | -40°C ~ 85°C |
|
V-105-1A5SWITCH SNAP ACTION SPDT 10A 250V |
70 |
|
Datasheet |
V | Bulk | Active | SPDT | On-Mom | 10A (AC), 600mA (DC) | 250 V | 125 V | Lever, Roller | Chassis Mount | Solder, Quick Connect - 0.187" (4.7mm) | IP40 | - | 240gf | 50gf | 0.815" (20.7mm) | 0.063" (1.6mm) | 0.025" (0.6mm) | 0.030" (0.76mm) | -25°C ~ 80°C |
|
ABS1414513SWITCH SNAP ACT SPDT 0.1A 125V |
85 |
|
Datasheet |
ABS | Bulk | Active | SPDT | On-Mom | 100mA (AC/DC) | 125 V | 30 V | Lever, Simulated Roller | Chassis Mount | Solder Lug | IP50 - Dust Protected | - | 55gf | 3.500gf | 0.460" (11.7mm) | 0.110" (2.8mm) | 0.031" (0.8mm) | 0.047" (1.2mm) | -40°C ~ 85°C |
|
ABS1114519SWITCH SNAP ACT SPDT 0.1A 125V |
77 |
|
Datasheet |
ABS | Bulk | Active | SPDT | On-Mom | 100mA (AC/DC) | 125 V | 30 V | Lever, Simulated Roller | Chassis Mount | Quick Connect - 0.110" (2.8mm) | IP50 - Dust Protected | - | 55gf | 3.500gf | 0.460" (11.7mm) | 0.110" (2.8mm) | 0.031" (0.8mm) | 0.047" (1.2mm) | -40°C ~ 85°C |
|
ABS1116549SWITCH SNAP ACTION SPDT 0.1A 30V |
38 |
|
Datasheet |
ABS | Bulk | Active | SPDT | On-Mom | 100mA (DC) | - | 30 V | Lever, Roller | Chassis Mount | Quick Connect - 0.110" (2.8mm) | IP50 - Dust Protected | - | 60gf | 4.079gf | 0.571" (14.5mm) | 0.100" (2.5mm) | 0.020" (0.5mm) | 0.032" (0.81mm) | -40°C ~ 85°C |
|
D3V-16G2M-1C25-KSWITCH SNAP ACTION SPDT 16A 250V |
85 |
|
Datasheet |
D3V | Bulk | Active | SPDT | On-Mom | 16A (AC), 10A (DC) | 250 V | 30 V | Lever, Straight | Chassis Mount | Quick Connect - 0.187" (4.7mm) | IP40 | - | 125gf | 14gf | 0.600" (15.2mm) | 0.157" (4.0mm) | 0.031" (0.8mm) | 0.062" (1.6mm) | -25°C ~ 105°C |
|
SSG5H5SWITCH SNAP ACTION SPDT 5A 125V |
55 |
|
Datasheet |
SSG | Bulk | Active | SPDT | On-Mom | 5A (AC), 4A (DC) | 125 V | 30 V | Round (Pin Plunger) | Chassis Mount | Solder Lug | IP40 | - | 51gf | 4.079gf | 0.330" (8.4mm) | 0.024" (0.6mm) | 0.004" (0.1mm) | 0.015" (0.4mm) | -25°C ~ 125°C |
|
|
D3V-16G1M-2A5-KSWITCH SNAP ACT SPST-NC 16A 250V |
25 |
|
Datasheet |
D3V | Bulk | Active | SPST-NC | On-Mom | 16A (AC), 10A (DC) | 250 V | 30 V | Lever, Straight | Chassis Mount | Solder, Quick Connect - 0.187" (4.7mm) | IP40 | - | 200gf | 50gf | 0.600" (15.2mm) | 0.063" (1.6mm) | 0.020" (0.5mm) | 0.031" (0.79mm) | -25°C ~ 105°C |
.jpg)
|
V-163-1C25-L(R)SWITCH SNAP ACTION SPDT 16A 250V |
62 |
|
Datasheet |
V | Bulk | Active | SPDT | On-Mom | 16A (AC), 600mA (DC) | 250 V | 125 V | Lever, Straight | Chassis Mount | Quick Connect - 0.187" (4.7mm) | IP40 | - | 70gf | 6.118gf | 0.600" (15.2mm) | 0.354" (9.0mm) | 0.110" (2.8mm) | 0.079" (2.0mm) | -25°C ~ 80°C |
|
D3V-114-1C4SWITCH SNAP ACTION SPDT 11A 250V |
100 |
|
Datasheet |
D3V | Bulk | Active | SPDT | On-Mom | 11A (AC), 600mA (DC) | 250 V | 125 V | Lever, Simulated Roller | Chassis Mount | Quick Connect - 0.250" (6.3mm) | IP40 | - | 60gf | 6.118gf | 0.738" (18.7mm) | 0.157" (4.0mm) | 0.060" (1.5mm) | 0.062" (1.6mm) | -25°C ~ 105°C |
|
D3V-165-3C25SWITCH SNAP ACT SPST-NO 16A 250V |
96 |
|
Datasheet |
D3V | Bulk | Active | SPST-NO | Off-Mom | 16A (AC), 600mA (DC) | 250 V | 125 V | Lever, Roller | Chassis Mount | Quick Connect - 0.187" (4.7mm) | IP40 | - | 240gf | 50gf | 0.815" (20.7mm) | 0.063" (1.6mm) | 0.025" (0.6mm) | 0.031" (0.79mm) | -25°C ~ 105°C |
|
D3V-6G5-3C23SWITCH SNAP ACT SPST-NO 6A 250V |
100 |
|
Datasheet |
D3V | Bulk | Active | SPST-NO | Off-Mom | 6A (AC) | 250 V | - | Lever, Roller | Chassis Mount | Quick Connect - 0.187" (4.7mm) | IP40 | - | 60gf | 6.118gf | 0.815" (20.7mm) | 0.063" (1.6mm) | 0.020" (0.5mm) | 0.031" (0.79mm) | -25°C ~ 105°C |
|
463093691402SWITCH LIMIT SPDT 3A 125V |
67 |
|
Datasheet |
WS-MITV | Tray | Active | SPDT | On-Mom | 3A (AC), 2A (DC) | 125 V | 30 V | Lever, Roller | Through Hole, Right Angle | PC Pin | - | - | 80gf | 5.000gf | 0.512" (13.00mm) | - | 0.020" (0.5mm) | 0.022" (0.55mm) | -40°C ~ 85°C |
|
VX-013-3A3SWITCH SNP ACT SPST-NO 0.1A 125V |
49 |
|
Datasheet |
VX | Bulk | Active | SPST-NO | Off-Mom | 100mA (AC/DC) | 125 V | 30 V | Lever, Straight | Chassis Mount | Solder, Quick Connect - 0.187" (4.7mm) | IP40 | - | 20gf | - | 0.600" (15.2mm) | 0.354" (9.0mm) | 0.080" (2.0mm) | 0.125" (3.2mm) | -25°C ~ 80°C |
|
V-10-2C24SWITCH SNAP ACT SPST-NC 10A 250V |
98 |
|
Datasheet |
V | Bulk | Active | SPST-NC | On-Mom | 10A (AC), 600mA (DC) | 250 V | 125 V | Round (Pin Plunger) | Chassis Mount | Quick Connect - 0.187" (4.7mm) | IP40 | - | 100gf | 20gf | 0.579" (14.7mm) | 0.047" (1.2mm) | 0.016" (0.4mm) | 0.040" (1.0mm) | -25°C ~ 80°C |
|
V-16-1A5SWITCH SNAP ACTION SPDT 16A 250V |
95 |
|
Datasheet |
V | Bulk | Active | SPDT | On-Mom | 16A (AC), 600mA (DC) | 250 V | 125 V | Round (Pin Plunger) | Chassis Mount | Solder, Quick Connect - 0.187" (4.7mm) | IP40 | - | 200gf | 50gf | 0.579" (14.7mm) | 0.047" (1.2mm) | 0.016" (0.4mm) | 0.040" (1.0mm) | -25°C ~ 80°C |
|
V-15-1C25-KSWITCH SNAP ACTION SPDT 15A 250V |
100 |
|
Datasheet |
V | Bulk | Active | SPDT | On-Mom | 15A (AC), 600mA (DC) | 250 V | 125 V | Round (Pin Plunger) | Chassis Mount | Quick Connect - 0.187" (4.7mm) | IP40 | - | 200gf | 50gf | 0.579" (14.7mm) | 0.047" (1.2mm) | 0.016" (0.4mm) | 0.040" (1.0mm) | -25°C ~ 80°C |
|

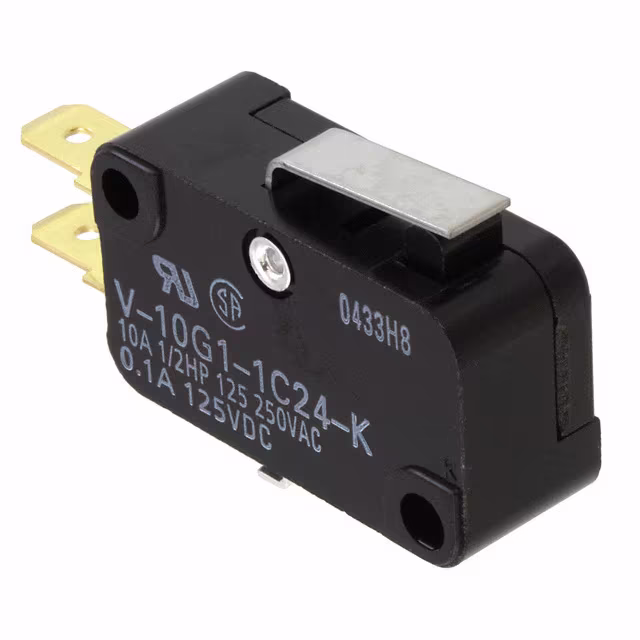

V-10G1-1C24-KSWITCH SNAP ACTION SPDT 10A 250V |
43 |
|
Datasheet |
V | Bulk | Active | SPDT | On-Mom | 10A (AC), 100mA (DC) | 250 V | 125 V | Lever, Straight | Chassis Mount | Quick Connect - 0.187" (4.7mm) | IP40 | - | 100gf | 15gf | 0.600" (15.2mm) | 0.063" (1.6mm) | 0.025" (0.6mm) | 0.030" (0.76mm) | -25°C ~ 80°C |
|
|
D3V-16G4K-1C25-KSWITCH SNAP ACTION SPDT 16A 250V |
51 |
|
Datasheet |
D3V | Bulk | Active | SPDT | On-Mom | 16A (AC), 100mA (DC) | 250 V | 125 V | Lever, Simulated Roller | Chassis Mount | Quick Connect - 0.187" (4.7mm) | IP40 | - | 75gf | 10gf | 0.738" (18.7mm) | 0.315" (8.0mm) | 0.118" (3.0mm) | 0.060" (1.5mm) | -25°C ~ 105°C |
|
V-15G-1C24-KSWITCH SNAP ACTION SPDT 15A 250V |
53 |
|
Datasheet |
V | Bulk | Active | SPDT | On-Mom | 15A (AC), 100mA (DC) | 250 V | 125 V | Round (Pin Plunger) | Chassis Mount | Quick Connect - 0.187" (4.7mm) | IP40 | - | 100gf | 20gf | 0.579" (14.7mm) | 0.047" (1.2mm) | 0.016" (0.4mm) | 0.040" (1.0mm) | -25°C ~ 80°C |
