Limit Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Mounting Type | Termination Style | Ingress Protection | Features | Operating Force | Release Force | Operating Position | Pretravel | Differential Travel | Overtravel | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
VM3AQF0801L00SWITCH LIMIT SPST-NO 16A 125V |
77 |
|
Datasheet |
VM3 | Tray | Active | SPST-NO | Off-Mom | 16A (AC) | 125 V | - | Round (Pin Plunger) | Chassis Mount | Quick Connect - 0.250" (6.3mm) | - | - | 80gf | 40gf | 0.562" (14.3mm) | 0.055" (1.4mm) | 0.016" (0.4mm) | 0.045" (1.1mm) | -40°C ~ 120°C |
|
VM3AQF0802L00SWITCH LIMIT SPST-NO 16A 125V |
50 |
|
Datasheet |
VM3 | Tray | Active | SPST-NO | Off-Mom | 16A (AC) | 125 V | - | Round (Pin Plunger) | Chassis Mount | Quick Connect - 0.187" (4.7mm) | - | - | 80gf | 40gf | 0.562" (14.3mm) | 0.055" (1.4mm) | 0.016" (0.4mm) | 0.045" (1.1mm) | -40°C ~ 120°C |
|
VM3AQF1801L02SWITCH LIMIT SPST-NO 16A 125V |
38 |
|
Datasheet |
VM3 | Tray | Active | SPST-NO | Off-Mom | 16A (AC) | 125 V | - | Lever, Simulated Roller | Chassis Mount | Quick Connect - 0.250" (6.3mm) | - | - | 80gf | 40gf | 0.697" (17.7mm) | 0.122" (3.1mm) | 0.027" (0.7mm) | 0.090" (2.3mm) | -40°C ~ 120°C |
|
VM3AQF1802L04SWITCH LIMIT SPST-NO 16A 125V |
57 |
|
Datasheet |
VM3 | Tray | Active | SPST-NO | Off-Mom | 16A (AC) | 125 V | - | Lever, Straight | Chassis Mount | Quick Connect - 0.187" (4.7mm) | - | - | 145gf | 60gf | 0.560" (14.2mm) | 0.087" (2.2mm) | 0.020" (0.5mm) | 0.047" (1.20mm) | -40°C ~ 120°C |
|

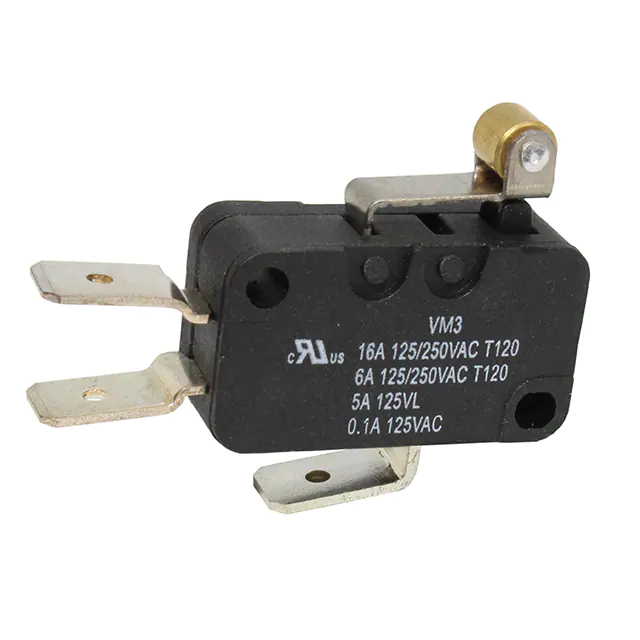

VM3CQF1801L06SWITCH LIMIT SPDT 16A 125V |
75 |
|
Datasheet |
VM3 | Tray | Active | SPDT | On-Mom | 16A (AC) | 125 V | - | Lever, Roller | Chassis Mount | Quick Connect - 0.250" (6.3mm) | - | - | 180gf | 80gf | 0.785" (19.9mm) | 0.075" (1.9mm) | 0.016" (0.4mm) | 0.047" (1.20mm) | -40°C ~ 120°C |
|
VM3AQF0801L03SWITCH LIMIT SPST-NO 16A 125V |
92 |
|
Datasheet |
VM3 | Tray | Active | SPST-NO | Off-Mom | 16A (AC) | 125 V | - | Lever, Straight | Chassis Mount | Quick Connect - 0.250" (6.3mm) | - | - | 35gf | 18gf | 0.551" (14.0mm) | 0.131" (3.3mm) | 0.025" (0.6mm) | 0.090" (2.3mm) | -40°C ~ 120°C |
|
VM3AQF0802L03SWITCH LIMIT SPST-NO 16A 125V |
56 |
|
Datasheet |
VM3 | Tray | Active | SPST-NO | Off-Mom | 16A (AC) | 125 V | - | Lever, Straight | Chassis Mount | Quick Connect - 0.187" (4.7mm) | - | - | 35gf | 18gf | 0.551" (14.0mm) | 0.131" (3.3mm) | 0.025" (0.6mm) | 0.090" (2.3mm) | -40°C ~ 120°C |
|
VM3AQF1801L01SWITCH LIMIT SPST-NO 16A 125V |
33 |
|
Datasheet |
VM3 | Tray | Active | SPST-NO | Off-Mom | 16A (AC) | 125 V | - | Lever, Roller | Chassis Mount | Quick Connect - 0.250" (6.3mm) | - | - | 80gf | 60gf | 0.732" (18.6mm) | 0.146" (3.7mm) | 0.027" (0.7mm) | 0.100" (2.5mm) | -40°C ~ 120°C |
|
D3V-161-1C5SWITCH SNAP ACTION SPDT 16A 250V |
100 |
|
Datasheet |
D3V | Bulk | Active | SPDT | On-Mom | 16A (AC), 600mA (DC) | 250 V | 125 V | Lever, Straight | Chassis Mount | Quick Connect - 0.250" (6.3mm) | IP40 | - | 200gf | 50gf | 0.600" (15.2mm) | 0.063" (1.6mm) | 0.025" (0.6mm) | 0.031" (0.79mm) | -25°C ~ 105°C |
|
AVL34453SWITCH SNAP ACTION SPDT 5A 125V |
100 |
|
Datasheet |
AVL3 | Bulk | Active | SPDT | On-Mom | 5A (AC/DC) | 125 V | 30 V | Lever, Simulated Roller | Through Hole | PC Pin | - | - | 55gf | 3.500gf | 0.460" (11.7mm) | 0.110" (2.8mm) | 0.032" (0.81mm) | 0.047" (1.2mm) | -25°C ~ 85°C |
|
VM3CQF1801L07SWITCH LIMIT SPDT 16A 125V |
77 |
|
Datasheet |
VM3 | Tray | Active | SPDT | On-Mom | 16A (AC) | 125 V | - | Lever, Straight | Chassis Mount | Quick Connect - 0.250" (6.3mm) | - | - | 40gf | 20gf | 0.445" (11.3mm) | 0.303" (7.7mm) | 0.075" (1.9mm) | 0.278" (7.1mm) | -40°C ~ 120°C |
|
VM3CQF1802L01SWITCH LIMIT SPDT 16A 125V |
61 |
|
Datasheet |
VM3 | Tray | Active | SPDT | On-Mom | 16A (AC) | 125 V | - | Lever, Roller | Chassis Mount | Quick Connect - 0.187" (4.7mm) | - | - | 80gf | 60gf | 0.732" (18.6mm) | 0.146" (3.7mm) | 0.027" (0.7mm) | 0.100" (2.5mm) | -40°C ~ 120°C |
|
|
VM3CQF1801L01SWITCH LIMIT SPDT 16A 125V |
57 |
|
Datasheet |
VM3 | Tray | Active | SPDT | On-Mom | 16A (AC) | 125 V | - | Lever, Roller | Chassis Mount | Quick Connect - 0.250" (6.3mm) | - | - | 80gf | 60gf | 0.732" (18.6mm) | 0.146" (3.7mm) | 0.027" (0.7mm) | 0.100" (2.5mm) | -40°C ~ 120°C |
|
ABS1412503SWITCH SNAP ACTION SPDT 2A 125V |
92 |
|
Datasheet |
ABS | Bulk | Active | SPDT | On-Mom | 2A (AC/DC) | 125 V | 30 V | Lever, Straight | Chassis Mount | Solder Lug | IP50 - Dust Protected | - | 55gf | 3.500gf | 0.345" (8.8mm) | 0.110" (2.8mm) | 0.031" (0.8mm) | 0.047" (1.2mm) | -40°C ~ 85°C |
|
SS-5-3SWITCH SNAP ACT SPST-NO 5A 125V |
51 |
|
Datasheet |
SS | Bulk | Active | SPST-NO | Off-Mom | 5A (AC) | 125 V | - | Round (Pin Plunger) | Chassis Mount | Solder Lug | IP40 | - | 150gf | 25gf | 0.330" (8.4mm) | 0.020" (0.5mm) | 0.004" (0.1mm) | 0.020" (0.5mm) | -25°C ~ 85°C |
|
AVL32453SWITCH SNAP ACTION SPDT 5A 125V |
97 |
|
Datasheet |
AVL3 | Bulk | Active | SPDT | On-Mom | 5A (AC/DC) | 125 V | 30 V | Lever, Simulated Roller | Chassis Mount | Solder Lug | - | - | 55gf | 3.500gf | 0.460" (11.7mm) | 0.110" (2.8mm) | 0.032" (0.81mm) | 0.047" (1.2mm) | -25°C ~ 85°C |
|

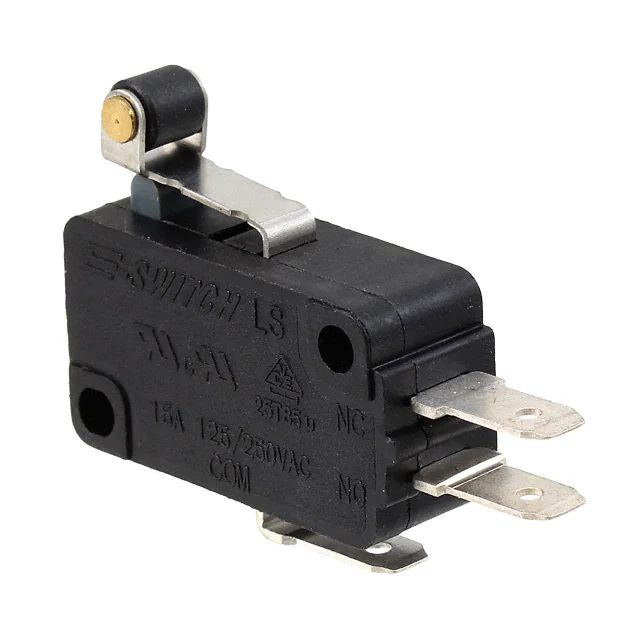

LS0851505F160C1ASWITCH SNAP ACTION SPDT 15A 125V |
90 |
|
Datasheet |
LS | Bulk | Active | SPDT | On-Mom | 15A (AC) | 125 V | - | Lever, Roller | Chassis Mount | Quick Connect - 0.187" (4.7mm) | - | - | 160gf | 40gf | 0.815" (20.7mm) | 0.106" (2.7mm) | - | - | -25°C ~ 85°C |
|

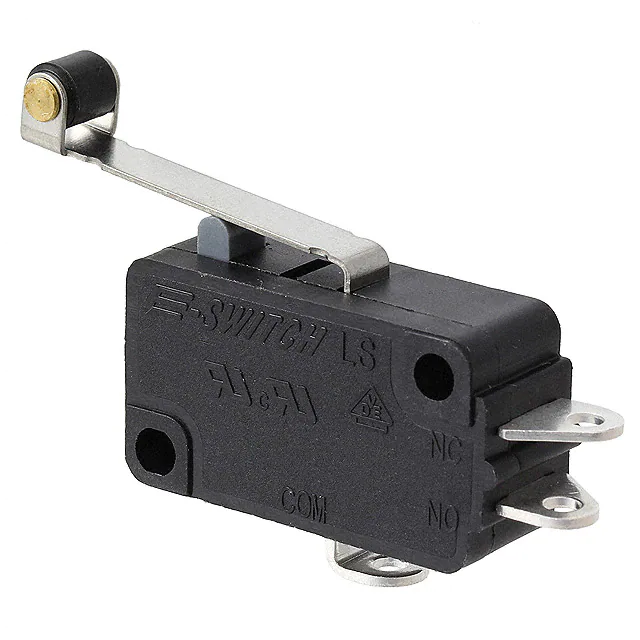

LS0851506F045S1ASWITCH SNAP ACTION SPDT 15A 125V |
56 |
|
Datasheet |
LS | Bulk | Active | SPDT | On-Mom | 15A (AC) | 125 V | - | Lever, Roller | Chassis Mount | Solder Lug | - | - | 45gf | 15gf | 0.815" (20.7mm) | 0.218" (5.5mm) | - | - | -25°C ~ 85°C |
.jpg)
|
D3V-01-2C23SWITCH SNP ACT SPST-NC 0.1A 125V |
58 |
|
Datasheet |
D3V | Bulk | Active | SPST-NC | On-Mom | 100mA (AC/DC) | 125 V | 30 V | Round (Pin Plunger) | Chassis Mount | Quick Connect - 0.187" (4.7mm) | IP40 | - | 50gf | 5.099gf | 0.579" (14.7mm) | 0.047" (1.2mm) | 0.016" (0.4mm) | 0.040" (1.0mm) | -25°C ~ 85°C |
|
|
D3V-164M-1A4SWITCH SNAP ACTION SPDT 16A 250V |
85 |
|
Datasheet |
D3V | Bulk | Active | SPDT | On-Mom | 16A (AC), 10A (DC) | 250 V | 30 V | Lever, Simulated Roller | Chassis Mount | Solder, Quick Connect - 0.187" (4.7mm) | IP40 | - | 60gf | 6.118gf | 0.738" (18.7mm) | 0.157" (4.0mm) | 0.060" (1.5mm) | 0.062" (1.6mm) | -25°C ~ 105°C |
