Limit Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Mounting Type | Termination Style | Ingress Protection | Features | Operating Force | Release Force | Operating Position | Pretravel | Differential Travel | Overtravel | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SAJ101XHL0N74SNOPTQSWITCH SNAP ACT SPST-NO 0.1A 30V |
299 |
|
Datasheet |
SAJ1 | Bulk | Active | SPST-NO | Off-Mom | 100mA (DC) | - | 30 V | Lever, Straight | Through Hole | PC Pin | - | - | 26gf | 2.000gf | 0.335" (8.5mm) | 0.120" (3.0mm) | 0.020" (0.5mm) | 0.022" (0.55mm) | -25°C ~ 75°C |
|
SS-3GLPBSWITCH SNAP ACTION SPDT 3A 125V |
140 |
|
Datasheet |
SS-P | Tray | Active | SPDT | On-Mom | 3A (AC/DC) | 125 V | 30 V | Lever, Straight | Through Hole | PC Pin | IP40 | - | 51gf | 5.099gf | 0.345" (8.8mm) | - | 0.031" (0.8mm) | 0.040" (1.0mm) | -25°C ~ 85°C |
|
ESE-24MH6TSWITCH DETECTOR SPDT 0.01A 5V |
831 |
|
Datasheet |
ESE24 | Tape & Reel (TR) | Active | SPDT | Mom-Off-Mom | 10mA (DC) | - | 5 V | Angled Toggle (Detector) | Surface Mount, Right Angle | SMD (SMT) Tab | - | - | 35gf | - | 0.132" (3.35mm) | - | - | - | -10°C ~ 70°C |
|
JJJHRUG200NOPMRTRSWITCH DETECT SPST-NO 0.05A 20V |
199 |
|
Datasheet |
JJJ | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | 50mA (DC) | - | 20 V | Angled Toggle (Detector) | Surface Mount | Gull Wing | - | Board Guide | 50gf | - | 0.117" (2.96mm) | 0.010" (0.25mm) | - | - | -10°C ~ 60°C |
|
D2FS-F-N-TSWITCH SNAP ACT SPST-NO 0.1A 6V |
452 |
|
Datasheet |
D2FS | Bulk | Active | SPST-NO | Off-Mom | 100mA (DC) | - | 6 V | Round (Pin Plunger) | Through Hole | PC Pin | IP40 | - | 87gf | 5.099gf | 0.276" (7.0mm) | 0.020" (0.5mm) | 0.005" (0.13mm) | 0.010" (0.25mm) | -20°C ~ 70°C |
|
SM3AQF0802L02SWITCH LIMIT SPST-NO 5A 125V |
63 |
|
Datasheet |
SM3 | Bag | Active | SPST-NO | Off-Mom | 5A (AC) | 125 V | - | Lever, Simulated Roller | Chassis Mount | Solder Lug | - | - | 25gf | 5.000gf | 0.512" (13.00mm) | 0.178" (4.5mm) | 0.035" (0.9mm) | 0.045" (1.1mm) | -40°C ~ 120°C |
|
|
SM3CQF3502L02SWITCH LIMIT SPDT 5A 125V |
56 |
|
Datasheet |
SM3 | Bag | Active | SPDT | On-Mom | 5A (AC) | 125 V | - | Lever, Simulated Roller | Chassis Mount | Solder Lug | - | - | 95gf | 30gf | 0.512" (13.00mm) | 0.178" (4.5mm) | 0.035" (0.9mm) | 0.045" (1.1mm) | -40°C ~ 120°C |
|
MS0850502F01S1ASWITCH SNAP ACTION SPDT 5A 125V |
406 |
|
Datasheet |
MS | Bulk | Active | SPDT | On-Mom | 5A (AC) | 125 V | - | Lever, Straight | Chassis Mount | Solder Lug | - | - | - | - | 0.358" (9.1mm) | 0.150" (3.8mm) | - | - | -25°C ~ 85°C |
|
JJLV0UT840NOPPRTBSWITCH DETECT SPST-NO 0.005A 5V |
579 |
|
Datasheet |
JJL | Tube | Active | SPST-NO | Off-Mom | 5mA (DC) | - | 5 V | Angled Toggle (Detector) | Through Hole | PC Pin | - | - | 35gf | - | 0.301" (7.65mm) | 0.029" (0.75mm) | - | - | -20°C ~ 70°C |
|
JJLV0UT1070NOPPRTBSWITCH DETECT SPST-NO 0.005A 5V |
233 |
|
Datasheet |
JJL | Tube | Active | SPST-NO | Off-Mom | 5mA (DC) | - | 5 V | Angled Toggle (Detector) | Through Hole | PC Pin | - | - | 35gf | - | 0.392" (9.95mm) | 0.029" (0.75mm) | - | - | -20°C ~ 70°C |
|
|
SM3CQF3502L01SWITCH LIMIT SPDT 5A 125V |
200 |
|
Datasheet |
SM3 | Bag | Active | SPDT | On-Mom | 5A (AC) | 125 V | - | Lever, Straight | Chassis Mount | Solder Lug | - | - | 90gf | 45gf | 0.413" (10.5mm) | 0.157" (4.0mm) | 0.035" (0.9mm) | 0.031" (0.8mm) | -40°C ~ 120°C |
|
|
MS0850500F130S1ASWITCH SNAP ACTION SPDT 5A 125V |
384 |
|
Datasheet |
MS | Bulk | Active | SPDT | On-Mom | 5A (AC) | 125 V | - | Round (Pin Plunger) | Chassis Mount | Solder Lug | - | - | 130gf | 40gf | 0.335" (8.5mm) | 0.043" (1.1mm) | - | - | -25°C ~ 85°C |
|
SAJ13XXPP0N88SDTPTQSWITCH SNAP ACTION SPDT 3A 125V |
735 |
|
Datasheet |
SAJ1 | Bulk | Active | SPDT | On-Mom | 3A (AC) | 125 V | - | Round (Pin Plunger) | Through Hole | PC Pin | - | - | 90gf | 5.000gf | 0.272" (6.9mm) | 0.020" (0.5mm) | 0.008" (0.2mm) | 0.008" (0.2mm) | -25°C ~ 75°C |
|

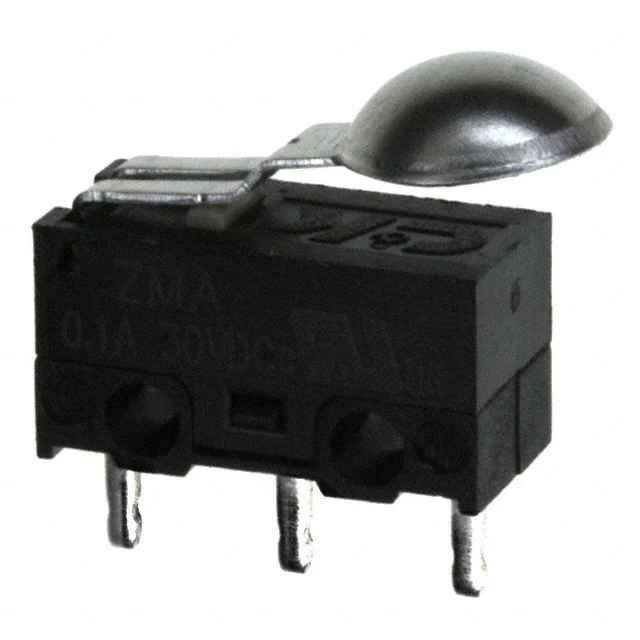

ZMA00A080S06PCSWITCH SNAP ACT SPDT 100MA 125V |
306 |
|
Datasheet |
ZMA | Tray | Active | SPDT | On-Mom | 100mA (AC/DC) | 125 V | 60 V | Lever, Simulated Roller | Through Hole | PC Pin | - | - | 33gf | 5.000gf | 0.420" (10.7mm) | 0.055" (1.4mm) | - | 0.049" (1.25mm) | -40°C ~ 85°C |
|
SAJ13XXHL0N88SNCPTQSWITCH SNAP ACT SPST-NC 3A 125V |
892 |
|
Datasheet |
SAJ1 | Bulk | Active | SPST-NC | On-Mom | 3A (AC) | 125 V | - | Lever, Straight | Through Hole | PC Pin | - | - | 40gf | 2.000gf | 0.335" (8.5mm) | 0.120" (3.0mm) | 0.020" (0.5mm) | 0.022" (0.55mm) | -25°C ~ 75°C |
|
SAJ13XXRHLN88SNCPTQSWITCH SNAP ACT SPST-NC 3A 125V |
885 |
|
Datasheet |
SAJ1 | Bulk | Active | SPST-NC | On-Mom | 3A (AC) | 125 V | - | Lever, Simulated Roller | Through Hole | PC Pin | - | - | 40gf | 2.000gf | 0.400" (10.2mm) | 0.150" (3.8mm) | 0.018" (0.45mm) | 0.020" (0.5mm) | -25°C ~ 75°C |
|

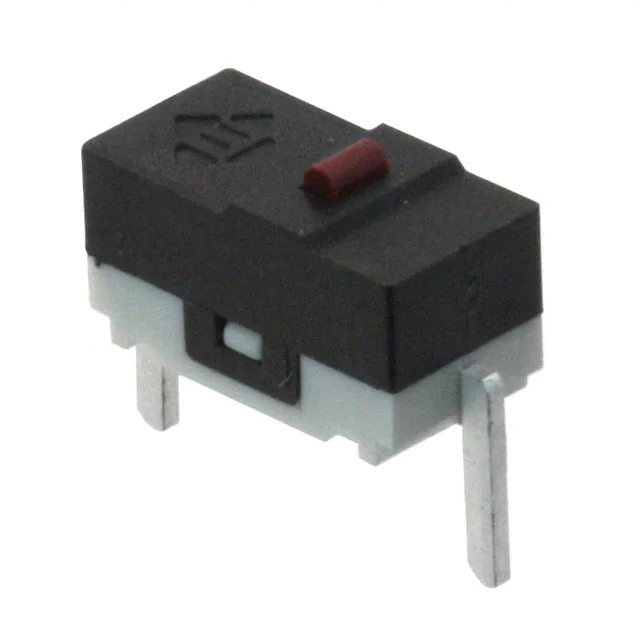

TS10100F070PSWITCH SNP ACT SPST-NO 0.1A 125V |
910 |
|
Datasheet |
TS1 | Bulk | Active | SPST-NO | Off-Mom | 100mA (AC/DC) | 125 V | 48 V | Round (Pin Plunger) | Through Hole | PC Pin | - | - | 70gf | - | 0.209" (5.3mm) | 0.014" (0.35mm) | - | - | -15°C ~ 55°C |
|
SM3CQF3501L03SWITCH LIMIT SPDT 5A 125V |
226 |
|
Datasheet |
SM3 | Bag | Active | SPDT | On-Mom | 5A (AC) | 125 V | - | Lever, Roller | Chassis Mount | Quick Connect - 0.110" (2.8mm) | - | - | 95gf | 38gf | 0.646" (16.4mm) | 0.161" (4.1mm) | 0.031" (0.80mm) | 0.039" (1.0mm) | -40°C ~ 120°C |
|
|
AH1660SWITCH SNAP ACTION SPDT 3A 125V |
99 |
|
Datasheet |
AH1 | Tube | Active | SPDT | On-Mom | 3A (AC), 2A (DC) | 125 V | 30 V | Round (Pin Plunger) | Chassis Mount | Solder Lug | - | - | 150gf | 20gf | 0.217" (5.5mm) | 0.020" (0.5mm) | 0.005" (0.13mm) | 0.010" (0.25mm) | -25°C ~ 85°C |
|
VM3AQF1801L00SWITCH LIMIT SPST-NO 16A 125V |
36 |
|
Datasheet |
VM3 | Tray | Active | SPST-NO | Off-Mom | 16A (AC) | 125 V | - | Round (Pin Plunger) | Chassis Mount | Quick Connect - 0.250" (6.3mm) | - | - | 180gf | 90gf | 0.562" (14.3mm) | 0.055" (1.4mm) | 0.016" (0.4mm) | 0.045" (1.1mm) | -40°C ~ 120°C |
Limit Switches Electronic Components
Frequently Asked Questions
Q1: What products are included in Limit Switches?
This category includes related Limit Switches subcategories and electronic components from multiple manufacturers. Select a lower-level category to view available part numbers.
Q2: Can I request a quotation for Limit Switches components?
Yes. Send us the part numbers and required quantities, and our team will provide sourcing and quotation support.
Q3: Are datasheets and technical information available?
Yes. Datasheets and technical information are available on supported final product pages and product listings.
Q4: Do you support BOM sourcing?
Yes. We support BOM matching, component procurement and alternative sourcing for Limit Switches and other electronic components.
