Limit Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Mounting Type | Termination Style | Ingress Protection | Features | Operating Force | Release Force | Operating Position | Pretravel | Differential Travel | Overtravel | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
UP3DTAOLA04SWITCH SNAP ACTION SPDT 3A 125V |
0 |
|
Datasheet |
UP03 | Box | Obsolete | SPDT | On-Mom | 3A (AC) | 125 V | - | Round (Pin Plunger) | Through Hole | PC Pin | - | - | - | - | - | - | - | - | - |
|
|
MDS002CSWITCH SNAP ACT SPDT 300MA 30V |
0 |
|
Datasheet |
MDS | Bulk | Obsolete | SPDT | On-Mom | 300mA (DC) | - | 30 V | Lever, Straight | Through Hole, Right Angle | PC Pin | - | - | 50gf | 3.000gf | - | - | - | - | -10°C ~ 60°C |
|
|
AM1704KFSWITCH SNAP ACTION SPDT 10A 125V |
0 |
|
Datasheet |
AM1 | Tray | Obsolete | SPDT | On-Mom | 10A (AC), 500mA (DC) | 125 V | 125 V | Lever, Roller | Chassis Mount | Screw Terminal | - | Cadmium Free | 160gf | 43gf | 1.188" (30.2mm) | 0.178" (4.5mm) | 0.027" (0.7mm) | 0.094" (2.4mm) | -25°C ~ 80°C |
|
91MCE1-P1SWITCH SNAP ACTION DPST 6A 120V |
0 |
|
Datasheet |
91MCE | Bulk | Obsolete | DPST-NO/NC | On-Mom, Off-Mom | 6A (AC), 550mA (DC) | 120 V | 125 V | Round (Pin Plunger) | Chassis Mount | Cable Leads | IP67 - Dust Tight, Waterproof | Cable Length 1m | 1122gf | - | - | 0.071" (1.8mm) | 0.031" (0.8mm) | 0.125" (3.2mm) | -25°C ~ 85°C |
|
91MCE2-P1SWITCH SNAP ACTION DPST 6A 120V |
0 |
|
Datasheet |
91MCE | Bulk | Obsolete | DPST-NO/NC | On-Mom, Off-Mom | 6A (AC), 550mA (DC) | 120 V | 125 V | Roller Plunger | Chassis Mount | Cable Leads | IP67 - Dust Tight, Waterproof | Cable Length 1m | 1122gf | - | - | 0.071" (1.8mm) | 0.031" (0.8mm) | 0.125" (3.2mm) | -25°C ~ 85°C |
|
91MCE2-S1SWITCH SNAP ACTION DPST 6A 120V |
0 |
|
Datasheet |
91MCE | Bulk | Obsolete | DPST-NO/NC | On-Mom, Off-Mom | 6A (AC), 550mA (DC) | 120 V | 125 V | Roller Plunger | Chassis Mount | Cable Leads | IP67 - Dust Tight, Waterproof | Cable Length 1m | 816gf | - | - | 0.063" (1.6mm) | 0.055" (1.4mm) | 0.134" (3.4mm) | -25°C ~ 85°C |
|
91MCE3-P1SWITCH SNAP ACTION DPST 6A 120V |
0 |
|
Datasheet |
91MCE | Bulk | Obsolete | DPST-NO/NC | On-Mom, Off-Mom | 6A (AC), 550mA (DC) | 120 V | 125 V | Cross Roller Plunger | Chassis Mount | Cable Leads | IP67 - Dust Tight, Waterproof | Cable Length 1m | 1122gf | - | - | 0.071" (1.8mm) | 0.031" (0.8mm) | 0.125" (3.2mm) | -25°C ~ 85°C |
|
91MCE16-P1SWITCH SNAP ACTION DPST 6A 120V |
0 |
|
- |
91MCE | Bulk | Obsolete | DPST-NO/NC | On-Mom, Off-Mom | 6A (AC), 550mA (DC) | 120 V | 125 V | Side Rotary, Roller | Chassis Mount | Cable Leads | IP67 - Dust Tight, Waterproof | Cable Length 1m | 18gfm | 4.078gfm | - | 20° | 10° | 50° | -25°C ~ 85°C |
|
LSXYAB3KSWITCH SNAP ACTION SPDT 10A 120V |
0 |
|
Datasheet |
LSX | Bulk | Active | SPDT (DB/DM) | On-Mom | 10A (AC), 800mA (DC) | 120 V | 115 V | Side Rotary - No Lever | Chassis Mount | Screw Terminal | - | Explosion Proof | 46gfm | - | - | 15° | 5° | 60° | -40°C ~ 121°C |
|

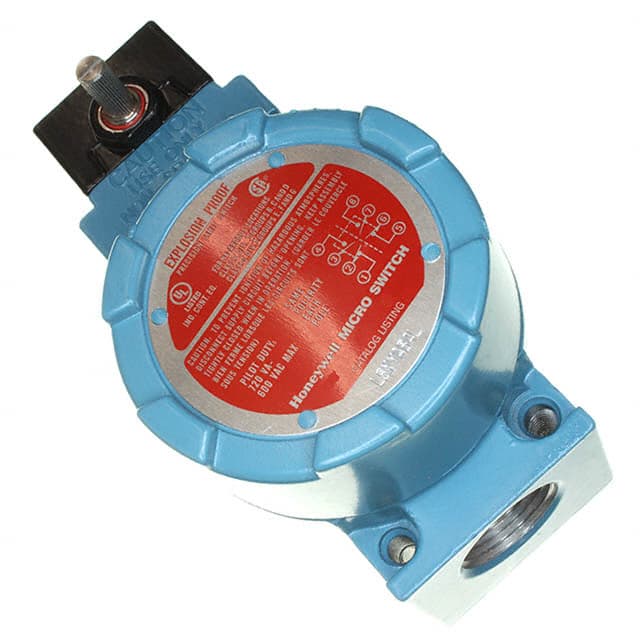

LSXYAB4LSWITCH SNAP ACTION DPDT 10A 120V |
0 |
|
Datasheet |
LSX | Bulk | Active | DPDT (DB/DM) | On-Mom | 10A (AC), 800mA (DC) | 120 V | 115 V | Side Rotary - No Lever | Chassis Mount | Screw Terminal | - | Explosion Proof | 46gfm | - | - | 15° | 7° | 60° | -40°C ~ 121°C |
|

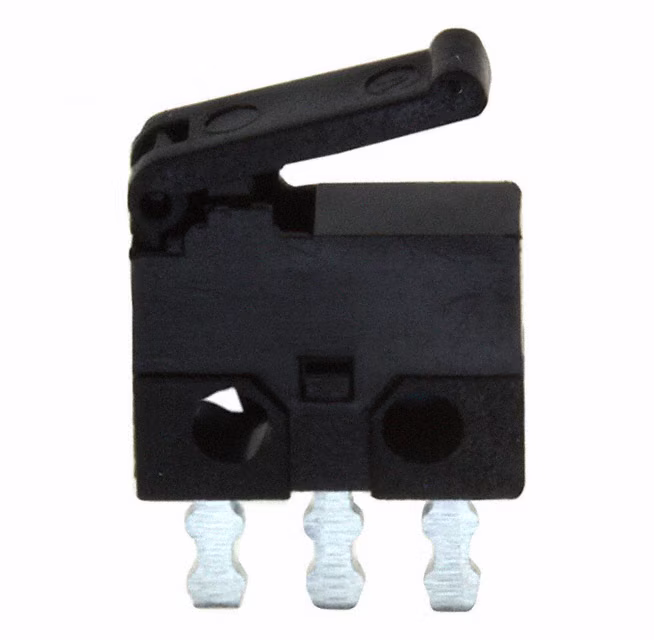

MDS001CSWITCH SNAP ACT SPDT 300MA 30V |
0 |
|
Datasheet |
MDS | Bulk | Obsolete | SPDT | On-Mom | 300mA (DC) | - | 30 V | Lever, Straight | Through Hole | PC Pin | - | - | 50gf | 3.000gf | - | - | - | - | -10°C ~ 60°C |
|
|
MDS003CSWITCH SNAP ACT SPDT 300MA 30V |
0 |
|
Datasheet |
MDS | Bulk | Obsolete | SPDT | On-Mom | 300mA (DC) | - | 30 V | Lever, Straight | Through Hole, Right Angle | PC Pin | - | - | 50gf | 3.000gf | - | - | - | - | -10°C ~ 60°C |
|

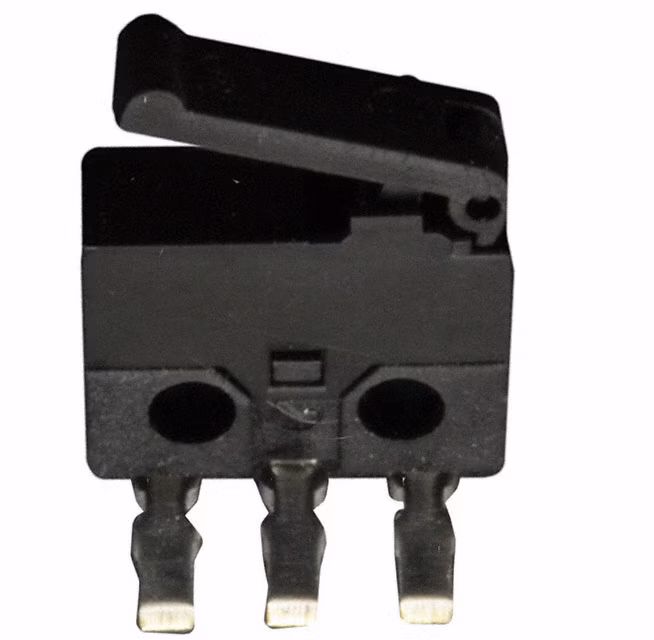

MDS005CSWITCH SNAP ACT SPDT 300MA 30V |
0 |
|
Datasheet |
MDS | Bulk | Obsolete | SPDT | On-Mom | 300mA (DC) | - | 30 V | Lever, Straight | Through Hole, Right Angle | PC Pin | - | - | 50gf | 3.000gf | - | - | - | - | -10°C ~ 60°C |
|

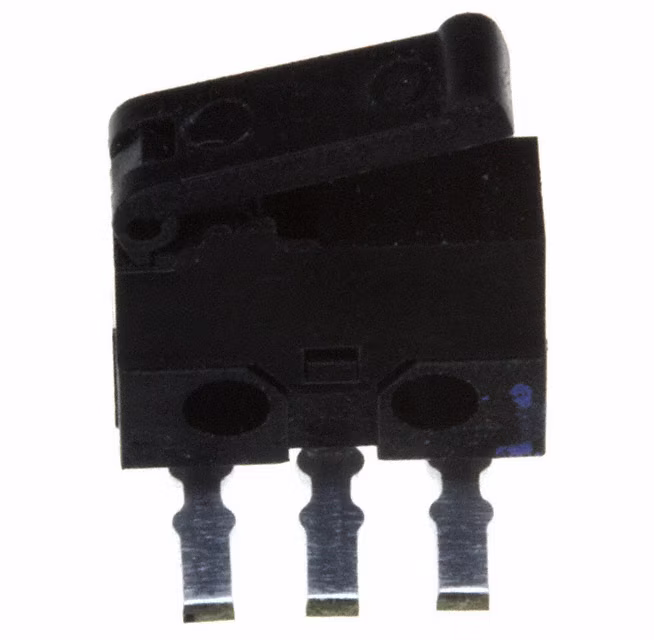

MDS006CSWITCH SNAP ACT SPDT 300MA 30V |
0 |
|
Datasheet |
MDS | Bulk | Obsolete | SPDT | On-Mom | 300mA (DC) | - | 30 V | Lever, Straight | Through Hole, Right Angle | PC Pin | - | - | 50gf | 3.000gf | - | - | - | - | -10°C ~ 60°C |
|
|
MDS007CSWITCH SNAP ACT SPDT 300MA 30V |
0 |
|
Datasheet |
MDS | Bulk | Obsolete | SPDT | On-Mom | 300mA (DC) | - | 30 V | Lever, Straight | Through Hole | PC Pin | - | - | 50gf | 3.000gf | - | - | - | - | -10°C ~ 60°C |
|
D3V-161-1C24-KSWITCH SNAP ACTION SPDT 16A 250V |
0 |
|
Datasheet |
D3V | Bulk | Obsolete | SPDT | On-Mom | 16A (AC), 600mA (DC) | 250 V | 125 V | Lever, Straight | Chassis Mount | Quick Connect - 0.187" (4.7mm) | IP40 | - | 100gf | 15gf | 0.600" (15.2mm) | 0.063" (1.6mm) | 0.025" (0.6mm) | 0.031" (0.79mm) | -25°C ~ 105°C |
|
|
D3V-162M-1C5-KSWITCH SNAP ACTION SPDT 16A 250V |
0 |
|
Datasheet |
D3V | Bulk | Obsolete | SPDT | On-Mom | 16A (AC), 10A (DC) | 250 V | 30 V | Lever, Straight | Chassis Mount | Quick Connect - 0.250" (6.3mm) | IP40 | - | 125gf | 14gf | 0.600" (15.2mm) | 0.157" (4.0mm) | 0.060" (1.5mm) | 0.062" (1.6mm) | -25°C ~ 105°C |
.jpg)
|
D3V-16G-1C25-K-HSWITCH SNAP ACTION SPDT 16A 250V |
0 |
|
Datasheet |
D3V | Bulk | Active | SPDT | On-Mom | 16A (AC), 100mA (DC) | 250 V | 125 V | Round (Pin Plunger) | Chassis Mount | Quick Connect - 0.187" (4.7mm) | IP40 | - | 200gf | 50gf | 0.579" (14.7mm) | 0.047" (1.2mm) | 0.012" (0.3mm) | 0.040" (1.0mm) | -25°C ~ 125°C |
|
D3V-16G2-1C5SWITCH SNAP ACTION SPDT 16A 250V |
0 |
|
Datasheet |
D3V | Bulk | Obsolete | SPDT | On-Mom | 16A (AC), 100mA (DC) | 250 V | 125 V | Lever, Straight | Chassis Mount | Quick Connect - 0.250" (6.3mm) | IP40 | - | 125gf | 14gf | 0.600" (15.2mm) | 0.157" (4.0mm) | 0.031" (0.8mm) | 0.062" (1.6mm) | -25°C ~ 105°C |
|
|
D3V-61M-1C24-KSWITCH SNAP ACTION SPDT 6A 250V |
0 |
|
Datasheet |
D3V | Bulk | Obsolete | SPDT | On-Mom | 6A (AC/DC) | 250 V | 30 V | Lever, Straight | Chassis Mount | Quick Connect - 0.187" (4.7mm) | IP40 | - | 100gf | 15gf | 0.600" (15.2mm) | 0.063" (1.6mm) | 0.025" (0.6mm) | 0.031" (0.79mm) | -25°C ~ 105°C |
