Limit Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Mounting Type | Termination Style | Ingress Protection | Features | Operating Force | Release Force | Operating Position | Pretravel | Differential Travel | Overtravel | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
AM51660C73-ASWITCH SNAP ACT SPST-NO 16A 125V |
0 |
|
Datasheet |
AM5 | Bulk | Obsolete | SPST-NO | Off-Mom | 16A (AC), 600mA (DC) | 125 V | 125 V | Round (Pin Plunger) | Chassis Mount | Quick Connect - 0.187" (4.7mm) | - | - | 400gf | 100gf | 0.579" (14.7mm) | 0.055" (1.4mm) | 0.016" (0.4mm) | 0.040" (1.0mm) | -25°C ~ 105°C |
|
|
AM52130D63-ASWITCH SNAP ACT SPST-NO 21A 250V |
0 |
|
Datasheet |
AM5 | Bulk | Obsolete | SPST-NO | Off-Mom | 21A (AC) | 250 V | - | Round (Pin Plunger) | Chassis Mount | Quick Connect - 0.250" (6.3mm) | - | - | 300gf | 75gf | 0.579" (14.7mm) | 0.055" (1.4mm) | 0.016" (0.4mm) | 0.040" (1.0mm) | -25°C ~ 105°C |
|
AV31029SWITCH SNAP ACTION SPDT 3A 125V |
0 |
|
Datasheet |
AV3 | Bulk | Obsolete | SPDT | On-Mom | 3A (AC/DC) | 125 V | 30 V | Round (Pin Plunger) | Chassis Mount | Solder Lug | - | Insulation Barrier | 50gf | 7.546gf | 0.330" (8.4mm) | 0.024" (0.6mm) | 0.004" (0.1mm) | 0.015" (0.4mm) | -25°C ~ 85°C |
|
|
AV31049SWITCH SNAP ACTION SPDT 3A 125V |
0 |
|
Datasheet |
AV3 | Bulk | Obsolete | SPDT | On-Mom | 3A (AC/DC) | 125 V | 30 V | Round (Pin Plunger) | Chassis Mount | Solder Lug | - | Insulation Barrier | 100gf | 15gf | 0.330" (8.4mm) | 0.024" (0.6mm) | 0.004" (0.1mm) | 0.015" (0.4mm) | -25°C ~ 85°C |
|
|
AV33029SWITCH SNAP ACTION SPDT 3A 125V |
0 |
|
Datasheet |
AV3 | Bulk | Obsolete | SPDT | On-Mom | 3A (AC/DC) | 125 V | 30 V | Round (Pin Plunger) | Chassis Mount | Solder Lug | - | Insulation Barrier | 50gf | 7.546gf | 0.330" (8.4mm) | 0.024" (0.6mm) | 0.004" (0.1mm) | 0.015" (0.4mm) | -25°C ~ 85°C |
|
|
AV33049SWITCH SNAP ACTION SPDT 3A 125V |
0 |
|
Datasheet |
AV3 | Bulk | Obsolete | SPDT | On-Mom | 3A (AC/DC) | 125 V | 30 V | Round (Pin Plunger) | Chassis Mount | Solder Lug | - | Insulation Barrier | 100gf | 15gf | 0.330" (8.4mm) | 0.024" (0.6mm) | 0.004" (0.1mm) | 0.015" (0.4mm) | -25°C ~ 85°C |
|
|
AV34029SWITCH SNAP ACTION SPDT 3A 125V |
0 |
|
Datasheet |
AV3 | Bulk | Obsolete | SPDT | On-Mom | 3A (AC/DC) | 125 V | 30 V | Round (Pin Plunger) | Through Hole | PC Pin | - | - | 50gf | 7.546gf | 0.330" (8.4mm) | 0.024" (0.6mm) | 0.004" (0.1mm) | 0.015" (0.4mm) | -25°C ~ 85°C |
|
|
AV35029SWITCH SNAP ACTION SPDT 3A 125V |
0 |
|
Datasheet |
AV3 | Bulk | Obsolete | SPDT | On-Mom | 3A (AC/DC) | 125 V | 30 V | Round (Pin Plunger) | Through Hole | PC Pin | - | - | 50gf | 7.546gf | 0.330" (8.4mm) | 0.024" (0.6mm) | 0.004" (0.1mm) | 0.015" (0.4mm) | -25°C ~ 85°C |
|
|
AV35049SWITCH SNAP ACTION SPDT 3A 125V |
0 |
|
Datasheet |
AV3 | Bulk | Obsolete | SPDT | On-Mom | 3A (AC/DC) | 125 V | 30 V | Round (Pin Plunger) | Through Hole | PC Pin | - | - | 100gf | 15gf | 0.330" (8.4mm) | 0.024" (0.6mm) | 0.004" (0.1mm) | 0.015" (0.4mm) | -25°C ~ 85°C |
|
|
AV36029SWITCH SNAP ACTION SPDT 3A 125V |
0 |
|
Datasheet |
AV3 | Bulk | Obsolete | SPDT | On-Mom | 3A (AC/DC) | 125 V | 30 V | Round (Pin Plunger) | Through Hole, Right Angle | PC Pin | - | Actuator Mounted Right Side | 50gf | 7.546gf | 0.330" (8.4mm) | 0.024" (0.6mm) | 0.004" (0.1mm) | 0.015" (0.4mm) | -25°C ~ 85°C |
|
|
AV36049SWITCH SNAP ACTION SPDT 3A 125V |
0 |
|
Datasheet |
AV3 | Bulk | Obsolete | SPDT | On-Mom | 3A (AC/DC) | 125 V | 30 V | Round (Pin Plunger) | Through Hole, Right Angle | PC Pin | - | Actuator Mounted Right Side | 100gf | 15gf | 0.330" (8.4mm) | 0.024" (0.6mm) | 0.004" (0.1mm) | 0.015" (0.4mm) | -25°C ~ 85°C |
|
|
AV37029SWITCH SNAP ACTION SPDT 3A 125V |
0 |
|
Datasheet |
AV3 | Bulk | Obsolete | SPDT | On-Mom | 3A (AC/DC) | 125 V | 30 V | Round (Pin Plunger) | Through Hole, Right Angle | PC Pin | - | Actuator Mounted Left Side | 50gf | 7.546gf | 0.330" (8.4mm) | 0.024" (0.6mm) | 0.004" (0.1mm) | 0.015" (0.4mm) | -25°C ~ 85°C |
|
|
AV37049SWITCH SNAP ACTION SPDT 3A 125V |
0 |
|
Datasheet |
AV3 | Bulk | Obsolete | SPDT | On-Mom | 3A (AC/DC) | 125 V | 30 V | Round (Pin Plunger) | Through Hole, Right Angle | PC Pin | - | Actuator Mounted Left Side | 100gf | 15gf | 0.330" (8.4mm) | 0.024" (0.6mm) | 0.004" (0.1mm) | 0.015" (0.4mm) | -25°C ~ 85°C |
|
|
AV38029SWITCH SNAP ACTION SPDT 3A 125V |
0 |
|
Datasheet |
AV3 | Bulk | Obsolete | SPDT | On-Mom | 3A (AC/DC) | 125 V | 30 V | Round (Pin Plunger) | Chassis Mount | Quick Connect - 0.110" (2.8mm) | - | - | 50gf | 7.546gf | 0.330" (8.4mm) | 0.024" (0.6mm) | 0.004" (0.1mm) | 0.015" (0.4mm) | -25°C ~ 85°C |
|
DH4C-B1AASWITCH SNAP ACT SPDT 0.05A 30V |
0 |
|
Datasheet |
DH | Bulk | Obsolete | SPDT | On-Mom | 50mA (DC) | - | 30 V | Round (Pin Plunger) | Chassis Mount | Solder Lug | - | - | 90gf | - | 0.220" (5.6mm) | 0.008" (0.2mm) | 0.003" (0.075mm) | 0.004" (0.1mm) | -25°C ~ 70°C |
|

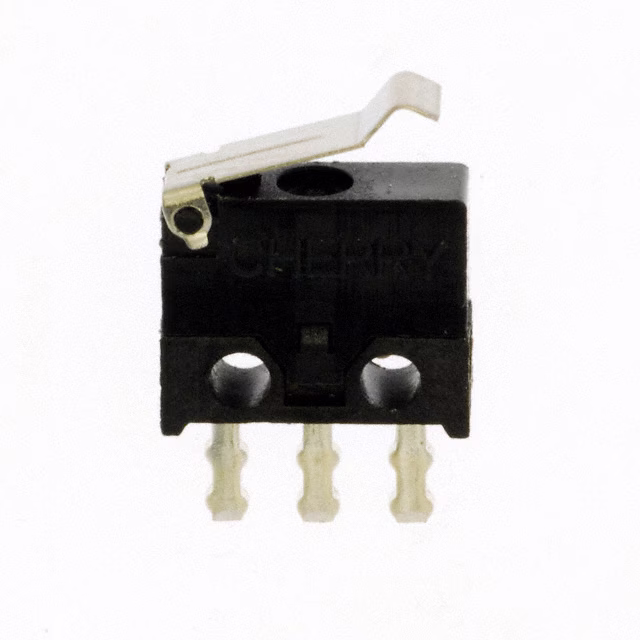

DH3C-B1LASWITCH SNAP ACTION SPDT 0.3A 30V |
0 |
|
Datasheet |
DH | Bulk | Obsolete | SPDT | On-Mom | 300mA (DC) | - | 30 V | Lever, Simulated Roller | Chassis Mount | Solder Lug | - | - | 50gf | - | 0.264" (6.7mm) | 0.051" (1.3mm) | 0.025" (0.6mm) | 0.011" (0.3mm) | -25°C ~ 70°C |
|

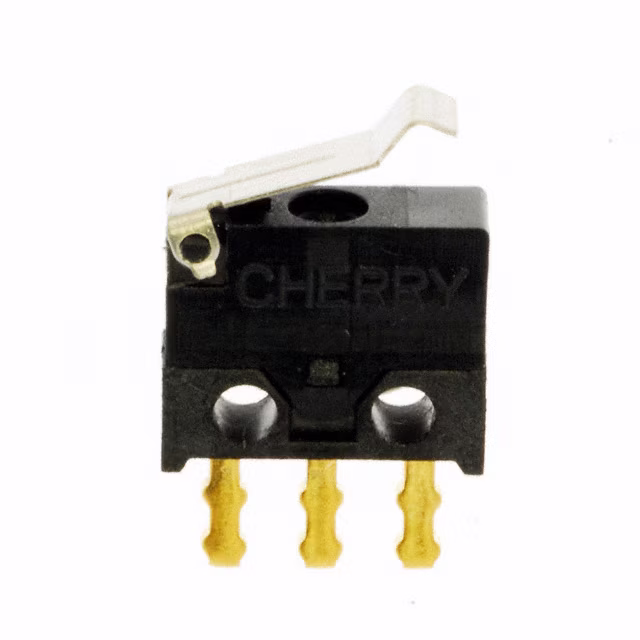

DH4C-B1LASWITCH SNAP ACT SPDT 0.05A 30V |
0 |
|
Datasheet |
DH | Bulk | Obsolete | SPDT | On-Mom | 50mA (DC) | - | 30 V | Lever, Simulated Roller | Chassis Mount | Solder Lug | - | - | 50gf | - | 0.264" (6.7mm) | 0.051" (1.3mm) | 0.025" (0.6mm) | 0.011" (0.3mm) | -25°C ~ 70°C |
|
|
DH3C-C5AASWITCH SNAP ACTION SPDT 0.3A 30V |
0 |
|
Datasheet |
DH | Bulk | Obsolete | SPDT | On-Mom | 300mA (DC) | - | 30 V | Round (Pin Plunger) | Through Hole, Right Angle | PC Pin | - | - | 90gf | - | 0.220" (5.6mm) | 0.008" (0.2mm) | 0.003" (0.075mm) | 0.004" (0.1mm) | -25°C ~ 70°C |
|
|
DH4C-C5AASWITCH SNAP ACT SPDT 0.05A 30V |
0 |
|
Datasheet |
DH | Bulk | Obsolete | SPDT | On-Mom | 50mA (DC) | - | 30 V | Round (Pin Plunger) | Through Hole, Right Angle | PC Pin | - | - | 90gf | - | 0.220" (5.6mm) | 0.008" (0.2mm) | 0.003" (0.075mm) | 0.004" (0.1mm) | -25°C ~ 70°C |
|
|
DH4C-C5LASWITCH SNAP ACT SPDT 0.05A 30V |
0 |
|
Datasheet |
DH | Bulk | Obsolete | SPDT | On-Mom | 50mA (DC) | - | 30 V | Lever, Simulated Roller | Through Hole, Right Angle | PC Pin | - | - | 50gf | - | 0.264" (6.7mm) | 0.051" (1.3mm) | 0.025" (0.6mm) | 0.011" (0.3mm) | -25°C ~ 70°C |
