Limit Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Mounting Type | Termination Style | Ingress Protection | Features | Operating Force | Release Force | Operating Position | Pretravel | Differential Travel | Overtravel | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
DH4C-C6AASWITCH SNAP ACT SPDT 0.05A 30V |
0 |
|
Datasheet |
DH | Bulk | Obsolete | SPDT | On-Mom | 50mA (DC) | - | 30 V | Round (Pin Plunger) | Through Hole, Right Angle | PC Pin | - | - | 90gf | - | 0.220" (5.6mm) | 0.008" (0.2mm) | 0.003" (0.075mm) | 0.004" (0.1mm) | -25°C ~ 70°C |
|
|
DH3C-C6LASWITCH SNAP ACTION SPDT 0.3A 30V |
0 |
|
Datasheet |
DH | Bulk | Obsolete | SPDT | On-Mom | 300mA (DC) | - | 30 V | Lever, Simulated Roller | Through Hole, Right Angle | PC Pin | - | - | 50gf | - | 0.264" (6.7mm) | 0.051" (1.3mm) | 0.025" (0.6mm) | 0.011" (0.3mm) | -25°C ~ 70°C |
|

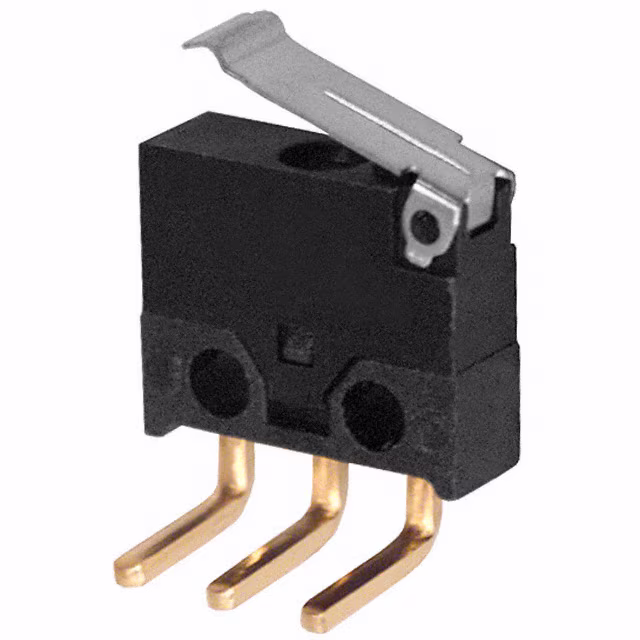

DH4C-C6LASWITCH SNAP ACT SPDT 0.05A 30V |
0 |
|
Datasheet |
DH | Bulk | Obsolete | SPDT | On-Mom | 50mA (DC) | - | 30 V | Lever, Simulated Roller | Through Hole, Right Angle | PC Pin | - | - | 50gf | - | 0.264" (6.7mm) | 0.051" (1.3mm) | 0.025" (0.6mm) | 0.011" (0.3mm) | -25°C ~ 70°C |
|
D2RW01L2SWITCH SNAP SPST-NO 0.25A 100V |
0 |
|
Datasheet |
D2RW | Bulk | Obsolete | SPST-NO | Off-Mom | 250mA (DC) | - | 100 V | Lever, Roller | Chassis Mount | Wire Leads | IP40 | - | 76gf | 5.099gf | 0.815" (20.7mm) | 0.157" (4.0mm) | 0.062" (1.6mm) | 0.040" (1.0mm) | -10°C ~ 60°C |
|

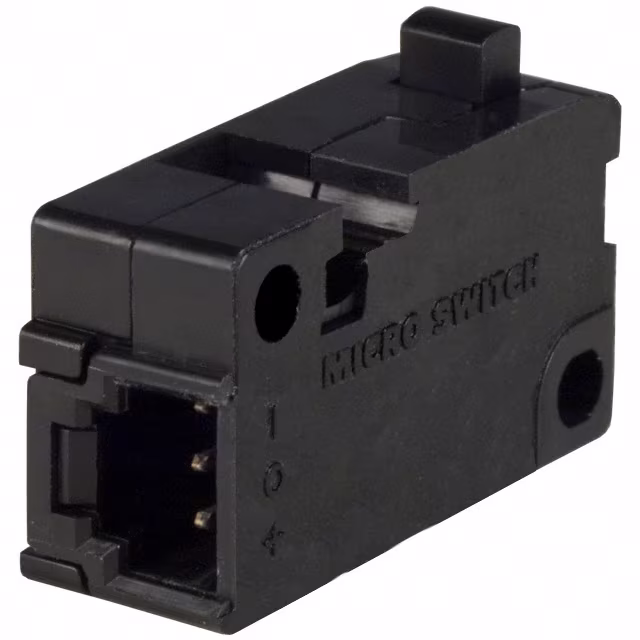

VX10SWITCH SNAP ACT DGTL OC 10MA 24V |
0 |
|
Datasheet |
VX | Bulk | Obsolete | Digital, Open Collector | Off-Mom | 10mA (DC) | - | 24 V | Round (Pin Plunger) | Chassis Mount | Connector | - | - | 10gf | - | 0.560" (14.2mm) | - | 0.002" (0.05mm) | 0.040" (1.0mm) | -40°C ~ 70°C |
|
|
VX80SWITCH SNAP ACT DGTL OC 10MA 24V |
0 |
|
Datasheet |
VX | Bulk | Obsolete | Digital, Open Collector | Off-Mom | 10mA (DC) | - | 24 V | Round (Pin Plunger) | Chassis Mount | Connector | - | - | 85gf | - | 0.560" (14.2mm) | - | 0.002" (0.05mm) | 0.040" (1.0mm) | -40°C ~ 70°C |
|

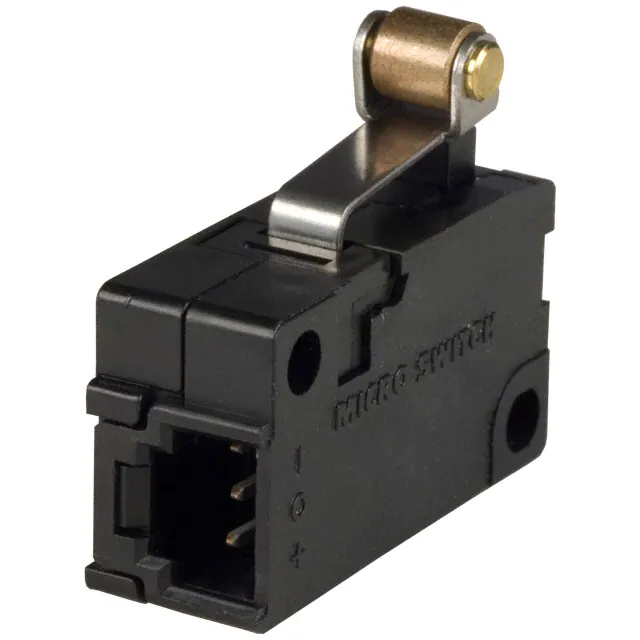

VX80-C1SWITCH SNAP ACT DGTL OC 10MA 24V |
0 |
|
Datasheet |
VX | Bulk | Obsolete | Digital, Open Collector | Off-Mom | 10mA (DC) | - | 24 V | Lever, Roller | Chassis Mount | Connector | - | - | 85gf | - | 0.787" (20.0mm) | - | 0.002" (0.05mm) | 0.040" (1.0mm) | -40°C ~ 70°C |
|
V-15G3-1C24-KSWITCH SNAP ACTION SPDT 15A 250V |
0 |
|
Datasheet |
V | Tray | Obsolete | SPDT | On-Mom | 15A (AC), 100mA (DC) | 250 V | 125 V | Lever, Straight | Chassis Mount | Quick Connect - 0.187" (4.7mm) | IP40 | - | 35gf | - | 0.600" (15.2mm) | 0.354" (9.0mm) | 0.110" (2.8mm) | 0.125" (3.2mm) | -25°C ~ 80°C |
|
TD1104SWITCH DETECTOR SPST-NO 0.1A 30V |
0 |
|
Datasheet |
TD | Bulk | Obsolete | SPST-NO | Off-Mom | 100mA (DC) | - | 30 V | Angled Toggle (Detector) | Through Hole | PC Pin | - | - | 36gf | - | 0.321" (8.2mm) | 0.015" (0.4mm) | - | - | -20°C ~ 85°C |
|
TD1105ASWITCH DETECTOR SPST-NO 0.1A 30V |
0 |
|
Datasheet |
TD | Bulk | Obsolete | SPST-NO | Off-Mom | 100mA (DC) | - | 30 V | Overtravel Plunger | Through Hole, Right Angle | PC Pin | - | - | 36gf | - | 0.197" (5.0mm) | 0.015" (0.4mm) | - | - | -20°C ~ 85°C |
|
TD1105BSWITCH DETECT SPST-NO 0.1A 30V |
0 |
|
Datasheet |
TD | Bulk | Obsolete | SPST-NO | Off-Mom | 100mA (DC) | - | 30 V | Overtravel Plunger | Through Hole, Right Angle | PC Pin | - | - | 36gf | - | 0.197" (5.0mm) | 0.015" (0.4mm) | - | - | -20°C ~ 85°C |
|
ESE-2121ATSWITCH DETECTOR SPST-NO 0.01A 5V |
0 |
|
Datasheet |
ESE21 | Tape & Reel (TR) | Obsolete | SPST-NO | Off-Mom | 10mA (DC) | - | 5 V | Overtravel Plunger | Surface Mount | SMD (SMT) Tab | - | - | 30gf | - | 0.138" (3.5mm) | - | - | - | -10°C ~ 60°C |
|
|
DB2CA1LBSWITCH SNAP ACTION SPDT 10A 125V |
0 |
|
- |
DB | Bulk | Active | SPDT | On-Mom | 10A (AC) | 125 V | - | Lever, Straight | Chassis Mount | Solder Lug | IP50 - Dust Protected | - | 100gf | - | 0.420" (10.7mm) | 0.178" (4.5mm) | 0.027" (0.7mm) | 0.060" (1.5mm) | -40°C ~ 120°C |
|

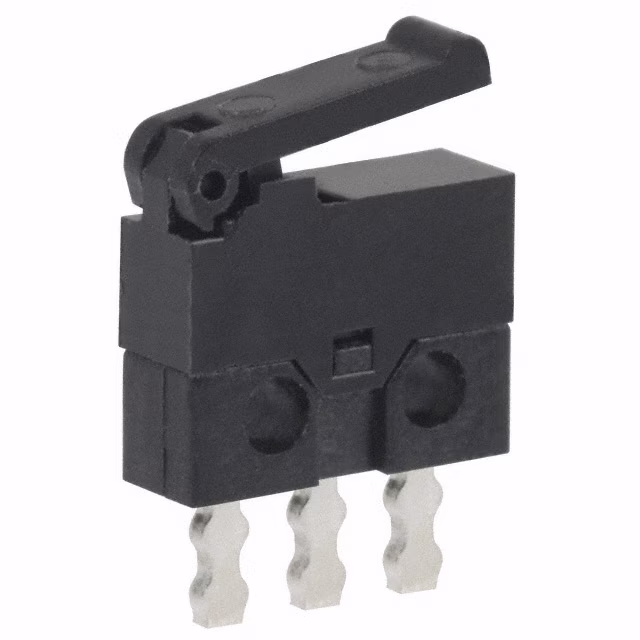

MDS001SWITCH SNAP ACT SPDT 300MA 30V |
0 |
|
Datasheet |
MDS | Bulk | Obsolete | SPDT | On-Mom | 300mA (DC) | - | 30 V | Lever, Straight | Through Hole | PC Pin | - | - | 50gf | 3.000gf | - | - | - | - | -10°C ~ 60°C |
|

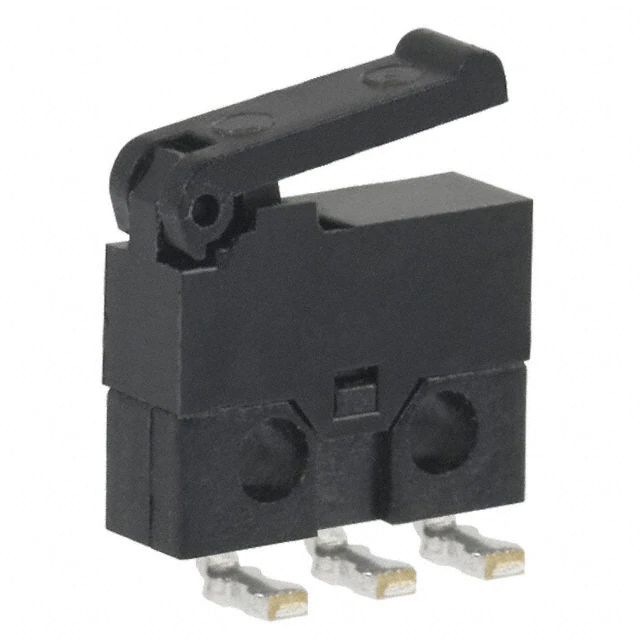

MDS002SWITCH SNAP ACT SPDT 300MA 30V |
0 |
|
Datasheet |
MDS | Bulk | Obsolete | SPDT | On-Mom | 300mA (DC) | - | 30 V | Lever, Straight | Through Hole, Right Angle | PC Pin | - | - | 50gf | 3.000gf | - | - | - | - | -10°C ~ 60°C |
|

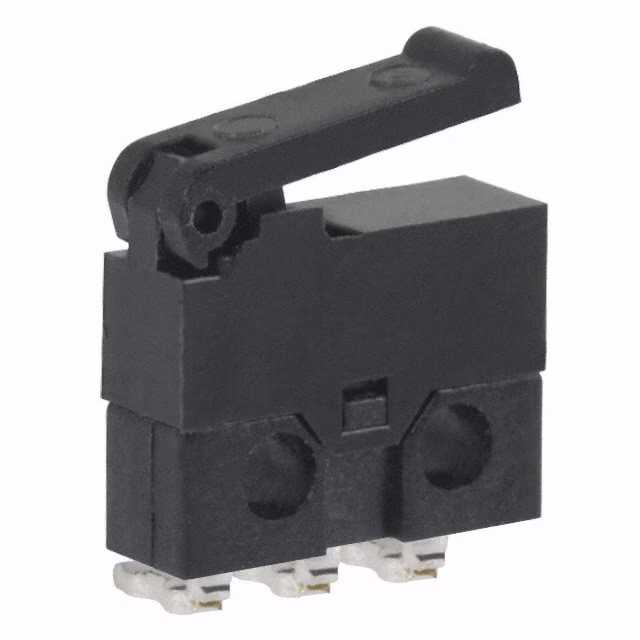

MDS003SWITCH SNAP ACT SPDT 300MA 30V |
0 |
|
Datasheet |
MDS | Bulk | Obsolete | SPDT | On-Mom | 300mA (DC) | - | 30 V | Lever, Straight | Through Hole, Right Angle | PC Pin | - | - | 50gf | 3.000gf | - | - | - | - | -10°C ~ 60°C |
|

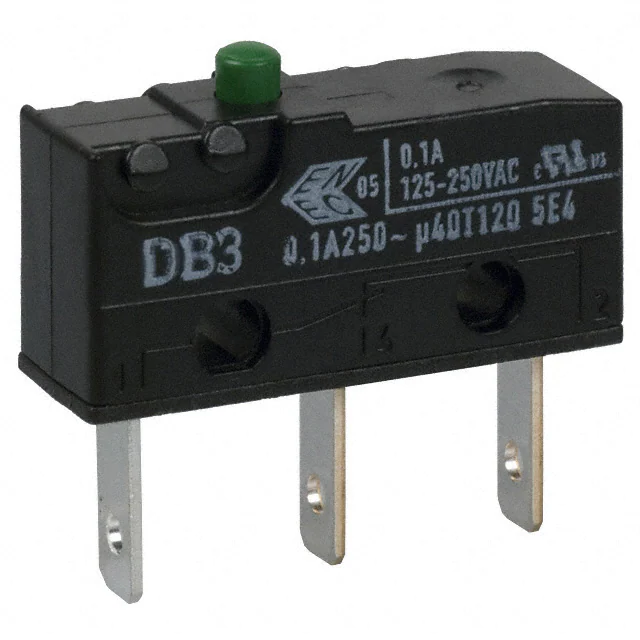

DB3CB1AASWITCH SNAP ACT SPDT 0.1A 125V |
0 |
|
- |
DB | Bulk | Active | SPDT | On-Mom | 100mA (AC) | 125 V | - | Round (Pin Plunger) | Chassis Mount | Quick Connect - 0.110" (2.8mm) | IP50 - Dust Protected | - | 150gf | - | 0.330" (8.4mm) | 0.040" (1.0mm) | 0.004" (0.1mm) | 0.025" (0.6mm) | -40°C ~ 120°C |
|

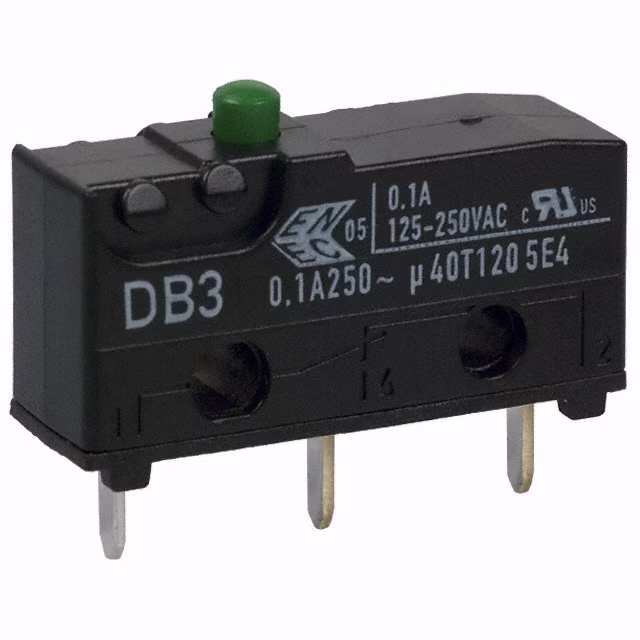

DB3CC1AASWITCH SNAP ACT SPDT 0.1A 125V |
0 |
|
- |
DB | Bulk | Active | SPDT | On-Mom | 100mA (AC) | 125 V | - | Round (Pin Plunger) | Through Hole | PC Pin | IP50 - Dust Protected | - | 150gf | - | 0.330" (8.4mm) | 0.040" (1.0mm) | 0.004" (0.1mm) | 0.025" (0.6mm) | -40°C ~ 120°C |
|
311SM23-TSWITCH SNAP ACTION SPDT 1A 125V |
0 |
|
Datasheet |
SM | Tray | Active | SPDT | On-Mom | 1A (AC/DC) | 125 V | 30 V | Lever, Straight | Chassis Mount | Solder Turret | - | - | 40gf | 7.138gf | 0.340" (8.6mm) | 0.085" (2.16mm) | 0.020" (0.5mm) | 0.020" (0.5mm) | -55°C ~ 125°C |
|
EVN2000CSWITCH SNAP ACTION DPST 6A 120V |
0 |
|
Datasheet |
EVN2000 | Bulk | Obsolete | DPST-NO/NC | On-Mom, Off-Mom | 6A (AC) | 120 V | - | Roller Plunger | Chassis Mount | Cable Leads | IP66/IP67 - Dust Tight, Water Resistant, Waterproof | - | 1428gf | - | 1.100" (28.0mm) | - | 0.040" (1.0mm) | 0.158" (4.0mm) | -25°C ~ 85°C |
Limit Switches Electronic Components
Explore Limit Switches electronic components, related subcategories, product specifications, datasheets and sourcing options. We support original component procurement, BOM sourcing and RFQ services for engineers, distributors and global buyers.
