Keylock Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Circuit | Number of Positions | Switch Function | Contact Timing | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Key Removable Positions | Angle of Throw | Contact Material | Contact Finish | Mounting Type | Termination Style | Panel Cutout Dimensions | Features | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
A22NK-2BM-01BA-G100SWITCH KEYLCK 2POS SPST 10A 120V |
5 |
|
Datasheet |
A22NK | Bulk | Active | SPST-NO | 2 | Off-On | Not Specified | 10A (AC), 8A (DC) | 120 V | 24 V | Flat Key | Left | 90° | - | - | Panel Mount | Screw Terminal | Circular - 22.30mm Dia | IP66 | -25°C ~ 70°C |
|
95060-07SWITCH KEYLOCK 2POS 5A 24V |
0 |
|
Datasheet |
- | Bulk | Active | - | 2 | Off-On | Not Specified | 5A (DC) | - | 24 V | Flat Key | 1 only | 30° | Copper | - | Panel Mount | Connector | Circular - 21.84mm Dia | IP67 | - |
|

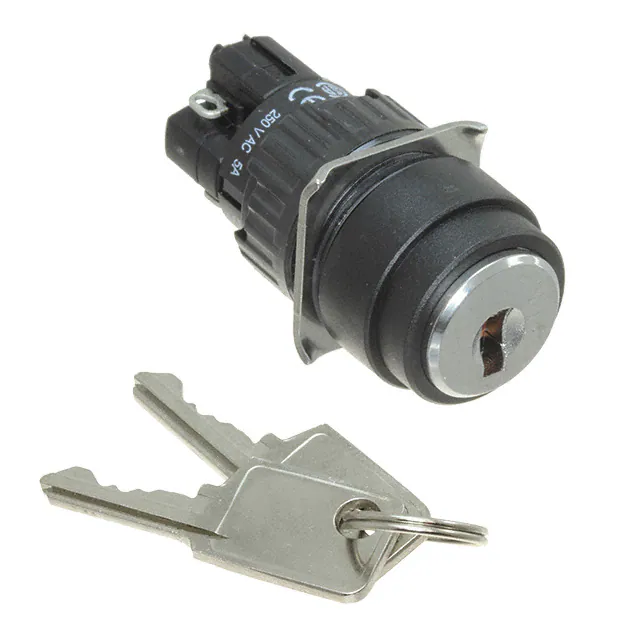

51-235.025DSWITCH KEYLOCK 2POS DPST 5A 250V |
0 |
|
Datasheet |
51 | Bulk | Active | DPST-NO/NC | 2 | On-Off, Off-On | Not Specified | 5A (AC) | 250 V | - | Flat Key | 1 only | 90° | - | - | Panel Mount | Solder, Quick Connect - 0.110" (2.8mm) | Circular - 16.00mm Dia | IP65 | -25°C ~ 55°C |
|
SW-R-K4-ASWITCH KEY 2POS SPST 500MA 250V |
6 |
|
Datasheet |
SW | Bag | Active | SPST | 2 | Off-On | Not Specified | 500mA (AC/DC) | 250 V | 24 V | Flat Key | All | 90° | - | - | Panel Mount | Solder, Quick Connect - 0.110" (2.8mm) | Circular - 12.20mm Dia | - | -25°C ~ 85°C |
|
KO103D701SWITCH KEYLOCK 2POS SPDT 1A 125V |
0 |
|
Datasheet |
KO | Bulk | Active | SPDT | 2 | On-On | Not Specified | 1A (AC) | 125 V | - | Tubular Key | All | 90° | Copper Alloy | Silver | Panel Mount | Solder Lug | Circular - 12.00mm Dia | - | - |
|
KO128G2007SWITCH KEYLOCK 2POS SPST 4A 125V |
1 |
|
Datasheet |
KO | Bulk | Active | SPST | 2 | Off-On | Not Specified | 4A (AC) | 125 V | - | Flat Key | All | 90° | Copper Alloy | Silver | Panel Mount | Quick Connect - 0.250" (6.3mm) | Circular - 19.00mm Dia | - | - |
|
SW-R-K9-ASWITCH KEYLOCK 2POS SPDT 4A 125V |
0 |
|
Datasheet |
SW | Bag | Active | SPDT | 2 | On-On | Not Specified | 4A (AC) | 125 V | - | Flat Key | All | 60° | - | - | Panel Mount | Solder Lug | Circular - 16.00mm Dia | - | -25°C ~ 85°C |
|
LK6RNB126N3SWITCH KEYLOCK 2POS SPDT 4A 125V |
0 |
|
Datasheet |
LK | Tray | Active | SPDT | 2 | On-On | Not Specified | 4A (AC/DC) | 125 V | 28 V | Flat Key | All | 90° | Copper Alloy | Gold | Panel Mount | Solder Lug | Circular - 19.00mm Dia | - | -30°C ~ 85°C |
|
CKL12ATW01SWITCH KEYLOCK 2POS SPDT 3A 250V |
4 |
|
Datasheet |
CK | Bulk | Active | SPDT | 2 | On-On | Non-Shorting (BBM) | 3A (AC) | 250 V | - | Tubular Key | All | 90° | Silver (Ag) | Silver | Panel Mount | Solder Lug | Circular - 19.00mm Dia | Epoxy Sealed Terminals | -25°C ~ 70°C |
|
|
A22NK-2BL-01BA-G100SWITCH KEYLCK 2POS SPST 10A 120V |
0 |
|
Datasheet |
A22NK | Bulk | Active | SPST-NO | 2 | Off-Mom | Not Specified | 10A (AC), 8A (DC) | 120 V | 24 V | Flat Key | Left | 90° | - | - | Panel Mount | Screw Terminal | Circular - 22.30mm Dia | IP66 | -25°C ~ 70°C |
|
|
A22NK-2BM-01AA-G100SWITCH KEYLCK 2POS SPST 10A 120V |
0 |
|
Datasheet |
A22NK | Bulk | Active | SPST-NO | 2 | Off-On | Not Specified | 10A (AC), 8A (DC) | 120 V | 24 V | Flat Key | All | 90° | - | - | Panel Mount | Screw Terminal | Circular - 22.30mm Dia | IP66 | -25°C ~ 70°C |
|
|
PVK4K22C0SSSWITCH KEYLOCK 3POS SP3T 2A 24V |
4 |
|
Datasheet |
PVK4 | Box | Active | SP3T | 3 | On-On-On | Not Specified | 2A (DC) | - | 24 V | Flat Key | All | 45° | Silver (Ag) | - | Panel Mount | Solder Lug | Circular - 19.00mm Dia | - | -20°C ~ 55°C |
|
|
A22NK-2BM-01AA-G101SWITCH KEYLCK 2POS DPST 10A 120V |
5 |
|
Datasheet |
A22NK | Bulk | Active | DPST-NO | 2 | Off-On | Not Specified | 10A (AC), 8A (DC) | 120 V | 24 V | Flat Key | All | 90° | - | - | Panel Mount | Screw Terminal | Circular - 22.30mm Dia | IP66 | -25°C ~ 70°C |
|
A22NK-3MB-01DA-G101SWITCH KEYLCK 3POS DPST 10A 120V |
5 |
|
Datasheet |
A22NK | Bulk | Active | DPST-NO | 3 | Mom-Off-Mom | Not Specified | 10A (AC), 8A (DC) | 120 V | 24 V | Flat Key | Center | 45° | - | - | Panel Mount | Screw Terminal | Circular - 22.30mm Dia | IP66 | -25°C ~ 70°C |
|
A22NK-3BB-01DA-G101SWITCH KEYLCK 3POS DPST 10A 120V |
0 |
|
Datasheet |
A22NK | Bulk | Active | DPST-NO | 3 | Mom-Off-Mom | Not Specified | 10A (AC), 8A (DC) | 120 V | 24 V | Flat Key | Center | 45° | - | - | Panel Mount | Screw Terminal | Circular - 22.30mm Dia | IP66 | -25°C ~ 70°C |
|
|
A22NK-3BM-01DA-G101SWITCH KEYLCK 3POS DPST 10A 120V |
0 |
|
Datasheet |
A22NK | Bulk | Active | DPST-NO | 3 | On-Off-Off, Off-Off-On | Not Specified | 10A (AC), 8A (DC) | 120 V | 24 V | Flat Key | Center | 45° | - | - | Panel Mount | Screw Terminal | Circular - 22.30mm Dia | IP66 | -25°C ~ 70°C |
|
LBW6K-2ST5ASWITCH KEYLOCK 2POS SPDT 5A 125V |
1 |
|
Datasheet |
LBW | Box | Active | SPDT | 2 | On-On | Not Specified | 5A (AC/DC) | 125 V | 30 V | Flat Key | All | 90° | Silver (Ag) | Silver | Panel Mount | Solder, Quick Connect - 0.110" (2.8mm) | Circular - 22.30mm Dia | - | -25°C ~ 60°C |
|
1.15.108.911/0000SWITCH KEYLOCK 2POS DPST 4A 250V |
0 |
|
Datasheet |
LUMOTAST 75 | Box | Active | DPST-NO/NC | 2 | On-Off, Off-On | Not Specified | 4A (AC), 200mA (DC) | 250 V | 230 V | Flat Key | All | 90° | Silver (Ag) | - | Panel Mount | Solder Lug | Circular - 16.20mm Dia | IP40 | -25°C ~ 70°C |
|
14-235.025KSWITCH KEYLOCK 2POS DPST 5A 250V |
0 |
|
Datasheet |
14 | Bulk | Active | DPST-NO/NC | 2 | On-Off, Off-On | Not Specified | 5A (AC) | 250 V | - | Flat Key | 1 only | 90° | - | - | Panel Mount | Solder Lug | Circular - 22.30mm Dia | IP65 | -25°C ~ 55°C |
|

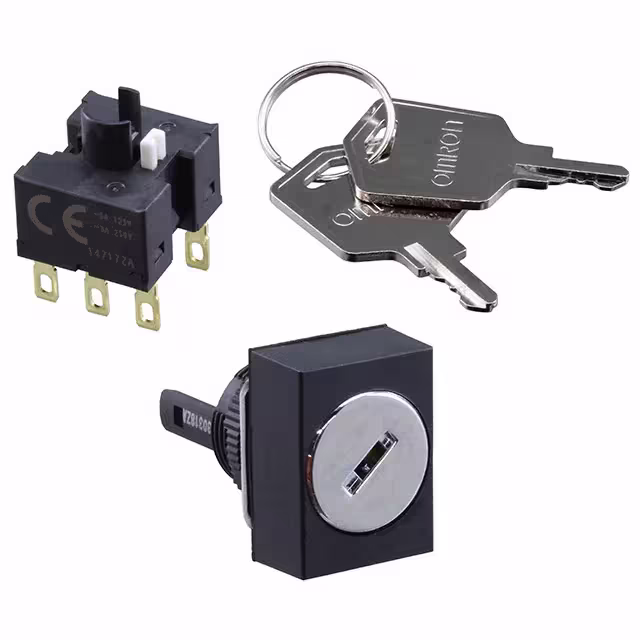

A165K-J2AL-2SWITCH KEYLOCK 2POS DPDT 5A 125V |
1 |
|
Datasheet |
A165K | Bulk | Active | DPDT | 2 | On-Mom | Not Specified | 5A (AC), 3A (DC) | 125 V | 30 V | Flat Key | Left | 90° | - | - | Panel Mount | Solder, Quick Connect - 0.110" (2.8mm) | Circular - 16.00mm Dia | IP65, Oil-Resistant | -10°C ~ 55°C |
