Keylock Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Circuit | Number of Positions | Switch Function | Contact Timing | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Key Removable Positions | Angle of Throw | Contact Material | Contact Finish | Mounting Type | Termination Style | Panel Cutout Dimensions | Features | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CKM13EFW01-003SWITCH KEYLOCK 3POS SPDT 3A 250V |
0 |
|
Datasheet |
CK | Box | Active | SPDT | 3 | On-Off-On | Non-Shorting (BBM) | 3A (AC) | 250 V | - | Flat Key | 2 only | 45° | Silver (Ag) | Silver | Panel Mount | Solder Lug | Circular - 16.00mm Dia | Epoxy Sealed Terminals | -25°C ~ 70°C |
|
CKM13EFW01-001SWITCH KEYLOCK 3POS SPDT 3A 250V |
0 |
|
Datasheet |
CK | Bulk | Active | SPDT | 3 | On-Off-On | Non-Shorting (BBM) | 3A (AC) | 250 V | - | Flat Key | 2 only | 45° | Silver (Ag) | Silver | Panel Mount | Solder Lug | Circular - 16.00mm Dia | Epoxy Sealed Terminals | -25°C ~ 70°C |
|
K16-712SWITCH KEYLOCK 3POS DPDT 3A 250V |
9 |
|
Datasheet |
K16 | Bulk | Active | DPDT | 3 | On-On | Not Specified | 3A (AC/DC) | 250 V | 110 V | Flat Key | All | 45° | Silver Alloy | Gold | Panel Mount | Solder, Quick Connect - 0.110" (2.8mm) | Circular - 16.00mm Dia | - | -25°C ~ 55°C |
|
K16-732SWITCH KEYLOCK 3POS DPDT 3A 250V |
6 |
|
Datasheet |
K16 | Bulk | Active | DPDT | 3 | On-On | Not Specified | 3A (AC/DC) | 250 V | 110 V | Flat Key | All | 45° | Silver Alloy | Gold | Panel Mount | Solder, Quick Connect - 0.110" (2.8mm) | Circular - 16.00mm Dia | - | -25°C ~ 55°C |
|
|
Y200AB2CFWCNQSWITCH KEYLOCK 4POS DP4T 4A 125V |
0 |
|
Datasheet |
Y | Bulk | Active | DP4T | 4 | On-On-On-On | Not Specified | 4A (AC/DC) | 125 V | 28 V | Flat Key | All | 45° | Copper | Silver | Panel Mount | Wire Leads | Circular - 19.30mm Dia | - | - |
|
Y1900S2C207NBSWITCH KEYLK 4POS SP4T 0.4VA 20V |
7 |
|
Datasheet |
Y | Tray | Active | SP4T | 4 | On-On-On-On | Not Specified | 0.4VA (AC/DC) | 20 V | 20 V | Flat Key | All | 90° | Copper | Gold | Panel Mount | Solder Lug | Circular - 19.30mm Dia | - | - |
|

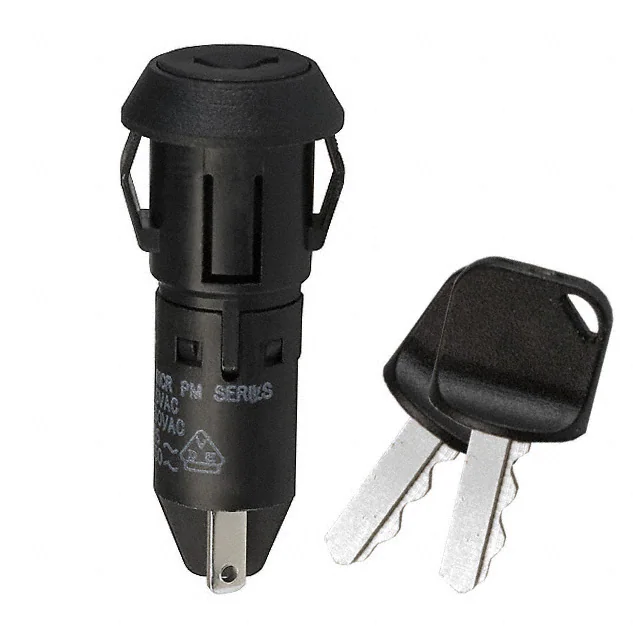

PM061UEBM05KQ22SWITCH KEYLOCK 2POS SPST 4A 125V |
87 |
|
Datasheet |
PM | Tray | Obsolete | SPST | 2 | Off-On | Not Specified | 4A (AC/DC) | 125 V | 28 V | Flat Key | All | 90° | Copper | Silver | Panel Mount, Snap-In | Quick Connect - 0.110" (2.8mm) | Circular - 11.81mm Dia | - | - |
|
PM0613EBMWCKQ22SWITCH KEYLOCK 2POS SPST 4A 125V |
1 |
|
Datasheet |
PM | Bulk | Obsolete | SPST | 2 | Off-On | Not Specified | 4A (AC/DC) | 125 V | 28 V | Flat Key | 1 only | 90° | Copper | Silver | Panel Mount, Snap-In | Wire Leads | Circular - 11.81mm Dia | - | - |
|
A3141U2A1NZRQSWITCH KEYLK 2POS 3PDT 2.5A 125V |
11 |
|
Datasheet |
A | Tray | Active | 3PDT | 2 | On-On | Non-Shorting (BBM) | 2.5A (AC), 350mA (DC) | 125 V | 125 V | Flat Key | All | 90° | Silver (Ag) | Silver | Panel Mount | Solder Lug | Circular - 19.30mm Dia | - | -30°C ~ 85°C |
|
|
Y1011U6C203NGESWITCH KEYLOCK 2POS SPDT 4A 125V |
0 |
|
Datasheet |
Y | Bulk | Active | SPDT | 2 | On-On | Not Specified | 4A (AC/DC) | 125 V | 28 V | Flat Key | All | 90° | Copper | Gold | Panel Mount | Solder Lug | Circular - 19.30mm Dia | Epoxy Sealed Terminals | - |
|
SK12BDW01-001SWITCH KEYLOCK 2POS SPDT 3A 125V |
0 |
|
Datasheet |
SK | Box | Last Time Buy | SPDT | 2 | On-On | Non-Shorting (BBM) | 3A (AC) | 125 V | - | Flat Key | 1 only | 90° | Silver (Ag) | - | Panel Mount | Solder Lug | Circular - 12.00mm Dia | Epoxy Sealed Terminals | -25°C ~ 70°C |
|
SK13EDW01-006SWITCH KEYLOCK 3POS SPDT 3A 125V |
0 |
|
Datasheet |
SK | Box | Last Time Buy | SPDT | 3 | On-Off-On | Non-Shorting (BBM) | 3A (AC) | 125 V | - | Flat Key | 2 only | 45° | Silver (Ag) | - | Panel Mount | Solder Lug | Circular - 12.00mm Dia | Epoxy Sealed Terminals | -25°C ~ 70°C |
|
|
LBW7K-2ST5ASWITCH KEYLOCK 2POS SPDT 5A 125V |
2 |
|
Datasheet |
LBW | Box | Active | SPDT | 2 | On-On | Not Specified | 5A (AC/DC) | 125 V | 30 V | Flat Key | All | 90° | Silver (Ag) | Silver | Panel Mount | Solder, Quick Connect - 0.110" (2.8mm) | Square - 22.50mm² | - | -25°C ~ 60°C |
|
|
LBW6MK-2ST5ASWITCH KEYLOCK 2POS SPDT 5A 125V |
2 |
|
Datasheet |
LBW | Box | Active | SPDT | 2 | On-On | Not Specified | 5A (AC/DC) | 125 V | 30 V | Flat Key | All | 90° | Silver (Ag) | Silver | Panel Mount | Solder, Quick Connect - 0.110" (2.8mm) | Circular - 22.30mm Dia | - | -25°C ~ 60°C |
|
|
71L36-05-1-03NSWITCH KEY 3POS SP3T 250MA 115V |
0 |
|
Datasheet |
71L | Bulk | Active | SP3T | 3 | On-On-On | Non-Shorting (BBM) | 250mA (AC/DC) | 115 V | 30 V | Flat Key | All | 36° | Silver Alloy | - | Panel Mount | Solder Lug | Circular - 19.05mm Dia | - | - |
|
|
LBW6MK-2ST2VASWITCH KEY 2POS DPDT 100MA 125V |
2 |
|
Datasheet |
LBW | Box | Active | DPDT | 2 | On-On | Not Specified | 100mA (AC/DC) | 125 V | 30 V | Flat Key | All | 90° | Silver (Ag) | Gold | Panel Mount | PC Pin | Circular - 22.30mm Dia | - | -25°C ~ 60°C |
|
A165K-A2MR-2SWITCH KEYLOCK 2POS DPDT 5A 125V |
4 |
|
Datasheet |
A165K | Bulk | Active | DPDT | 2 | On-On | Not Specified | 5A (AC), 3A (DC) | 125 V | 30 V | Flat Key | Right | 90° | - | - | Panel Mount | Solder, Quick Connect - 0.110" (2.8mm) | Circular - 16.00mm Dia | IP65, Oil-Resistant | -10°C ~ 55°C |
|
A165K-T2M-1SWITCH KEYLOCK 2POS SPDT 5A 125V |
2 |
|
Datasheet |
A165K | Bulk | Active | SPDT | 2 | On-On | Not Specified | 5A (AC), 3A (DC) | 125 V | 30 V | Flat Key | All | 90° | - | - | Panel Mount | Solder, Quick Connect - 0.110" (2.8mm) | Circular - 16.00mm Dia | IP65, Oil-Resistant | -10°C ~ 55°C |
|
|
71J30-03-5-02NSWITCH KEY 2POS 5PDT 250MA 115V |
0 |
|
Datasheet |
71J | Bulk | Active | 5PDT | 2 | On-On | Non-Shorting (BBM) | 250mA (AC/DC) | 115 V | 30 V | Flat Key | 1 and 180° | 30° | Silver Alloy | - | Panel Mount | Solder Lug | Circular - 19.05mm Dia | Antistatic | - |
|
|
14-141.022KSWITCH KEYLOCK 2POS DPST 5A 250V |
8 |
|
Datasheet |
14 | Bulk | Active | DPST-NO/NC | 2 | On-Mom, Off-Mom | Not Specified | 5A (AC) | 250 V | - | Flat Key | 1 only | 42° | - | - | Panel Mount | Solder, Quick Connect - 0.110" (2.8mm) | Circular - 22.30mm Dia | IP65 | -25°C ~ 55°C |
