Keylock Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Circuit | Number of Positions | Switch Function | Contact Timing | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Key Removable Positions | Angle of Throw | Contact Material | Contact Finish | Mounting Type | Termination Style | Panel Cutout Dimensions | Features | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
|
14-138.025K2ACTUATOR, NATURE, ALUMINIUM, ANO |
5 |
|
Datasheet |
14 | Bag | Active | 8PST-4NO/4NC | 2 | On-Off, Off-On | Not Specified | 5A (AC) | 250 V | 24 V | Flat Key | Right | 90° | Silver | Gold | Panel Mount | Solder Lug | Circular - 30.50mm Dia | - | -25°C ~ 55°C |
|
|
51-238.025D2FACTUATOR, 25 MM, 4 NC / 4 NO, R |
5 |
|
Datasheet |
51 | Bag | Active | 8PST-4NO/4NC | 2 | On-Off, Off-On | Not Specified | 5A (AC) | 250 V | 24 V | Flat Key | Right | 90° | Silver | Gold | Panel Mount | Solder Lug | Circular - 22.30mm Dia | - | -25°C ~ 55°C |
|
|
02-198.011ACTUATOR, 21.2 MM X 29.2 MM, 36 |
5 |
|
Datasheet |
02 | Bag | Active | DPDT | 2 | On-On | Not Specified | 10A (AC) | 400 V | - | Flat Key | 1 only | 90° | Silver | Silver | Panel Mount | Screw Terminal | Rectangular - 29.20mm x 21.20mm | - | - |
|
|
14-238.025K2ACTUATOR, NATURE, ALUMINIUM, ANO |
5 |
|
Datasheet |
14 | Bag | Active | 8PST-4NO/4NC | 2 | On-Off, Off-On | Not Specified | 5A (AC) | 250 V | 24 V | Flat Key | Right | 90° | Silver | Gold | Panel Mount | Solder Lug | Circular - 30.50mm Dia | - | -25°C ~ 55°C |
|
|
02-695.011ACTUATOR, 21.2 MM X 29.2 MM, BLA |
5 |
|
Datasheet |
02 | Bag | Active | DPDT | 2 | On-On | Not Specified | 10A (AC) | 400 V | - | Flat Key | 1 only | 90° | Silver | Silver | Panel Mount | Screw Terminal | Rectangular - 29.20mm x 21.20mm | - | - |
|
A22TK-2LR-12-K07SWITCH KEYLCK 2POS DPST 10A 110V |
2 |
|
Datasheet |
A22TK | Tray | Active | DPST-NC + SPST-NO | 2 | On-Off, Off-On | Not Specified | 10A (AC/DC) | 110 V | 24 V | Tubular Key | Left | 90° | - | - | Panel Mount | Screw Terminal | Circular - 22.30mm Dia | IP65 | -20°C ~ 70°C |
|
CKL12BFW01-008SWITCH KEYLOCK 2POS SPDT 3A 250V |
18 |
|
Datasheet |
CK | Box | Active | SPDT | 2 | On-On | Non-Shorting (BBM) | 3A (AC) | 250 V | - | Flat Key | 1 only | 90° | Silver (Ag) | Silver | Panel Mount | Solder Lug | Circular - 19.00mm Dia | Epoxy Sealed Terminals | -25°C ~ 70°C |
|
|
Y100132C203NGESWITCH KEYLOCK 3POS SP3T 4A 125V |
0 |
|
Datasheet |
Y | Bulk | Active | SP3T | 3 | On-On-On | Not Specified | 4A (AC/DC) | 125 V | 28 V | Flat Key | 1 only | 45° | Copper | Gold | Panel Mount | Solder Lug | Circular - 19.30mm Dia | Epoxy Sealed Terminals | - |
|
HDI3-3B-1-BSWITCH KEYLOCK 3POS SPDT 10A 12V |
95 |
|
Datasheet |
HDI3 | Bulk | Active | SPDT | 3 | On-Off-On | Not Specified | 10A (DC) | - | 12 V | Flat Key | 2 only | - | Bronze | - | Panel Mount | Screw Terminal | Circular - 19.00mm Dia | - | - |
|
YM06132C805NQSWITCH KEYLOCK 2POS SPST 4A 125V |
32 |
|
Datasheet |
YM | Bulk | Active | SPST | 2 | Off-On | Not Specified | 4A (AC/DC) | 125 V | 28 V | Flat Key | 1 only | 90° | Copper | Silver | Panel Mount | Quick Connect - 0.110" (2.8mm) | Circular - 11.99mm Dia | - | - |
|

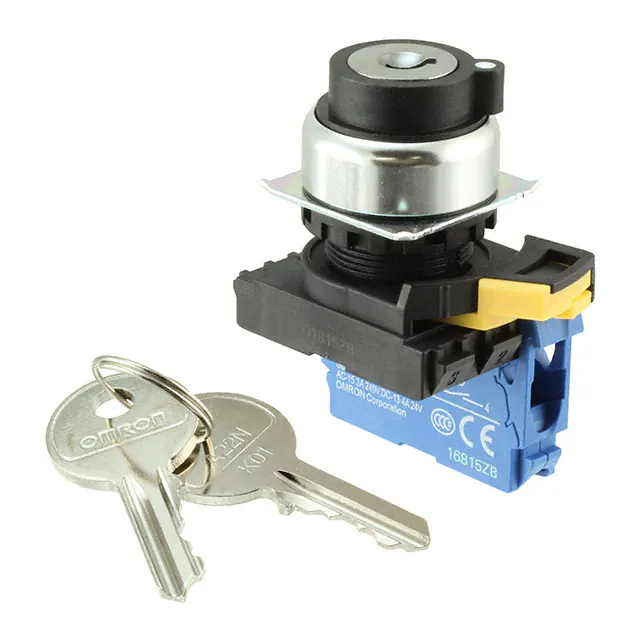

A22NK-2RL-01BA-G100SWITCH KEYLCK 2POS SPST 10A 120V |
75 |
|
Datasheet |
A22NK | Bulk | Obsolete | SPST-NO | 2 | Off-Mom | Not Specified | 10A (AC), 8A (DC) | 120 V | 24 V | Flat Key | Left | 90° | - | - | Panel Mount | Screw Terminal | Circular - 22.30mm Dia | IP66 | -25°C ~ 70°C |
|
P200AF2CM03G2SWITCH KEYLOCK 3POS DP3T 4A 125V |
23 |
|
Datasheet |
P | Bulk | Active | DP3T | 3 | On-On-On | Not Specified | 4A (AC) | 125 V | - | Flat Key | All | 45° | Copper | Gold | Panel Mount, Snap-In | Solder Lug | Circular - 20.30mm Dia | - | - |
|
CKM12AFW01-010SWITCH KEYLOCK 2POS SPDT 3A 250V |
0 |
|
Datasheet |
CK | Box | Active | SPDT | 2 | On-On | Non-Shorting (BBM) | 3A (AC) | 250 V | - | Flat Key | All | 90° | Silver (Ag) | Silver | Panel Mount | Solder Lug | Circular - 16.00mm Dia | Epoxy Sealed Terminals | -25°C ~ 70°C |
|
|
CKM12AFW01-007SWITCH KEYLOCK 2POS SPDT 3A 250V |
0 |
|
Datasheet |
CK | Bulk | Active | SPDT | 2 | On-On | Non-Shorting (BBM) | 3A (AC) | 250 V | - | Flat Key | All | 90° | Silver (Ag) | Silver | Panel Mount | Solder Lug | Circular - 16.00mm Dia | Epoxy Sealed Terminals | -25°C ~ 70°C |
|
|
Y101132C803NBSWITCH KEYLK 2POS SPDT 0.4VA 20V |
97 |
|
Datasheet |
Y | Bulk | Active | SPDT | 2 | On-On | Not Specified | 0.4VA (AC/DC) | 20 V | 20 V | Flat Key | 1 only | 90° | Copper | Gold | Panel Mount | Solder Lug | Circular - 19.30mm Dia | - | - |
|
K16-611SWITCH KEYLOCK 2POS SPDT 3A 250V |
12 |
|
Datasheet |
K16 | Bulk | Active | SPDT | 2 | On-On | Not Specified | 3A (AC/DC) | 250 V | 110 V | Flat Key | All | 90° | Silver Alloy | Gold | Panel Mount | Solder, Quick Connect - 0.110" (2.8mm) | Circular - 16.00mm Dia | - | -25°C ~ 55°C |
|
Y1011U2C2WCNQESWITCH KEYLOCK 2POS SPDT 4A 125V |
18 |
|
Datasheet |
Y | Bulk | Active | SPDT | 2 | On-On | Not Specified | 4A (AC/DC) | 125 V | 28 V | Flat Key | All | 90° | Copper | Silver | Panel Mount | Wire Leads | Circular - 19.30mm Dia | Epoxy Sealed Terminals | - |
|
CKL12BTW01-014SWITCH KEYLOCK 2POS SPDT 3A 250V |
0 |
|
Datasheet |
CK | Box | Active | SPDT | 2 | On-On | Non-Shorting (BBM) | 3A (AC) | 250 V | - | Tubular Key | 1 only | 90° | Silver (Ag) | Silver | Panel Mount | Solder Lug | Circular - 19.00mm Dia | Epoxy Sealed Terminals | -25°C ~ 70°C |
|
|
CKL12BTW01-015SWITCH KEYLOCK 2POS SPDT 3A 250V |
0 |
|
Datasheet |
CK | Box | Active | SPDT | 2 | On-On | Non-Shorting (BBM) | 3A (AC) | 250 V | - | Tubular Key | 1 only | 90° | Silver (Ag) | Silver | Panel Mount | Solder Lug | Circular - 19.00mm Dia | Epoxy Sealed Terminals | -25°C ~ 70°C |
|
|
CKL12BTW01-024SWITCH KEYLOCK 2POS SPDT 3A 250V |
0 |
|
Datasheet |
CK | Box | Active | SPDT | 2 | On-On | Non-Shorting (BBM) | 3A (AC) | 250 V | - | Tubular Key | 1 only | 90° | Silver (Ag) | Silver | Panel Mount | Solder Lug | Circular - 19.00mm Dia | Epoxy Sealed Terminals | -25°C ~ 70°C |
