Analog Switches, Multiplexers, Demultiplexers
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Switch Circuit | Multiplexer/Demultiplexer Circuit | Number of Circuits | On-State Resistance (Max) | Channel-to-Channel Matching (ΔRon) | Voltage - Supply, Single (V+) | Voltage - Supply, Dual (V±) | Switch Time (Ton, Toff) (Max) | -3db Bandwidth | Charge Injection | Channel Capacitance (CS(off), CD(off)) | Current - Leakage (IS(off)) (Max) | Crosstalk | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ISL54233IRUZ-TIC SWITCH SP3T X 2 15OHM 12UTQFN |
0 |
|
Datasheet |
- | Tape & Reel (TR) | Obsolete | SP3T | 3:1 | 2 | 15Ohm | 70mOhm | 2.7V ~ 4.6V | - | - | 1.6GHz | - | 3pF | 15nA | -36dB @ 240MHz | -40°C ~ 85°C (TA) | - | - | Surface Mount | 12-UTQFN (2.2x1.4) |
|
MAX14758EUE+TIC SW SPST-NO/NCX4 10OHM 16TSSOP |
0 |
|
Datasheet |
- | Tape & Reel (TR) | Active | SPST - NO/NC | 1:1 | 4 | 10Ohm | 300mOhm | 10V ~ 70V | ±10V ~ 35V | 60µs, 3µs | 145MHz | 580pC | 35pF | 2.5nA | -96dB @ 10MHz | -40°C ~ 85°C (TA) | - | - | Surface Mount | 16-TSSOP |
|
ISL76123AHZ-TIC SWITCH SPDT X 1 23OHM 6SOT |
0 |
|
Datasheet |
- | Tape & Reel (TR) | Obsolete | SPDT | 2:1 | 1 | 23Ohm | 800mOhm | 2.7V ~ 12V | - | 25ns, 17ns (Typ) | - | 5pC | 8pF, 8pF | 3nA | -105dB @ 1MHz | -40°C ~ 105°C (TA) | Automotive | AEC-Q100 | Surface Mount | 6-SOT |
|

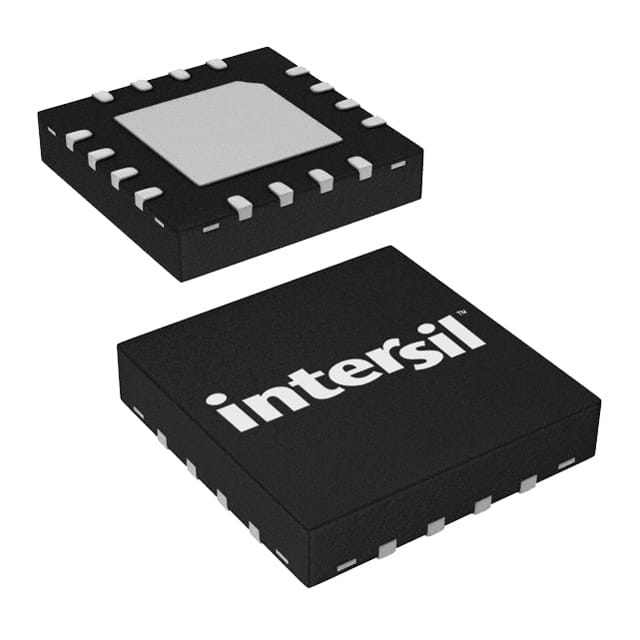

ISL43640IRZ-T7AIC SWITCH SP4T X 1 50OHM 16QFN |
0 |
|
Datasheet |
- | Tape & Reel (TR) | Obsolete | SP4T | 4:1 | 1 | 50Ohm | 500mOhm | 2.7V ~ 12V | - | 30ns, 28ns | - | 1.2pC | 4pF, 11pF | 1nA | - | -40°C ~ 85°C (TA) | - | - | Surface Mount | 16-QFN (3x3) |
|
DG429DNIC SWITCH SP4T X 2 100OHM 20PLCC |
0 |
|
- |
- | Bulk | Obsolete | SP4T | 4:1 | 2 | 100Ohm | 5Ohm | 12V | ±15V | 150ns, 150ns | - | 1pC | 11pF, 20pF | 500pA | - | -40°C ~ 85°C (TA) | - | - | Surface Mount | 20-PLCC (9x9) |
|
AD7511DISQ/883BIC SW SPST-NCX4 100OHM 16CERDIP |
0 |
|
Datasheet |
- | Tube | Obsolete | SPST - NC | 1:1 | 4 | 100Ohm | 1Ohm (Typ) | - | ±15V | 350ns, 180ns (Typ) | - | 30pC | 8pF, 1pF | 5nA | - | -55°C ~ 125°C | - | - | Through Hole | 16-CERDIP |
|
ADG658YRQ-REELIC MUX 8:1 75OHM 16QSOP |
0 |
|
Datasheet |
- | Tape & Reel (TR) | Obsolete | - | 8:1 | 1 | 75Ohm | 1.3Ohm | 2V ~ 12V | ±2V ~ 6V | 115ns, 45ns | 210MHz | 2pC | 4pF, 23pF | 200pA | - | -40°C ~ 125°C (TA) | - | - | Surface Mount | 16-QSOP |
|
ADG701LBRJ-REELIC SWITCH SPST-NOX1 3OHM SOT23-5 |
0 |
|
Datasheet |
- | Tape & Reel (TR) | Obsolete | SPST - NO | 1:1 | 1 | 3Ohm | - | 1.8V ~ 5V | - | 12ns, 8ns (Typ) | 200MHz | 5pC | 17pF, 17pF | 250pA | - | -40°C ~ 85°C (TA) | - | - | Surface Mount | SOT-23-5 |
|
DG406EUIIC MUX 16:1 100OHM 28TSSOP |
0 |
|
Datasheet |
- | Tube | Obsolete | - | 16:1 | 1 | 100Ohm | 1.5Ohm | 5V ~ 30V | ±4.5V ~ 20V | 200ns, 150ns | - | 2pC | 8pF, 130pF | 500pA | -92dB @ 100kHz | -40°C ~ 85°C (TA) | - | - | Surface Mount | 28-TSSOP |
|
MAX338CPEIC MUX 8:1 400OHM 16DIP |
0 |
|
- |
- | Tube | Obsolete | - | 8:1 | 1 | 400Ohm | 4Ohm | 4.5V ~ 30V | ±4.5V ~ 20V | 500ns, 500ns | - | 1.5pC | 3pF, 11pF | 20pA | -92dB @ 100kHz | 0°C ~ 70°C (TA) | - | - | Through Hole | 16-PDIP |
|
MAX4608CSE-TIC SW SPST-NOX2 2.5OHM 16SOIC |
0 |
|
Datasheet |
- | Tape & Reel (TR) | Obsolete | SPST - NO | 1:1 | 2 | 2.5Ohm | 50mOhm | 4.5V ~ 36V | ±4.5V ~ 20V | 110ns, 150ns | - | 45pC | 64pF, 64pF | 500pA | -66dB @ 1MHz | 0°C ~ 70°C (TA) | - | - | Surface Mount | 16-SOIC |
|
|
ADG419C-PT7IC SWITCH SPDT X 1 35OHM DIE |
0 |
|
- |
- | Tape & Reel (TR) | Obsolete | SPDT | 2:1 | 1 | 35Ohm | - | 12V | ±15V | - | - | - | 6pF | 250pA | -90dB @ 1MHz | -40°C ~ 125°C (TA) | - | - | Surface Mount | Die |
|
ADG621C-PT7IC SWITCH SPST-NO X 2 5.5OHM DIE |
0 |
|
- |
- | Tape & Reel (TR) | Obsolete | SPST - NO | 1:1 | 2 | 5.5Ohm | 250mOhm | 2.7V ~ 5.5V | ±2.7V ~ 5.5V | 120ns, 70ns | 230MHz | 110pC | 20pF, 20pF | 250pA | -90dB @ 1MHz | -40°C ~ 85°C (TA) | - | - | Surface Mount | Die |
|
V62/11612-01XBIC MUX 8:1 4.7OHM 16TSSOP |
0 |
|
Datasheet |
- | Tape & Reel (TR) | Active | - | 8:1 | 1 | 4.7Ohm | 780mOhm (Max) | - | - | 120ns, 120ns | - | 50pC | 14pF, 80pF | 200pA | -70dB @ 1MHz | -55°C ~ 125°C (TA) | - | - | Surface Mount | 16-TSSOP |
|
|
V62/12617-01XBIC SWITCH SPSTX4 190OHM 16TSSOP |
0 |
|
- |
- | Tape & Reel (TR) | Active | SPST | 1:1 | 4 | 190Ohm | 2.5Ohm (Typ) | - | - | 80ns, 100ns | - | 0.3pC | 1.1pF, 1.2pF | 100pA | -90dB @ 1MHz | -55°C ~ 125°C | - | - | Surface Mount | 16-TSSOP |
|
|
74HCT4051D/AUJIC MUX 8:1 120OHM 16SO |
0 |
|
Datasheet |
- | Tape & Reel (TR) | Active | - | 8:1 | 1 | 120Ohm | 6Ohm | 4.5V ~ 5.5V | ±1V ~ 5V | 39ns, 32ns | 180MHz | - | 3.5pF | 400nA | - | -40°C ~ 125°C (TA) | - | - | Surface Mount | 16-SO |
|
74HCT4053PW/AUJIC SWITCH SPDT X 3 6OHM 16TSSOP |
0 |
|
Datasheet |
- | Tape & Reel (TR) | Active | SPDT | 2:1 | 3 | 6Ohm | 6Ohm | 4.5V ~ 5.5V | ±1V ~ 5V | 34ns, 31ns | 170MHz | - | 3.5pF | 100nA | -60dB @ 1MHz | -40°C ~ 125°C (TA) | - | - | Surface Mount | 16-TSSOP |
|
|
74LV4051D/AUJIC MUX 8:1 85OHM 16SO |
0 |
|
Datasheet |
- | Tape & Reel (TR) | Active | - | 8:1 | 1 | 85Ohm | 2Ohm | 1V ~ 6V | - | 34ns, 29ns | 200MHz | - | 3.5pF | 2µA | -60dB @ 1MHz | -40°C ~ 125°C (TA) | - | - | Surface Mount | 16-SO |
|
|
74LV4052PW/AUJIC SWITCH SP4T X 2 85OHM 16TSSOP |
0 |
|
Datasheet |
- | Tape & Reel (TR) | Active | SP4T | 4:1 | 2 | 85Ohm | 2Ohm | 1V ~ 6V | - | 46ns, 32ns | 200MHz | - | 3.5pF | 2µA | -60dB @ 1MHz | -40°C ~ 125°C (TA) | - | - | Surface Mount | 16-TSSOP |
|
74HC4016D/AUJIC SWITCH SPST-NOX4 120OHM 14SO |
0 |
|
Datasheet |
- | Tape & Reel (TR) | Active | SPST - NO | 1:1 | 4 | 120Ohm | 9Ohm | 2V ~ 10V | - | 28ns, 22ns | 160MHz | - | 3.5pF | 1µA | -60dB @ 1MHz | -40°C ~ 125°C (TA) | - | - | Surface Mount | 14-SO |
