Analog Switches, Multiplexers, Demultiplexers
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Switch Circuit | Multiplexer/Demultiplexer Circuit | Number of Circuits | On-State Resistance (Max) | Channel-to-Channel Matching (ΔRon) | Voltage - Supply, Single (V+) | Voltage - Supply, Dual (V±) | Switch Time (Ton, Toff) (Max) | -3db Bandwidth | Charge Injection | Channel Capacitance (CS(off), CD(off)) | Current - Leakage (IS(off)) (Max) | Crosstalk | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ADG5412BCPZ-REEL7IC SW SPST-NOX4 10OHM 16LFCSP |
4,579 |
|
Datasheet |
- | Tape & Reel (TR) | Active | SPST - NO | 1:1 | 4 | 10Ohm | 350mOhm | 9V ~ 40V | ±9V ~ 22V | 187ns, 138ns | 160MHz | 310pC | 17pF, 17pF | 250pA | -70dB @ 1MHz | -40°C ~ 125°C (TA) | - | - | Surface Mount | 16-LFCSP-WQ (4x4) |
|
|
ADG5413BCPZ-REEL7IC SW SPST-NO/NCX4 10OHM 16LFCSP |
4,500 |
|
Datasheet |
- | Tape & Reel (TR) | Active | SPST - NO/NC | 1:1 | 4 | 10Ohm | 350mOhm | 9V ~ 40V | ±9V ~ 22V | 187ns, 138ns | 160MHz | 310pC | 17pF, 17pF | 250pA | -70dB @ 1MHz | -40°C ~ 125°C (TA) | - | - | Surface Mount | 16-LFCSP-WQ (4x4) |
|
ADG728BRUZ-REEL7IC MUX 8:1 4.5OHM 16TSSOP |
2,440 |
|
Datasheet |
- | Tape & Reel (TR) | Active | - | 8:1 | 1 | 4.5Ohm | - | 2.7V ~ 5.5V | - | 95ns, 85ns (Typ) | 65MHz | 3pC | 13pF, 85pF | 100pA | -75dB @ 1MHz | -40°C ~ 85°C (TA) | - | - | Surface Mount | 16-TSSOP |
|
|
ADG728BRUZIC MUX 8:1 4.5OHM 16TSSOP |
1,796 |
|
Datasheet |
- | Tube | Active | - | 8:1 | 1 | 4.5Ohm | - | 2.7V ~ 5.5V | - | 95ns, 85ns (Typ) | 65MHz | 3pC | 13pF, 85pF | 100pA | -75dB @ 1MHz | -40°C ~ 85°C (TA) | - | - | Surface Mount | 16-TSSOP |
|
|
ADG729BRUZ-REEL7IC SWITCH SP4TX2 4.5OHM 16TSSOP |
1,388 |
|
Datasheet |
- | Tape & Reel (TR) | Active | SP4T | 4:1 | 2 | 4.5Ohm | - | 2.7V ~ 5.5V | - | 95ns, 85ns (Typ) | 100MHz | 3pC | 13pF, 42pF | 100pA | -75dB @ 1MHz | -40°C ~ 85°C (TA) | - | - | Surface Mount | 16-TSSOP |
|

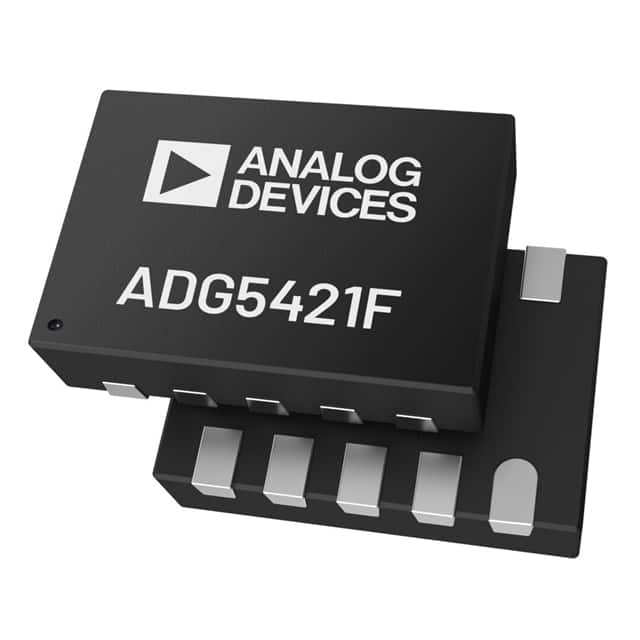

ADG5421FBCPZ-RL7IC SW SPST-NCX2 14OHM 10LFCSP |
0 |
|
Datasheet |
- | Tape & Reel (TR) | Active | SPST - NC | 1:1 | 2 | 14Ohm | 20mOhm | 8V ~ 44V | ±5V ~ 22V | 15.9µs, 160ns | 630MHz | -150pC | 6pF, 5pF | 200pA | -78dB @ 1MHz | -40°C ~ 125°C | - | - | Surface Mount | 10-LFCSP (3x2) |
|
MAX4782EUE+TIC SWITCH SP4T X 2 1OHM 16TSSOP |
1,482 |
|
Datasheet |
- | Tape & Reel (TR) | Active | SP4T | 4:1 | 2 | 1Ohm | 300mOhm | 1.6V ~ 3.6V | - | 25ns, 15ns | - | -110pC | 38pF, 158pF | 2nA | -80dB @ 1MHz | -40°C ~ 85°C (TA) | - | - | Surface Mount | 16-TSSOP |
|
MAX4052AESE+TIC SWITCH SP4T X 2 100OHM 16SOIC |
623 |
|
Datasheet |
- | Tape & Reel (TR) | Active | SP4T | 4:1 | 2 | 100Ohm | 6Ohm (Max) | 2V ~ 16V | ±2.7V ~ 8V | 175ns, 150ns | - | 2pC | 2pF, 2pF | 100pA | -90dB @ 100kHz | -40°C ~ 85°C (TA) | - | - | Surface Mount | 16-SOIC |
|
|
MAX4051ACSE+TIC MUX 8:1 100OHM 16SOIC |
775 |
|
Datasheet |
- | Tape & Reel (TR) | Active | - | 8:1 | 1 | 100Ohm | 6Ohm (Max) | 2V ~ 16V | ±2.7V ~ 8V | 175ns, 150ns | - | 2pC | 2pF, 2pF | 100pA | -90dB @ 100kHz | 0°C ~ 70°C (TA) | - | - | Surface Mount | 16-SOIC |
|
MAX4660EUA+TIC SWITCH SPDT X 1 25OHM 8UMAX |
5,955 |
|
Datasheet |
- | Tape & Reel (TR) | Active | SPDT | 2:1 | 1 | 25Ohm | 400mOhm | 9V ~ 40V | ±4.5V ~ 20V | - | 225MHz | 1.5pC | 6pF | 1nA | -76dB @ 1MHz | -40°C ~ 85°C (TA) | - | - | Surface Mount | 8-uMAX-EP|8-uSOP-EP |
|
MAX4659ESA+TIC SWITCH SPDT X 1 25OHM 8SOIC |
1,419 |
|
Datasheet |
- | Tape & Reel (TR) | Active | SPDT | 2:1 | 1 | 25Ohm | 400mOhm | 9V ~ 40V | ±4.5V ~ 20V | - | 225MHz | 1.5pC | 6pF | 1nA | -76dB @ 1MHz | -40°C ~ 85°C (TA) | - | - | Surface Mount | 8-SOIC |
|
|
ADG1412YRUZIC SW SPST-NOX4 1.8OHM 16TSSOP |
5,247 |
|
Datasheet |
- | Tube | Active | SPST - NO | 1:1 | 4 | 1.8Ohm | 100mOhm | 5V ~ 16.5V | ±4.5V ~ 16.5V | 150ns, 120ns | 170MHz | -20pC | 23pF, 23pF | 550pA | -100dB @ 1MHz | -40°C ~ 125°C (TA) | - | - | Surface Mount | 16-TSSOP |
|
|
ADG5412BRUZ-REEL7IC SW SPST-NOX4 10OHM 16TSSOP |
3,025 |
|
Datasheet |
- | Tape & Reel (TR) | Active | SPST - NO | 1:1 | 4 | 10Ohm | 350mOhm | 9V ~ 40V | ±9V ~ 22V | 187ns, 138ns | 160MHz | 310pC | 17pF, 17pF | 250pA | -70dB @ 1MHz | -40°C ~ 125°C (TA) | - | - | Surface Mount | 16-TSSOP |
|
|
MAX392CSE+IC SWITCH SPST-NOX4 35OHM 16SOIC |
1,833 |
|
Datasheet |
- | Tube | Active | SPST - NO | 1:1 | 4 | 35Ohm | 300mOhm | 3V ~ 15V | ±3V ~ 8V | 130ns, 75ns | - | 2pC | 9pF, 9pF | 100pA | -85dB @ 1MHz | 0°C ~ 70°C (TA) | - | - | Surface Mount | 16-SOIC |
|
|
ADG5412BRUZIC SW SPST-NOX4 10OHM 16TSSOP |
1,133 |
|
Datasheet |
- | Tube | Active | SPST - NO | 1:1 | 4 | 10Ohm | 350mOhm | 9V ~ 40V | ±9V ~ 22V | 187ns, 138ns | 160MHz | 310pC | 17pF, 17pF | 250pA | -70dB @ 1MHz | -40°C ~ 125°C (TA) | - | - | Surface Mount | 16-TSSOP |
|
|
ADG608BRUZ-REEL7IC MUX 8:1 30OHM 16TSSOP |
8,652 |
|
Datasheet |
- | Tape & Reel (TR) | Active | - | 8:1 | 1 | 30Ohm | 5Ohm (Max) | 3.3V ~ 5V | ±5V | 75ns, 45ns | - | 6pC | 9pF, 40pF | 500pA | -85dB @ 100kHz | -40°C ~ 85°C (TA) | - | - | Surface Mount | 16-TSSOP |
|
MAX4052AEEE+IC SWITCH SP4T X 2 100OHM 16QSOP |
450 |
|
Datasheet |
- | Tube | Active | SP4T | 4:1 | 2 | 100Ohm | 6Ohm (Max) | 2V ~ 16V | ±2.7V ~ 8V | 175ns, 150ns | - | 2pC | 2pF, 2pF | 100pA | -90dB @ 100kHz | -40°C ~ 85°C (TA) | - | - | Surface Mount | 16-QSOP |
|
MAX4659EUA+TIC SWITCH SPDT X 1 25OHM 8UMAX |
3,411 |
|
Datasheet |
- | Tape & Reel (TR) | Active | SPDT | 2:1 | 1 | 25Ohm | 400mOhm | 9V ~ 40V | ±4.5V ~ 20V | - | 225MHz | 1.5pC | 6pF | 1nA | -76dB @ 1MHz | -40°C ~ 85°C (TA) | - | - | Surface Mount | 8-uMAX/uSOP |
|

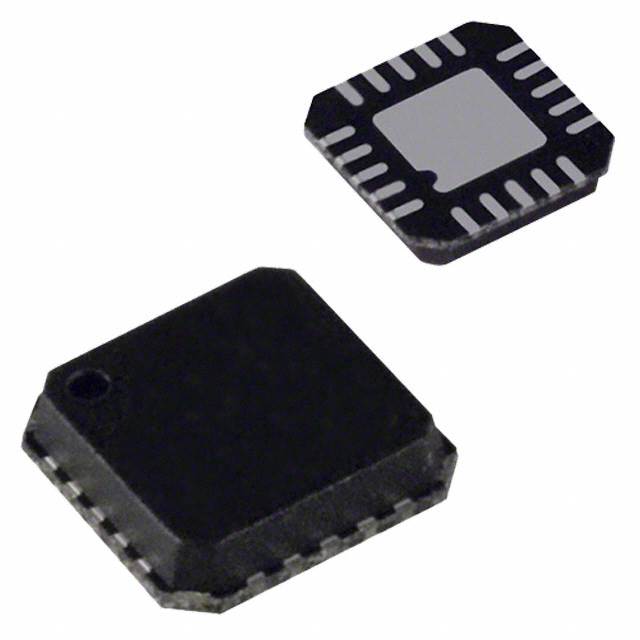

ADG1634BCPZ-REEL7IC SWITCH SPDTX4 4.5OHM 20LFCSP |
16,001 |
|
Datasheet |
- | Tape & Reel (TR) | Active | SPDT | 2:1 | 4 | 4.5Ohm | 120mOhm | 3.3V ~ 16V | ±3.3V ~ 8V | 38ns, 152ns | 109MHz | -12.4pC | 19pF, 32pF | 100pA | -64dB @ 1MHz | -40°C ~ 125°C (TA) | - | - | Surface Mount | 20-LFCSP (4x4) |
|
|
MAX4617ESE+IC MUX 8:1 10OHM 16SOIC |
2,408 |
|
Datasheet |
- | Tube | Active | - | 8:1 | 1 | 10Ohm | 200mOhm | 2V ~ 5.5V | - | 15ns, 10ns | - | 3pC | 5pF, 27pF | 1nA | -96dB @ 100kHz | -40°C ~ 85°C (TA) | - | - | Surface Mount | 16-SOIC |
Analog Switches, Multiplexers, Demultiplexers Electronic Components
Explore Analog Switches, Multiplexers, Demultiplexers electronic components, related subcategories, product specifications, datasheets and sourcing options. We support original component procurement, BOM sourcing and RFQ services for engineers, distributors and global buyers.
