Analog Switches, Multiplexers, Demultiplexers
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Switch Circuit | Multiplexer/Demultiplexer Circuit | Number of Circuits | On-State Resistance (Max) | Channel-to-Channel Matching (ΔRon) | Voltage - Supply, Single (V+) | Voltage - Supply, Dual (V±) | Switch Time (Ton, Toff) (Max) | -3db Bandwidth | Charge Injection | Channel Capacitance (CS(off), CD(off)) | Current - Leakage (IS(off)) (Max) | Crosstalk | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ADG419BRMZ-REELIC SWITCH SPDT X 1 35OHM 8MSOP |
13,397 |
|
Datasheet |
- | Tape & Reel (TR) | Active | SPDT | 2:1 | 1 | 35Ohm | - | 12V | ±15V | - | - | - | 6pF | 250pA | -90dB @ 1MHz | -40°C ~ 125°C (TA) | - | - | Surface Mount | 8-MSOP |
|
|
ADG419BRMZ-REEL7IC SWITCH SPDT X 1 35OHM 8MSOP |
8,030 |
|
Datasheet |
- | Tape & Reel (TR) | Active | SPDT | 2:1 | 1 | 35Ohm | - | 12V | ±15V | - | - | - | 6pF | 250pA | -90dB @ 1MHz | -40°C ~ 125°C (TA) | - | - | Surface Mount | 8-MSOP |
|
|
ADG419BRMZIC SWITCH SPDT X 1 35OHM 8MSOP |
5,743 |
|
Datasheet |
- | Tube | Active | SPDT | 2:1 | 1 | 35Ohm | - | 12V | ±15V | - | - | - | 6pF | 250pA | -90dB @ 1MHz | -40°C ~ 125°C (TA) | - | - | Surface Mount | 8-MSOP |
|
ADG419BRZ-REEL7IC SWITCH SPDT X 1 35OHM 8SOIC |
2,831 |
|
Datasheet |
- | Tape & Reel (TR) | Active | SPDT | 2:1 | 1 | 35Ohm | - | 12V | ±15V | - | - | - | 6pF | 250pA | -90dB @ 1MHz | -40°C ~ 125°C (TA) | - | - | Surface Mount | 8-SOIC |
|
|
ADG419BRZIC SWITCH SPDT X 1 35OHM 8SOIC |
1,704 |
|
Datasheet |
- | Tube | Active | SPDT | 2:1 | 1 | 35Ohm | - | 12V | ±15V | - | - | - | 6pF | 250pA | -90dB @ 1MHz | -40°C ~ 125°C (TA) | - | - | Surface Mount | 8-SOIC |
|
|
ADG5401BRMZIC SWITCH SPST-NO X 1 7OHM 8MSOP |
4,545 |
|
Datasheet |
- | Tube | Active | SPST - NO | 1:1 | 1 | 7Ohm | - | 9V ~ 40V | ±9V ~ 22V | 21ns, 23ns | 170MHz | 275pC | 21pF, 23pF | 500pA | - | -40°C ~ 125°C (TA) | - | - | Surface Mount | 8-MSOP |
|
|
ADG5401BRMZ-RL7IC SWITCH SPST-NO X 1 7OHM 8MSOP |
1,622 |
|
Datasheet |
- | Tape & Reel (TR) | Active | SPST - NO | 1:1 | 1 | 7Ohm | - | 9V ~ 40V | ±9V ~ 22V | 21ns, 23ns | 170MHz | 275pC | 21pF, 23pF | 500pA | - | -40°C ~ 125°C (TA) | - | - | Surface Mount | 8-MSOP |
|
MAX4634EUB+IC SWITCH SP4T X 1 4OHM 10UMAX |
1,225 |
|
Datasheet |
- | Tube | Active | SP4T | 4:1 | 1 | 4Ohm | 100mOhm | 1.8V ~ 5.5V | - | 18ns, 11ns | - | 2pC | 13pF, 52pF | 100pA | -78dB @ 1MHz | -40°C ~ 85°C (TA) | - | - | Surface Mount | 10-uMAX/uSOP |
|
ADG811YCPZ-REEL7IC SW SPST-NCX4 650MOHM 16LFCSP |
6,134 |
|
Datasheet |
- | Tape & Reel (TR) | Active | SPST - NC | 1:1 | 4 | 650mOhm | 40mOhm | 1.65V ~ 3.6V | - | 25ns, 5ns | 90MHz | 30pC | 30pF, 35pF | 1nA | -90dB @ 100kHz | -40°C ~ 125°C (TA) | - | - | Surface Mount | 16-LFCSP-VQ (3x3) |
|
ADG5419BCPZ-RL7IC SWITCH SPDT X 1 14OHM 8LFCSP |
4,763 |
|
Datasheet |
- | Tape & Reel (TR) | Active | SPDT | 2:1 | 1 | 14Ohm | 100mOhm | 9V ~ 40V | ±9V ~ 22V | 239ns, 185ns | 190MHz | 160pC | 11pF, 22pF | 250pA | -80dB @ 1MHz | -40°C ~ 125°C (TA) | - | - | Surface Mount | 8-LFCSP-WD (2x3) |
|
MAX4634ETB+TIC SWITCH SP4T X 1 4OHM 10TDFN |
2,611 |
|
Datasheet |
- | Tape & Reel (TR) | Active | SP4T | 4:1 | 1 | 4Ohm | 100mOhm | 1.8V ~ 5.5V | - | 18ns, 11ns | - | 2pC | 13pF, 52pF | 100pA | -78dB @ 1MHz | -40°C ~ 85°C (TA) | - | - | Surface Mount | 10-TDFN (3x3) |
|
DG406DW-T1-E3IC MUX 16:1 100OHM 28SOIC |
2,868 |
|
Datasheet |
- | Tape & Reel (TR) | Active | - | 16:1 | 1 | 100Ohm | 5Ohm | 7.5V ~ 44V | ±5V ~ 20V | 200ns, 150ns | - | 15pC | 8pF, 130pF | 500pA | - | -40°C ~ 85°C (TA) | - | - | Surface Mount | 28-SOIC |
|
ADG774ABCPZ-REELIC SWITCH SPDTX4 3.5OHM 16LFCSP |
8,991 |
|
Datasheet |
- | Tape & Reel (TR) | Active | SPDT | 2:1 | 4 | 3.5Ohm | 150mOhm | 3V ~ 5V | - | 12ns, 6ns | 400MHz | 6pC | 5pF, 7.5pF | 100pA | -70dB @ 10MHz | -40°C ~ 85°C (TA) | - | - | Surface Mount | 16-LFCSP-WQ (3x3) |
|
ADG709CRUZ-REEL7IC SWITCH SP4TX2 4.5OHM 16TSSOP |
6,000 |
|
Datasheet |
- | Tape & Reel (TR) | Active | SP4T | 4:1 | 2 | 4.5Ohm | 400mOhm | 1.8V ~ 5.5V | ±2.5V | 14ns, 8ns (Typ) | 55MHz | 3pC | 13pF, 42pF | 10pA (Typ) | -80dB @ 1MHz | -40°C ~ 125°C (TA) | - | - | Surface Mount | 16-TSSOP |
|
|
ADG708CRUZ-REEL7IC MUX 8:1 4.5OHM 16TSSOP |
3,065 |
|
Datasheet |
- | Tape & Reel (TR) | Active | - | 8:1 | 1 | 4.5Ohm | 400mOhm | 1.8V ~ 5.5V | ±2.5V | 14ns, 8ns (Typ) | 55MHz | 3pC | 13pF, 85pF | 10pA (Typ) | -80dB @ 1MHz | -40°C ~ 125°C (TA) | - | - | Surface Mount | 16-TSSOP |
|
|
ADG708CRUZIC MUX 8:1 4.5OHM 16TSSOP |
428 |
|
Datasheet |
- | Tube | Active | - | 8:1 | 1 | 4.5Ohm | 400mOhm | 1.8V ~ 5.5V | ±2.5V | 14ns, 8ns (Typ) | 55MHz | 3pC | 13pF, 85pF | 10pA (Typ) | -80dB @ 1MHz | -40°C ~ 125°C (TA) | - | - | Surface Mount | 16-TSSOP |
|

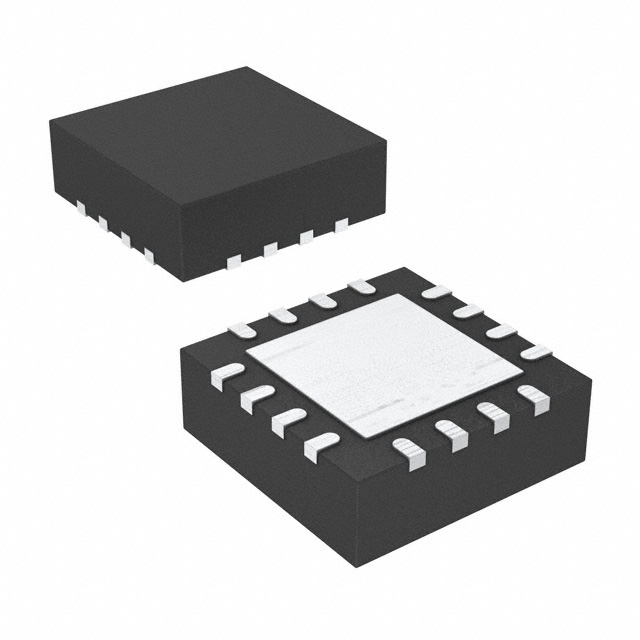

DG1413EEN-T1-GE4IC SW SPST-NO/NCX4 1.5OHM 16QFN |
4,721 |
|
Datasheet |
- | Tape & Reel (TR) | Active | SPST - NO/NC | 1:1 | 4 | 1.5Ohm | 40mOhm | 4.5V ~ 24V | ±4.5V ~ 15V | 140ns, 110ns | 150MHz | -41pC | 24pF, 23pF | 500pA | -104dB @ 1MHz | -40°C ~ 125°C (TA) | - | - | Surface Mount | 16-QFN (4x4) |
|
ADG419BNZIC SWITCH SPDT X 1 35OHM 8DIP |
906 |
|
Datasheet |
- | Tube | Active | SPDT | 2:1 | 1 | 35Ohm | - | 12V | ±15V | - | - | - | 6pF | 250pA | -90dB @ 1MHz | -40°C ~ 125°C (TA) | - | - | Through Hole | 8-PDIP |
|
ADG1421BRMZ-REEL7IC SW SPST-NOX2 2.4OHM 10MSOP |
4,361 |
|
Datasheet |
- | Tape & Reel (TR) | Active | SPST - NO | 1:1 | 2 | 2.4Ohm | 20mOhm | 5V ~ 16.5V | ±4.5V ~ 16.5V | 145ns, 145ns | 180MHz | -5pC | 18pF, 22pF | 500pA | -74dB @ 1MHz | -40°C ~ 125°C (TA) | - | - | Surface Mount | 10-MSOP |
|
ADG1633BCPZ-REEL7IC SWITCH SPDTX3 4.5OHM 16LFCSP |
3,089 |
|
Datasheet |
- | Tape & Reel (TR) | Active | SPDT | 2:1 | 3 | 4.5Ohm | 120mOhm | 3.3V ~ 16V | ±3.3V ~ 8V | 38ns, 152ns | 109MHz | -12.4pC | 19pF, 32pF | 100pA | -64dB @ 1MHz | -40°C ~ 125°C (TA) | - | - | Surface Mount | 16-LFCSP (3x3) |
