Analog Switches, Multiplexers, Demultiplexers
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Switch Circuit | Multiplexer/Demultiplexer Circuit | Number of Circuits | On-State Resistance (Max) | Channel-to-Channel Matching (ΔRon) | Voltage - Supply, Single (V+) | Voltage - Supply, Dual (V±) | Switch Time (Ton, Toff) (Max) | -3db Bandwidth | Charge Injection | Channel Capacitance (CS(off), CD(off)) | Current - Leakage (IS(off)) (Max) | Crosstalk | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ADG1213YCPZ-500RL7IC SW SPST-NO/NCX4 190OHM 16CSP |
1,346 |
|
Datasheet |
- | Tape & Reel (TR) | Active | SPST - NO/NC | 1:1 | 4 | 190Ohm | 2.5Ohm | 5V ~ 16.5V | ±4.5V ~ 16.5V | 130ns, 115ns | 1GHz | -0.3pC | 1.1pF, 1.2pF | 100pA | -90dB @ 1MHz | -40°C ~ 125°C (TA) | - | - | Surface Mount | 16-LFCSP (3x3) |
|
ADG1604BRUZIC SWITCH SP4TX1 1.1OHM 14TSSOP |
1,156 |
|
Datasheet |
- | Tube | Active | SP4T | 4:1 | 1 | 1.1Ohm | 30mOhm | 3.3V ~ 16V | ±3.3V ~ 8V | 95ns, 173ns | 19MHz | 125pC | 60pF, 270pF | 200pA | -70dB @ 1MHz | -40°C ~ 125°C (TA) | - | - | Surface Mount | 14-TSSOP |
|
MAX4617CUE+TIC MUX 8:1 10OHM 16TSSOP |
5,095 |
|
Datasheet |
- | Tape & Reel (TR) | Active | - | 8:1 | 1 | 10Ohm | 200mOhm | 2V ~ 5.5V | - | 15ns, 10ns | - | 3pC | 5pF, 27pF | 1nA | -96dB @ 100kHz | 0°C ~ 70°C (TA) | - | - | Surface Mount | 16-TSSOP |
|
ADG612YRUZ-REEL7IC SW SPST-NOX4 115OHM 16TSSOP |
13,448 |
|
Datasheet |
- | Tape & Reel (TR) | Active | SPST - NO | 1:1 | 4 | 115Ohm | 2Ohm | 2.7V ~ 5.5V | ±2.7V ~ 5.5V | 65ns, 40ns | 680MHz | -0.5pC | 5pF, 5pF | 100pA | -90dB @ 10MHz | -40°C ~ 125°C (TA) | - | - | Surface Mount | 16-TSSOP |
|
MAX4510EUT+TIC SWITCH SPST-NCX1 160OHM SOT6 |
7,001 |
|
Datasheet |
- | Tape & Reel (TR) | Active | SPST - NC | 1:1 | 1 | 160Ohm | - | 9V ~ 36V | ±4.5V ~ 20V | 500ns, 175ns | - | 1.5pC | 10pF, 5pF | 500pA | - | -40°C ~ 85°C (TA) | - | - | Surface Mount | SOT-6 |
|
ADG1609BCPZ-REEL7IC SWITCH SP4TX2 4.5OHM 16LFCSP |
8,866 |
|
Datasheet |
- | Tape & Reel (TR) | Active | SP4T | 4:1 | 2 | 4.5Ohm | 120mOhm | 3.3V ~ 16V | ±3.3V ~ 8V | 94ns, 93ns | 78MHz | 29pC | 19pF, 59pF | 100pA | -64dB @ 1MHz | -40°C ~ 125°C (TA) | - | - | Surface Mount | 16-LFCSP (3x3) |
|
ADG714BRUZ-REEL7IC SW SPST-NOX8 4.5OHM 24TSSOP |
7,995 |
|
Datasheet |
- | Tape & Reel (TR) | Active | SPST - NO | 1:1 | 8 | 4.5Ohm | - | 2.7V ~ 5.5V | ±2.5V | 20ns, 8ns (Typ) | 155MHz | 3pC | 11pF, 11pF | 100pA | -90dB @ 1MHz | -40°C ~ 85°C (TA) | - | - | Surface Mount | 24-TSSOP |
|
|
ADG1608BCPZ-REEL7IC MUX 8:1 4.5OHM 16LFCSP |
4,765 |
|
Datasheet |
- | Tape & Reel (TR) | Active | - | 8:1 | 1 | 4.5Ohm | 120mOhm | 3.3V ~ 16V | ±3.3V ~ 8V | 94ns, 93ns | 40MHz | 29pC | 19pF, 117pF | 100pA | -64dB @ 1MHz | -40°C ~ 125°C (TA) | - | - | Surface Mount | 16-LFCSP (3x3) |
|
|
ADG714BRUZIC SW SPST-NOX8 4.5OHM 24TSSOP |
2,415 |
|
Datasheet |
- | Tube | Active | SPST - NO | 1:1 | 8 | 4.5Ohm | - | 2.7V ~ 5.5V | ±2.5V | 20ns, 8ns (Typ) | 155MHz | 3pC | 11pF, 11pF | 100pA | -90dB @ 1MHz | -40°C ~ 85°C (TA) | - | - | Surface Mount | 24-TSSOP |
|
DG419LEUA+TIC SWITCH SPDT X 1 35OHM 8UMAX |
5,638 |
|
Datasheet |
- | Tape & Reel (TR) | Active | SPDT | 2:1 | 1 | 35Ohm | 100mOhm | 9V ~ 36V | ±4.5V ~ 20V | - | - | 15pC | 8pF, 8pF | 250pA | -86dB @ 1MHz | -40°C ~ 85°C (TA) | - | - | Surface Mount | 8-uMAX/uSOP |
|
ADG774ABCPZ-R2IC SWITCH SPDTX4 3.5OHM 16LFCSP |
2,205 |
|
Datasheet |
- | Tape & Reel (TR) | Active | SPDT | 2:1 | 4 | 3.5Ohm | 150mOhm | 3V ~ 5V | - | 12ns, 6ns | 400MHz | 6pC | 5pF, 7.5pF | 100pA | -70dB @ 10MHz | -40°C ~ 85°C (TA) | - | - | Surface Mount | 16-LFCSP-WQ (3x3) |
|
|
ADG1236YRUZIC SWITCH SPDTX2 190OHM 16TSSOP |
3,417 |
|
Datasheet |
- | Tube | Active | SPDT | 2:1 | 2 | 190Ohm | 3.5Ohm | 12V | ±15V | 150ns, 90ns | 1GHz | -1pC | 1.6pF | 100pA | -85dB @ 1MHz | -40°C ~ 125°C (TA) | - | - | Surface Mount | 16-TSSOP |
|
|
ADG1211YRUZ-REEL7IC SW SPST-NCX4 190OHM 16TSSOP |
2,312 |
|
Datasheet |
- | Tape & Reel (TR) | Active | SPST - NC | 1:1 | 4 | 190Ohm | 2.5Ohm | 5V ~ 16.5V | ±4.5V ~ 16.5V | 130ns, 115ns | 1GHz | -0.3pC | 1.1pF, 1.2pF | 100pA | -90dB @ 1MHz | -40°C ~ 125°C (TA) | - | - | Surface Mount | 16-TSSOP |
|
|
ADG1236YRUZ-REEL7IC SWITCH SPDTX2 190OHM 16TSSOP |
1,648 |
|
Datasheet |
- | Tape & Reel (TR) | Active | SPDT | 2:1 | 2 | 190Ohm | 3.5Ohm | 12V | ±15V | 150ns, 90ns | 1GHz | -1pC | 1.6pF | 100pA | -85dB @ 1MHz | -40°C ~ 125°C (TA) | - | - | Surface Mount | 16-TSSOP |
|

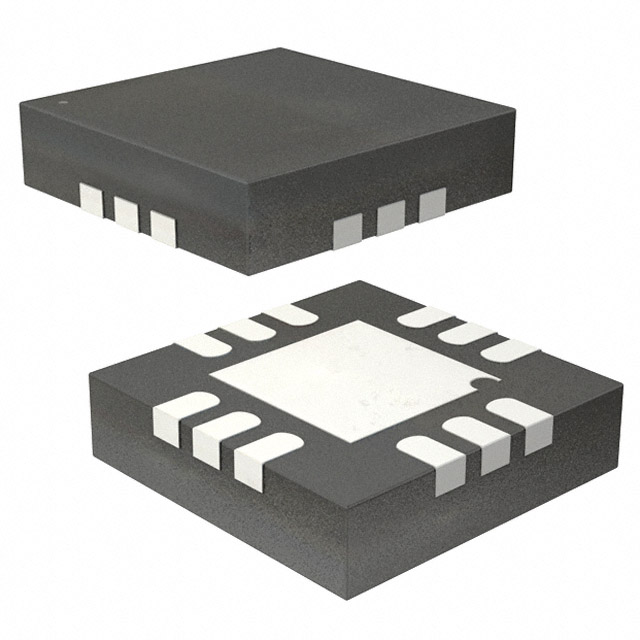

ADG1204YCPZ-500RL7IC SWITCH SP4TX1 190OHM 12LFCSP |
1,318 |
|
Datasheet |
- | Tape & Reel (TR) | Active | SP4T | 4:1 | 1 | 190Ohm | 6Ohm | 12V | ±15V | 85ns, 110ns | 800MHz | -0.7pC | 1.5pF, 4.2pF | 100pA | -80dB @ 1MHz | -40°C ~ 125°C (TA) | - | - | Surface Mount | 12-LFCSP (3x3) |
|
|
ADG604YRUZ-REEL7IC SWITCH SP4TX1 115OHM 14TSSOP |
1,477 |
|
Datasheet |
- | Tape & Reel (TR) | Active | SP4T | 4:1 | 1 | 115Ohm | 2Ohm | 2.7V ~ 5.5V | ±2.7V ~ 5.5V | 105ns, 45ns | 280MHz | -1pC | 5pF, 17pF | 100pA | -70dB @ 10MHz | -40°C ~ 125°C (TA) | - | - | Surface Mount | 14-TSSOP |
|
|
ADG604YRUZIC SWITCH SP4TX1 115OHM 14TSSOP |
794 |
|
Datasheet |
- | Tube | Active | SP4T | 4:1 | 1 | 115Ohm | 2Ohm | 2.7V ~ 5.5V | ±2.7V ~ 5.5V | 105ns, 45ns | 280MHz | -1pC | 5pF, 17pF | 100pA | -70dB @ 10MHz | -40°C ~ 125°C (TA) | - | - | Surface Mount | 14-TSSOP |
|
|
ADG1208YRUZIC MUX 8:1 200OHM 16TSSOP |
12,710 |
|
Datasheet |
- | Tube | Active | - | 8:1 | 1 | 200Ohm | 3.5Ohm | 5V ~ 16.5V | ±5V ~ 16.5V | 95ns, 100ns | 550MHz | 0.4pC | 1.5pF, 7pF | 100pA | -85dB @ 1MHz | -40°C ~ 125°C (TA) | - | - | Surface Mount | 16-TSSOP |
|
ADG707BRUZIC MUX DUAL 8:1 4.5OHM 28TSSOP |
3,903 |
|
Datasheet |
- | Tube | Active | - | 8:1 | 2 | 4.5Ohm | - | 1.8V ~ 5.5V | ±2.5V | 32ns, 16ns (Typ) | 36MHz | 8pC | 13pF, 90pF | 100pA | -80dB @ 1MHz | -40°C ~ 85°C (TA) | - | - | Surface Mount | 28-TSSOP |
|
DG419LDY+TIC SWITCH SPDT X 1 35OHM 8SOIC |
2,727 |
|
Datasheet |
- | Tape & Reel (TR) | Active | SPDT | 2:1 | 1 | 35Ohm | 100mOhm | 9V ~ 36V | ±4.5V ~ 20V | - | - | 15pC | 8pF, 8pF | 250pA | -86dB @ 1MHz | -40°C ~ 85°C (TA) | - | - | Surface Mount | 8-SOIC |
