Analog Switches, Multiplexers, Demultiplexers
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Switch Circuit | Multiplexer/Demultiplexer Circuit | Number of Circuits | On-State Resistance (Max) | Channel-to-Channel Matching (ΔRon) | Voltage - Supply, Single (V+) | Voltage - Supply, Dual (V±) | Switch Time (Ton, Toff) (Max) | -3db Bandwidth | Charge Injection | Channel Capacitance (CS(off), CD(off)) | Current - Leakage (IS(off)) (Max) | Crosstalk | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MAX4051ACSE+IC MUX 8:1 100OHM 16SOIC |
917 |
|
Datasheet |
- | Tube | Active | - | 8:1 | 1 | 100Ohm | 6Ohm (Max) | 2V ~ 16V | ±2.7V ~ 8V | 175ns, 150ns | - | 2pC | 2pF, 2pF | 100pA | -90dB @ 100kHz | 0°C ~ 70°C (TA) | - | - | Surface Mount | 16-SOIC |
|
MAX4626EUK+TIC SW SPST-NOX1 500MOHM SOT23-5 |
4,788 |
|
Datasheet |
- | Tape & Reel (TR) | Active | SPST - NO | 1:1 | 1 | 500mOhm | - | 1.8V ~ 5.5V | - | 50ns, 30ns | - | 40pC | 65pF, 65pF | 2nA | - | -40°C ~ 85°C (TA) | - | - | Surface Mount | SOT-23-5 |
|
MAX4729EXT+TIC SWITCH SPDT X 1 5.5OHM SC70-6 |
2,167 |
|
Datasheet |
- | Tape & Reel (TR) | Active | SPDT | 2:1 | 1 | 5.5Ohm | 50mOhm | 1.8V ~ 5.5V | - | 45ns, 26ns | 300MHz | 3pC | 6.5pF | 2nA | -67dB @ 1MHz | -40°C ~ 85°C (TA) | - | - | Surface Mount | SC-70-6 |
|
ADG1401BCPZ-REEL7IC SW SPST-NCX1 1.3OHM 8LFCSP |
5,395 |
|
Datasheet |
- | Tape & Reel (TR) | Active | SPST - NC | 1:1 | 1 | 1.3Ohm | 200mOhm | 5V ~ 16.5V | ±4.5V ~ 16.5V | 150ns, 150ns | 120MHz | -12pC | 36pF, 41pF | 400pA | - | -40°C ~ 125°C (TA) | - | - | Surface Mount | 8-LFCSP-WD (2x3) |
|
|
ADG1402BCPZ-REEL7IC SW SPST-NOX1 1.3OHM 8LFCSP |
4,780 |
|
Datasheet |
- | Tape & Reel (TR) | Active | SPST - NO | 1:1 | 1 | 1.3Ohm | 200mOhm | 5V ~ 16.5V | ±4.5V ~ 16.5V | 150ns, 150ns | 120MHz | -12pC | 36pF, 41pF | 400pA | - | -40°C ~ 125°C (TA) | - | - | Surface Mount | 8-LFCSP-WD (2x3) |
|
ADG788BCPZ-REEL7IC SWITCH SPDTX4 4.5OHM 20LFCSP |
8,396 |
|
Datasheet |
- | Tape & Reel (TR) | Active | SPDT | 2:1 | 4 | 4.5Ohm | - | 1.8V ~ 5.5V | ±2.5V | 21ns, 10ns (Typ) | 160MHz | 5pC | 11pF | 100pA | -80dB @ 1MHz | -40°C ~ 85°C (TA) | - | - | Surface Mount | 20-LFCSP (4x4) |
|
ISL84781IRZIC MUX 8:1 750MOHM 16TQFN |
5,056 |
|
Datasheet |
- | Tube | Active | - | 8:1 | 1 | 750mOhm | 120mOhm | 1.6V ~ 3.6V | - | 25ns, 23ns | - | -39pC | 65pF, 470pF | 4nA | - | -40°C ~ 85°C (TA) | - | - | Surface Mount | 16-TQFN (3x3) |
|
ADG734BRUZ-REEL7IC SWITCH SPDTX4 4.5OHM 20TSSOP |
2,542 |
|
Datasheet |
- | Tape & Reel (TR) | Active | SPDT | 2:1 | 4 | 4.5Ohm | - | 1.8V ~ 5.5V | ±2.5V | 21ns, 10ns (Typ) | 200MHz | 5pC | 11pF | 100pA | -67dB @ 1MHz | -40°C ~ 85°C (TA) | - | - | Surface Mount | 20-TSSOP |
|
|
ADG734BRUZ-REELIC SWITCH SPDTX4 4.5OHM 20TSSOP |
2,353 |
|
Datasheet |
- | Tape & Reel (TR) | Active | SPDT | 2:1 | 4 | 4.5Ohm | - | 1.8V ~ 5.5V | ±2.5V | 21ns, 10ns (Typ) | 200MHz | 5pC | 11pF | 100pA | -67dB @ 1MHz | -40°C ~ 85°C (TA) | - | - | Surface Mount | 20-TSSOP |
|
|
ADG734BRUZIC SWITCH SPDTX4 4.5OHM 20TSSOP |
1,564 |
|
Datasheet |
- | Tube | Active | SPDT | 2:1 | 4 | 4.5Ohm | - | 1.8V ~ 5.5V | ±2.5V | 21ns, 10ns (Typ) | 200MHz | 5pC | 11pF | 100pA | -67dB @ 1MHz | -40°C ~ 85°C (TA) | - | - | Surface Mount | 20-TSSOP |
|
|
ADG788BCPZIC SWITCH SPDTX4 4.5OHM 20LFCSP |
676 |
|
Datasheet |
- | Tray | Active | SPDT | 2:1 | 4 | 4.5Ohm | - | 1.8V ~ 5.5V | ±2.5V | 21ns, 10ns (Typ) | 160MHz | 5pC | 11pF | 100pA | -80dB @ 1MHz | -40°C ~ 85°C (TA) | - | - | Surface Mount | 20-LFCSP (4x4) |
|
MAX4715EXK+TIC SW SPST-NOX1 400MOHM SC70-5 |
9,124 |
|
Datasheet |
- | Tape & Reel (TR) | Active | SPST - NO | 1:1 | 1 | 400mOhm | - | 1.6V ~ 3.6V | - | 18ns, 12ns | - | 20pC | 55pF, 55pF | 1nA | - | -40°C ~ 85°C (TA) | - | - | Surface Mount | SC-70-5 |
|
|
MAX4627EUK+TIC SW SPST-NOX1 500MOHM SOT23-5 |
5,245 |
|
Datasheet |
- | Tape & Reel (TR) | Active | SPST - NO | 1:1 | 1 | 500mOhm | - | 1.8V ~ 5.5V | - | 50ns, 30ns | - | 40pC | 65pF, 65pF | 2nA | - | -40°C ~ 85°C (TA) | - | - | Surface Mount | SOT-23-5 |
|

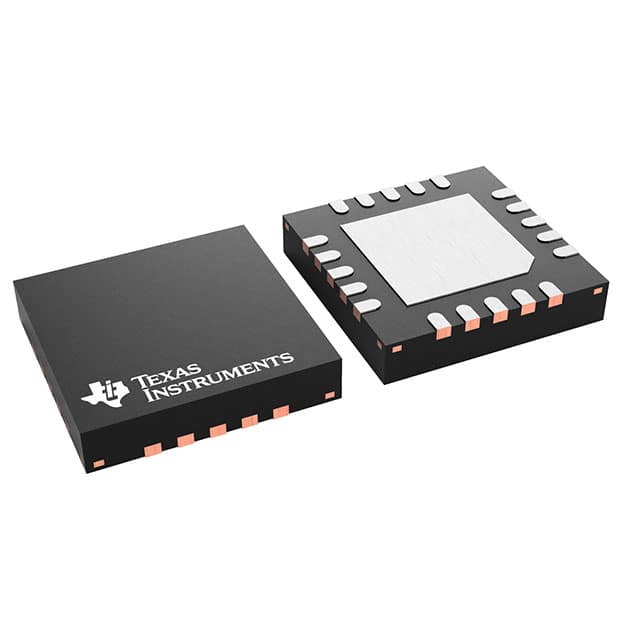

TMUX7234RRQRIC SW SPDT-NO/NCX4 5.8OHM 20WQFN |
4,536 |
|
Datasheet |
- | Tape & Reel (TR) | Active | SPDT - NO/NC | 2:1 | 4 | 5.8Ohm | 200mOhm | 4.5V ~ 44V | ±4.5V ~ 22V | 100ns, 90ns | 92MHz | 3pC | 16pF, 26pF | 1nA | -105dB @ 1MHz | -40°C ~ 125°C (TA) | - | - | Surface Mount | 20-WQFN (4x4) |
|
TMUX7208PWRIC SWITCH SP8TX1 5.4OHM 16TSSOP |
1,176 |
|
Datasheet |
- | Tape & Reel (TR) | Active | SP8T | 8:1 | 1 | 5.4Ohm | 700mOhm | 4.5V ~ 44V | ±4.5V ~ 22V | 205ns, 270ns | 30MHz | 2pC | 14pF, 130pF | 70nA | -65dB @ 1MHz | -40°C ~ 125°C | - | - | Surface Mount | 16-TSSOP |
|
MAX4734EUB+IC SWITCH SP4TX1 800MOHM 10UMAX |
2,370 |
|
Datasheet |
- | Tube | Active | SP4T | 4:1 | 1 | 800mOhm | 100mOhm | 1.6V ~ 3.6V | - | 25ns, 20ns | 90MHz | 60pC | 33pF, 117pF | 1nA | -56dB @ 1MHz | -40°C ~ 85°C (TA) | - | - | Surface Mount | 10-uMAX/uSOP |
|
MAX4717ETB+TIC SW SPDT-NO/NCX2 3OHM 10TDFN |
7,960 |
|
Datasheet |
- | Tape & Reel (TR) | Active | SPDT - NO/NC | 2:1 | 2 | 3Ohm | 100mOhm | 1.8V ~ 5.5V | - | 80ns, 40ns | 300MHz | 5pC | 9pF | 500pA | -80dB @ 10MHz | -40°C ~ 85°C (TA) | - | - | Surface Mount | 10-TDFN (3x3) |
|
MAX4624EZT+TIC SWITCH SPDT X 1 1OHM TSOT23-6 |
5,008 |
|
Datasheet |
- | Tape & Reel (TR) | Active | SPDT | 2:1 | 1 | 1Ohm | 60mOhm | 1.8V ~ 5.5V | - | 50ns, 50ns | - | 65pC | 32pF | 2nA | -57dB @ 1MHz | -40°C ~ 85°C (TA) | - | - | Surface Mount | TSOT-23-6 |
|
ADG1219BRJZ-REEL7IC SWITCH SPDTX1 200OHM SOT23-8 |
636 |
|
Datasheet |
- | Tape & Reel (TR) | Active | SPDT | 2:1 | 1 | 200Ohm | 3.5Ohm | 5V ~ 16.5V | ±5V ~ 16.5V | 105ns, 125ns | 520MHz | 0.1pC | 3.3pF, 5.1pF | 100pA | -80dB @ 1MHz | -40°C ~ 125°C (TA) | - | - | Surface Mount | SOT-23-8 |
|
|
ADG1419BCPZ-REEL7IC SWITCH SPDT X 1 2.4OHM 8LFCSP |
10,107 |
|
Datasheet |
- | Tape & Reel (TR) | Active | SPDT | 2:1 | 1 | 2.4Ohm | 50mOhm | 5V ~ 16.5V | ±4.5V ~ 16.5V | 110ns, 140ns | 135MHz | -16pC | 19pF, 44pF | 500pA | -64dB @ 1MHz | -40°C ~ 125°C (TA) | - | - | Surface Mount | 8-LFCSP-WD (2x3) |
