IGBT Modules
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | IGBT Type | Configuration | Voltage - Collector Emitter Breakdown (Max) | Current - Collector (Ic) (Max) | Power - Max | Vce(on) (Max) @ Vge, Ic | Current - Collector Cutoff (Max) | Input Capacitance (Cies) @ Vce | Input | NTC Thermistor | Operating Temperature | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MIP40R12E1TN-BPIGBT MODULES |
4,035 |
|
- |
- | Module | Tape & Reel (TR) | Active | - | Three Phase Inverter | 1200 V | 40 A | 227 W | 2.05V @ 15V, 40A | 1 mA | 2250 pF @ 25 V | Three Phase Bridge Rectifier | Yes | 175°C (TJ) | Chassis Mount | - |
|
|
APTGT200DA170D3GIGBT MODULE 1700V 400A 1250W D3 |
4,759 |
|
- |
- | D-3 Module | Bulk | Obsolete | Trench Field Stop | Single | 1700 V | 400 A | 1250 W | 2.4V @ 15V, 200A | 5 mA | 17 nF @ 25 V | Standard | No | -40°C ~ 150°C (TJ) | Chassis Mount | D3 |
|
|
APTGT200SK170D3GIGBT MODULE 1700V 400A 1250W D3 |
9,693 |
|
- |
- | D-3 Module | Bulk | Obsolete | Trench Field Stop | Single | 1700 V | 400 A | 1250 W | 2.4V @ 15V, 200A | 5 mA | 17 nF @ 25 V | Standard | No | -40°C ~ 150°C (TJ) | Chassis Mount | D3 |
|
MG12150S-BN2MMIGBT MODULE 1200V 200A 625W S3 |
8,187 |
|
- |
- | S-3 Module | Bulk | Obsolete | Trench Field Stop | Half Bridge | 1200 V | 200 A | 625 W | 1.7V @ 15V, 150A (Typ) | 1 mA | 10.5 nF @ 25 V | Standard | No | -40°C ~ 125°C (TJ) | Chassis Mount | S3 |
|
APTGF75H120TGIGBT MODULE 1200V 100A 500W SP4 |
9,859 |
|
- |
- | SP4 | Bulk | Obsolete | NPT | Full Bridge Inverter | 1200 V | 100 A | 500 W | 3.7V @ 15V, 75A | 250 µA | 5.1 nF @ 25 V | Standard | Yes | - | Chassis Mount | SP4 |
|

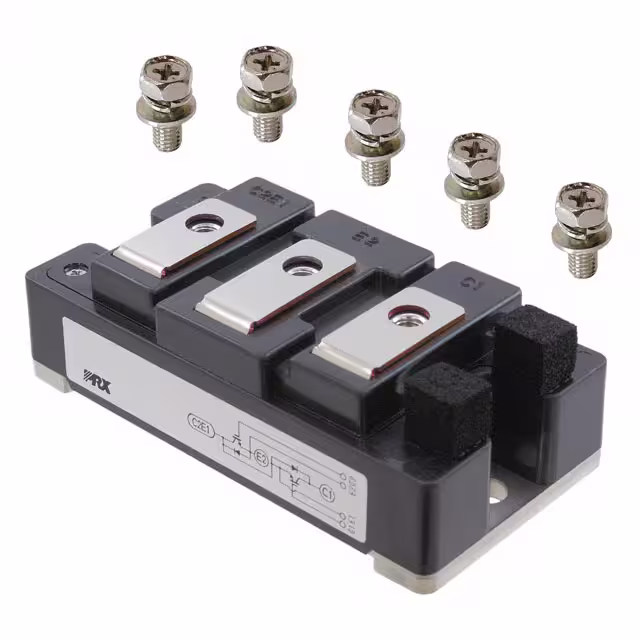

CM150DUS-12FIGBT MOD 600V 150A 520W |
6,731 |
|
- |
IGBTMOD™ | Module | Bulk | Discontinued at Digi-Key | Trench | Half Bridge | 600 V | 150 A | 520 W | 2.7V @ 15V, 150A | 1 mA | 41 nF @ 10 V | Standard | No | -40°C ~ 150°C (TJ) | Chassis Mount | Module |
|
APTCV60TLM99T3GIGBT MODULE 600V 50A 90W SP3 |
2,080 |
|
- |
- | SP3 | Bulk | Active | Trench Field Stop | Three Level Inverter - IGBT, FET | 600 V | 50 A | 90 W | 1.9V @ 15V, 30A | 250 µA | 1.6 nF @ 25 V | Standard | Yes | -40°C ~ 175°C (TJ) | Chassis Mount | SP3 |
|
FF75R12RT4HOSA1IGBT MOD 1200V 75A 395W |
4,209 |
|
- |
PrimePACK™2 | Module | Tray | Obsolete | Trench Field Stop | 2 Independent | 1200 V | 75 A | 395 W | 2.15V @ 15V, 75A | 1 mA | 4.3 nF @ 25 V | Standard | No | -40°C ~ 150°C | Chassis Mount | Module |
|
MG12100D-BA1MMIGBT MODULE 1200V 160A 1000W D3 |
4,803 |
|
- |
- | Module | Bulk | Obsolete | - | Half Bridge | 1200 V | 160 A | 1000 W | 1.8V @ 15V, 100A (Typ) | 1 mA | 8.58 nF @ 25 V | Standard | No | -40°C ~ 150°C (TJ) | Chassis Mount | D3 |
|
CM200EXS-24SIGBT MOD 1200V 200A 1500W |
9,390 |
|
- |
- | Module | Bulk | Discontinued at Digi-Key | - | Single | 1200 V | 200 A | 1500 W | 2.15V @ 15V, 200A | 1 mA | 20 nF @ 10 V | Standard | Yes | -40°C ~ 150°C (TJ) | - | Module |
|
|
IFS75B12N3E4B31BOSA1IGBT MOD 1200V 150A 385W |
6,541 |
|
- |
MIPAQ™ | Module | Tray | Active | Trench Field Stop | Full Bridge | 1200 V | 150 A | 385 W | 2.15V @ 15V, 75A | 1 mA | 4.3 nF @ 25 V | Standard | Yes | -40°C ~ 150°C | Chassis Mount | Module |
|
|
MDI200-12A4IGBT MOD 1200V 270A 1130W Y3DCB |
2,536 |
|
- |
- | Y3-DCB | Box | Obsolete | NPT | Single | 1200 V | 270 A | 1130 W | 2.7V @ 15V, 150A | 10 mA | 11 nF @ 25 V | Standard | No | 150°C (TJ) | Chassis Mount | Y3-DCB |
|
|
APTGT50A170T1GIGBT MODULE 1700V 75A 312W SP1 |
7,055 |
|
- |
- | SP1 | Bulk | Active | Trench Field Stop | Half Bridge | 1700 V | 75 A | 312 W | 2.4V @ 15V, 50A | 250 µA | 4.4 nF @ 25 V | Standard | Yes | -40°C ~ 150°C (TJ) | Chassis Mount | SP1 |
|
IFF300B12N2E4PB11BPSA1IGBT MOD 1200V 600A 20MW |
9,670 |
|
- |
MIPAQ™ | Module | Tray | Active | Trench Field Stop | Half Bridge | 1200 V | 600 A | - | 2.1V @ 15V, 300A | 1 mA | 18.5 nF @ 25 V | Standard | Yes | -40°C ~ 150°C | Chassis Mount | Module |
|
|
CM50BU-24HIGBT MOD 1200V 50A 400W |
9,184 |
|
- |
IGBTMOD™ | Module | Bulk | Obsolete | - | Full Bridge Inverter | 1200 V | 50 A | 400 W | 3.7V @ 15V, 50A | 1 mA | 7.5 nF @ 10 V | Standard | No | -40°C ~ 150°C (TJ) | Chassis Mount | Module |
|
|
APTGLQ50H65T3GIGBT MODULE 650V 70A 175W SP3F |
6,912 |
|
- |
- | Module | Bulk | Active | Trench Field Stop | Full Bridge | 650 V | 70 A | 175 W | 2.3V @ 15V, 50A | 50 µA | 3.1 nF @ 25 V | Standard | Yes | -40°C ~ 175°C (TJ) | Chassis Mount | SP3F |
|

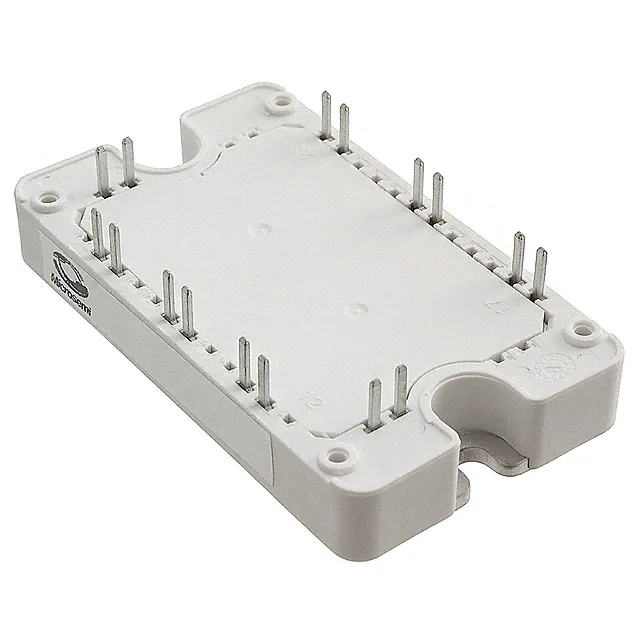

APTGT100BB60T3GIGBT MODULE 600V 150A 340W SP3 |
5,006 |
|
- |
- | SP3 | Bulk | Active | Trench Field Stop | Half Bridge | 600 V | 150 A | 340 W | 1.9V @ 15V, 100A | 250 µA | 6.1 nF @ 25 V | Standard | Yes | -40°C ~ 175°C (TJ) | Through Hole | SP3 |
|

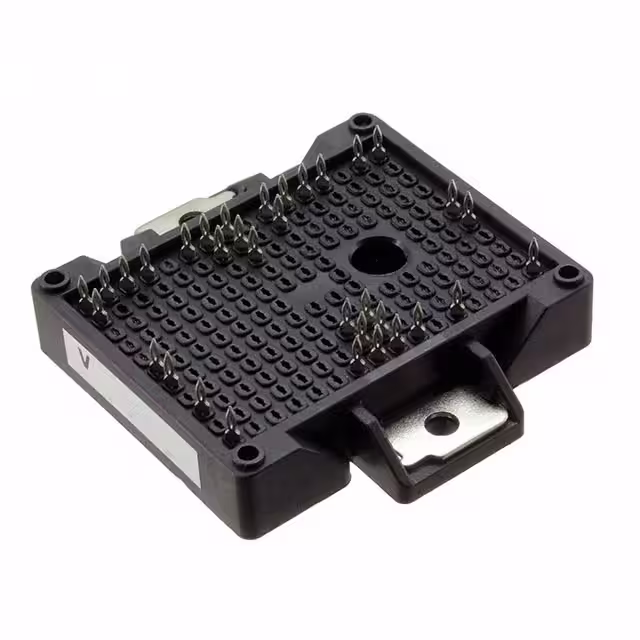

VS-ETF075Y60UIGBT MOD 600V 109A EMIPAK-2B |
2,295 |
|
- |
- | EMIPAK-2B | Bulk | Obsolete | Trench | Three Level Inverter | 600 V | 100 A | 294 W | 1.93V @ 15V, 75A | 100 µA | 4.44 nF @ 30 V | Standard | Yes | 175°C (TJ) | Chassis Mount | EMIPAK-2B |
|
|
MIP50R12E2TN-BPIGBT MODULES |
2,458 |
|
- |
- | Module | Tape & Reel (TR) | Active | - | Three Phase Inverter | 1200 V | 35 A | 227 W | 1.95V @ 15V, 35A | 1 mA | 2000 pF @ 25 V | Three Phase Bridge Rectifier | Yes | -40°C ~ 150°C (TJ) | Chassis Mount | - |
|
FP100R12N2T7B11BPSA1LOW POWER ECONO |
3,407 |
|
- |
EconoPIM™ 2 | Module | Tray | Active | Trench Field Stop | Three Phase Inverter | 1200 V | 100 A | - | 1.5V @ 15V, 100A | 10 µA | 21.7 nF @ 25 V | Three Phase Bridge Rectifier | Yes | -40°C ~ 175°C (TJ) | Chassis Mount | AG-ECONO2B |
IGBT Modules Electronic Components
Explore IGBT Modules electronic components, related subcategories, product specifications, datasheets and sourcing options. We support original component procurement, BOM sourcing and RFQ services for engineers, distributors and global buyers.
