IGBT Modules
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | IGBT Type | Configuration | Voltage - Collector Emitter Breakdown (Max) | Current - Collector (Ic) (Max) | Power - Max | Vce(on) (Max) @ Vge, Ic | Current - Collector Cutoff (Max) | Input Capacitance (Cies) @ Vce | Input | NTC Thermistor | Operating Temperature | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MIXA40WB1200TEDIGBT MODULE 1200V 60A 195W E2 |
7 |
|
- |
- | E2 | Box | Active | PT | Three Phase Inverter with Brake | 1200 V | 60 A | 195 W | 2.1V @ 15V, 35A | 2.1 mA | - | Three Phase Bridge Rectifier | Yes | -40°C ~ 125°C (TJ) | Chassis Mount | E2 |
|
FP25R12KT3BPSA1LOW POWER ECONO |
9 |
|
- |
EconoPIM™ 2 | Module | Tray | Active | - | Three Phase Inverter | 1200 V | 40 A | 105 W | 2.15V @ 15V, 25A | 5 mA | 1.8 nF @ 25 V | Three Phase Bridge Rectifier | Yes | -40°C ~ 125°C (TJ) | Chassis Mount | AG-ECONO2-8 |
|
FP75R12KT4B15BOSA1IGBT MOD 1200V 75A 385W |
7 |
|
- |
EconoPIM™ 3 | Module | Bulk | Active | Trench Field Stop | Three Phase Inverter | 1200 V | 75 A | 385 W | 2.15V @ 15V, 75A | 1 mA | 4.3 nF @ 25 V | Standard | Yes | -40°C ~ 150°C | Chassis Mount | Module |
|

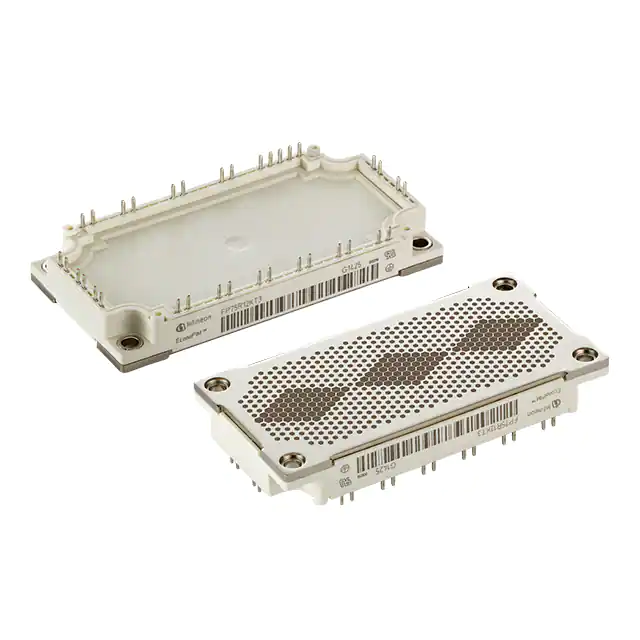

FP75R12KT3BOSA1IGBT MOD 1200V 105A 355W |
2 |
|
- |
EconoPIM™ 3 | Module | Tray | Active | Trench Field Stop | Three Phase Inverter | 1200 V | 105 A | 355 W | 2.15V @ 15V, 75A | 1 mA | 5.3 nF @ 25 V | Standard | Yes | -40°C ~ 125°C | Chassis Mount | Module |
|
FS75R12N2T7B15BPSA2LOW POWER ECONO |
12 |
|
- |
EconoPACK™ 2 | Module | Tray | Active | Trench Field Stop | Full Bridge Inverter | 1200 V | 75 A | - | 1.8V @ 15V, 75A | 14 µA | 15.1 nF @ 25 V | Standard | Yes | -40°C ~ 175°C (TJ) | Chassis Mount | AG-ECONO2B |
|
FF400R07KE4HOSA1IGBT MODULE 650V 1250W |
10 |
|
- |
C | Module | Tray | Active | Trench Field Stop | 2 Independent | 650 V | - | 1250 W | 1.95V @ 15V, 400A | 5 mA | 26 nF @ 25 V | Standard | No | -40°C ~ 150°C | Chassis Mount | Module |
|
F3L200R12W2H3B11BPSA1IGBT MOD 1200V 100A 600W |
17 |
|
- |
EasyPACK™ | Module | Tray | Active | - | Three Phase Inverter | 1200 V | 100 A | 600 W | 1.75V @ 15V, 100A | 1 mA | 11.5 nF @ 25 V | Standard | Yes | -40°C ~ 150°C | Chassis Mount | Module |
|
|
FS75R12KT4B15BPSA1LOW POWER ECONO AG-ECONO2B-411 |
14 |
|
- |
EconoPACK™ 2 | Module | Tray | Active | Trench Field Stop | Three Phase Inverter | 1200 V | 75 A | - | 2.15V @ 15V, 75A | 1 mA | 4.3 nF @ 25 V | Standard | Yes | -40°C ~ 150°C (TJ) | Chassis Mount | AG-ECONO2B |
|
FF300R12ME7B11BPSA1MEDIUM POWER ECONO, AG-ECONOD-74 |
10 |
|
- |
EconoDUAL™ 3 | Module | Tray | Active | Trench Field Stop | 2 Independent | 1200 V | 300 A | - | 1.75V @ 15V, 300A | 20 µA | 46 nF @ 25 V | Standard | Yes | -40°C ~ 175°C (TJ) | Chassis Mount | AG-ECONOD |
|
MIXA300PF1200TSFIGBT MOD 1200V 465A 1500W |
3 |
|
- |
- | Module | Box | Active | PT | Half Bridge | 1200 V | 465 A | 1500 W | 2.1V @ 15V, 300A | 300 µA | - | Standard | Yes | -40°C ~ 150°C (TJ) | Chassis Mount | Module |
|
FS3L100R07W3S5B11BPSA1LOW POWER EASY AG-EASY3B-1 |
5 |
|
- |
EasyPACK™, TRENCHSTOP™ | Module | Tray | Active | Trench Field Stop | Three Level Inverter | 650 V | 70 A | - | 1.38V @ 15V, 50A | 7 µA | 7.1 nF @ 25 V | Standard | Yes | -40°C ~ 150°C (TJ) | Chassis Mount | AG-EASY3B |
|
FZ400R12KE3HOSA1IGBT MOD 1200V 650A 2250W |
2 |
|
- |
- | Module | Tray | Active | - | Single | 1200 V | 650 A | 2250 W | 2.15V @ 15V, 400A | 5 mA | 28 nF @ 25 V | Standard | No | -40°C ~ 125°C | Chassis Mount | Module |
|
|
FD300R12KE3HOSA1IGBT MOD 1200V 480A 1470W |
10 |
|
- |
- | Module | Tray | Active | - | Single | 1200 V | 480 A | 1470 W | 2.15V @ 15V, 300A | 5 mA | 21 nF @ 25 V | Standard | No | -40°C ~ 125°C | Chassis Mount | Module |
|
FS75R12KE3BPSA1LOW POWER ECONO AG-ECONO2B-311 |
17 |
|
- |
- | Module | Tray | Active | - | Full Bridge Inverter | 1200 V | 105 A | 350 W | 2.15V @ 15V, 75A | 5 mA | 5.3 nF @ 25 V | Standard | Yes | -40°C ~ 150°C (TJ) | Chassis Mount | AG-ECONO2B |
|
FP100R12KT4BOSA1IGBT MOD 1200V 100A 515W |
12 |
|
- |
EconoPIM™ 3 | Module | Tray | Active | Trench Field Stop | Three Phase Inverter | 1200 V | 100 A | 515 W | 2.2V @ 15V, 100A | 1 mA | 6.3 nF @ 25 V | Standard | Yes | -40°C ~ 150°C | Chassis Mount | Module |
|
|
FS200R12N3T7BPSA1LOW POWER ECONO AG-ECONO3-4 |
20 |
|
- |
EasyPACK™3, TRENCHSTOP™ | Module | Tray | Active | Trench Field Stop | Three Phase Inverter | 1200 V | 200 A | - | 1.8V @ 15V, 200A | 16 µA | 40.3 nF @ 25 V | Standard | Yes | -40°C ~ 175°C (TJ) | Chassis Mount | AG-ECONO3B |
|
|
FS100R06KE3BOSA1IGBT MOD 600V 100A 335W |
16 |
|
- |
EconoPACK™ 3 | Module | Tray | Not For New Designs | Trench Field Stop | Three Phase Inverter | 600 V | 100 A | 335 W | 1.9V @ 15V, 100A | 1 mA | 6.2 nF @ 25 V | Standard | Yes | -40°C ~ 150°C | Chassis Mount | Module |
|
FS200R07PE4BOSA1IGBT MOD 650V 200A 600W |
9 |
|
- |
- | Module | Tray | Active | Trench Field Stop | Three Phase Inverter | 650 V | 200 A | 600 W | 1.95V @ 15V, 200A | 1 mA | 12 nF @ 25 V | Standard | Yes | -40°C ~ 150°C (TJ) | Chassis Mount | Module |
|
FP150R12N3T7BPSA1LOW POWER ECONO AG-ECONO3-3 |
9 |
|
- |
EconoPIM™ 3 | Module | Tray | Active | Trench Field Stop | Three Phase Inverter | 1200 V | 150 A | - | 1.55V @ 15V, 150A | 12 µA | 30.1 nF @ 25 V | Three Phase Bridge Rectifier | Yes | -40°C ~ 175°C (TJ) | Chassis Mount | AG-ECONO3 |
|
|
FF600R12KE4EBOSA1IGBT MODULE 1200V 600A |
10 |
|
- |
C | Module | Tray | Active | Trench Field Stop | Half Bridge | 1200 V | 600 A | - | 2.2V @ 15V, 600A | 5 mA | 38 nF @ 25 V | Standard | No | -40°C ~ 150°C | Chassis Mount | Module |
IGBT Modules Electronic Components
Explore IGBT Modules electronic components, related subcategories, product specifications, datasheets and sourcing options. We support original component procurement, BOM sourcing and RFQ services for engineers, distributors and global buyers.
