IGBT Modules
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | IGBT Type | Configuration | Voltage - Collector Emitter Breakdown (Max) | Current - Collector (Ic) (Max) | Power - Max | Vce(on) (Max) @ Vge, Ic | Current - Collector Cutoff (Max) | Input Capacitance (Cies) @ Vce | Input | NTC Thermistor | Operating Temperature | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
FZ2400R12HE4PB9HPSA1IGBT MODULE 1200V 2400A |
3,229 |
|
- |
IHM-B | Module | Tray | Active | Trench Field Stop | Full Bridge | 1200 V | 2400 A | - | 2.1V @ 15V, 2400A | 5 mA | 150 nF @ 25 V | Standard | No | -40°C ~ 150°C | Chassis Mount | Module |
|
FF1400R17IP4B60BOSA1PP IHM I |
7,267 |
|
- |
- | Module | Tray | Active | Trench Field Stop | Half Bridge Inverter | 1700 V | 1400 A | 9550 W | 2.2V @ 15V, 1.4kA | 5 mA | 110000 pF @ 25 V | Standard | Yes | -40°C ~ 150°C (TJ) | Chassis Mount | - |
|
|
FZ2400R17HE4PB9HPSA1IGBT MODULE 1700V 2400A |
8,649 |
|
- |
IHM-B | Module | Tray | Active | Trench Field Stop | Single Switch | 1700 V | 2400 A | - | 2.3V @ 15V, 2400A | 5 mA | 195 nF @ 25 V | Standard | No | -40°C ~ 150°C | Chassis Mount | Module |
|
FF2400RB12IP7BPSA1PP IHM I XHP 1 7KV AG-PRIME3+-7 |
1 |
|
- |
PrimePACK™3 | - | Tray | Active | - | 2 Independent | 750 V | 2400 A | - | - | - | - | Standard | No | - | - | - |
|
FF1200R17KE3NOSA1IGBT MODULE VCES 1700V 1200A |
3,445 |
|
- |
- | Module | Tray | Not For New Designs | - | Single Chopper | 1700 V | - | 595000 W | 2.45V @ 15V, 1200A | 5 mA | 110 nF @ 25 V | Standard | No | -40°C ~ 125°C | Chassis Mount | Module |
|
|
CM1400DUC-24NFIGBT MOD 1200V 1400A 8900W |
5,276 |
|
- |
IGBTMOD™ | Module | Bulk | Discontinued at Digi-Key | - | Half Bridge | 1200 V | 1400 A | 8900 W | 2.5V @ 15V, 1400A | 1 mA | 220 nF @ 10 V | Standard | No | -40°C ~ 150°C (TJ) | - | Module |
|
FZ3600R12HP4PHPSA1IGBT MOD 1200V 4930A AGIHMB190-2 |
6,049 |
|
- |
IHM-B | Module | Tray | Active | Trench | Single Switch | 1200 V | 4930 A | 19000 W | 2.05V @ 15V, 3.6kA | 5 mA | - | Standard | No | -40°C ~ 150°C | Chassis Mount | AG-IHMB190-2 |
|
|
FD800R17KE3B2NOSA1IGBT MODULE 1700V 800A |
4,417 |
|
- |
IHM-B | Module | Bulk | Not For New Designs | - | Single Chopper | 1700 V | 1200 A | 5200 W | 2.45V @ 15V, 800A | 5 mA | 72 nF @ 25 V | Standard | No | -40°C ~ 125°C (TJ) | Chassis Mount | Module |
|
FF200R33KF2CNOSA1IGBT MOD 3300V 330A 2200W |
9,939 |
|
- |
- | Module | Bulk | Obsolete | - | 2 Independent | 3300 V | 330 A | 2200 W | 4.25V @ 15V, 200A | 5 mA | 25 nF @ 25 V | Standard | No | -40°C ~ 125°C | Chassis Mount | Module |
|
FF450R33T3E3BPSA1IGBT MOD 3300V 450A AGXHP100-3 |
2,444 |
|
- |
XHP™3 | Module | Tray | Discontinued at Digi-Key | Trench Field Stop | Half Bridge | 3300 V | 450 A | 1000000 W | 2.75V @ 15V, 450A | 5 mA | - | Standard | No | -40°C ~ 150°C | Chassis Mount | AG-XHP100-3 |
|
|
FF450R33T3E3P2BPSA1IGBT MOD 3300V 450A AGXHP100-3 |
4,405 |
|
- |
XHP™3 | Module | Tray | Active | Trench Field Stop | Half Bridge | 3300 V | 450 A | 1000000 W | 2.75V @ 15V, 450A | 5 mA | - | Standard | No | -40°C ~ 150°C | Chassis Mount | AG-XHP100-3 |
|
|
FF450R33T3E3P3BPMA1IGBT MOD 3300V 450A AGXHP100-3 |
4,690 |
|
- |
XHP™3 | Module | Tray | Active | Trench Field Stop | Half Bridge | 3300 V | 450 A | 1000000 W | 2.75V @ 15V, 450A | 5 mA | - | Standard | No | -40°C ~ 150°C | Chassis Mount | AG-XHP100-3 |
|
|
FZ3600R17HE4HOSA2IGBT MODULE 1700V 7200A |
8,239 |
|
- |
IHM-B | Module | Tray | Discontinued at Digi-Key | - | Single Switch | 1700 V | 7200 A | 21000 W | 2.3V @ 15V, 3600A | 5 mA | 295 nF @ 25 V | Standard | No | -40°C ~ 150°C | Chassis Mount | Module |
|
|
FF450R33T3E3P4BPMA1IGBT MOD 3300V 450A AGXHP100-3 |
9,122 |
|
- |
XHP™3 | Module | Tray | Active | Trench Field Stop | Half Bridge | 3300 V | 450 A | 1000000 W | 2.75V @ 15V, 450A | 5 mA | - | Standard | No | -40°C ~ 150°C | Chassis Mount | AG-XHP100-3 |
|
|
MIO1200-25E10IGBT MODULE 2500V 1200A E10 |
2,896 |
|
- |
- | E10 | Box | Obsolete | NPT | Single Switch | 2500 V | 1200 A | - | 2.5V @ 15V, 1200A | 120 mA | 186 nF @ 25 V | Standard | No | -40°C ~ 125°C (TJ) | Chassis Mount | E10 |
|
|
FF450R33T3E3P6BPMA1IGBT MOD 3300V 450A AGXHP100-3 |
9,116 |
|
- |
XHP™3 | Module | Tray | Active | Trench Field Stop | Half Bridge | 3300 V | 450 A | 1000000 W | 2.75V @ 15V, 450A | 5 mA | - | Standard | No | -40°C ~ 150°C | Chassis Mount | AG-XHP100-3 |
|

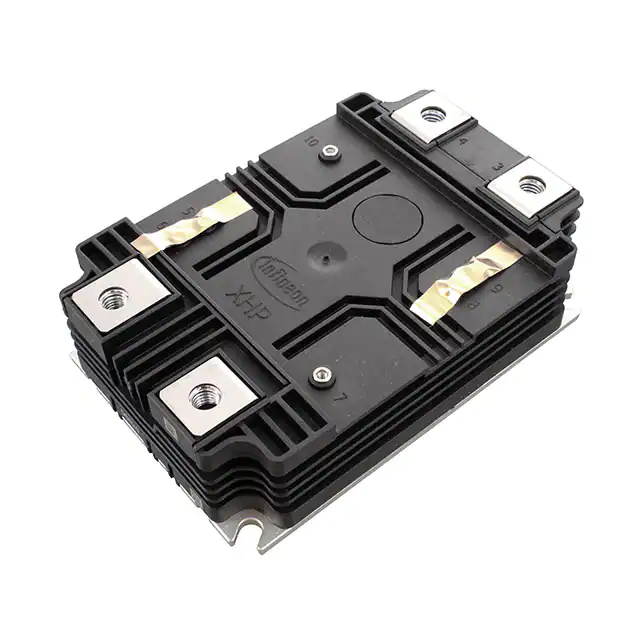

FF450R33T3E3B5BPSA1IGBT MOD 3300V 450A AGXHP100-6 |
1 |
|
- |
XHP™3 | Module | Tray | Discontinued at Digi-Key | Trench Field Stop | Half Bridge Inverter | 3300 V | 450 A | 1000000 W | 2.75V @ 15V, 450A | 5 mA | 84 nF @ 25 V | Standard | No | -40°C ~ 150°C | Chassis Mount | AG-XHP100-6 |
|
|
FZ1600R17KF6CB2S1NOSA1IGBT MODULE |
1 |
|
- |
- | Module | Bulk | Active | Trench Field Stop | Single Switch | 1700 V | 1600 A | 10500 W | 2.25V @ 15V, 1.6kA | 5 mA | 130 nF @ 25 V | Standard | No | -40°C ~ 150°C (TJ) | Chassis Mount | AG-IHMB130-2-1 |
|
|
FF450R33T3E3B5P2BPSA1IHV IHM T XHP 3 3-6 5K |
2,889 |
|
- |
XHP™3 | Module | Tray | Active | Trench Field Stop | 2 Independent | 3300 V | 450 A | 1000000 W | 2.75V @ 15V, 450A | 5 mA | 84 nF @ 25 V | Standard | No | -40°C ~ 150°C (TJ) | Chassis Mount | AG-XHP100-6 |
|
|
FF450R33T3E3B5P3BPMA1IHV IHM T XHP 3 3-6 5K AG-XHP3K3 |
9,099 |
|
- |
XHP™3 | Module | Tray | Active | Trench Field Stop | 2 Independent | 3300 V | 450 A | 1000 W | 2.75V @ 15V, 450A | 5 mA | 84 nF @ 25 V | Standard | No | -40°C ~ 150°C (TJ) | Chassis Mount | AG-XHP3K33 |
IGBT Modules Electronic Components
Explore IGBT Modules electronic components, related subcategories, product specifications, datasheets and sourcing options. We support original component procurement, BOM sourcing and RFQ services for engineers, distributors and global buyers.
