Fuses
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Mounting Type | Fuse Type | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Response Time | Breaking Capacity @ Rated Voltage | Melting I²t | Approval Agency | Operating Temperature | Color | Size / Dimension |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SF-2410SP100W-2FUSE BRD MT 1A 250VAC/125DC 2410 |
3,659 |
|
Datasheet |
SinglFuse™ SF-2410SPxxxW | Tape & Reel (TR) | Active | Surface Mount | Board Mount (Cartridge Style Excluded) | 1 A | 250 V | 125 V | Slow Blow | 100A AC, 50A DC | 0.62 | UL | -55°C ~ 125°C | - | 0.240" L x 0.098" W x 0.085" H (6.10mm x 2.49mm x 2.16mm) | |
|
3AG 2-RFUSE GLASS 2A 250VAC 3AB 3AG |
3,191 |
|
Datasheet |
3AG | Bulk | Active | Requires Holder | Cartridge, Glass | 2 A | 250 V | - | Fast Blow | 200A | 7.2 | CE, CSA, cULus, PSE | -55°C ~ 125°C | - | 0.250" Dia x 1.252" L (6.35mm x 31.80mm) | |
|
|
3AG 10-RFUSE GLASS 10A 250VAC 3AB 3AG |
2,619 |
|
Datasheet |
3AG | Bulk | Active | Requires Holder | Cartridge, Glass | 10 A | 250 V | - | Fast Blow | 200A | 316.0 | CE, CSA, cURus, PSE | -55°C ~ 125°C | - | 0.250" Dia x 1.252" L (6.35mm x 31.80mm) | |
|
0001.2515.PTFUSE CERM 12.5A 250VAC 125VDC |
2,612 |
|
Datasheet |
SPT 5x20 | Bulk | Active | Through Hole | Cartridge, Ceramic | 12.5 A | 250 V | 125 V | Slow Blow | 500A AC, 1.5kA DC | 563.0 | cURus | -55°C ~ 125°C | - | 0.213" Dia x 0.886" L (5.40mm x 22.50mm) | |
|
|
0001.2504.PTFUSE CERM 1A 250VAC 300VDC 5X20 |
1,499 |
|
Datasheet |
SPT 5x20 | Bulk | Active | Through Hole | Cartridge, Ceramic | 1 A | 250 V | 300 V | Slow Blow | 1.5kA | 1.1 | cURus | -55°C ~ 125°C | - | 0.213" Dia x 0.886" L (5.40mm x 22.50mm) | |
|
|
0001.2512.PTFUSE CERAMIC 6.3A 250VAC 150VDC |
1,025 |
|
Datasheet |
SPT 5x20 | Bulk | Active | Through Hole | Cartridge, Ceramic | 6.3 A | 250 V | 150 V | Slow Blow | 1.5kA | 171.0 | cURus | -55°C ~ 125°C | - | 0.213" Dia x 0.886" L (5.40mm x 22.50mm) | |
|
BK/AGC-7-RFUSE GLASS 7A 250VAC 3AB 3AG |
3,126 |
|
Datasheet |
AGC | Bulk | Active | Requires Holder | Cartridge, Glass | 7 A | 250 V | - | Fast Blow | 200A | 195.02 | CSA, UL | -55°C ~ 125°C | - | 0.250" Dia x 1.250" L (6.35mm x 31.75mm) | |
|
|
BK/AGC-6-RFUSE GLASS 6A 250VAC 3AB 3AG |
3,036 |
|
Datasheet |
AGC | Bulk | Active | Requires Holder | Cartridge, Glass | 6 A | 250 V | - | Fast Blow | 200A | 144.36 | CSA, UL | -55°C ~ 125°C | - | 0.250" Dia x 1.250" L (6.35mm x 31.75mm) | |
|
8020.5019FUSE CERAMIC 6.3A 500VAC |
1,707 |
|
Datasheet |
SHT 6.3X32 | Bulk | Active | Requires Holder | Cartridge, Ceramic | 6.3 A | 500 V | - | Slow Blow | 1.5kA | 225.0 | cURus | -40°C ~ 85°C | - | 0.250" Dia x 1.252" L (6.35mm x 31.80mm) | |
|
|
8020.5016FUSE CERAMIC 3.15A 500VAC |
1,679 |
|
Datasheet |
SHT 6.3X32 | Bulk | Active | Requires Holder | Cartridge, Ceramic | 3.15 A | 500 V | - | Slow Blow | 1.5kA | 39.0 | cURus | -40°C ~ 85°C | - | 0.250" Dia x 1.252" L (6.35mm x 31.80mm) | |
|
|
8020.5021FUSE CERAMIC 10A 500VAC |
1,101 |
|
Datasheet |
SHT 6.3X32 | Bulk | Active | Requires Holder | Cartridge, Ceramic | 10 A | 500 V | - | Slow Blow | 1.5kA | 700.0 | cURus | -40°C ~ 85°C | - | 0.250" Dia x 1.252" L (6.35mm x 31.80mm) | |
|
CB61F3A-TR2FUSE BRD MNT 3A 125VAC/VDC 2SMD |
1,044 |
|
Datasheet |
CB61F | Tape & Reel (TR) | Active | Surface Mount | Board Mount (Cartridge Style Excluded) | 3 A | 125 V | 125 V | Fast Blow | 100A AC, 300A DC | 2.08 | CQC, cULus | - | - | 0.240" L x 0.101" W x 0.101" H (6.10mm x 2.57mm x 2.57mm) | |
|

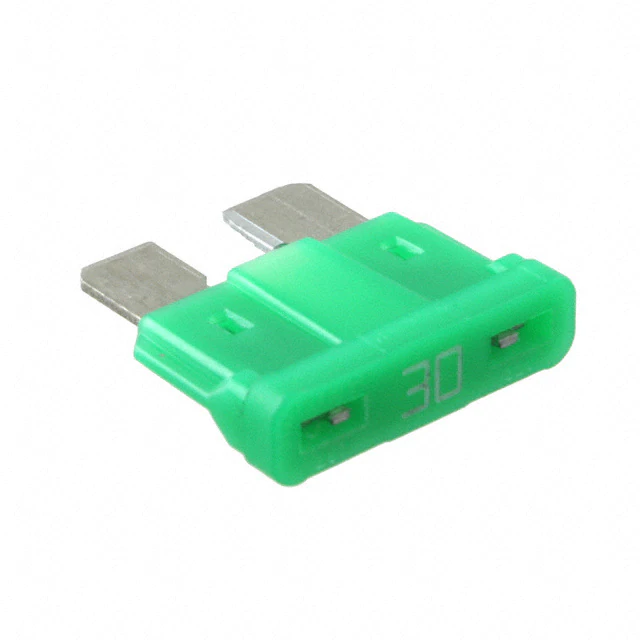

0ATO030.VFUSE AUTO 30A 32VAC/VDC |
18,922 |
|
Datasheet |
ATO® | Bulk | Active | Requires Holder | Automotive | 30 A | 32 V | 32 V | Fast Blow | - | - | CSA, UL | - | Green | 0.750" L x 0.200" W x 0.480" H (19.05mm x 5.08mm x 12.19mm) | |
|
|
BK/AGC-1/2-RFUSE GLASS 500MA 250VAC 3AB 3AG |
2,399 |
|
Datasheet |
AGC | Bulk | Active | Requires Holder | Cartridge, Glass | 500 mA | 250 V | - | Fast Blow | 35A | 0.385 | CSA, UL | -55°C ~ 125°C | - | 0.250" Dia x 1.250" L (6.35mm x 31.75mm) | |
|
0001.1016.PTFUSE CERAMIC 16A 250VAC 5X20MM |
1,812 |
|
Datasheet |
SP 5x20 | Bulk | Active | Through Hole | Cartridge, Ceramic | 16 A | 250 V | - | Fast Blow | 1kA | 461.0 | cURus | -55°C ~ 125°C | - | 0.213" Dia x 0.886" L (5.40mm x 22.50mm) | |
|
|
0001.1014.PTFUSE CERAMIC 10A 250VAC 5X20MM |
1,496 |
|
Datasheet |
SP 5x20 | Bulk | Active | Through Hole | Cartridge, Ceramic | 10 A | 250 V | - | Fast Blow | 1.5kA | 141.0 | cURus | -55°C ~ 125°C | - | 0.213" Dia x 0.886" L (5.40mm x 22.50mm) | |
|
|
0001.1015.PTFUSE CERAMIC 12.5A 250VAC 5X20MM |
1,457 |
|
Datasheet |
SP 5x20 | Bulk | Active | Through Hole | Cartridge, Ceramic | 12.5 A | 250 V | - | Fast Blow | 1kA | 203.0 | cURus | -55°C ~ 125°C | - | 0.213" Dia x 0.886" L (5.40mm x 22.50mm) | |
|
37012500410FUSE BOARD MNT 2.5A 250VAC RAD |
1,157 |
|
Datasheet |
TR5® 370 | Bulk | Active | Through Hole | Board Mount (Cartridge Style Excluded) | 2.5 A | 250 V | - | Fast Blow | 50A | 1.8 | CCC, cURus, PSE, SEMKO, VDE | -40°C ~ 85°C | - | 0.335" Dia x 0.315" H (8.50mm x 8.00mm) | |
|
SF-1206FP100-2FUSE BOARD MOUNT 1A 63VDC 1206 |
110,127 |
|
Datasheet |
SinglFuse™ SF-1206FP | Tape & Reel (TR) | Active | Surface Mount | Board Mount (Cartridge Style Excluded) | 1 A | - | 63 V | Fast Blow | 50A | 0.062 | UL | -20°C ~ 105°C | - | 0.122" L x 0.061" W x 0.024" H (3.10mm x 1.55mm x 0.60mm) | |
|
0466.200NRFUSE BRD MT 200MA 125VAC/VDC |
21,280 |
|
Datasheet |
SlimLine™ 466 | Tape & Reel (TR) | Active | Surface Mount | Board Mount (Cartridge Style Excluded) | 200 mA | 125 V | 125 V | Fast Blow | 50A | 5.5E-4 | CSA, UL | -55°C ~ 90°C | - | 0.125" L x 0.060" W x 0.023" H (3.18mm x 1.52mm x 0.58mm) |
Fuses Electronic Components
Explore Fuses electronic components, related subcategories, product specifications, datasheets and sourcing options. We support original component procurement, BOM sourcing and RFQ services for engineers, distributors and global buyers.
