Fuses
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Mounting Type | Fuse Type | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Response Time | Breaking Capacity @ Rated Voltage | Melting I²t | Approval Agency | Operating Temperature | Color | Size / Dimension |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
TR/0603FA750-RFUSE BRD MT 750MA 32VAC 32VDC |
6,976 |
|
Datasheet |
CHIP™ 0603FA | Tape & Reel (TR) | Active | Surface Mount | Board Mount (Cartridge Style Excluded) | 750 mA | 32 V | 32 V | Fast Blow | 50A | 0.009 | CSA, UL | -55°C ~ 125°C | - | 0.063" L x 0.032" W x 0.019" H (1.60mm x 0.81mm x 0.48mm) | |
|
02153.15MXESPPFUSE CERAMIC 3.15A 250VAC 5X20MM |
2,807 |
|
Datasheet |
215SP | Bulk | Active | Through Hole | Cartridge, Ceramic | 3.15 A | 250 V | - | Slow Blow | 1.5kA | 43.255 | CE, CQC, CSA, KC, PSE, UR, VDE | -55°C ~ 125°C | - | 0.205" Dia x 0.787" L (5.20mm x 20.00mm) | |
|
|
0215002.MXESPPFUSE CERAMIC 2A 250VAC 5X20MM |
1,267 |
|
Datasheet |
215SP | Bulk | Active | Through Hole | Cartridge, Ceramic | 2 A | 250 V | - | Slow Blow | 1.5kA | 11.68 | CE, CQC, CSA, KC, PSE, UR, VDE | -55°C ~ 125°C | - | 0.205" Dia x 0.787" L (5.20mm x 20.00mm) | |
|
|
TR/0603FA500-RFUSE BRD MT 500MA 32VAC 50VDC |
27,172 |
|
Datasheet |
CHIP™ 0603FA | Tape & Reel (TR) | Active | Surface Mount | Board Mount (Cartridge Style Excluded) | 500 mA | 32 V | 50 V | Fast Blow | 50A AC, 35A DC | 0.00193 | CSA, UL | -55°C ~ 125°C | - | 0.063" L x 0.032" W x 0.019" H (1.60mm x 0.81mm x 0.48mm) | |
|
SF-1206S600M-2FUSE BOARD MOUNT 6A 32VDC 1206 |
16,708 |
|
Datasheet |
SinglFuse™ SF-1206SxxxM | Tape & Reel (TR) | Active | Surface Mount | Board Mount (Cartridge Style Excluded) | 6 A | - | 32 V | Slow Blow | 45A | 1.0 | - | -55°C ~ 125°C | - | 0.126" L x 0.063" W x 0.033" H (3.20mm x 1.60mm x 0.85mm) | |
|
0407001.WRAFUSE BRD MNT 1A 63VAC 63VDC 1206 |
7,527 |
|
Datasheet |
407A | Tape & Reel (TR) | Active | Surface Mount | Board Mount (Cartridge Style Excluded) | 1 A | 63 V | 63 V | Slow Blow | 50A | 0.142 | cURus | -55°C ~ 150°C | - | 0.126" L x 0.064" W (3.20mm x 1.63mm) | |
|
|
0407002.WRAFUSE BRD MNT 2A 63VAC 63VDC 1206 |
5,171 |
|
Datasheet |
407A | Tape & Reel (TR) | Active | Surface Mount | Board Mount (Cartridge Style Excluded) | 2 A | 63 V | 63 V | Slow Blow | 50A | 0.87 | cURus | -55°C ~ 150°C | - | 0.126" L x 0.064" W (3.20mm x 1.63mm) | |
|
|
0407003.WRAFUSE BRD MNT 3A 32VAC 32VDC 1206 |
4,911 |
|
Datasheet |
407A | Tape & Reel (TR) | Active | Surface Mount | Board Mount (Cartridge Style Excluded) | 3 A | 32 V | 32 V | Slow Blow | 50A | 1.3 | cURus | -55°C ~ 150°C | - | 0.126" L x 0.064" W (3.20mm x 1.63mm) | |
|
|
0407006.WRAFUSE BRD MNT 6A 24VAC 24VDC 1206 |
4,083 |
|
Datasheet |
407A | Tape & Reel (TR) | Active | Surface Mount | Board Mount (Cartridge Style Excluded) | 6 A | 24 V | 24 V | Slow Blow | 60A | 15.56 | cURus | -55°C ~ 150°C | - | 0.126" L x 0.064" W (3.20mm x 1.63mm) | |
|
|
0407005.WRAFUSE BRD MNT 5A 32VAC 32VDC 1206 |
3,879 |
|
Datasheet |
407A | Tape & Reel (TR) | Active | Surface Mount | Board Mount (Cartridge Style Excluded) | 5 A | 32 V | 32 V | Slow Blow | 50A | 7.8 | cURus | -55°C ~ 150°C | - | 0.126" L x 0.064" W (3.20mm x 1.63mm) | |
|
0407004.WRFUSE BOARD MOUNT 4A 32VDC 1206 |
3,340 |
|
Datasheet |
407 | Tape & Reel (TR) | Active | Surface Mount | Board Mount (Cartridge Style Excluded) | 4 A | - | 32 V | Slow Blow | 50A | 4.18 | cURus | -55°C ~ 150°C | - | 0.126" L x 0.064" W x 0.033" H (3.20mm x 1.63mm x 0.84mm) | |
|
|
0407003.WRFUSE BOARD MOUNT 3A 32VDC 1206 |
3,157 |
|
Datasheet |
407 | Tape & Reel (TR) | Active | Surface Mount | Board Mount (Cartridge Style Excluded) | 3 A | - | 32 V | Slow Blow | 50A | 1.3 | cURus | -55°C ~ 150°C | - | 0.126" L x 0.064" W x 0.033" H (3.20mm x 1.63mm x 0.84mm) | |
|
SS-5H-2A-APHFUSE BOARD MNT 2A 300VAC RADIAL |
2,986 |
|
Datasheet |
SS-5H | Cut Tape (CT) | Active | Through Hole | Board Mount (Cartridge Style Excluded) | 2 A | 300 V | - | Slow Blow | 100A | 29.8 | CQC, cURus, KC, PSE, TUV, VDE | -40°C ~ 125°C | - | 0.335" L x 0.169" W x 0.329" H (8.50mm x 4.30mm x 8.35mm) | |
|
|
0407005.WRFUSE BOARD MOUNT 5A 32VDC 1206 |
2,685 |
|
Datasheet |
407 | Tape & Reel (TR) | Active | Surface Mount | Board Mount (Cartridge Style Excluded) | 5 A | - | 32 V | Slow Blow | 50A | 7.8 | cURus | -55°C ~ 150°C | - | 0.126" L x 0.064" W x 0.033" H (3.20mm x 1.63mm x 0.84mm) | |
|
0680H9100-05FUSE BRD MNT 10A 125VAC/VDC 2SMD |
2,381 |
|
Datasheet |
0680H | Tape & Reel (TR) | Active | Surface Mount | Board Mount (Cartridge Style Excluded) | 10 A | 125 V | 125 V | Slow Blow | 50A AC, 500A DC | 98.0 | cURus | -55°C ~ 125°C | - | 0.240" L x 0.100" W x 0.100" H (6.10mm x 2.54mm x 2.54mm) | |
|

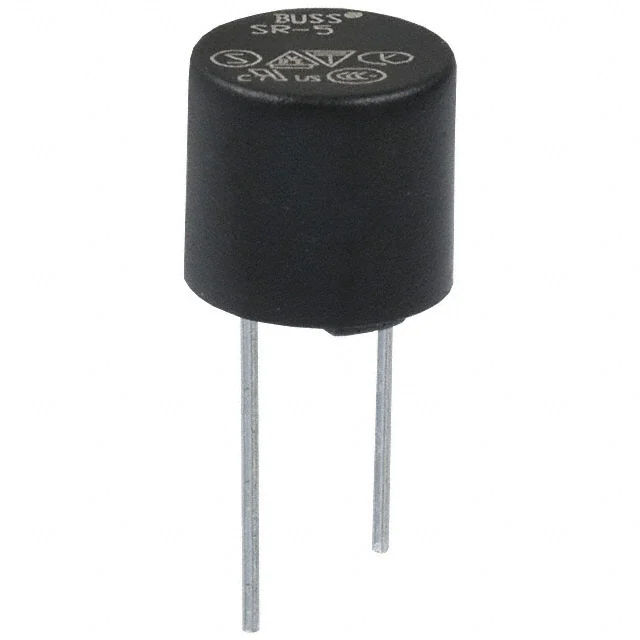

SR-5-2A-APFUSE BOARD MNT 2A 250VAC RADIAL |
2,078 |
|
Datasheet |
SR-5 | Cut Tape (CT) | Active | Through Hole | Board Mount (Cartridge Style Excluded) | 2 A | 250 V | - | Slow Blow | 35A | 30.0 | CCC, cULus, KC-MARK, PSE, SEMKO, VDE | -40°C ~ 85°C | - | 0.335" Dia x 0.319" H (8.50mm x 8.10mm) | |
|
|
0680H9150-05FUSE BRD MNT 15A 125VAC/VDC 2SMD |
1,291 |
|
Datasheet |
0680H | Tape & Reel (TR) | Active | Surface Mount | Board Mount (Cartridge Style Excluded) | 15 A | 125 V | 125 V | Slow Blow | 50A AC, 500A DC | 207.0 | cURus | -55°C ~ 125°C | - | 0.240" L x 0.100" W x 0.100" H (6.10mm x 2.54mm x 2.54mm) | |
|
022501.5MXPFUSE GLASS 1.5A 250VAC 125VDC |
1,047 |
|
Datasheet |
225 | Bulk | Active | Requires Holder | Cartridge, Glass | 1.5 A | 250 V | 125 V | Fast Blow | 35A AC, 10kA DC | 0.8 | CE, CSA, PSE, UL | -55°C ~ 125°C | - | 0.177" Dia x 0.570" L (4.50mm x 14.48mm) | |
|
0251.750MAT1LFUSE BRD MT 750MA 125VAC/VDC AXL |
33,568 |
|
Datasheet |
PICO® II 251 | Cut Tape (CT) | Active | Through Hole | Board Mount (Cartridge Style Excluded) | 750 mA | 125 V | 125 V | Fast Blow | 50A AC, 300A DC | 0.153 | CSA, cURus, TUV | -55°C ~ 125°C | - | 0.110" Dia x 0.280" L (2.80mm x 7.11mm) | |
|
SF-0603S100M-2FUSE BOARD MOUNT 1A 63VDC 0603 |
28,141 |
|
Datasheet |
SinglFuse™ SF-0603SxxxM | Tape & Reel (TR) | Active | Surface Mount | Board Mount (Cartridge Style Excluded) | 1 A | - | 63 V | Slow Blow | 35A | 0.013 | - | -55°C ~ 125°C | - | 0.063" L x 0.031" W x 0.037" H (1.60mm x 0.80mm x 0.95mm) |
