Fuses
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Mounting Type | Fuse Type | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Response Time | Breaking Capacity @ Rated Voltage | Melting I²t | Approval Agency | Operating Temperature | Color | Size / Dimension |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
37213150411FUSE BRD MNT 3.15A 250VAC RADIAL |
3,105 |
|
Datasheet |
TR5® 372 | Bulk | Active | Through Hole | Board Mount (Cartridge Style Excluded) | 3.15 A | 250 V | - | Slow Blow | 35A | 77.3955 | CCC, cURus, PSE, SEMKO, VDE | -40°C ~ 85°C | - | 0.335" Dia x 0.315" H (8.50mm x 8.00mm) | |
|
|
37216300411FUSE BOARD MNT 6.3A 250VAC RAD |
1,052 |
|
Datasheet |
TR5® 372 | Bulk | Active | Through Hole | Board Mount (Cartridge Style Excluded) | 6.3 A | 250 V | - | Slow Blow | 50A | 138.915 | cURus, SEMKO, VDE | -40°C ~ 85°C | - | 0.335" Dia x 0.315" H (8.50mm x 8.00mm) | |
|
|
37215000411FUSE BOARD MNT 5A 250VAC RADIAL |
1,035 |
|
Datasheet |
TR5® 372 | Bulk | Active | Through Hole | Board Mount (Cartridge Style Excluded) | 5 A | 250 V | - | Slow Blow | 50A | 115.0 | CCC, cURus, PSE, SEMKO, VDE | -40°C ~ 85°C | - | 0.335" Dia x 0.315" H (8.50mm x 8.00mm) | |
|
3AG 500-RFUSE GLASS 500MA 250VAC 3AB 3AG |
8,031 |
|
Datasheet |
3AG | Bulk | Active | Requires Holder | Cartridge, Glass | 500 mA | 250 V | - | Fast Blow | 200A | 0.14 | CE, CSA, cURus | -55°C ~ 125°C | - | 0.250" Dia x 1.252" L (6.35mm x 31.80mm) | |
|
SF-1206S200W-2FUSE BOARD MOUNT 2A 65VDC 1206 |
7,218 |
|
Datasheet |
SinglFuse™ SF-1206SxxxW | Tape & Reel (TR) | Active | Surface Mount | Board Mount (Cartridge Style Excluded) | 2 A | - | 65 V | Slow Blow | 50A | 0.88 | UL | -55°C ~ 125°C | - | 0.126" L x 0.063" W x 0.043" H (3.20mm x 1.60mm x 1.10mm) | |
|
SF-1206S800M-2FUSE BOARD MOUNT 8A 32VDC 1206 |
5,179 |
|
Datasheet |
SinglFuse™ SF-1206SxxxM | Tape & Reel (TR) | Active | Surface Mount | Board Mount (Cartridge Style Excluded) | 8 A | - | 32 V | Slow Blow | 45A | 2.3 | - | -55°C ~ 125°C | - | 0.126" L x 0.063" W x 0.033" H (3.20mm x 1.60mm x 0.85mm) | |
|
|
3AG 750-RFUSE GLASS 750MA 250VAC 3AB 3AG |
4,781 |
|
Datasheet |
3AG | Bulk | Active | Requires Holder | Cartridge, Glass | 750 mA | 250 V | - | Fast Blow | 200A | 0.19 | CE, CSA, cULus | -55°C ~ 125°C | - | 0.250" Dia x 1.252" L (6.35mm x 31.80mm) | |
|
SF-0402S200-2FUSE BOARD MOUNT 2A 24VDC 0402 |
4,614 |
|
Datasheet |
SinglFuse™ SF-0402S | Tape & Reel (TR) | Active | Surface Mount | Board Mount (Cartridge Style Excluded) | 2 A | - | 24 V | Slow Blow | 35A | 0.0404 | UL | -40°C ~ 105°C | - | 0.039" L x 0.020" W x 0.014" H (1.00mm x 0.52mm x 0.35mm) | |
|
099707.5WXNFUSE AUTO 7.5A 58VDC BLADE MINI |
3,860 |
|
Datasheet |
MINI® 997 | Bulk | Active | Requires Holder | Automotive | 7.5 A | - | 58 V | Fast Blow | 1kA | 68.0 | - | -40°C ~ 125°C | Brown | 0.429" L x 0.150" W x 0.346" H (10.90mm x 3.80mm x 8.80mm) | |
|
0997004.WXNFUSE AUTOMOTIVE 4A 58VDC BLADE |
3,395 |
|
Datasheet |
MINI® 997 | Bulk | Active | Requires Holder | Automotive | 4 A | - | 58 V | Fast Blow | 1kA | 17.0 | - | -40°C ~ 125°C | Pink | 0.429" L x 0.150" W x 0.346" H (10.90mm x 3.80mm x 8.80mm) | |
|
3SB 1.25-RFUSE GLASS 1.25A 250VAC 3AB 3AG |
3,203 |
|
Datasheet |
3SB | Bulk | Active | Requires Holder | Cartridge, Glass | 1.25 A | 250 V | - | Slow Blow | 200A | 25.4 | CE, CSA, cULus, PSE | -55°C ~ 125°C | - | 0.250" Dia x 1.252" L (6.35mm x 31.80mm) | |
|
0997010.WXNFUSE AUTO 10A 58VDC BLADE MINI |
2,959 |
|
Datasheet |
MINI® 997 | Bulk | Active | Requires Holder | Automotive | 10 A | - | 58 V | Fast Blow | 1kA | 93.0 | - | -40°C ~ 125°C | Red | 0.429" L x 0.150" W x 0.346" H (10.90mm x 3.80mm x 8.80mm) | |
|
0997015.WXNFUSE AUTO 15A 58VDC BLADE MINI |
2,914 |
|
Datasheet |
MINI® 997 | Bulk | Active | Requires Holder | Automotive | 15 A | - | 58 V | Fast Blow | 1kA | 270.0 | - | -40°C ~ 125°C | Blue | 0.429" L x 0.150" W x 0.346" H (10.90mm x 3.80mm x 8.80mm) | |
|

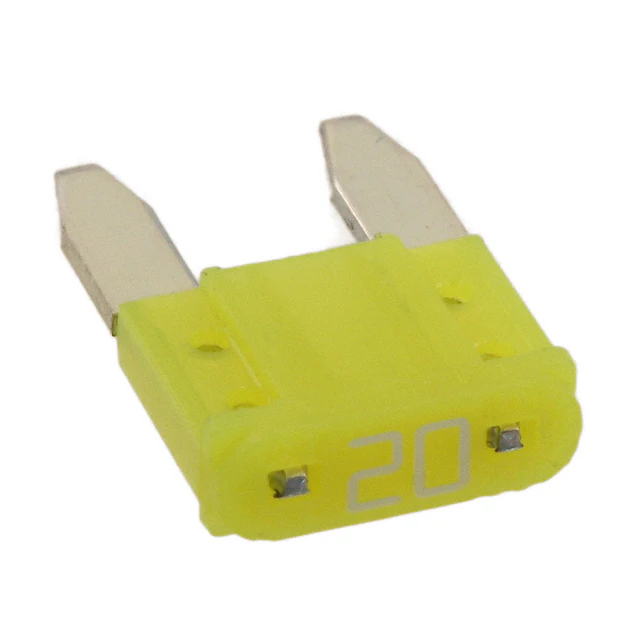

0997020.WXNFUSE AUTO 20A 58VDC BLADE MINI |
2,427 |
|
Datasheet |
MINI® 997 | Bulk | Active | Requires Holder | Automotive | 20 A | - | 58 V | Fast Blow | 1kA | 380.0 | - | -40°C ~ 125°C | Yellow | 0.429" L x 0.150" W x 0.346" H (10.90mm x 3.80mm x 8.80mm) | |
|

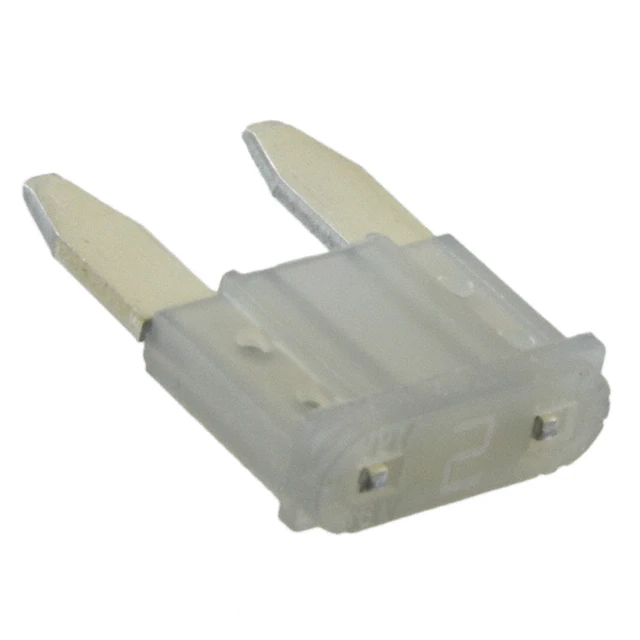

0997002.WXNFUSE AUTOMOTIVE 2A 58VDC BLADE |
2,414 |
|
Datasheet |
MINI® 997 | Bulk | Active | Requires Holder | Automotive | 2 A | - | 58 V | Fast Blow | 1kA | 2.8 | - | -40°C ~ 125°C | Gray | 0.429" L x 0.150" W x 0.346" H (10.90mm x 3.80mm x 8.80mm) | |
|
3SB 5-RFUSE GLASS 5A 250VAC 3AB 3AG |
1,889 |
|
Datasheet |
3SB | Bulk | Active | Requires Holder | Cartridge, Glass | 5 A | 250 V | - | Slow Blow | 200A | 349.0 | CE, CSA, cULus, PSE | -55°C ~ 125°C | - | 0.250" Dia x 1.252" L (6.35mm x 31.80mm) | |
|
0229003.MXSPFUSE GLASS 3A 250VAC 125VDC 2AG |
1,558 |
|
Datasheet |
229 | Bulk | Active | Requires Holder | Cartridge, Glass | 3 A | 250 V | 125 V | Slow Blow | 35A AC, 10kA DC | 77.0 | CE, CSA, PSE, UL | -55°C ~ 125°C | - | 0.177" Dia x 0.570" L (4.50mm x 14.48mm) | |
|
3SB 2.5-RFUSE GLASS 2.5A 250VAC 3AB 3AG |
1,138 |
|
Datasheet |
3SB | Bulk | Active | Requires Holder | Cartridge, Glass | 2.5 A | 250 V | - | Slow Blow | 200A | 94.0 | CE, CSA, cULus, PSE | -55°C ~ 125°C | - | 0.250" Dia x 1.252" L (6.35mm x 31.80mm) | |
|
3SB 4-RFUSE GLASS 4A 250VAC 3AB 3AG |
9,235 |
|
Datasheet |
3SB | Bulk | Active | Requires Holder | Cartridge, Glass | 4 A | 250 V | - | Slow Blow | 200A | 226.0 | CE, CSA, cULus, PSE | -55°C ~ 125°C | - | 0.250" Dia x 1.252" L (6.35mm x 31.80mm) | |
|
0ABB-8000-TMFUSE BOARD MOUNT 8A 32VDC 0603 |
8,986 |
|
Datasheet |
0ABB | Tape & Reel (TR) | Active | Surface Mount | Board Mount (Cartridge Style Excluded) | 8 A | - | 32 V | Slow Blow | 50A | 4.5 | AEC-Q200, cURus | -55°C ~ 150°C | - | 0.063" L x 0.032" W x 0.019" H (1.60mm x 0.81mm x 0.48mm) |
