Fuses
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Mounting Type | Fuse Type | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Response Time | Breaking Capacity @ Rated Voltage | Melting I²t | Approval Agency | Operating Temperature | Color | Size / Dimension |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

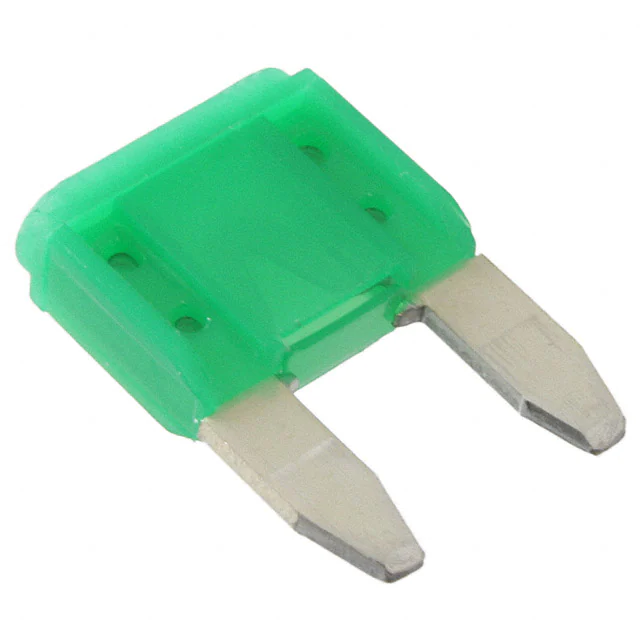

0297030.UFUSE AUTO 30A 32VDC BLADE MINI |
24,759 |
|
Datasheet |
MINI® 297 | Bulk | Active | Requires Holder | Automotive | 30 A | - | 32 V | Fast Blow | 1kA | 1130.0 | UR | -40°C ~ 125°C | Green | 0.429" L x 0.150" W x 0.346" H (10.90mm x 3.80mm x 8.80mm) | |
|
C1F 1.5FUSE BRD MT 1.5A 125VAC 63VDC |
12,983 |
|
Datasheet |
C1F | Tape & Reel (TR) | Active | Surface Mount | Board Mount (Cartridge Style Excluded) | 1.5 A | 125 V | 63 V | Fast Blow | 100A AC, 50A DC | 0.04 | AEC-Q200, cURus | -55°C ~ 125°C | - | 0.126" L x 0.062" W (3.20mm x 1.58mm) | |
|
0287035.PXCNFUSE AUTO 35A 32VDC BLADE ATO |
3,468 |
|
Datasheet |
ATOF® | Bulk | Active | Requires Holder | Automotive | 35 A | - | 32 V | - | - | 2280.0 | CSA, UL | -40°C ~ 105°C | Green | 0.752" L x 0.201" W x 0.484" H (19.10mm x 5.10mm x 12.30mm) | |
|

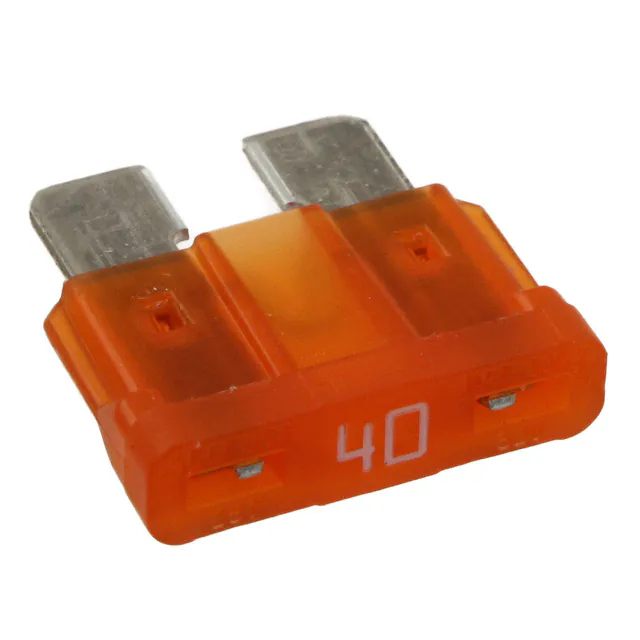

0287040.PXCNFUSE AUTO 40A 32VDC BLADE ATO |
3,205 |
|
Datasheet |
ATOF® | Bulk | Active | Requires Holder | Automotive | 40 A | - | 32 V | - | - | 3310.0 | CSA, UL | -40°C ~ 105°C | Orange | 0.752" L x 0.201" W x 0.484" H (19.10mm x 5.10mm x 12.30mm) | |
|
|
C1F 2.5FUSE BRD MT 2.5A 125VAC 63VDC |
2,651 |
|
Datasheet |
C1F | Tape & Reel (TR) | Active | Surface Mount | Board Mount (Cartridge Style Excluded) | 2.5 A | 125 V | 63 V | Fast Blow | 100A AC, 50A DC | 0.156 | AEC-Q200, cURus | -55°C ~ 125°C | - | 0.126" L x 0.062" W (3.20mm x 1.58mm) | |
|
032707.5YX2SFUSE AUTO 7.5A 32VDC BLADE MICRO |
1,656 |
|
Datasheet |
MICRO2™ 327 | Bulk | Active | Requires Holder | Automotive | 7.5 A | - | 32 V | - | - | 47.0 | - | -40°C ~ 125°C | Brown | 0.358" L x 0.150" W x 0.311" H (9.10mm x 3.80mm x 7.90mm) | |
|
0327010.YX2SFUSE AUTO 10A 32VDC BLADE MICRO |
1,560 |
|
Datasheet |
MICRO2™ 327 | Bulk | Active | Requires Holder | Automotive | 10 A | - | 32 V | - | - | 89.0 | - | -40°C ~ 125°C | Red | 0.358" L x 0.150" W x 0.311" H (9.10mm x 3.80mm x 7.90mm) | |
|
0327020.YX2SFUSE AUTO 20A 32VDC BLADE MICRO |
1,382 |
|
Datasheet |
MICRO2™ 327 | Bulk | Active | Requires Holder | Automotive | 20 A | - | 32 V | - | - | 397.0 | - | -40°C ~ 125°C | Yellow | 0.358" L x 0.150" W x 0.311" H (9.10mm x 3.80mm x 7.90mm) | |
|
0327015.YX2SFUSE AUTO 15A 32VDC BLADE MICRO |
1,080 |
|
Datasheet |
MICRO2™ 327 | Bulk | Active | Requires Holder | Automotive | 15 A | - | 32 V | - | - | 189.0 | - | -40°C ~ 125°C | Blue | 0.358" L x 0.150" W x 0.311" H (9.10mm x 3.80mm x 7.90mm) | |
|
0686F3500-01FUSE BRD MNT 3.5A 63VDC 0603 |
87,946 |
|
Datasheet |
C2F | Tape & Reel (TR) | Active | Surface Mount | Board Mount (Cartridge Style Excluded) | 3.5 A | 32 V | 63 V | Fast Blow | 35A AC, 50A DC | 0.058 | AEC-Q200, cURus | -55°C ~ 125°C | - | 0.063" L x 0.032" W x 0.020" H (1.60mm x 0.81mm x 0.52mm) | |
|
|
0686F4000-01FUSE BRD MNT 4A 32VAC 63VDC 0603 |
48,765 |
|
Datasheet |
C2F | Tape & Reel (TR) | Active | Surface Mount | Board Mount (Cartridge Style Excluded) | 4 A | 32 V | 63 V | Fast Blow | 35A AC, 50A DC | 0.11 | AEC-Q200, cURus | -55°C ~ 125°C | - | 0.063" L x 0.032" W x 0.020" H (1.60mm x 0.81mm x 0.52mm) | |
|

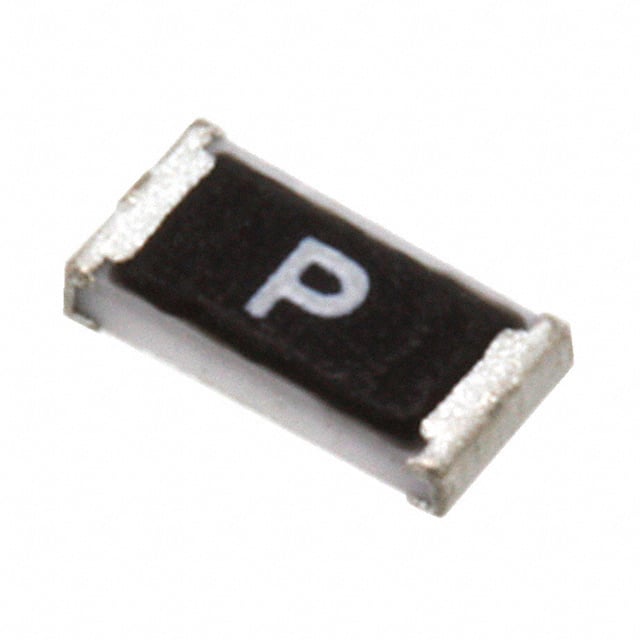

ERB-RG3R00VFUSE BOARD MOUNT 3A 32VDC 1206 |
42,608 |
|
Datasheet |
ERB-RG | Tape & Reel (TR) | Active | Surface Mount | Board Mount (Cartridge Style Excluded) | 3 A | - | 32 V | Fast Blow | 50A | - | cUL, UL | -40°C ~ 125°C | - | 0.126" L x 0.063" W x 0.026" H (3.20mm x 1.60mm x 0.65mm) | |
|
|
ERB-RG1R00VFUSE BOARD MOUNT 1A 63VDC 1206 |
24,641 |
|
Datasheet |
ERB-RG | Tape & Reel (TR) | Active | Surface Mount | Board Mount (Cartridge Style Excluded) | 1 A | - | 63 V | Fast Blow | 50A | - | cUL, UL | -40°C ~ 125°C | - | 0.126" L x 0.063" W x 0.026" H (3.20mm x 1.60mm x 0.65mm) | |
|
|
0686F2000-01FUSE BRD MNT 2A 32VAC 63VDC 0603 |
23,435 |
|
Datasheet |
C2F | Tape & Reel (TR) | Active | Surface Mount | Board Mount (Cartridge Style Excluded) | 2 A | 32 V | 63 V | Fast Blow | 35A AC, 50A DC | 0.014 | AEC-Q200, cURus | -55°C ~ 125°C | - | 0.063" L x 0.032" W x 0.020" H (1.60mm x 0.81mm x 0.52mm) | |
|

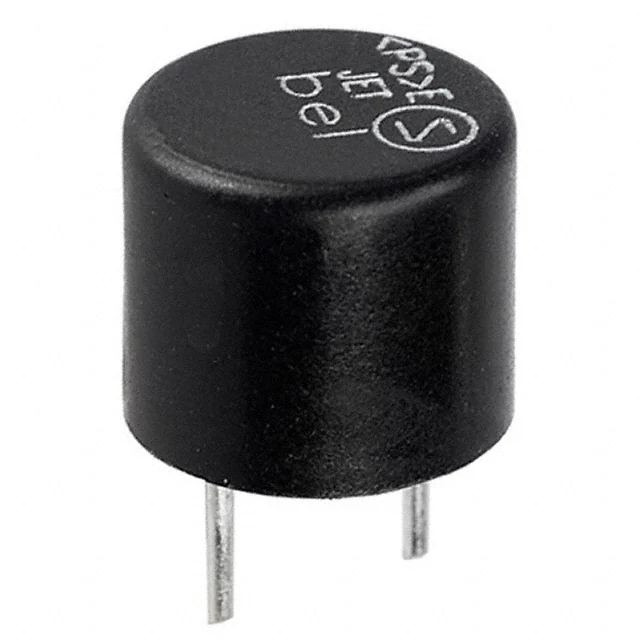

MRT 5-BULKFUSE BOARD MNT 5A 250VAC RADIAL |
15,024 |
|
Datasheet |
MRT | Bulk | Active | Through Hole | Board Mount (Cartridge Style Excluded) | 5 A | 250 V | - | Slow Blow | 50A | 175.0 | AEC-Q200, CCC, CE, CSA, cURus, PSE, SEMKO, VDE | -55°C ~ 125°C | - | 0.329" Dia x 0.303" H (8.35mm x 7.70mm) | |
|
|
MRT 6.3-BULKFUSE BOARD MNT 6.3A 250VAC RAD |
9,624 |
|
Datasheet |
MRT | Bulk | Active | Through Hole | Board Mount (Cartridge Style Excluded) | 6.3 A | 250 V | - | Slow Blow | 50A | 281.0 | AEC-Q200, CCC, CE, CSA, cURus, SEMKO, VDE | -55°C ~ 125°C | - | 0.329" Dia x 0.303" H (8.35mm x 7.70mm) | |
|
0297004.WXNVFUSE AUTOMOTIVE 4A 32VDC BLADE |
8,812 |
|
Datasheet |
MINI® 297 | Bulk | Active | Requires Holder | Automotive | 4 A | - | 32 V | Fast Blow | 1kA | 17.0 | UR | -40°C ~ 125°C | Pink | 0.429" L x 0.150" W x 0.346" H (10.90mm x 3.80mm x 8.80mm) | |
|

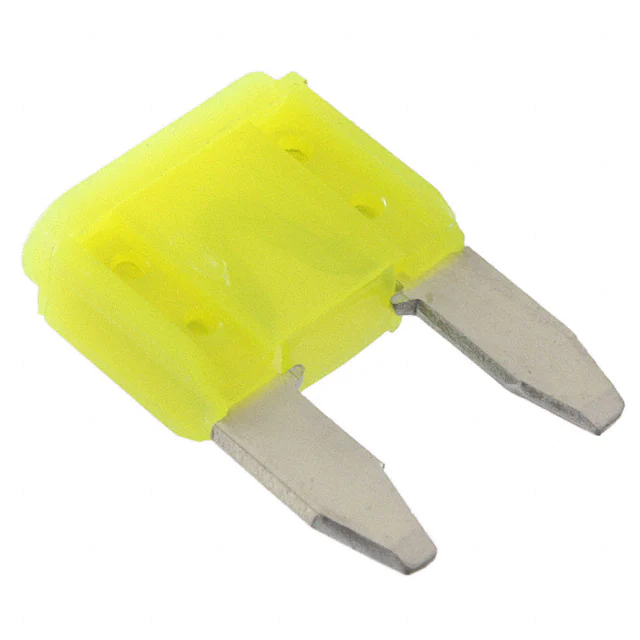

0297020.WXNVFUSE AUTO 20A 32VDC BLADE MINI |
8,255 |
|
Datasheet |
MINI® 297 | Bulk | Active | Requires Holder | Automotive | 20 A | - | 32 V | Fast Blow | 1kA | 380.0 | UR | -40°C ~ 125°C | Yellow | 0.429" L x 0.150" W x 0.346" H (10.90mm x 3.80mm x 8.80mm) | |
|
|
0686F2500-01FUSE BRD MT 2.5A 32VAC 63VDC |
3,073 |
|
Datasheet |
C2F | Tape & Reel (TR) | Active | Surface Mount | Board Mount (Cartridge Style Excluded) | 2.5 A | 32 V | 63 V | Fast Blow | 35A AC, 50A DC | 0.027 | AEC-Q200, cURus | -55°C ~ 125°C | - | 0.063" L x 0.032" W x 0.020" H (1.60mm x 0.81mm x 0.52mm) | |
|
C2Q 3FUSE BRD MNT 3A 32VAC 63VDC 0603 |
95,802 |
|
Datasheet |
C2Q | Tape & Reel (TR) | Active | Surface Mount | Board Mount (Cartridge Style Excluded) | 3 A | 32 V | 63 V | Fast Blow | 35A AC, 50A DC | 0.36 | CE, cURus | -55°C ~ 125°C | - | 0.063" L x 0.032" W x 0.019" H (1.60mm x 0.82mm x 0.48mm) |
