Fuses
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Mounting Type | Fuse Type | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Response Time | Breaking Capacity @ Rated Voltage | Melting I²t | Approval Agency | Operating Temperature | Color | Size / Dimension |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
0679L1500-05FUSE BRD MNT 1.5A 125VAC/VDC SMD |
15,143 |
|
Datasheet |
0679L | Tape & Reel (TR) | Active | Surface Mount | Board Mount (Cartridge Style Excluded) | 1.5 A | 125 V | 125 V | Fast Blow | 50A AC, 300A DC | 0.29 | AEC-Q200, cURus | -55°C ~ 125°C | - | 0.240" L x 0.100" W x 0.110" H (6.10mm x 2.54mm x 2.79mm) | |
|
|
0679L2500-05FUSE BRD MNT 2.5A 125VAC/VDC SMD |
13,027 |
|
Datasheet |
0679L | Tape & Reel (TR) | Active | Surface Mount | Board Mount (Cartridge Style Excluded) | 2.5 A | 125 V | 125 V | Fast Blow | 50A AC, 300A DC | 1.13 | AEC-Q200, cURus | -55°C ~ 125°C | - | 0.240" L x 0.100" W x 0.110" H (6.10mm x 2.54mm x 2.79mm) | |
|
|
0679L3500-05FUSE BRD MNT 3.5A 125VAC/VDC SMD |
12,041 |
|
Datasheet |
0679L | Tape & Reel (TR) | Active | Surface Mount | Board Mount (Cartridge Style Excluded) | 3.5 A | 125 V | 125 V | Fast Blow | 50A AC, 300A DC | 2.2 | AEC-Q200, cURus | -55°C ~ 125°C | - | 0.240" L x 0.100" W x 0.110" H (6.10mm x 2.54mm x 2.79mm) | |
|
0034.1520FUSE GLASS 2.5A 250VAC 5X20MM |
11,412 |
|
Datasheet |
FSF 5x20 | Bulk | Active | Requires Holder | Cartridge, Glass | 2.5 A | 250 V | - | Fast Blow | 35A | 9.19 | CCC, cURus, PSE/JET, VDE | -55°C ~ 125°C | - | 0.205" Dia x 0.787" L (5.20mm x 20.00mm) | |
|
0297004.UFUSE AUTOMOTIVE 4A 32VDC BLADE |
10,000 |
|
Datasheet |
MINI® 297 | Bulk | Active | Requires Holder | Automotive | 4 A | - | 32 V | Fast Blow | 1kA | 17.0 | UR | -40°C ~ 125°C | Pink | 0.429" L x 0.150" W x 0.346" H (10.90mm x 3.80mm x 8.80mm) | |
|
0297003.UFUSE AUTOMOTIVE 3A 32VDC BLADE |
9,544 |
|
Datasheet |
MINI® 297 | Bulk | Active | Requires Holder | Automotive | 3 A | - | 32 V | Fast Blow | 1kA | 9.4 | UR | -40°C ~ 125°C | Violet | 0.429" L x 0.150" W x 0.346" H (10.90mm x 3.80mm x 8.80mm) | |
|

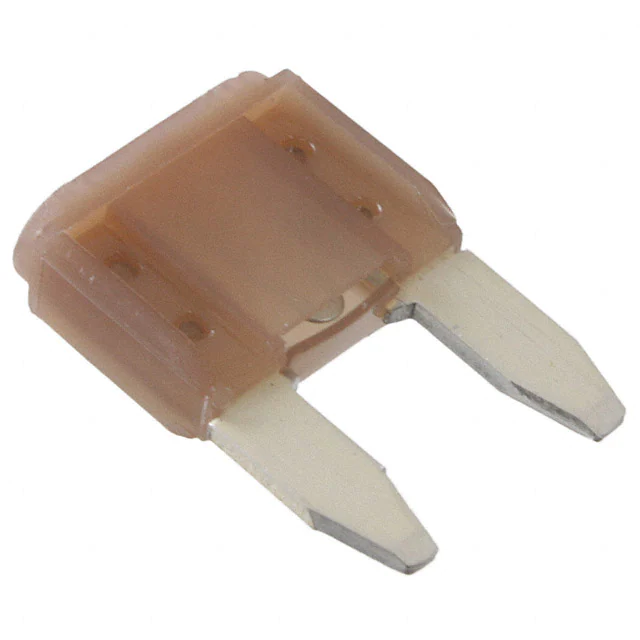

0297005.UFUSE AUTOMOTIVE 5A 32VDC BLADE |
5,532 |
|
Datasheet |
MINI® 297 | Bulk | Active | Requires Holder | Automotive | 5 A | - | 32 V | Fast Blow | 1kA | 25.0 | UR | -40°C ~ 125°C | Tan | 0.429" L x 0.150" W x 0.346" H (10.90mm x 3.80mm x 8.80mm) | |
|
0217004.MXPFUSE GLASS 4A 250VAC 5X20MM |
5,518 |
|
Datasheet |
217 | Bulk | Active | Requires Holder | Cartridge, Glass | 4 A | 250 V | - | Fast Blow | 40A | 29.165 | BSI, CE, CCC, CSA, KC, PSE, SEMKO, UR, VDE | -55°C ~ 125°C | - | 0.205" Dia x 0.787" L (5.20mm x 20.00mm) | |
|
|
0034.1523FUSE GLASS 5A 250VAC 5X20MM |
5,491 |
|
Datasheet |
FSF 5x20 | Bulk | Active | Requires Holder | Cartridge, Glass | 5 A | 250 V | - | Fast Blow | 50A | 33.8 | CCC, cURus, PSE/JET, VDE | -55°C ~ 125°C | - | 0.205" Dia x 0.787" L (5.20mm x 20.00mm) | |
|
|
0034.1525FUSE GLASS 8A 250VAC 5X20MM |
4,702 |
|
Datasheet |
FSF 5x20 | Bulk | Active | Requires Holder | Cartridge, Glass | 8 A | 250 V | - | Fast Blow | 80A | 93.4 | cURus, PSE/JET, VDE | -55°C ~ 125°C | - | 0.205" Dia x 0.787" L (5.20mm x 20.00mm) | |
|

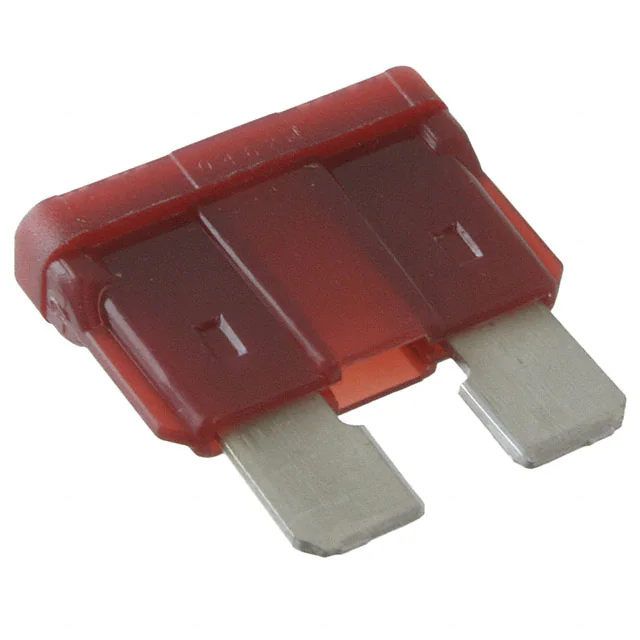

028707.5PXCNFUSE AUTO 7.5A 32VDC BLADE ATO |
4,397 |
|
Datasheet |
ATOF® | Bulk | Active | Requires Holder | Automotive | 7.5 A | - | 32 V | - | - | 60.0 | CSA, UL | -40°C ~ 105°C | Brown | 0.752" L x 0.201" W x 0.484" H (19.10mm x 5.10mm x 12.30mm) | |
|
|
0034.1513FUSE GLASS 500MA 250VAC 5X20MM |
3,698 |
|
Datasheet |
FSF 5x20 | Bulk | Active | Requires Holder | Cartridge, Glass | 500 mA | 250 V | - | Fast Blow | 35A | 0.151 | CCC, cURus, VDE | -55°C ~ 125°C | - | 0.205" Dia x 0.787" L (5.20mm x 20.00mm) | |
|
|
0034.1521FUSE GLASS 3.15A 250VAC 5X20MM |
3,457 |
|
Datasheet |
FSF 5x20 | Bulk | Active | Requires Holder | Cartridge, Glass | 3.15 A | 250 V | - | Fast Blow | 35A | 16.1 | CCC, cURus, PSE/JET, VDE | -55°C ~ 125°C | - | 0.205" Dia x 0.787" L (5.20mm x 20.00mm) | |
|
|
0034.1522FUSE GLASS 4A 250VAC 5X20MM |
3,027 |
|
Datasheet |
FSF 5x20 | Bulk | Active | Requires Holder | Cartridge, Glass | 4 A | 250 V | - | Fast Blow | 40A | 25.6 | CCC, cURus, PSE/JET, VDE | -55°C ~ 125°C | - | 0.205" Dia x 0.787" L (5.20mm x 20.00mm) | |
|
|
0034.1516FUSE GLASS 1A 250VAC 5X20MM |
2,586 |
|
Datasheet |
FSF 5x20 | Bulk | Active | Requires Holder | Cartridge, Glass | 1 A | 250 V | - | Fast Blow | 35A | 1.13 | CCC, cURus, PSE/JET, VDE | -55°C ~ 125°C | - | 0.205" Dia x 0.787" L (5.20mm x 20.00mm) | |
|
|
021706.3MXPFUSE GLASS 6.3A 250VAC 5X20MM |
1,255 |
|
Datasheet |
217 | Bulk | Active | Requires Holder | Cartridge, Glass | 6.3 A | 250 V | - | Fast Blow | 63A | 62.465 | BSI, CCC, CE, CSA, KC, PSE, SEMKO, UR, VDE | -55°C ~ 125°C | - | 0.205" Dia x 0.787" L (5.20mm x 20.00mm) | |
|
|
0679H3000-05FUSE BRD MNT 3A 350VAC 60VDC SMD |
32,873 |
|
Datasheet |
0679H | Tape & Reel (TR) | Active | Surface Mount | Board Mount (Cartridge Style Excluded) | 3 A | 350 V | 60 V | Fast Blow | 50A AC, 100A DC | 1.8 | cURus | -55°C ~ 125°C | - | 0.240" L x 0.100" W x 0.110" H (6.10mm x 2.54mm x 2.79mm) | |
.jpg)
|
MFU0603FF00500P100FUSE BOARD MNT 500MA 32VDC 0603 |
14,851 |
|
Datasheet |
MFU | Tape & Reel (TR) | Active | Surface Mount | Board Mount (Cartridge Style Excluded) | 500 mA | - | 32 V | Fast Blow | 50A | 9.0E-4 | IEC, UL | -55°C ~ 125°C | - | 0.061" L x 0.033" W x 0.018" H (1.55mm x 0.85mm x 0.45mm) | |
|
|
0679H0500-05FUSE BRD MT 500MA 350VAC 72VDC |
14,320 |
|
Datasheet |
0679H | Tape & Reel (TR) | Active | Surface Mount | Board Mount (Cartridge Style Excluded) | 500 mA | 350 V | 72 V | Fast Blow | 50A AC, 100A DC | 0.08 | cURus | -55°C ~ 125°C | - | 0.240" L x 0.100" W x 0.110" H (6.10mm x 2.54mm x 2.79mm) | |
|
|
0679L5000-05FUSE BRD MNT 5A 125VAC/VDC 2SMD |
10,340 |
|
Datasheet |
0679L | Tape & Reel (TR) | Active | Surface Mount | Board Mount (Cartridge Style Excluded) | 5 A | 125 V | 125 V | Fast Blow | 50A AC, 300A DC | 5.5 | AEC-Q200, cURus | -55°C ~ 125°C | - | 0.240" L x 0.100" W x 0.110" H (6.10mm x 2.54mm x 2.79mm) |
