Fuses
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Mounting Type | Fuse Type | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Response Time | Breaking Capacity @ Rated Voltage | Melting I²t | Approval Agency | Operating Temperature | Color | Size / Dimension |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
0998080.UX-2M8FUSE AUTO 80A 70VDC AUTO LINK |
108 |
|
Datasheet |
MEGA® | Bulk | Active | Bolt Mount | Automotive | 80 A | - | 70 V | Slow Blow | 2.5kA | 34900.0 | - | -40°C ~ 125°C | Red | 1.150" L x 0.750" W x 0.390" H (29.20mm x 19.05mm x 9.90mm) | |
|
025301.5VFUSE BRD MNT 1.5A 125VAC/VDC AXL |
329 |
|
Datasheet |
PICO® II 253 | Bulk | Active | Through Hole | Board Mount (Cartridge Style Excluded) | 1.5 A | 125 V | 125 V | Fast Blow | 50A AC, 300A DC | 0.587 | CSA, PSE, QPL, TUV, UR | -55°C ~ 125°C | - | 0.103" Dia x 0.280" L (2.61mm x 7.11mm) | |
|
3298300.ZXSTAFUSE AUTO 300A 32VDC MODULE |
327 |
|
Datasheet |
ZCASE® SMZ | Bulk | Active | Bolt Mount | Automotive | 300 A | - | 32 V | - | 2kA | 310000.0 | - | -40°C ~ 125°C | - | 1.185" L x 1.047" W x 0.634" H (30.10mm x 26.60mm x 16.10mm) | |
|

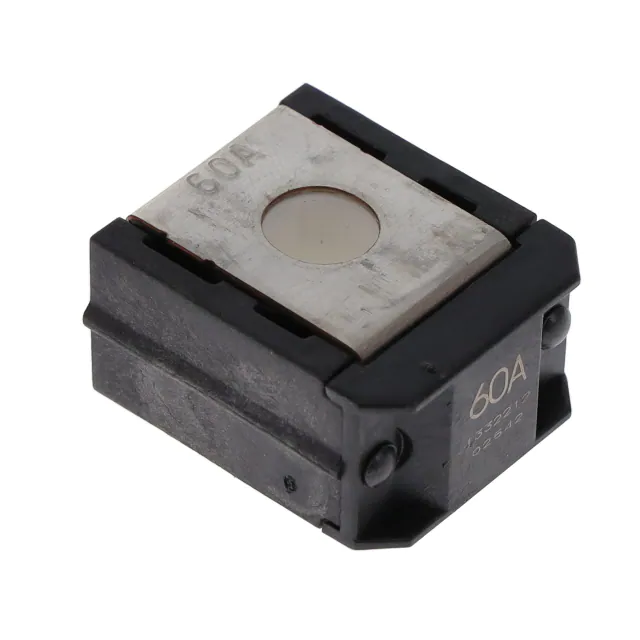

3298060.ZFUSE BRD MNT 60A 32VDC MOD 480PC |
281 |
|
Datasheet |
ZCASE® SMZ | Bulk | Active | Bolt Mount | Board Mount (Cartridge Style Excluded) | 60 A | - | 32 V | - | 2kA | - | - | -40°C ~ 125°C | - | 1.185" L x 1.047" W x 0.634" H (30.10mm x 26.60mm x 16.10mm) | |
|
3298125.ZFUSE AUTO 125A 32VDC MODULE |
246 |
|
Datasheet |
ZCASE® SMZ | Bulk | Active | Bolt Mount | Automotive | 125 A | - | 32 V | - | 2kA | 45000.0 | - | -40°C ~ 125°C | - | 1.185" L x 1.047" W x 0.634" H (30.10mm x 26.60mm x 16.10mm) | |
|
3298250.ZFUSE AUTO 250A 32VDC MODULE |
231 |
|
Datasheet |
ZCASE® SMZ | Bulk | Active | Bolt Mount | Automotive | 250 A | - | 32 V | - | 2kA | 160000.0 | - | -40°C ~ 125°C | - | 1.185" L x 1.047" W x 0.634" H (30.10mm x 26.60mm x 16.10mm) | |
|
3298175.ZFUSE AUTO 175A 32VDC MODULE |
397 |
|
Datasheet |
ZCASE® SMZ | Bulk | Active | Bolt Mount | Automotive | 175 A | - | 32 V | - | 2kA | 140000.0 | - | -40°C ~ 125°C | - | 1.185" L x 1.047" W x 0.634" H (30.10mm x 26.60mm x 16.10mm) | |
|
|
3298400.ZXSTAFUSE AUTO 400A 32VDC MODULE |
365 |
|
Datasheet |
ZCASE® SMZ | Bulk | Active | Bolt Mount | Automotive | 400 A | - | 32 V | - | 2kA | 870000.0 | - | -40°C ~ 125°C | - | 1.185" L x 1.047" W x 0.634" H (30.10mm x 26.60mm x 16.10mm) | |
|
3298350.ZXSTAFUSE AUTO 350A 32VDC MODULE |
286 |
|
Datasheet |
ZCASE® SMZ | Bulk | Active | Bolt Mount | Automotive | 350 A | - | 32 V | - | 2kA | 570000.0 | - | -40°C ~ 125°C | - | 1.185" L x 1.047" W x 0.634" H (30.10mm x 26.60mm x 16.10mm) | |
|
|
3298100.ZFUSE AUTO 100A 32VDC MODULE |
274 |
|
Datasheet |
ZCASE® SMZ | Bulk | Active | Bolt Mount | Automotive | 100 A | - | 32 V | - | 2kA | 31000.0 | - | -40°C ~ 125°C | - | 1.185" L x 1.047" W x 0.634" H (30.10mm x 26.60mm x 16.10mm) | |
|
|
3298150.ZFUSE AUTO 150A 32VDC MODULE |
368 |
|
Datasheet |
ZCASE® SMZ | Bulk | Active | Bolt Mount | Automotive | 150 A | - | 32 V | - | 2kA | 75000.0 | - | -40°C ~ 125°C | - | 1.185" L x 1.047" W x 0.634" H (30.10mm x 26.60mm x 16.10mm) | |
|
0MEG300.LFUSE AUTO 300A 32VAC/VDC 50PC |
104 |
|
Datasheet |
MEGA® | Bulk | Active | Bolt Mount | Automotive | 300 A | 32 V | 32 V | Slow Blow | - | - | - | - | - | 1.149" L x 0.770" W x 0.390" H (29.20mm x 19.50mm x 9.90mm) | |
|
0881080.URFFUSE BOARD MOUNT 80A 75VDC 2SMD |
397 |
|
Datasheet |
881 | Tape & Reel (TR) | Active | Surface Mount | Board Mount (Cartridge Style Excluded) | 80 A | - | 75 V | - | 1.5kA | 3300.0 | cURus | -55°C ~ 100°C | - | 0.441" L x 0.394" W x 0.268" H (11.20mm x 10.00mm x 6.80mm) | |
|
0527040.UXTHPFUSE CERM 40A 500VAC 500VDC RAD |
983 |
|
Datasheet |
527 | Tray | Active | Through Hole | Cartridge, Ceramic | 40 A | 500 V | 500 V | Fast Blow | 10kA | 1090.0 | cURus | -55°C ~ 125°C | - | 0.293" Dia x 1.352" L (7.45mm x 34.35mm) | |
|
0526040.UXTHPFUSE CERM 40A 500VAC 500VDC RAD |
620 |
|
Datasheet |
526 | Tray | Active | Through Hole | Cartridge, Ceramic | 40 A | 500 V | 500 V | Fast Blow | 10kA | 2340.0 | cURus | -55°C ~ 125°C | - | 0.442" Dia x 1.378" L (11.22mm x 35.00mm) | |
|
|
BK-AMH-350FUSE AUTO 350A 125VDC AUTO LINK |
334 |
|
Datasheet |
AMH | Tray | Active | Bolt Mount | Automotive | 350 A | - | 125 V | - | 20kA | - | cURus, UL | -40°C ~ 105°C | - | 0.787" L x 0.787" W x 0.472" H (20.00mm x 20.00mm x 12.00mm) | |
|
|
BK-AMH-400FUSE AUTO 400A 125VDC AUTO LINK |
258 |
|
Datasheet |
AMH | Tray | Active | Bolt Mount | Automotive | 400 A | - | 125 V | - | 20kA | - | cURus, UL | -40°C ~ 105°C | - | 0.787" L x 0.787" W x 0.472" H (20.00mm x 20.00mm x 12.00mm) | |
|
|
0526060.UXTHPFUSE CERM 60A 300VAC 500VDC RAD |
398 |
|
Datasheet |
526 | Tray | Active | Through Hole | Cartridge, Ceramic | 60 A | 300 V | 500 V | Fast Blow | 10kA | 6290.0 | cURus | -55°C ~ 125°C | - | 0.442" Dia x 1.378" L (11.22mm x 35.00mm) | |
|
142.5395.6102FUSE AUTO 100A 58VDC AUTO LINK |
165 |
|
Datasheet |
BF2 | Bulk | Active | Bolt Mount | Automotive | 100 A | - | 58 V | Slow Blow | 1kA | 46800.0 | cURus | - | Yellow | 1.142" L x 0.740" W x 0.382" H (29.00mm x 18.80mm x 9.70mm) | |
|
142.5395.6152FUSE AUTO 150A 58VDC AUTO LINK |
132 |
|
Datasheet |
BF2 | Bulk | Active | Bolt Mount | Automotive | 150 A | - | 58 V | Slow Blow | 1kA | 113400.0 | cURus | - | Orange | 1.142" L x 0.740" W x 0.382" H (29.00mm x 18.80mm x 9.70mm) |
