Fuses
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Mounting Type | Fuse Type | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Response Time | Breaking Capacity @ Rated Voltage | Melting I²t | Approval Agency | Operating Temperature | Color | Size / Dimension |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
0322020.HXPFUSE CERAMIC 20A 65VAC/VDC 3AB |
983 |
|
Datasheet |
322 | Bulk | Active | Requires Holder | Cartridge, Ceramic | 20 A | 65 V | 65 V | Fast Blow | 200A AC, 1kA DC | 192.0 | CE, UL | -55°C ~ 125°C | - | 0.250" Dia x 1.250" L (6.35mm x 31.75mm) | |
|
0ADBP0200-REFUSE CERM 200MA 1KVAC 1KVDC 3AB |
806 |
|
Datasheet |
0ADBP | Bulk | Active | Through Hole | Cartridge, Ceramic | 200 mA | 1 kV | 1 kV | Fast Blow | 10kA | 0.0031 | cURus | -55°C ~ 125°C | - | 0.266" Dia x 1.292" H (6.76mm x 32.82mm) | |
|
|
0ADBP0250-REFUSE CERM 250MA 1KVAC 1KVDC 3AB |
529 |
|
Datasheet |
0ADBP | Bulk | Active | Through Hole | Cartridge, Ceramic | 250 mA | 1 kV | 1 kV | Fast Blow | 10kA | 0.009 | cURus | -55°C ~ 125°C | - | 0.266" Dia x 1.292" H (6.76mm x 32.82mm) | |
|
|
0ADBP0600-REFUSE CERM 600MA 1KVAC 1KVDC 3AB |
219 |
|
Datasheet |
0ADBP | Bulk | Active | Through Hole | Cartridge, Ceramic | 600 mA | 1 kV | 1 kV | Fast Blow | 10kA | 0.178 | cURus | -55°C ~ 125°C | - | 0.266" Dia x 1.292" H (6.76mm x 32.82mm) | |
|
0298250.ZXEHFUSE AUTO 250A 32VDC AUTO LINK |
598 |
|
Datasheet |
MEGA® | Bulk | Active | Bolt Mount | Automotive | 250 A | - | 32 V | Slow Blow | 2kA | 389000.0 | - | -40°C ~ 125°C | Pink | 1.149" L x 0.750" W x 0.390" H (29.20mm x 19.05mm x 9.90mm) | |
|
050706.3MXPFUSE CERAMIC 6.3A 650VDC SMD |
278 |
|
Datasheet |
507 | Bulk | Active | Requires Holder | Cartridge, Ceramic | 6.3 A | - | 650 V | - | 150A | 29.0 | CE, cURus | -55°C ~ 125°C | - | 0.250" Dia x 1.250" L (6.35mm x 31.75mm) | |
|
BK/GBB-8-RFUSE CERM 8A 250VAC 125VDC 3AB |
1,850 |
|
Datasheet |
GBB | Bulk | Active | Requires Holder | Cartridge, Ceramic | 8 A | 250 V | 125 V | Fast Blow | 10kA | - | CSA, UR | - | - | 0.250" Dia x 1.250" L (6.35mm x 31.75mm) | |
|
BK/MDA-25-RFUSE CERM 25A 250VAC 125VDC 3AB |
824 |
|
Datasheet |
MDA | Bulk | Active | Requires Holder | Cartridge, Ceramic | 25 A | 250 V | 125 V | Slow Blow | 1.5kA AC, 10kA DC | 734.69 | CE, CSA, UL | - | Black | 0.250" Dia x 1.250" L (6.35mm x 31.75mm) | |
|
09773.15MXPFUSE CERAMIC 3.15A 500VAC 450VDC |
553 |
|
Datasheet |
977 | Bulk | Active | Requires Holder | Cartridge, Ceramic | 3.15 A | 500 V | 450 V | Slow Blow | 100A AC, 200A DC | 58.0 | CE, PSE, SEMKO | -55°C ~ 125°C | - | 0.205" Dia x 0.787" L (5.20mm x 20.00mm) | |
|

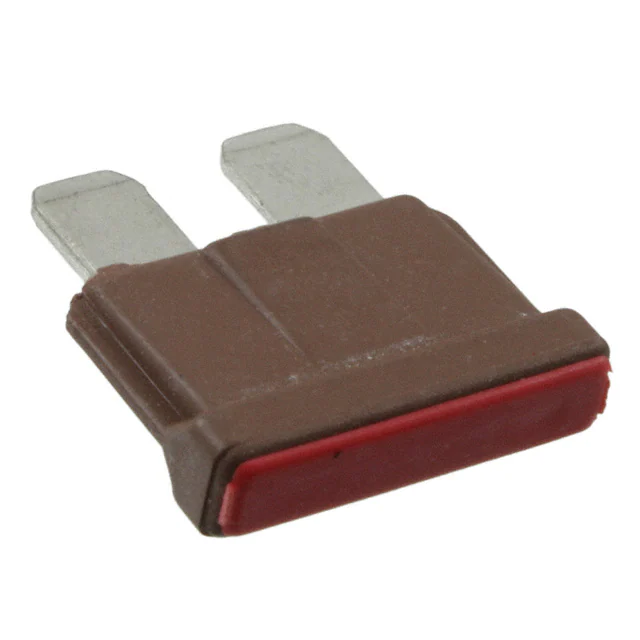

166.7000.4752FUSE AUTO 7.5A 80VDC BLADE ATO |
1,657 |
|
Datasheet |
FKS ATO® | Bulk | Active | Requires Holder | Automotive | 7.5 A | - | 80 V | Slow Blow | 1kA | 44.5 | cULus | - | Brown | 0.748" L x 0.197" W x 0.520" H (19.00mm x 5.00mm x 13.20mm) | |
|
BK/GDB-500MAFUSE GLASS 500MA 250VAC 5X20MM |
170 |
|
Datasheet |
GDB | Bulk | Active | Requires Holder | Cartridge, Glass | 500 mA | 250 V | - | Fast Blow | 35A | 0.18 | UL, VDE | - | - | 0.205" Dia x 0.787" L (5.20mm x 20.00mm) | |
|
|
0298080.UXTFUSE AUTO 80A 32VDC AUTO LINK |
587 |
|
Datasheet |
MEGA® | Bulk | Active | Bolt Mount | Automotive | 80 A | - | 32 V | Slow Blow | 2kA | - | cULus | -40°C ~ 125°C | Red | 1.149" L x 0.750" W x 0.390" H (29.20mm x 19.05mm x 9.90mm) | |
|
0688030.MXPFUSE CERAMIC 30A 70VDC |
639 |
|
Datasheet |
688 | Bulk | Active | Requires Holder | Cartridge, Ceramic | 30 A | - | 70 V | Slow Blow | 2.5kA | 4200.0 | cURus, TUV | -55°C ~ 125°C | - | 0.248" Dia x 0.992" L (6.30mm x 25.20mm) | |
|
BK/GDC-5AFUSE GLASS 5A 250VAC 5X20MM |
848 |
|
Datasheet |
GDC | Bulk | Active | Requires Holder | Cartridge, Glass | 5 A | 250 V | - | Slow Blow | 50A | 142.5 | cULus, IMQ, MITI/JET | - | - | 0.205" Dia x 0.787" L (5.20mm x 20.00mm) | |
|
UMTW-5316-15A00-SMD-TT-SN-00FUSE BRD MNT 15A 125VAC/VDC 2SMD |
5,647 |
|
Datasheet |
UMT-W | Tape & Reel (TR) | Active | Surface Mount | Board Mount (Cartridge Style Excluded) | 15 A | 125 V | 125 V | Slow Blow | 350A | 1480.0 | CE, cURus, IEC, UL2481-14 | -55°C ~ 125°C | - | 0.606" L x 0.211" W x 0.211" H (15.40mm x 5.35mm x 5.35mm) | |
 Series.jpg)
|
BK/PCB-1-1/2-RFUSE BRD MNT 1.5A 250VAC 450VDC |
551 |
|
Datasheet |
PC-Tron® | Bulk | Active | Through Hole | Board Mount (Cartridge Style Excluded) | 1.5 A | 250 V | 450 V | Fast Blow | 50A AC, 5.9kA DC | 0.09 | CSA, UL | - | - | 0.350" L x 0.184" W x 0.345" H (8.89mm x 4.67mm x 8.76mm) | |
|
0508.500MX6PFUSE CERM 500MA 600VAC/VDC 3AB |
2,455 |
|
Datasheet |
508 | Bulk | Active | Requires Holder | Cartridge, Ceramic | 500 mA | 600 V | 600 V | Fast Blow | 10kA | 0.259 | CE, cULus | -55°C ~ 125°C | - | 0.248" Dia x 1.260" L (6.30mm x 32.00mm) | |
|
0273001.HFUSE BRD MNT 1A 125VAC/VDC RAD |
1,621 |
|
Datasheet |
MICRO™ 273 | Bulk | Active | Through Hole | Board Mount (Cartridge Style Excluded) | 1 A | 125 V | 125 V | Fast Blow | 10kA | 0.0648 | CSA, QPL, UL | -55°C ~ 85°C | - | 0.250" Dia x 0.350" H (6.35mm x 8.89mm) | |
|
|
027301.5HFUSE BRD MT 1.5A 125VAC/VDC RAD |
359 |
|
Datasheet |
MICRO™ 273 | Bulk | Active | Through Hole | Board Mount (Cartridge Style Excluded) | 1.5 A | 125 V | 125 V | Fast Blow | 10kA | 0.16 | CSA, QPL, UL | -55°C ~ 85°C | - | 0.250" Dia x 0.350" H (6.35mm x 8.89mm) | |
|
|
0273.250HFUSE BOARD MNT 250MA 125VAC/VDC |
218 |
|
Datasheet |
MICRO™ 273 | Bulk | Active | Through Hole | Board Mount (Cartridge Style Excluded) | 250 mA | 125 V | 125 V | Fast Blow | 10kA | 0.0064 | CSA, QPL, UL | -55°C ~ 85°C | - | 0.250" Dia x 0.350" H (6.35mm x 8.89mm) |
