Fuses
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Mounting Type | Fuse Type | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Response Time | Breaking Capacity @ Rated Voltage | Melting I²t | Approval Agency | Operating Temperature | Color | Size / Dimension |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
0034.3781FUSE GLASS 3A 250VAC 5X20MM |
3,123 |
|
Datasheet |
FSL 5x20 | Bulk | Active | Requires Holder | Cartridge, Glass | 3 A | 250 V | - | Slow Blow | 100A | 17.5 | cULus | -40°C ~ 85°C | - | 0.205" Dia x 0.787" L (5.20mm x 20.00mm) | |
|
0498125.MXTFUSE AUTO 125A 32VDC AUTO LINK |
432 |
|
Datasheet |
MIDI® 498 | Bulk | Active | Bolt Mount | Automotive | 125 A | - | 32 V | Slow Blow | 1kA | 73200.0 | - | -40°C ~ 125°C | Pink | 1.614" L x 0.472" W x 0.315" H (41.00mm x 12.00mm x 8.00mm) | |
|
|
0034.3777FUSE GLASS 1.5A 250VAC 5X20MM |
114 |
|
Datasheet |
FSL 5x20 | Bulk | Active | Requires Holder | Cartridge, Glass | 1.5 A | 250 V | - | Slow Blow | 100A | 2.86 | cULus | -40°C ~ 85°C | - | 0.205" Dia x 0.787" L (5.20mm x 20.00mm) | |
 Series.jpg)
|
BK/PCB-2-1/2-RFUSE BRD MNT 2.5A 250VAC 450VDC |
8,017 |
|
Datasheet |
PC-Tron® | Bulk | Active | Through Hole | Board Mount (Cartridge Style Excluded) | 2.5 A | 250 V | 450 V | Fast Blow | 50A AC, 5.9kA DC | 0.3 | CSA, UL | - | - | 0.350" L x 0.184" W x 0.345" H (8.89mm x 4.67mm x 8.76mm) | |
|

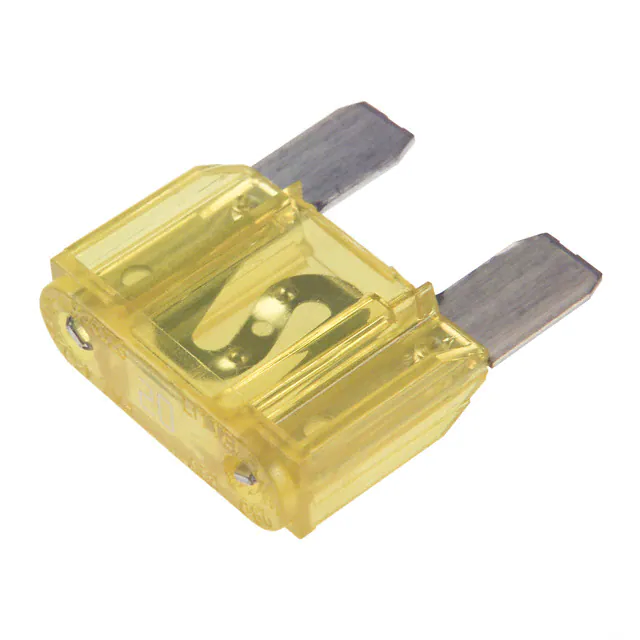

0299020.ZXNVFUSE AUTO 20A 32VDC BLADE MAX |
2,213 |
|
Datasheet |
MAXI® | Bulk | Active | Requires Holder | Automotive | 20 A | - | 32 V | Slow Blow | 1kA | 1100.0 | - | -40°C ~ 125°C | Yellow | 1.150" L x 0.348" W x 0.850" H (29.21mm x 8.85mm x 21.59mm) | |
|
0895040.UFUSE AUTO 40A 58VDC AUTO LINK |
1,118 |
|
Datasheet |
JCASE® | Bulk | Active | Requires Holder | Automotive | 40 A | - | 58 V | - | 1kA | 5470.0 | - | -40°C ~ 125°C | Green | 0.571" L x 0.472" W x 0.630" H (14.50mm x 12.00mm x 16.00mm) | |
|
0299035.ZXNVFUSE AUTO 35A 32VDC BLADE MAX |
1,110 |
|
Datasheet |
MAXI® | Bulk | Active | Requires Holder | Automotive | 35 A | - | 32 V | Slow Blow | 1kA | 6032.0 | - | -40°C ~ 125°C | Brown | 1.150" L x 0.348" W x 0.850" H (29.21mm x 8.85mm x 21.59mm) | |
|
0476012.MRFUSE BRD MNT 12A 125VAC/VDC 2SMD |
926 |
|
Datasheet |
NANO²®476 | Tape & Reel (TR) | Active | Surface Mount | Board Mount (Cartridge Style Excluded) | 12 A | 125 V | 125 V | Fast Blow | 100A AC, 300A DC | 20.635 | cURus | -55°C ~ 125°C | - | 0.240" L x 0.106" W x 0.106" H (6.10mm x 2.69mm x 2.69mm) | |
|
|
0476015.MRFUSE BRD MNT 15A 125VAC/VDC 2SMD |
744 |
|
Datasheet |
NANO²®476 | Tape & Reel (TR) | Active | Surface Mount | Board Mount (Cartridge Style Excluded) | 15 A | 125 V | 125 V | Fast Blow | 100A AC, 300A DC | 61.286 | cURus | -55°C ~ 125°C | - | 0.240" L x 0.106" W x 0.106" H (6.10mm x 2.69mm x 2.69mm) | |
|
0299025.ZXNVFUSE AUTO 25A 32VDC BLADE MAX |
405 |
|
Datasheet |
MAXI® | Bulk | Active | Requires Holder | Automotive | 25 A | - | 32 V | Slow Blow | 1kA | 2087.0 | - | -40°C ~ 125°C | Gray | 1.150" L x 0.348" W x 0.850" H (29.21mm x 8.85mm x 21.59mm) | |
|

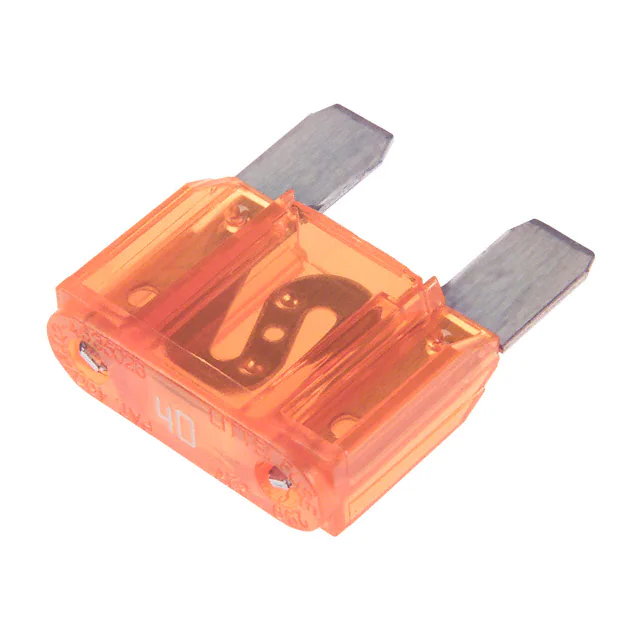

0299040.ZXNVFUSE AUTO 40A 32VDC BLADE MAX |
298 |
|
Datasheet |
MAXI® | Bulk | Active | Requires Holder | Automotive | 40 A | - | 32 V | Slow Blow | 1kA | 8450.0 | - | -40°C ~ 125°C | Orange | 1.150" L x 0.348" W x 0.850" H (29.21mm x 8.85mm x 21.59mm) | |
|
0299060.ZXNVFUSE AUTO 60A 32VDC BLADE MAX |
247 |
|
Datasheet |
MAXI® | Bulk | Active | Requires Holder | Automotive | 60 A | - | 32 V | Slow Blow | 1kA | 15300.0 | - | -40°C ~ 125°C | Blue | 1.150" L x 0.348" W x 0.850" H (29.21mm x 8.85mm x 21.59mm) | |
|
0ADEC9300-BEFUSE CERM 30A 500VAC 500VDC 3AB |
1,544 |
|
Datasheet |
0ADEC | Bulk | Active | Requires Holder | Cartridge, Ceramic | 30 A | 500 V | 500 V | Fast Blow | 30kA AC, 20kA DC | 270.0 | cURus | -50°C ~ 105°C | - | 0.252" Dia x 1.252" L (6.40mm x 31.80mm) | |
|
0299080.ZXNVFUSE AUTO 80A 32VDC BLADE MAX |
875 |
|
Datasheet |
MAXI® | Bulk | Active | Requires Holder | Automotive | 80 A | - | 32 V | Slow Blow | 1kA | 8800.0 | - | -40°C ~ 125°C | Clear | 1.150" L x 0.348" W x 0.850" H (29.21mm x 8.85mm x 21.59mm) | |
|
BK1/TDC10-500-RFUSE GLASS 500MA 750VAC 3AB 3AG |
374 |
|
Datasheet |
TDC10 | Bulk | Active | Requires Holder | Cartridge, Glass | 500 mA | 750 V | - | Fast Blow | 5A | - | - | - | - | 0.250" Dia x 1.252" L (6.35mm x 31.80mm) | |
|
|
0498080.MXM6FUSE AUTO 80A 32VDC AUTO LINK |
696 |
|
Datasheet |
MIDI® 498 | Bulk | Active | Bolt Mount | Automotive | 80 A | - | 32 V | - | 1kA | 24600.0 | UR | -40°C ~ 125°C | - | 1.614" L x 0.472" W x 0.315" H (41.00mm x 12.00mm x 8.00mm) | |
|
0263002.MXLFUSE BOARD MOUNT 2A 250VAC AXIAL |
279 |
|
Datasheet |
PICO® II 263 | Bulk | Active | Through Hole | Board Mount (Cartridge Style Excluded) | 2 A | 250 V | - | Fast Blow | 50A | 0.74 | CSA, PSE, UR | -55°C ~ 125°C | - | 0.155" Dia x 0.280" L (3.94mm x 7.11mm) | |
|
|
BK/PCB-3-RFUSE BRD MT 3A 250VAC 450VDC RAD |
6,940 |
|
Datasheet |
PC-Tron® | Bulk | Active | Through Hole | Board Mount (Cartridge Style Excluded) | 3 A | 250 V | 450 V | Fast Blow | 50A AC, 4.4kA DC | 0.75 | CSA, UL | - | - | 0.350" L x 0.184" W x 0.345" H (8.89mm x 4.67mm x 8.76mm) | |
|
|
0498050.MFUSE AUTO 50A 32VDC AUTO LINK |
1,215 |
|
Datasheet |
MIDI® 498 | Bulk | Active | Bolt Mount | Automotive | 50 A | - | 32 V | Slow Blow | 1kA | - | UL | -40°C ~ 125°C | - | 1.614" L x 0.472" W x 0.315" H (41.00mm x 12.00mm x 8.00mm) | |
|

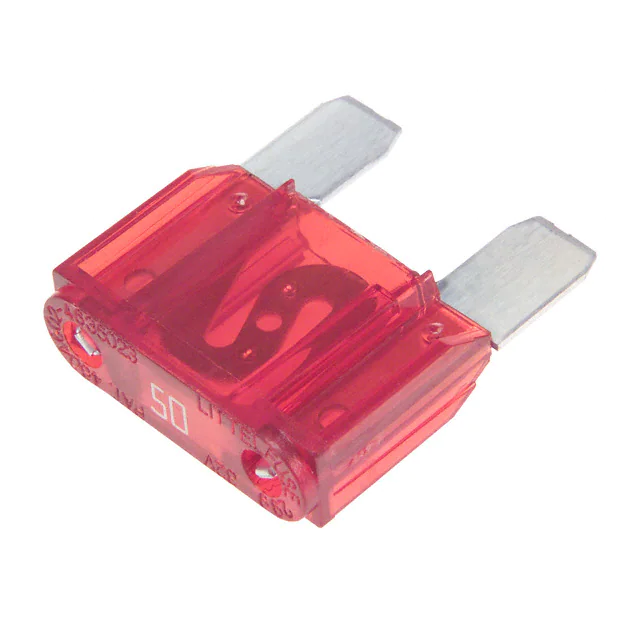

0299050.ZXNVFUSE AUTO 50A 32VDC BLADE MAX |
798 |
|
Datasheet |
MAXI® | Bulk | Active | Requires Holder | Automotive | 50 A | - | 32 V | Slow Blow | 1kA | 11300.0 | - | -40°C ~ 125°C | Red | 1.150" L x 0.348" W x 0.850" H (29.21mm x 8.85mm x 21.59mm) |
