Fuses
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Mounting Type | Fuse Type | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Response Time | Breaking Capacity @ Rated Voltage | Melting I²t | Approval Agency | Operating Temperature | Color | Size / Dimension |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
0034.4221FUSE BRD MNT 1A 125VAC/VDC RAD |
833 |
|
Datasheet |
MSF 125 | Bulk | Active | Through Hole | Board Mount (Cartridge Style Excluded) | 1 A | 125 V | 125 V | Fast Blow | 100A | 0.07 | cURus | -25°C ~ 85°C | - | 0.252" Dia x 0.346" H (6.40mm x 8.80mm) | |
|
BK/ATM-3FUSE AUTOMOTIVE 3A 32VDC BLADE |
2,116 |
|
Datasheet |
ATM | Bulk | Active | Requires Holder | Automotive | 3 A | - | 32 V | Fast Blow | 1kA | - | - | - | Violet | 0.430" L x 0.150" W x 0.347" H (10.92mm x 3.81mm x 8.81mm) | |
|
BK/GMA-100-RFUSE GLASS 100MA 250VAC 5X20MM |
1,177 |
|
Datasheet |
GMA | Bulk | Active | Requires Holder | Cartridge, Glass | 100 mA | 250 V | - | Fast Blow | 35A | 1.0E-4 | CSA, PSE, UL | - | - | 0.205" Dia x 0.787" L (5.20mm x 20.00mm) | |
|

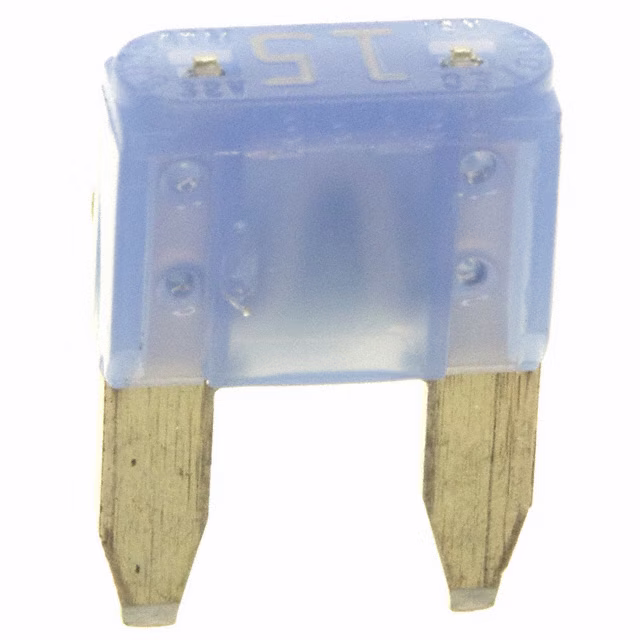

BK/ATM-15FUSE AUTO 15A 32VDC BLADE MINI |
2,309 |
|
Datasheet |
ATM | Bulk | Active | Requires Holder | Automotive | 15 A | - | 32 V | Fast Blow | 1kA | - | - | - | Blue | 0.430" L x 0.150" W x 0.347" H (10.92mm x 3.81mm x 8.81mm) | |
|
0495030.ZXAFUSE AUTO 30A 32VAC AUTO LINK |
1,835 |
|
Datasheet |
JCASE™ 495 | Bulk | Active | Requires Holder | Automotive | 30 A | 32 V | - | Slow Blow | 1kA | 1480.0 | UR | -40°C ~ 125°C | Pink | 0.555" L x 0.472" W x 1.063" H (14.10mm x 12.00mm x 27.00mm) | |
|
BK/ATM-5FUSE AUTOMOTIVE 5A 32VDC BLADE |
1,602 |
|
Datasheet |
ATM | Bulk | Active | Requires Holder | Automotive | 5 A | - | 32 V | Fast Blow | 1kA | - | - | - | Tan | 0.430" L x 0.150" W x 0.347" H (10.92mm x 3.81mm x 8.81mm) | |
|
0495040.ZXAFUSE AUTO 40A 32VAC AUTO LINK |
953 |
|
Datasheet |
JCASE™ 495 | Bulk | Active | Requires Holder | Automotive | 40 A | 32 V | - | Slow Blow | 1kA | 3650.0 | UR | -40°C ~ 125°C | Green | 0.555" L x 0.472" W x 1.063" H (14.10mm x 12.00mm x 27.00mm) | |
|
0001.2501FUSE CERAMIC 500MA 250VAC 300VDC |
528 |
|
Datasheet |
SPT 5x20 | Bulk | Active | Requires Holder | Cartridge, Ceramic | 500 mA | 250 V | 300 V | Slow Blow | 1.5kA | 0.5 | cURus, VDE | -55°C ~ 125°C | - | 0.205" Dia x 0.787" L (5.20mm x 20.00mm) | |
|
8020.0608.H.PTFUSE CERM 40A 250VAC 80VDC 3AB |
230 |
|
Datasheet |
SUT-H 6.3x32 | Box | Active | Through Hole | Cartridge, Ceramic | 40 A | 250 V | 80 V | Slow Blow | 500A | 5867.0 | CE, CSA, cURus, UL | -40°C ~ 85°C | - | 0.270" Dia x 1.291" L (6.85mm x 32.80mm) | |
|

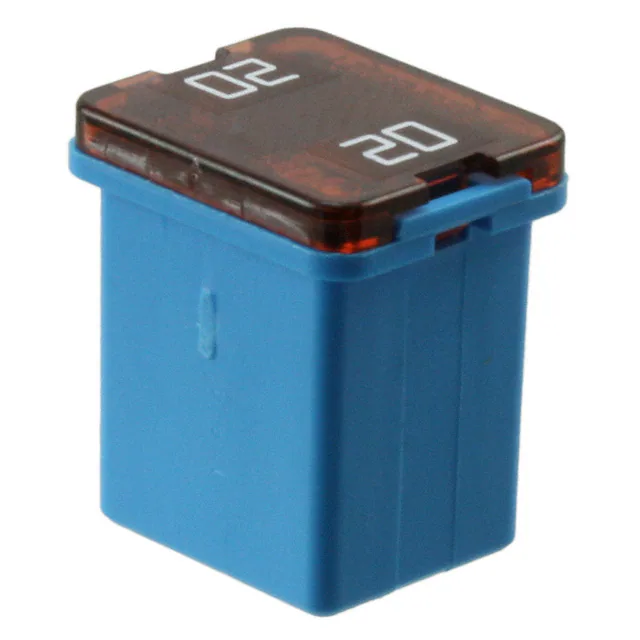

0895020.ZFUSE AUTO 20A 58VDC AUTO LINK |
1,761 |
|
Datasheet |
JCASE® | Bulk | Active | Requires Holder | Automotive | 20 A | - | 58 V | - | 1kA | 400.0 | UL | -40°C ~ 125°C | Blue | 0.571" L x 0.472" W x 0.630" H (14.50mm x 12.00mm x 16.00mm) | |
|
BK/ATM-10FUSE AUTO 10A 32VDC BLADE MINI |
1,030 |
|
Datasheet |
ATM | Bulk | Active | Requires Holder | Automotive | 10 A | - | 32 V | Fast Blow | 1kA | - | - | - | Red | 0.430" L x 0.150" W x 0.347" H (10.92mm x 3.81mm x 8.81mm) | |
|
0326015.MXDPFUSE CERM 15A 250VAC 60VDC 3AB |
321 |
|
Datasheet |
326 | Bulk | Active | Requires Holder | Cartridge, Ceramic | 15 A | 250 V | 60 V | Slow Blow | 400A AC, 500A DC | 760.0 | CE, CSA, UL | -55°C ~ 125°C | - | 0.250" Dia x 1.250" L (6.35mm x 31.75mm) | |
|
0895030.ZFUSE AUTO 30A 58VDC AUTO LINK |
1,916 |
|
Datasheet |
JCASE® | Bulk | Active | Requires Holder | Automotive | 30 A | - | 58 V | - | 1kA | 680.0 | UL | -40°C ~ 125°C | Pink | 0.571" L x 0.472" W x 0.630" H (14.50mm x 12.00mm x 16.00mm) | |
|
0895025.ZFUSE AUTO 25A 58VDC AUTO LINK |
1,881 |
|
Datasheet |
JCASE® | Bulk | Active | Requires Holder | Automotive | 25 A | - | 58 V | - | 1kA | 680.0 | UL | -40°C ~ 125°C | Clear | 0.571" L x 0.472" W x 0.630" H (14.50mm x 12.00mm x 16.00mm) | |
|
021612.5MXEPFUSE CERAMIC 12.5A 250VAC 5X20MM |
261 |
|
Datasheet |
216 | Bulk | Active | Through Hole | Cartridge, Ceramic | 12.5 A | 250 V | - | Fast Blow | 1.5kA | 235.0 | CE, CSA, PSE, TUV, UR | -55°C ~ 125°C | - | 0.228" Dia x 0.886" L (5.80mm x 22.50mm) | |
|
BK/ATM-2FUSE AUTOMOTIVE 2A 32VDC BLADE |
401 |
|
Datasheet |
ATM | Bulk | Active | Requires Holder | Automotive | 2 A | - | 32 V | Fast Blow | 1kA | - | - | - | Gray | 0.430" L x 0.150" W x 0.347" H (10.92mm x 3.81mm x 8.81mm) | |
|
BK/ATM-4FUSE AUTOMOTIVE 4A 32VDC BLADE |
279 |
|
Datasheet |
ATM | Bulk | Active | Requires Holder | Automotive | 4 A | - | 32 V | Fast Blow | 1kA | - | - | - | Pink | 0.430" L x 0.150" W x 0.347" H (10.92mm x 3.81mm x 8.81mm) | |
|
TR2/1025TD1-RFUSE BRD MT 1A 250VAC 125VDC SMD |
3,200 |
|
Datasheet |
BRICK 1025TD | Tape & Reel (TR) | Active | Surface Mount | Board Mount (Cartridge Style Excluded) | 1 A | 250 V | 125 V | Slow Blow | 50A | 9.91 | CSA, UL | - | - | 0.405" L x 0.109" W x 0.109" H (10.29mm x 2.77mm x 2.77mm) | |
|
TR2/1025FA15-RFUSE BRD MT 15A 250VAC 60VDC SMD |
2,522 |
|
Datasheet |
BRICK 1025FA | Tape & Reel (TR) | Active | Surface Mount | Board Mount (Cartridge Style Excluded) | 15 A | 250 V | 60 V | Fast Blow | 50A | 1451.0 | CSA, UL | - | - | 0.405" L x 0.109" W x 0.109" H (10.29mm x 2.77mm x 2.77mm) | |
|
0895060.ZFUSE AUTO 60A 58VDC AUTO LINK |
1,912 |
|
Datasheet |
JCASE® | Bulk | Active | Requires Holder | Automotive | 60 A | - | 58 V | - | 1kA | 9600.0 | UL | -40°C ~ 125°C | Yellow | 0.571" L x 0.472" W x 0.630" H (14.50mm x 12.00mm x 16.00mm) |
