Fuses
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Mounting Type | Fuse Type | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Response Time | Breaking Capacity @ Rated Voltage | Melting I²t | Approval Agency | Operating Temperature | Color | Size / Dimension |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
0326004.HXPFUSE CERAMIC 4A 250VAC 3AB 3AG |
649 |
|
Datasheet |
326 | Bulk | Active | Requires Holder | Cartridge, Ceramic | 4 A | 250 V | - | Slow Blow | 400A | 9.71 | CE, CSA, PSE, UR | -55°C ~ 125°C | - | 0.250" Dia x 1.250" L (6.35mm x 31.75mm) | |
|
BK/AGC-9-RFUSE GLASS 9A 250VAC 3AB 3AG |
502 |
|
Datasheet |
AGC | Bulk | Active | Requires Holder | Cartridge, Glass | 9 A | 250 V | - | Fast Blow | 200A | 395.28 | CSA, UL | -55°C ~ 125°C | - | 0.250" Dia x 1.250" L (6.35mm x 31.75mm) | |
|
|
0326008.HXPFUSE CERAMIC 8A 250VAC 3AB 3AG |
192 |
|
Datasheet |
326 | Bulk | Active | Requires Holder | Cartridge, Ceramic | 8 A | 250 V | - | Slow Blow | 400A | 67.1 | CE, CSA, K-MARK, PSE, UL | -55°C ~ 125°C | - | 0.250" Dia x 1.250" L (6.35mm x 31.75mm) | |
|
0218.063MXPFUSE GLASS 63MA 250VAC 5X20MM |
335 |
|
Datasheet |
218 | Bulk | Active | Requires Holder | Cartridge, Glass | 63 mA | 250 V | - | Slow Blow | 35A | 0.0117 | CCC, CE, CSA, K-MARK, SEMKO, UL, VDE | -55°C ~ 125°C | - | 0.205" Dia x 0.787" L (5.20mm x 20.00mm) | |
|
|
0217.050HXPFUSE GLASS 50MA 250VAC 5X20MM |
802 |
|
Datasheet |
217 | Bulk | Active | Requires Holder | Cartridge, Glass | 50 mA | 250 V | - | Fast Blow | 35A | 1.9E-4 | CCC, CE, CSA, K-MARK, SEMKO, UL, VDE | -55°C ~ 125°C | - | 0.205" Dia x 0.787" L (5.20mm x 20.00mm) | |
|
SF-2410F2500T-2FUSE BRD MNT 25A 65VAC/65DC 2SMD |
1,820 |
|
Datasheet |
SinglFuse™ SF-2410F-T | Tape & Reel (TR) | Active | Surface Mount | Board Mount (Cartridge Style Excluded) | 25 A | 65 V | 65 V | Fast Blow | 50A | 246.55 | cUL, UL | -55°C ~ 125°C | - | 0.240" L x 0.102" W x 0.102" H (6.10mm x 2.59mm x 2.59mm) | |
|
35621000029FUSE CERAMIC 10A 440VAC 3AB 3AG |
5,334 |
|
Datasheet |
356 | Bulk | Active | Requires Holder | Cartridge, Ceramic | 10 A | 440 V | - | Slow Blow | 1kA | 510.0 | CE, cULus | -25°C ~ 70°C | - | 0.248" Dia x 1.260" L (6.30mm x 32.00mm) | |
|
0454008.MRFUSE BRD MNT 8A 72VAC 60VDC 2SMD |
955 |
|
Datasheet |
NANO²® 454 | Tape & Reel (TR) | Active | Surface Mount | Board Mount (Cartridge Style Excluded) | 8 A | 72 V | 60 V | Slow Blow | 50A | 137.34 | CSA, UL | -55°C ~ 125°C | - | 0.240" L x 0.106" W x 0.106" H (6.10mm x 2.69mm x 2.69mm) | |
|
0MIN005.MXGLOFUSE AUTO 5A 32VAC 32VDC BLADE |
880 |
|
Datasheet |
MINI® | Bulk | Active | Requires Holder | Automotive | 5 A | 32 V | 32 V | Fast Blow | - | - | SAE, UL | - | Tan | 0.429" L x 0.150" W x 0.346" H (10.90mm x 3.80mm x 8.80mm) | |
|
0ADKP9150-REFUSE CERM 15A 600VAC 500VDC 5X20 |
4,772 |
|
Datasheet |
0ADKP | Bulk | Active | Through Hole | Cartridge, Ceramic | 15 A | 600 V | 500 V | Slow Blow | 200A AC, 300A DC | 900.0 | cURus | -55°C ~ 125°C | - | 0.236" Dia x 0.886" L (6.00mm x 22.50mm) | |
|
|
0ADKP9200-REFUSE CERM 20A 600VAC 500VDC 5X20 |
1,022 |
|
Datasheet |
0ADKP | Bulk | Active | Through Hole | Cartridge, Ceramic | 20 A | 600 V | 500 V | Slow Blow | 200A AC, 300A DC | 1600.0 | cURus | -55°C ~ 125°C | - | 0.236" Dia x 0.886" L (6.00mm x 22.50mm) | |
|
|
BK/AGC-6/10-RFUSE GLASS 600MA 250VAC 3AB 3AG |
143 |
|
Datasheet |
AGC | Bulk | Active | Requires Holder | Cartridge, Glass | 600 mA | 250 V | - | Fast Blow | - | - | - | -55°C ~ 125°C | - | 0.250" Dia x 1.250" L (6.35mm x 31.75mm) | |
|
0ADKC0800-BEFUSE CERM 800MA 600VAC 500VDC |
495 |
|
Datasheet |
0ADKC | Bulk | Active | Requires Holder | Cartridge, Ceramic | 800 mA | 600 V | 500 V | Slow Blow | 200A AC, 300A DC | 1.18 | cURus | -55°C ~ 125°C | - | 0.205" Dia x 0.787" L (5.20mm x 20.00mm) | |
|
|
0ADKC0630-BEFUSE CERM 630MA 600VAC 500VDC |
187 |
|
Datasheet |
0ADKC | Bulk | Active | Requires Holder | Cartridge, Ceramic | 630 mA | 600 V | 500 V | Slow Blow | 200A AC, 300A DC | 0.34 | cURus | -55°C ~ 125°C | - | 0.205" Dia x 0.787" L (5.20mm x 20.00mm) | |
|
0473001.MRT1LFUSE BRD MNT 1A 125VAC/VDC AXIAL |
1,628 |
|
Datasheet |
PICO® II 473 | Tape & Reel (TR) | Active | Through Hole | Board Mount (Cartridge Style Excluded) | 1 A | 125 V | 125 V | Slow Blow | 50A | 2.01 | CSA, PSE, UR | -55°C ~ 125°C | - | 0.135" Dia x 0.280" L (3.43mm x 7.11mm) | |
|
0875010.MXEPFUSE CERAMIC 10A 250VAC AXIAL |
23,164 |
|
Datasheet |
875 | Bulk | Active | Through Hole | Cartridge, Ceramic | 10 A | 250 V | - | Slow Blow | 50A | 208.0 | cULus | -55°C ~ 125°C | - | 0.142" Dia x 0.394" L (3.60mm x 10.00mm) | |
|
021601.6MXEPFUSE CERAMIC 1.6A 250VAC 5X20MM |
3,230 |
|
Datasheet |
216 | Bulk | Active | Through Hole | Cartridge, Ceramic | 1.6 A | 250 V | - | Fast Blow | 1.5kA | 1.005 | CCC, CE, CSA, KC, PSE, SEMKO, UL, VDE | -55°C ~ 125°C | - | 0.228" Dia x 0.886" L (5.80mm x 22.50mm) | |
|
BK/GDC-2AFUSE GLASS 2A 250VAC 5X20MM |
896 |
|
Datasheet |
GDC | Bulk | Active | Requires Holder | Cartridge, Glass | 2 A | 250 V | - | Slow Blow | 35A | 31.6 | cULus, IMQ, MITI/JET | - | - | 0.205" Dia x 0.787" L (5.20mm x 20.00mm) | |
|
|
0216008.MXEPFUSE CERAMIC 8A 250VAC 5X20MM |
506 |
|
Datasheet |
216 | Bulk | Active | Through Hole | Cartridge, Ceramic | 8 A | 250 V | - | Fast Blow | 1.5kA | 64.315 | CE, CSA, KC, PSE, SEMKO, TUV, UR | -55°C ~ 125°C | - | 0.228" Dia x 0.886" L (5.80mm x 22.50mm) | |
|

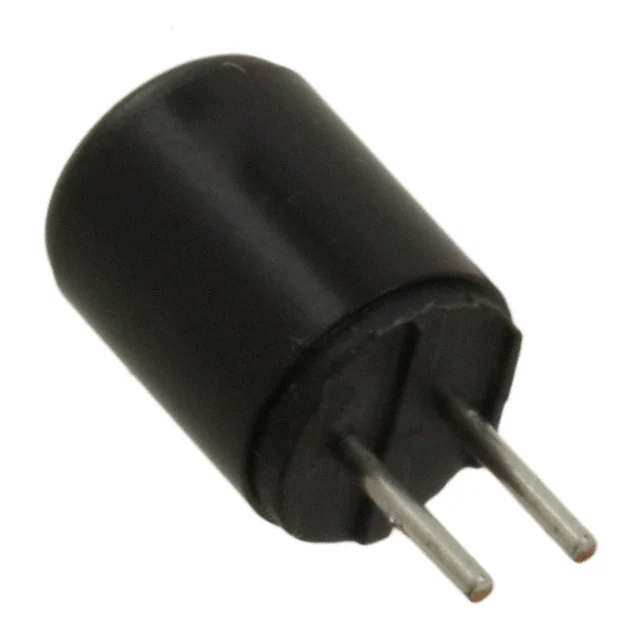

0034.4216FUSE BOARD MNT 500MA 125VAC/VDC |
1,096 |
|
Datasheet |
MSF 125 | Bulk | Active | Through Hole | Board Mount (Cartridge Style Excluded) | 500 mA | 125 V | 125 V | Fast Blow | 100A | 0.02 | cURus | -25°C ~ 85°C | - | 0.252" Dia x 0.346" H (6.40mm x 8.80mm) |
