Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

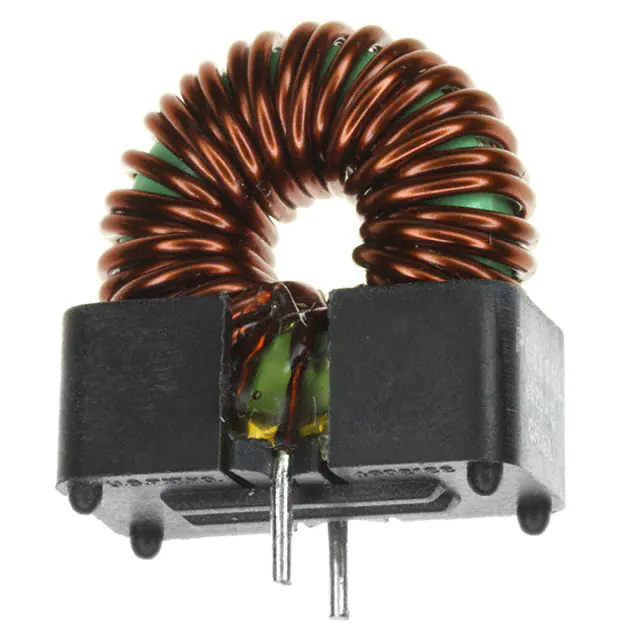

P0850NLFIXED IND 23UH 5A 26 MOHM TH |
666 |
|
Datasheet |
KlipMount™ | Radial, Vertical (Open) | Tray | Active | Toroidal | - | 23 µH | ±20% | 5 A | - | Shielded | 26mOhm | - | - | - | -40°C ~ 130°C | - | - | Through Hole | - | 0.830" L x 0.450" W (21.09mm x 11.43mm) | 0.950" (24.13mm) |
|
B82559B5472A016FIXED IND 4.7UH 25A 2.2 MOHM SMD |
5,172 |
|
Datasheet |
ERU16 - Flat Wire Inductor | Nonstandard, 3 Lead | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 4.7 µH | ±10% | 25 A | 21.3A | Shielded | 2.2mOhm | - | - | AEC-Q200 | -40°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.681" L x 0.650" W (17.30mm x 16.50mm) | 0.407" (10.35mm) |
|
78439369047WE-XHMA SMT POWER INDUCTOR 1090; |
330 |
|
Datasheet |
WE-XHMA | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal Composite | 4.7 µH | ±20% | 13.5 A | 28.05A | Shielded | 5mOhm | - | 21MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.457" L x 0.413" W (11.60mm x 10.50mm) | 0.358" (9.10mm) |
|
|
78439369100WE-XHMA SMT POWER INDUCTOR 1090; |
104 |
|
Datasheet |
WE-XHMA | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal Composite | 10 µH | ±20% | 9.4 A | 20.3A | Shielded | 11mOhm | - | 14MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.457" L x 0.413" W (11.60mm x 10.50mm) | 0.358" (9.10mm) |
|
SH150S-1.26-112FIXED IND 112UH 1.26A 300MOHM SM |
2,411 |
|
Datasheet |
SH150 | Nonstandard | Tape & Reel (TR) | Active | Toroidal | Iron Powder | 112 µH | ±20% | 1.26 A | - | Unshielded | 300mOhm | - | - | - | -40°C ~ 125°C | 10 kHz | - | Surface Mount | - | 0.614" L x 0.591" W (15.60mm x 15.00mm) | 0.388" (9.85mm) |
|
|
B82559B4222A016FIXED IND 2.2UH 26.8A 1.8MOHM SM |
195 |
|
Datasheet |
ERU16 - Flat Wire Inductor | Nonstandard, 3 Lead | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 2.2 µH | ±10% | 26.8 A | 37.3A | Shielded | 1.8mOhm | - | - | AEC-Q200 | -40°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.681" L x 0.650" W (17.30mm x 16.50mm) | 0.372" (9.45mm) |
|
|
B82559B0153A016FIXED IND 15UH 11.7A 10.2MOHM SM |
140 |
|
Datasheet |
ERU16 - Flat Wire Inductor | Nonstandard, 3 Lead | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 15 µH | ±10% | 11.7 A | 14A | Shielded | 10.2mOhm | - | - | AEC-Q200 | -40°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.681" L x 0.650" W (17.30mm x 16.50mm) | 0.372" (9.45mm) |
|
CTX100-1-52-RFIXED IND 100UH 2.5A 106 MOHM TH |
181 |
|
Datasheet |
CTX | Radial, Vertical (Open) | Bulk | Active | Toroidal | Iron Powder | 100 µH | ±20% | 2.5 A | 2.4A | Unshielded | 106mOhm Max | - | - | - | -40°C ~ 75°C | 100 kHz | - | Through Hole | - | 0.610" Dia x 0.488" W (15.50mm x 12.40mm) | - |
|
7443762504010FIXED IND 1UH 39A 0.95 MOHM TH |
224 |
|
Datasheet |
WE-HCFT | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Manganese Zinc Ferrite (MnZn) | 1 µH | ±20% | 39 A | - | Shielded | 0.95mOhm Max | - | 38MHz | - | -40°C ~ 125°C | 100 kHz | - | Through Hole | - | 0.992" L x 0.866" W (25.20mm x 22.00mm) | 0.161" (4.10mm) |
|
|
7443762504100FIXED IND 10UH 20A 4.63 MOHM TH |
110 |
|
Datasheet |
WE-HCFT | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Manganese Zinc Ferrite (MnZn) | 10 µH | ±20% | 20 A | - | Shielded | 4.63mOhm Max | - | 8.4MHz | - | -40°C ~ 125°C | 100 kHz | - | Through Hole | - | 0.992" L x 0.866" W (25.20mm x 22.00mm) | 0.161" (4.10mm) |
|
HCV1206-R48-RFIXED IND 480NH 16A 3.15MOHM SMD |
1,477 |
|
Datasheet |
HCV1206 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 480 nH | ±10% | 16 A | 37A | Unshielded | 3.15mOhm | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.480" L x 0.386" W (12.20mm x 9.80mm) | 0.201" (5.10mm) |
|
HC1-3R6-RFIXED IND 3.6UH 16.76A 3.5 MOHM |
1,446 |
|
Datasheet |
HC1 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 3.6 µH | ±15% | 16.76 A | 13.4A | Unshielded | 3.5mOhm Max | - | - | - | -40°C ~ 125°C | 300 kHz | - | Surface Mount | - | 0.512" L x 0.512" W (13.00mm x 13.00mm) | 0.394" (10.00mm) |
|
|
SH150S-1.54-77FIXED IND 77UH 1.54A 200MOHM SMD |
827 |
|
Datasheet |
SH150 | Nonstandard | Tape & Reel (TR) | Active | Toroidal | Iron Powder | 77 µH | ±20% | 1.54 A | - | Unshielded | 200mOhm | - | - | - | -40°C ~ 125°C | 10 kHz | - | Surface Mount | - | 0.614" L x 0.591" W (15.60mm x 15.00mm) | 0.388" (9.85mm) |
|
SH50F-3.0-47FIXED IND 47UH 3A 50 MOHM TH |
1,943 |
|
Datasheet |
SH50 | Radial, Vertical Cylinder, 4 Leads | Tray | Active | Toroidal | Iron Powder | 47 µH | ±20% | 3 A | - | Unshielded | 50mOhm Max | - | - | - | -40°C ~ 125°C | 10 kHz | - | Through Hole | - | 0.669" Dia (17.00mm) | 0.492" (12.50mm) |
|
2300LL-561-H-RCFIXED IND 560UH 4A 103 MOHM TH |
419 |
|
Datasheet |
2300LL | Radial, Horizontal (Open) | Bulk | Active | Toroidal | Sendust | 560 µH | ±15% | 4 A | - | Shielded | 103mOhm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | - | 1.280" Dia (32.51mm) | 0.650" (16.51mm) |
|
2300LL-101-V-RCFIXED IND 100UH 7.8A 27 MOHM TH |
419 |
|
Datasheet |
2300LL | Radial, Vertical (Open) | Bulk | Active | Toroidal | Sendust | 100 µH | ±15% | 7.8 A | - | Shielded | 27mOhm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | - | 1.280" Dia x 0.650" W (32.51mm x 16.51mm) | - |
|
|
2300LL-101-H-RCFIXED IND 100UH 7.8A 27 MOHM TH |
219 |
|
Datasheet |
2300LL | Radial, Horizontal (Open) | Bulk | Active | Toroidal | Sendust | 100 µH | ±15% | 7.8 A | - | Shielded | 27mOhm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | - | 1.280" Dia (32.51mm) | 0.650" (16.51mm) |
|

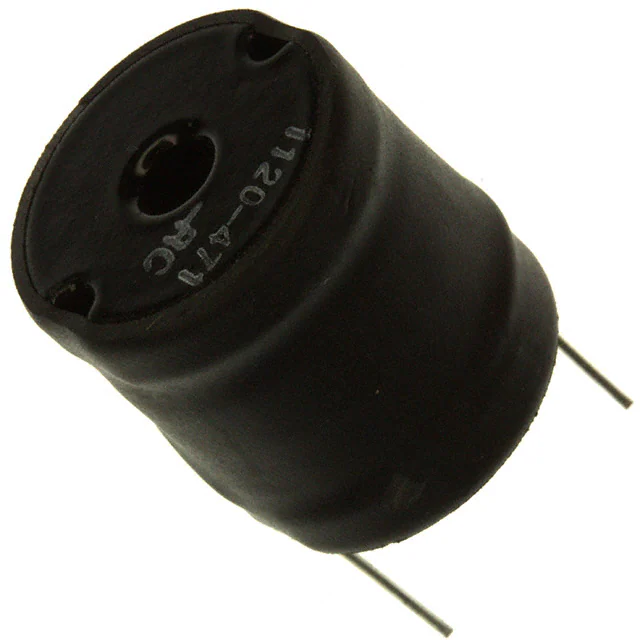

1120-471K-RCFIXED IND 470UH 1.6A 355 MOHM TH |
371 |
|
Datasheet |
1120 | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | Ferrite | 470 µH | ±10% | 1.6 A | - | Unshielded | 355mOhm Max | - | - | - | -55°C ~ 105°C | 1 kHz | - | Through Hole | - | 0.810" Dia (20.57mm) | 0.840" (21.34mm) |
|
SDS680R-472MFIXED IND 4.7UH 1.4A 0.06OHM SMD |
7,017 |
|
Datasheet |
SDS680R | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 4.7 µH | ±20% | 1.4 A | - | Shielded | 60mOhm Max | - | 105MHz | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | - | 0.260" L x 0.175" W (6.60mm x 4.45mm) | 0.115" (2.92mm) |
|
|
SDS680R-153MFIXED IND 15UH 800MA 0.09OHM SMD |
6,587 |
|
Datasheet |
SDS680R | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 15 µH | ±20% | 800 mA | - | Shielded | 90mOhm Max | - | 33MHz | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | - | 0.260" L x 0.175" W (6.60mm x 4.45mm) | 0.115" (2.92mm) |
Fixed Inductors Electronic Components
Frequently Asked Questions
Q1: What products are included in Fixed Inductors?
This category includes related Fixed Inductors subcategories and electronic components from multiple manufacturers. Select a lower-level category to view available part numbers.
Q2: Can I request a quotation for Fixed Inductors components?
Yes. Send us the part numbers and required quantities, and our team will provide sourcing and quotation support.
Q3: Are datasheets and technical information available?
Yes. Datasheets and technical information are available on supported final product pages and product listings.
Q4: Do you support BOM sourcing?
Yes. We support BOM matching, component procurement and alternative sourcing for Fixed Inductors and other electronic components.
