Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PQ2617BHA-4R7KFIXED IND 4.7UH 28A 2.5 MOHM SMD |
323 |
|
Datasheet |
PQ2617BHA | Nonstandard | Tray | Active | Drum Core, Wirewound | Ferrite | 4.7 µH | ±10% | 28 A | 61.2A | Shielded | 2.5mOhm Max | - | 30MHz | AEC-Q200 | -40°C ~ 155°C | 100 kHz | - | Surface Mount | - | 1.098" L x 0.780" W (27.90mm x 19.80mm) | 0.748" (19.00mm) |
|
78439346047WE-XHMA SMT POWER INDUCTOR 6060; |
258 |
|
Datasheet |
WE-XHMA | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal Composite | 4.7 µH | ±20% | 7.4 A | 13A | Shielded | 13mOhm | - | 28MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.262" L x 0.254" W (6.65mm x 6.45mm) | 0.240" (6.10mm) |
|
2202-V-RCFIXED IND 12UH 12A 8 MOHM TH |
215 |
|
Datasheet |
2200 | Radial, Vertical (Open) | Bulk | Active | Toroidal | Iron Powder | 12 µH | ±15% | 12 A | - | Shielded | 8mOhm Max | - | - | - | -55°C ~ 105°C | 1 kHz | - | Through Hole | - | 0.950" Dia x 0.550" W (24.13mm x 13.97mm) | - |
|
|
2201-V-RCFIXED IND 10UH 12.5A 7 MOHM TH |
140 |
|
Datasheet |
2200 | Radial, Vertical (Open) | Bulk | Active | Toroidal | Iron Powder | 10 µH | ±15% | 12.5 A | - | Shielded | 7mOhm Max | - | - | - | -55°C ~ 105°C | 1 kHz | - | Through Hole | - | 0.950" Dia x 0.550" W (24.13mm x 13.97mm) | - |
|
PE-54038NLFIXED IND 77UH 2.7A 90 MOHM TH |
811 |
|
Datasheet |
- | Radial, Vertical (Open) | Tray | Active | Toroidal | - | 77 µH | ±20% | 2.7 A | - | Shielded | 90mOhm | - | - | - | -40°C ~ 130°C | 20 kHz | - | Through Hole | - | 0.830" L x 0.450" W (21.09mm x 11.43mm) | 0.950" (24.13mm) |
|

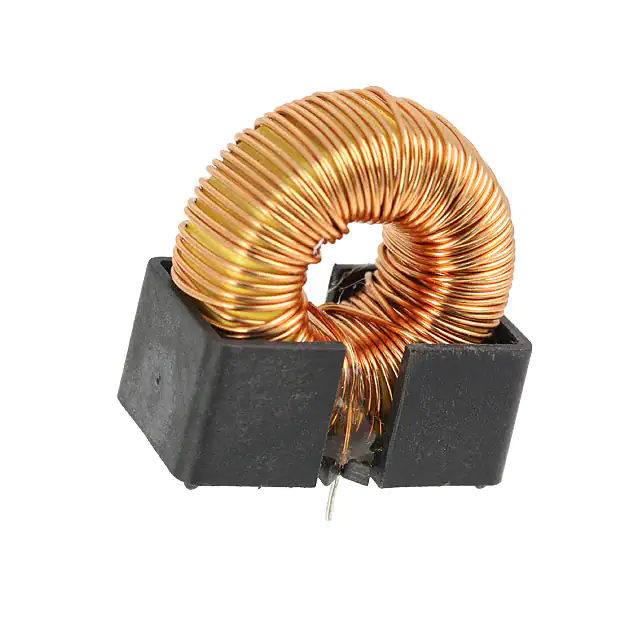

PE-53119NLFIXED IND 680UH 1.3A 200 MOHM TH |
854 |
|
Datasheet |
- | Radial, Vertical (Open) | Tube | Active | Toroidal | - | 680 µH | ±20% | 1.3 A | - | Unshielded | 200mOhm Max | - | - | - | -40°C ~ 130°C | - | - | Through Hole | - | 1.300" L x 0.700" W (33.02mm x 17.78mm) | 1.400" (35.56mm) |
|
IHLP6767GZER150M5AFIXED IND 15UH 12.5A 16.96 MOHM |
513 |
|
Datasheet |
IHLP-6767GZ-5A | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 15 µH | ±20% | 12.5 A | 13A | Shielded | 16.96mOhm Max | - | 8.55MHz | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.675" L x 0.675" W (17.15mm x 17.15mm) | 0.276" (7.00mm) |
|
PE-54039SNLTFIXED IND 53UH 3A 80 MOHM SMD |
1,193 |
|
Datasheet |
- | Nonstandard | Tape & Reel (TR) | Active | Toroidal | - | 53 µH | ±20% | 3 A | - | Shielded | 80mOhm | - | - | - | -40°C ~ 130°C | - | - | Surface Mount | - | 0.940" L x 0.940" W (23.88mm x 23.88mm) | 0.400" (10.16mm) |
|
PG1083.152NLFIXED IND 1.5UH 40A 1.4 MOHM SMD |
1,031 |
|
Datasheet |
PG1083NL | Nonstandard | Tray | Active | Wirewound | - | 1.5 µH | ±20% | 40 A | 52A | Unshielded | 1.4mOhm Max | - | - | - | -40°C ~ 130°C | 100 kHz | - | Surface Mount | - | 0.854" L x 0.846" W (21.70mm x 21.50mm) | 0.417" (10.60mm) |
|
HC9-330-RFIXED IND 33UH 4.42A 48.8MOHM SM |
314 |
|
Datasheet |
HC9 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Iron Powder | 33 µH | ±15% | 4.42 A | 7A | Unshielded | 48.8mOhm Max | - | - | - | -40°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.555" L x 0.516" W (14.10mm x 13.10mm) | 0.295" (7.50mm) |
|
SPM12565VT-100M-DFIXED IND 10UH 9A 0.017OHM SMD |
500 |
|
Datasheet |
SPM-VT-D | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal Composite | 10 µH | ±20% | 9 A | 16.7A | Shielded | 17mOhm | - | - | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | 1256 | 0.512" L x 0.492" W (13.00mm x 12.50mm) | 0.256" (6.50mm) |
|
IHA305BAFIXED IND 100UH 4.2A 70 MOHM TH |
160 |
|
Datasheet |
IHA | Axial | Bulk | Active | Drum Core, Wirewound | Ferrite | 100 µH | ±10% | 4.2 A | - | Unshielded | 70mOhm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | - | 0.550" Dia x 1.175" L (13.97mm x 29.85mm) | - |
|
PA4344.472ANLTFIXED IND 4.7UH 28A 4.5 MOHM SMD |
788 |
|
Datasheet |
PA4344.XXXANLT | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 4.7 µH | ±20% | 28 A | 29A | Shielded | 4.5mOhm Max | - | - | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.701" L x 0.665" W (17.80mm x 16.90mm) | 0.276" (7.00mm) |
|
|
PA4344.471ANLTFIXED IND 470NH 60A 0.9 MOHM SMD |
522 |
|
Datasheet |
PA4344.XXXANLT | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 470 nH | ±20% | 60 A | 110A | Shielded | 0.9mOhm Max | - | - | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.701" L x 0.665" W (17.80mm x 16.90mm) | 0.276" (7.00mm) |
|
SC30220KTFIXED IND 22UH 232MA 3.3 OHM TH |
773 |
|
Datasheet |
SC30, Sigma Inductors | Axial | Cut Tape (CT) | Active | - | - | 22 µH | ±10% | 232 mA | - | Shielded | 3.3Ohm Max | 50 @ 2.5MHz | 25MHz | - | -55°C ~ 100°C | 2.5 MHz | - | Through Hole | - | 0.165" Dia x 0.394" L (4.20mm x 10.00mm) | - |
|
|
SC30100KTFIXED IND 10UH 219MA 3.7 OHM TH |
501 |
|
Datasheet |
SC30, Sigma Inductors | Axial | Cut Tape (CT) | Active | - | - | 10 µH | ±10% | 219 mA | - | Shielded | 3.7Ohm Max | 55 @ 7.9MHz | 50MHz | - | -55°C ~ 100°C | 7.9 MHz | - | Through Hole | - | 0.165" Dia x 0.394" L (4.20mm x 10.00mm) | - |
|
|
IHLP6767GZER100M5AFIXED IND 10UH 16A 10.91MOHM SMD |
401 |
|
Datasheet |
IHLP-6767GZ-5A | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 10 µH | ±20% | 16 A | 20A | Shielded | 10.91mOhm Max | - | 7.7MHz | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.675" L x 0.675" W (17.15mm x 17.15mm) | 0.276" (7.00mm) |
|
74439358010FIXED IND 1UH 17A 2.1 MOHM SMD |
2,810 |
|
Datasheet |
WE-XHMI | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal Composite | 1 µH | ±20% | 17 A | 34A | Shielded | 2.1mOhm | - | 51MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 8080 | 0.346" L x 0.327" W (8.80mm x 8.30mm) | 0.315" (8.00mm) |
|
IHSM4825ER2R2LFIXED IND 2.2UH 5.7A 29 MOHM SMD |
963 |
|
Datasheet |
IHSM-4825 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 2.2 µH | ±15% | 5.7 A | 2.9A | Unshielded | 29mOhm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.540" L x 0.250" W (13.72mm x 6.35mm) | 0.225" (5.72mm) |
|
|
SPM12565VT-220M-DFIXED IND 22UH 6.9A 0.031OHM SMD |
652 |
|
Datasheet |
SPM-VT-D | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal Composite | 22 µH | ±20% | 6.9 A | 10.4A | Shielded | 31mOhm | - | - | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | 1256 | 0.512" L x 0.492" W (13.00mm x 12.50mm) | 0.256" (6.50mm) |
Fixed Inductors Electronic Components
Frequently Asked Questions
Q1: What products are included in Fixed Inductors?
This category includes related Fixed Inductors subcategories and electronic components from multiple manufacturers. Select a lower-level category to view available part numbers.
Q2: Can I request a quotation for Fixed Inductors components?
Yes. Send us the part numbers and required quantities, and our team will provide sourcing and quotation support.
Q3: Are datasheets and technical information available?
Yes. Datasheets and technical information are available on supported final product pages and product listings.
Q4: Do you support BOM sourcing?
Yes. We support BOM matching, component procurement and alternative sourcing for Fixed Inductors and other electronic components.
