Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SPM12565VT-3R3M-DFIXED IND 3.3UH 16.8A 0.0049OHM |
488 |
|
Datasheet |
SPM-VT-D | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal Composite | 3.3 µH | ±20% | 16.8 A | 25.5A | Shielded | 4.9mOhm | - | - | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | 1256 | 0.512" L x 0.492" W (13.00mm x 12.50mm) | 0.256" (6.50mm) |
|
PE-53829NLFIXED IND 112UH 1.26A 300MOHM TH |
197 |
|
Datasheet |
- | Radial, Vertical - Corner Terminals | Tube | Active | Toroidal | - | 112 µH | ±20% | 1.26 A | - | Shielded | 300mOhm | - | - | - | -40°C ~ 130°C | - | - | Through Hole | - | 0.635" L x 0.635" W (16.13mm x 16.13mm) | 0.365" (9.27mm) |
|
4922R-12LFIXED IND 8.2UH 2.51A 63MOHM SMD |
3,866 |
|
Datasheet |
4922R | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 8.2 µH | ±15% | 2.51 A | 2.51A | Unshielded | 63mOhm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.505" L x 0.240" W (12.82mm x 6.09mm) | 0.230" (5.84mm) |
|
|
4922R-13LFIXED IND 10UH 2.36A 71 MOHM SMD |
1,579 |
|
Datasheet |
4922R | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 10 µH | ±15% | 2.36 A | 2.36A | Unshielded | 71mOhm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.505" L x 0.240" W (12.82mm x 6.09mm) | 0.230" (5.84mm) |
|
|
4922R-18LFIXED IND 27UH 1.48A 179MOHM SMD |
840 |
|
Datasheet |
4922R | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 27 µH | ±15% | 1.48 A | 1.48A | Unshielded | 179mOhm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.505" L x 0.240" W (12.82mm x 6.09mm) | 0.230" (5.84mm) |
|
|
4922R-05LFIXED IND 2.2UH 3.7A 29 MOHM SMD |
800 |
|
Datasheet |
4922R | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 2.2 µH | ±15% | 3.7 A | 3.7A | Unshielded | 29mOhm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.505" L x 0.240" W (12.82mm x 6.09mm) | 0.230" (5.84mm) |
|
|
4922R-24LFIXED IND 82UH 810MA 604MOHM SMD |
778 |
|
Datasheet |
4922R | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 82 µH | ±15% | 810 mA | 810mA | Unshielded | 604mOhm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.505" L x 0.240" W (12.82mm x 6.09mm) | 0.230" (5.84mm) |
|
HCM1A1707V2-4R7-RFIXED IND 4.7UH 18A 4.72MOHM SMD |
454 |
|
Datasheet |
HCM1AV2 | Nonstandard | Tape & Reel (TR) | Active | - | Iron Powder | 4.7 µH | ±20% | 18 A | 27A | Shielded | 4.72mOhm Max | - | 12MHz | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.675" L x 0.675" W (17.15mm x 17.15mm) | 0.276" (7.00mm) |
|
|
4922R-29LFIXED IND 220UH 500MA 1.58OHM SM |
268 |
|
Datasheet |
4922R | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 220 µH | ±15% | 500 mA | 500mA | Unshielded | 1.58Ohm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.505" L x 0.240" W (12.82mm x 6.09mm) | 0.230" (5.84mm) |
|
IHD3EB331LFIXED IND 330UH 1.6A 257 MOHM TH |
240 |
|
Datasheet |
IHD | Axial | Bulk | Active | Drum Core, Wirewound | Ferrite | 330 µH | ±15% | 1.6 A | 950mA | Unshielded | 257mOhm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | - | 0.460" Dia x 0.900" L (11.68mm x 22.86mm) | - |
|
2224-V-RCFIXED IND 1MH 1.9A 280 MOHM TH |
156 |
|
Datasheet |
2200 | Radial, Vertical (Open) | Bulk | Active | Toroidal | Iron Powder | 1 mH | ±15% | 1.9 A | - | Shielded | 280mOhm Max | - | - | - | -55°C ~ 105°C | 1 kHz | - | Through Hole | - | 0.950" Dia x 0.550" W (24.13mm x 13.97mm) | - |
|
|
2220-V-RCFIXED IND 470UH 2.3A 190 MOHM TH |
145 |
|
Datasheet |
2200 | Radial, Vertical (Open) | Bulk | Active | Toroidal | Iron Powder | 470 µH | ±15% | 2.3 A | - | Shielded | 190mOhm Max | - | - | - | -55°C ~ 105°C | 1 kHz | - | Through Hole | - | 0.950" Dia x 0.550" W (24.13mm x 13.97mm) | - |
|
SHBC12-1R0A0051VCMC 51UH 5A 2LN TH |
12 |
|
Datasheet |
SHBC | Radial, Vertical (Open) | Bulk | Active | Toroidal | Alloy Powder | 51 µH | ±20% | 5 A | - | Unshielded | 28mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Through Hole | Radial | 1.024" Dia (26.00mm) | 1.024" (26.00mm) |
|

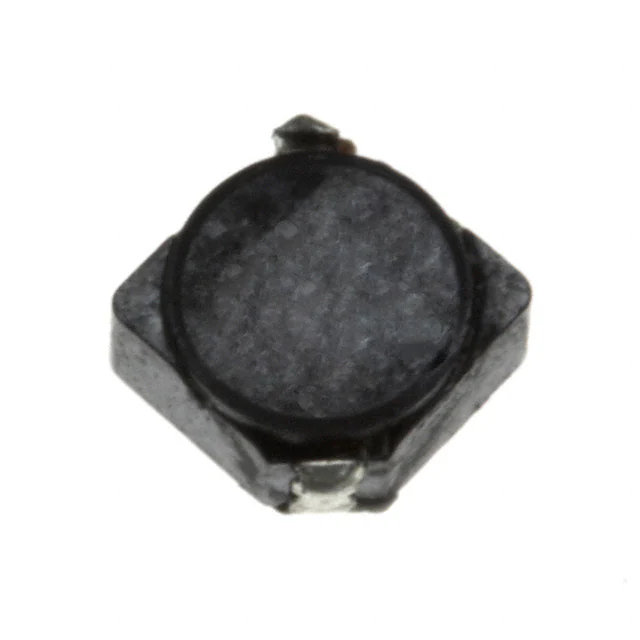

SPD42R-473MFIXED IND 47UH 280MA 320MOHM SMD |
1,470 |
|
Datasheet |
SPD42R | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 47 µH | ±20% | 280 mA | 280mA | Shielded | 320mOhm Max | - | 16MHz | - | -55°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.185" L x 0.185" W (4.70mm x 4.70mm) | 0.115" (2.92mm) |
|
|
SPD42R-103MFIXED IND 10UH 580MA 83 MOHM SMD |
950 |
|
Datasheet |
SPD42R | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 10 µH | ±20% | 580 mA | 580mA | Shielded | 83mOhm Max | - | 37MHz | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.185" L x 0.185" W (4.70mm x 4.70mm) | 0.115" (2.92mm) |
|

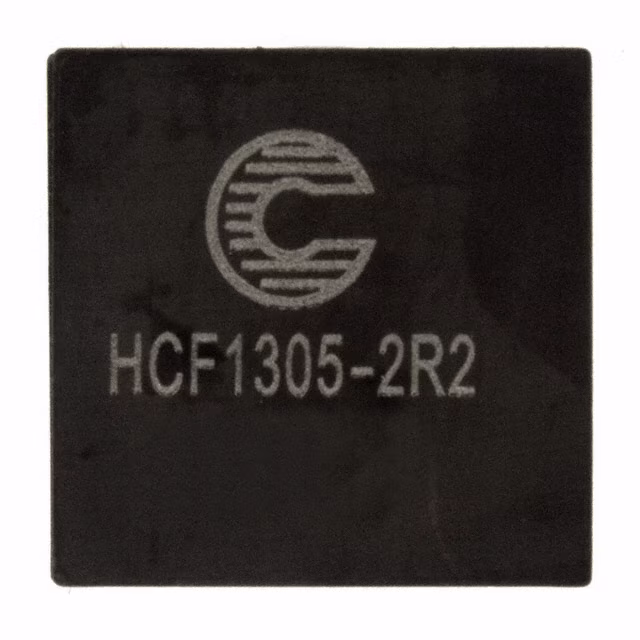

HCF1305-2R2-RFIXED IND 2.2UH 16.3A 3.1MOHM SM |
3,459 |
|
Datasheet |
HCF1305 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 2.2 µH | ±20% | 16.3 A | 15A | Unshielded | 3.1mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.197" (5.00mm) |
|
78439358047WE-XHMA SMT POWER INDUCTOR 8080; |
433 |
|
Datasheet |
WE-XHMA | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal Composite | 4.7 µH | ±20% | 9.5 A | 16.65A | Shielded | 8.65mOhm | - | 22MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.346" L x 0.327" W (8.80mm x 8.30mm) | 0.315" (8.00mm) |
|
|
78439358100WE-XHMA SMT POWER INDUCTOR 8080; |
399 |
|
Datasheet |
WE-XHMA | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal Composite | 10 µH | ±20% | 5.8 A | 13.5A | Shielded | 19mOhm | - | 17MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.346" L x 0.327" W (8.80mm x 8.30mm) | 0.315" (8.00mm) |
|
PA2050.413NLFIXED IND 41UH 6A 23.1 MOHM SMD |
238 |
|
Datasheet |
PA2050NL | Nonstandard | Tray | Active | Wirewound | - | 41 µH | ±10% | 6 A | 7.3A | Shielded | 23.1mOhm | - | - | - | -40°C ~ 130°C | - | - | Surface Mount | - | 0.875" L x 0.750" W (22.23mm x 19.05mm) | 0.480" (12.20mm) |
|
PA2247.103NLTFIXED IND 10UH 24A 8.6 MOHM SMD |
1,215 |
|
Datasheet |
PA2247.XXXNLT | Nonstandard | Tape & Reel (TR) | Active | - | - | 10 µH | ±20% | 24 A | 26A | Unshielded | 8.6mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.650" L x 0.610" W (16.50mm x 15.50mm) | 0.394" (10.00mm) |
Fixed Inductors Electronic Components
Frequently Asked Questions
Q1: What products are included in Fixed Inductors?
This category includes related Fixed Inductors subcategories and electronic components from multiple manufacturers. Select a lower-level category to view available part numbers.
Q2: Can I request a quotation for Fixed Inductors components?
Yes. Send us the part numbers and required quantities, and our team will provide sourcing and quotation support.
Q3: Are datasheets and technical information available?
Yes. Datasheets and technical information are available on supported final product pages and product listings.
Q4: Do you support BOM sourcing?
Yes. We support BOM matching, component procurement and alternative sourcing for Fixed Inductors and other electronic components.
