Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
6701FIXED IND 10UH 11A 8 MOHM TH |
0 |
|
Datasheet |
6700 | Radial, Vertical, 4 Leads (Open) | Bulk | Obsolete | Toroidal | Iron Powder | 10 µH | ±15% | 11 A | - | Shielded | 8mOhm Max | - | - | - | -55°C ~ 105°C | 1 kHz | - | Through Hole | - | 0.875" L x 0.425" W (22.22mm x 10.80mm) | 1.000" (25.40mm) |
|
|
6702FIXED IND 25UH 5.5A 14 MOHM TH |
0 |
|
Datasheet |
6700 | Radial, Vertical, 4 Leads (Open) | Bulk | Obsolete | Toroidal | Iron Powder | 25 µH | ±15% | 5.5 A | - | Shielded | 14mOhm Max | - | - | - | -55°C ~ 105°C | 1 kHz | - | Through Hole | - | 0.875" L x 0.425" W (22.22mm x 10.80mm) | 1.000" (25.40mm) |
|
|
6706FIXED IND 25UH 9A 12 MOHM TH |
0 |
|
Datasheet |
6700 | Radial, Vertical, 4 Leads (Open) | Bulk | Obsolete | Toroidal | Iron Powder | 25 µH | ±15% | 9 A | - | Shielded | 12mOhm Max | - | - | - | -55°C ~ 105°C | 1 kHz | - | Through Hole | - | 1.125" L x 0.600" W (28.58mm x 15.24mm) | 1.250" (31.75mm) |
|
|
6707FIXED IND 75UH 5A 40 MOHM TH |
0 |
|
Datasheet |
6700 | Radial, Vertical, 4 Leads (Open) | Bulk | Obsolete | Toroidal | Iron Powder | 75 µH | ±15% | 5 A | - | Shielded | 40mOhm Max | - | - | - | -55°C ~ 105°C | 1 kHz | - | Through Hole | - | 1.125" L x 0.600" W (28.58mm x 15.24mm) | 1.250" (31.75mm) |
|
|
6708FIXED IND 400UH 2.25A 330MOHM TH |
0 |
|
Datasheet |
6700 | Radial, Vertical, 4 Leads (Open) | Bulk | Obsolete | Toroidal | Iron Powder | 400 µH | ±15% | 2.25 A | - | Shielded | 330mOhm Max | - | - | - | -55°C ~ 105°C | 1 kHz | - | Through Hole | - | 1.125" L x 0.600" W (28.58mm x 15.24mm) | 1.250" (31.75mm) |
|
|
6710FIXED IND 1MH 1.5A 980 MOHM TH |
0 |
|
Datasheet |
6700 | Radial, Vertical, 4 Leads (Open) | Bulk | Obsolete | Toroidal | Iron Powder | 1 mH | ±15% | 1.5 A | - | Shielded | 980mOhm Max | - | - | - | -55°C ~ 105°C | 1 kHz | - | Through Hole | - | 1.125" L x 0.600" W (28.58mm x 15.24mm) | 1.250" (31.75mm) |
|
|
6711FIXED IND 50UH 9.5A 12 MOHM TH |
0 |
|
Datasheet |
6700 | Radial, Vertical, 4 Leads (Open) | Bulk | Obsolete | Toroidal | Iron Powder | 50 µH | ±15% | 9.5 A | - | Shielded | 12mOhm Max | - | - | - | -55°C ~ 105°C | 1 kHz | - | Through Hole | - | 1.250" L x 0.800" W (31.75mm x 20.32mm) | 1.375" (34.93mm) |
|
|
6712FIXED IND 150UH 4.75A 46 MOHM TH |
0 |
|
Datasheet |
6700 | Radial, Vertical, 4 Leads (Open) | Bulk | Obsolete | Toroidal | Iron Powder | 150 µH | ±15% | 4.75 A | - | Shielded | 46mOhm Max | - | - | - | -55°C ~ 105°C | 1 kHz | - | Through Hole | - | 1.250" L x 0.800" W (31.75mm x 20.32mm) | 1.375" (34.93mm) |
|
|
6717FIXED IND 500UH 4A 150 MOHM TH |
0 |
|
Datasheet |
6700 | Radial, Vertical, 4 Leads (Open) | Bulk | Obsolete | Toroidal | Iron Powder | 500 µH | ±15% | 4 A | - | Shielded | 150mOhm Max | - | - | - | -55°C ~ 105°C | 1 kHz | - | Through Hole | - | 1.812" L x 0.900" W (46.02mm x 22.86mm) | 1.950" (49.53mm) |
|
|
6721FIXED IND 250UH 8A 41 MOHM TH |
0 |
|
Datasheet |
6700 | Radial, Vertical, 4 Leads (Open) | Bulk | Obsolete | Toroidal | Iron Powder | 250 µH | ±15% | 8 A | - | Shielded | 41mOhm Max | - | - | - | -55°C ~ 105°C | 1 kHz | - | Through Hole | - | 2.125" L x 1.100" W (53.97mm x 27.94mm) | 2.250" (57.15mm) |
|
|
6726FIXED IND 25UH 2.5A 40 MOHM TH |
0 |
|
Datasheet |
6700 | Radial, Vertical, 4 Leads (Open) | Bulk | Obsolete | Toroidal | Iron Powder | 25 µH | ±15% | 2.5 A | - | Shielded | 40mOhm Max | - | - | - | -55°C ~ 105°C | 1 kHz | - | Through Hole | - | 0.550" L x 0.425" W (13.97mm x 10.80mm) | 1.000" (25.40mm) |
|
|
6728FIXED IND 50UH 2.5A 60 MOHM TH |
0 |
|
Datasheet |
6700 | Radial, Vertical, 4 Leads (Open) | Bulk | Obsolete | Toroidal | Iron Powder | 50 µH | ±15% | 2.5 A | - | Shielded | 60mOhm Max | - | - | - | -55°C ~ 105°C | 1 kHz | - | Through Hole | - | 0.750" L x 0.425" W (19.05mm x 10.80mm) | 1.000" (25.40mm) |
|
|
6729FIXED IND 100UH 2.5A 80 MOHM TH |
0 |
|
Datasheet |
6700 | Radial, Vertical, 4 Leads (Open) | Bulk | Obsolete | Toroidal | Iron Powder | 100 µH | ±15% | 2.5 A | - | Shielded | 80mOhm Max | - | - | - | -55°C ~ 105°C | 1 kHz | - | Through Hole | - | 0.850" L x 0.425" W (21.59mm x 10.80mm) | 1.000" (25.40mm) |
|
PM105-120MFIXED IND 12UH 2.45A 70 MOHM SMD |
0 |
|
Datasheet |
PM105 | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 12 µH | ±20% | 2.45 A | - | Unshielded | 70mOhm | - | 23MHz | - | -30°C ~ 100°C | 2.52 MHz | - | Surface Mount | - | 0.386" L x 0.386" W (9.80mm x 9.80mm) | 0.228" (5.80mm) |
|
|
PM105-180MFIXED IND 18UH 2.15A 90 MOHM SMD |
0 |
|
Datasheet |
PM105 | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 18 µH | ±20% | 2.15 A | - | Unshielded | 90mOhm | - | 18MHz | - | -30°C ~ 100°C | 2.52 MHz | - | Surface Mount | - | 0.386" L x 0.386" W (9.80mm x 9.80mm) | 0.228" (5.80mm) |
|
|
PM105-270MFIXED IND 27UH 1.76A 110MOHM SMD |
0 |
|
Datasheet |
PM105 | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 27 µH | ±20% | 1.76 A | - | Unshielded | 110mOhm | - | 14MHz | - | -30°C ~ 100°C | 2.52 MHz | - | Surface Mount | - | 0.386" L x 0.386" W (9.80mm x 9.80mm) | 0.228" (5.80mm) |
|
|
PM105-560KFIXED IND 56UH 1.17A 190MOHM SMD |
0 |
|
Datasheet |
PM105 | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 56 µH | ±10% | 1.17 A | - | Unshielded | 190mOhm | - | 10MHz | - | -30°C ~ 100°C | 2.52 MHz | - | Surface Mount | - | 0.386" L x 0.386" W (9.80mm x 9.80mm) | 0.228" (5.80mm) |
|
|
PM105-331KFIXED IND 330UH 520MA 1.15OHM SM |
0 |
|
Datasheet |
PM105 | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 330 µH | ±10% | 520 mA | - | Unshielded | 1.15Ohm | - | 4MHz | - | -30°C ~ 100°C | 1 kHz | - | Surface Mount | - | 0.386" L x 0.386" W (9.80mm x 9.80mm) | 0.228" (5.80mm) |
|
|
PM105-391KFIXED IND 390UH 480MA 1.3OHM SMD |
0 |
|
Datasheet |
PM105 | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 390 µH | ±10% | 480 mA | - | Unshielded | 1.3Ohm | - | 3MHz | - | -30°C ~ 100°C | 1 kHz | - | Surface Mount | - | 0.386" L x 0.386" W (9.80mm x 9.80mm) | 0.228" (5.80mm) |
|

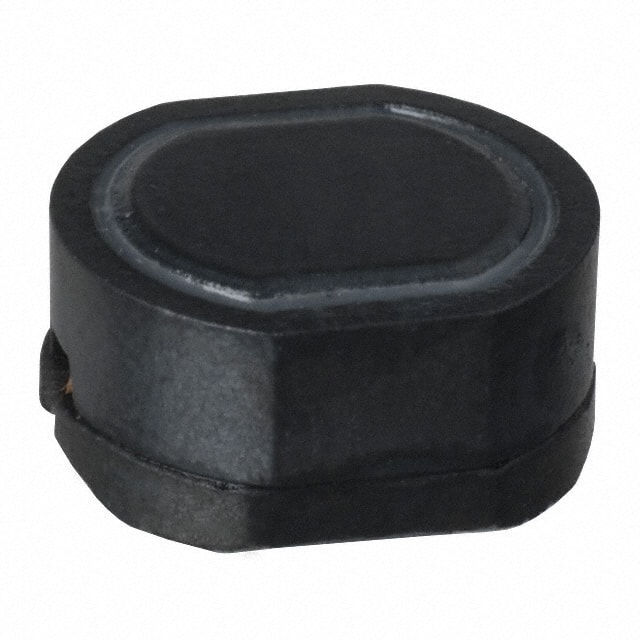

PM105S-390MFIXED IND 39UH 1.28A 160MOHM SMD |
0 |
|
Datasheet |
PM105S | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 39 µH | ±20% | 1.28 A | - | Shielded | 160mOhm Max | - | 15MHz | - | -30°C ~ 100°C | 2.52 MHz | - | Surface Mount | - | 0.394" L x 0.362" W (10.00mm x 9.20mm) | 0.217" (5.50mm) |
Fixed Inductors Electronic Components
Frequently Asked Questions
Q1: What products are included in Fixed Inductors?
This category includes related Fixed Inductors subcategories and electronic components from multiple manufacturers. Select a lower-level category to view available part numbers.
Q2: Can I request a quotation for Fixed Inductors components?
Yes. Send us the part numbers and required quantities, and our team will provide sourcing and quotation support.
Q3: Are datasheets and technical information available?
Yes. Datasheets and technical information are available on supported final product pages and product listings.
Q4: Do you support BOM sourcing?
Yes. We support BOM matching, component procurement and alternative sourcing for Fixed Inductors and other electronic components.
