Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

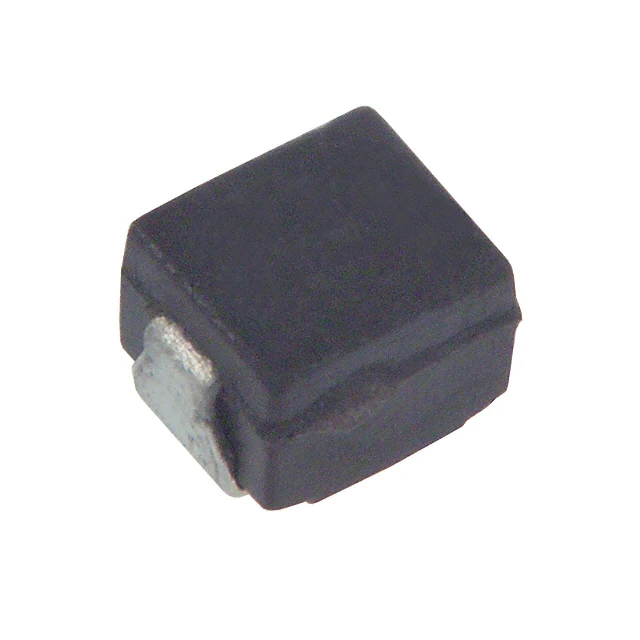

ELJ-SC330KFFIXED IND 33UH 14MA 5.2 OHM SMD |
0 |
|
Datasheet |
SC | 1008 (2520 Metric) | Tape & Reel (TR) | Obsolete | - | - | 33 µH | ±10% | 14 mA | - | Shielded | 5.2Ohm Max | 40 @ 2.52MHz | 18MHz | - | - | 2.52 MHz | - | Surface Mount | 1008 (2520 Metric) | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.071" (1.80mm) |
|
|
ELJ-SC560KFFIXED IND 56UH 10MA 7.1 OHM SMD |
0 |
|
Datasheet |
SC | 1008 (2520 Metric) | Tape & Reel (TR) | Obsolete | - | - | 56 µH | ±10% | 10 mA | - | Shielded | 7.1Ohm Max | 40 @ 2.52MHz | 13MHz | - | - | 2.52 MHz | - | Surface Mount | 1008 (2520 Metric) | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.071" (1.80mm) |
|
|
ELJ-SC470KFFIXED IND 47UH 12MA 6.6 OHM SMD |
0 |
|
Datasheet |
SC | 1008 (2520 Metric) | Tape & Reel (TR) | Obsolete | - | - | 47 µH | ±10% | 12 mA | - | Shielded | 6.6Ohm Max | 40 @ 2.52MHz | 14MHz | - | - | 2.52 MHz | - | Surface Mount | 1008 (2520 Metric) | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.071" (1.80mm) |
|
ELJ-FC5R6KFFIXED IND 5.6UH 120MA 1.75OHM SM |
0 |
|
Datasheet |
FC | 1008 (2520 Metric) | Tape & Reel (TR) | Obsolete | Wirewound | - | 5.6 µH | ±10% | 120 mA | - | Unshielded | 1.75Ohm Max | 25 @ 7.96MHz | 50MHz | - | -20°C ~ 85°C | 7.96 MHz | - | Surface Mount | 1008 (2520 Metric) | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.071" (1.80mm) |
|
|
ELJ-FC2R7KFFIXED IND 2.7UH 145MA 1.2OHM SMD |
0 |
|
Datasheet |
FC | 1008 (2520 Metric) | Tape & Reel (TR) | Obsolete | Wirewound | - | 2.7 µH | ±10% | 145 mA | - | Unshielded | 1.2Ohm Max | 25 @ 7.96MHz | 75MHz | - | -20°C ~ 85°C | 7.96 MHz | - | Surface Mount | 1008 (2520 Metric) | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.071" (1.80mm) |
|
|
ELJ-FC1R5KFFIXED IND 1.5UH 170MA 850MOHM SM |
0 |
|
Datasheet |
FC | 1008 (2520 Metric) | Tape & Reel (TR) | Obsolete | Wirewound | - | 1.5 µH | ±10% | 170 mA | - | Unshielded | 850mOhm Max | 25 @ 7.96MHz | 90MHz | - | -20°C ~ 85°C | 7.96 MHz | - | Surface Mount | 1008 (2520 Metric) | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.071" (1.80mm) |
|
|
ELJ-FC3R9KFFIXED IND 3.9UH 130MA 1.4OHM SMD |
0 |
|
Datasheet |
FC | 1008 (2520 Metric) | Tape & Reel (TR) | Obsolete | Wirewound | - | 3.9 µH | ±10% | 130 mA | - | Unshielded | 1.4Ohm Max | 25 @ 7.96MHz | 60MHz | - | -20°C ~ 85°C | 7.96 MHz | - | Surface Mount | 1008 (2520 Metric) | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.071" (1.80mm) |
|
|
ELJ-FC1R8KFFIXED IND 1.8UH 160MA 950MOHM SM |
0 |
|
Datasheet |
FC | 1008 (2520 Metric) | Tape & Reel (TR) | Obsolete | Wirewound | - | 1.8 µH | ±10% | 160 mA | - | Unshielded | 950mOhm Max | 25 @ 7.96MHz | 85MHz | - | -20°C ~ 85°C | 7.96 MHz | - | Surface Mount | 1008 (2520 Metric) | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.071" (1.80mm) |
|
|
ELJ-FC1R2KFFIXED IND 1.2UH 180MA 750MOHM SM |
0 |
|
Datasheet |
FC | 1008 (2520 Metric) | Tape & Reel (TR) | Obsolete | Wirewound | - | 1.2 µH | ±10% | 180 mA | - | Unshielded | 750mOhm Max | 25 @ 7.96MHz | 100MHz | - | -20°C ~ 85°C | 7.96 MHz | - | Surface Mount | 1008 (2520 Metric) | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.071" (1.80mm) |
|
ELJ-PC2R2MFFIXED IND 2.2UH 390MA 650MOHM SM |
0 |
|
Datasheet |
PC | 1008 (2520 Metric) | Tape & Reel (TR) | Obsolete | Wirewound | - | 2.2 µH | ±20% | 390 mA | - | Unshielded | 650mOhm Max | 10 @ 7.96MHz | 65MHz | - | -20°C ~ 85°C | 7.96 MHz | - | Surface Mount | 1008 (2520 Metric) | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.071" (1.80mm) |
|
|
ELJ-PC220KFFIXED IND 22UH 160MA 4 OHM SMD |
0 |
|
Datasheet |
PC | 1008 (2520 Metric) | Tape & Reel (TR) | Obsolete | Wirewound | - | 22 µH | ±10% | 160 mA | - | Unshielded | 4Ohm Max | 20 @ 2.52MHz | 18MHz | - | -20°C ~ 85°C | 2.52 MHz | - | Surface Mount | 1008 (2520 Metric) | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.071" (1.80mm) |
|
|
ELJ-PC330KFFIXED IND 33UH 120MA 6.5 OHM SMD |
0 |
|
Datasheet |
PC | 1008 (2520 Metric) | Tape & Reel (TR) | Obsolete | Wirewound | - | 33 µH | ±10% | 120 mA | - | Unshielded | 6.5Ohm Max | 20 @ 2.52MHz | 16MHz | - | -20°C ~ 85°C | 2.52 MHz | - | Surface Mount | 1008 (2520 Metric) | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.071" (1.80mm) |
|
ELJ-SA120KFFIXED IND 12UH 17MA 2 OHM SMD |
0 |
|
Datasheet |
SA | 1210 (3225 Metric) | Tape & Reel (TR) | Obsolete | - | - | 12 µH | ±10% | 17 mA | - | Shielded | 2Ohm Max | 40 @ 5MHz | 28MHz | - | - | 1 MHz | - | Surface Mount | - | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.094" (2.40mm) |
|
|
ELJ-SA180KFFIXED IND 18UH 13MA 2.5 OHM SMD |
0 |
|
Datasheet |
SA | 1210 (3225 Metric) | Tape & Reel (TR) | Obsolete | - | - | 18 µH | ±10% | 13 mA | - | Shielded | 2.5Ohm Max | 40 @ 5MHz | 23MHz | - | - | 1 MHz | - | Surface Mount | - | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.094" (2.40mm) |
|
|
ELJ-SA270KFFIXED IND 27UH 10MA 3.2 OHM SMD |
0 |
|
Datasheet |
SA | 1210 (3225 Metric) | Tape & Reel (TR) | Obsolete | - | - | 27 µH | ±10% | 10 mA | - | Shielded | 3.2Ohm Max | 40 @ 5MHz | 18MHz | - | - | 1 MHz | - | Surface Mount | - | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.094" (2.40mm) |
|
|
ELJ-SA560KFFIXED IND 56UH 7MA 4.5 OHM SMD |
0 |
|
Datasheet |
SA | 1210 (3225 Metric) | Tape & Reel (TR) | Obsolete | - | - | 56 µH | ±10% | 7 mA | - | Shielded | 4.5Ohm Max | 40 @ 5MHz | 13MHz | - | - | 1 MHz | - | Surface Mount | - | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.094" (2.40mm) |
|
|
ELJ-SA680KFFIXED IND 68UH 6MA 5 OHM SMD |
0 |
|
Datasheet |
SA | 1210 (3225 Metric) | Tape & Reel (TR) | Obsolete | - | - | 68 µH | ±10% | 6 mA | - | Shielded | 5Ohm Max | 40 @ 1.5MHz | 12MHz | - | - | 1 MHz | - | Surface Mount | - | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.094" (2.40mm) |
|
|
ELJ-SA820KFFIXED IND 82UH 6MA 6 OHM SMD |
0 |
|
Datasheet |
SA | 1210 (3225 Metric) | Tape & Reel (TR) | Obsolete | - | - | 82 µH | ±10% | 6 mA | - | Shielded | 6Ohm Max | 40 @ 1.5MHz | 11MHz | - | - | 1 MHz | - | Surface Mount | - | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.094" (2.40mm) |
|
|
ELJ-SA121KFFIXED IND 120UH 5MA 8 OHM SMD |
0 |
|
Datasheet |
SA | 1210 (3225 Metric) | Tape & Reel (TR) | Obsolete | - | - | 120 µH | ±10% | 5 mA | - | Shielded | 8Ohm Max | 40 @ 1.5MHz | 9MHz | - | - | 1 MHz | - | Surface Mount | - | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.094" (2.40mm) |
|
|
ELJ-SA151KFFIXED IND 150UH 5MA 9 OHM SMD |
0 |
|
Datasheet |
SA | 1210 (3225 Metric) | Tape & Reel (TR) | Obsolete | - | - | 150 µH | ±10% | 5 mA | - | Shielded | 9Ohm Max | 40 @ 1.5MHz | 5MHz | - | - | 100 kHz | - | Surface Mount | - | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.094" (2.40mm) |
