Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
5900-223FIXED IND 22MH 150MA 180 OHM TH |
0 |
|
Datasheet |
5900 | Axial | Tray | Obsolete | Drum Core, Wirewound | Ferrite | 22 mH | ±10% | 150 mA | 180mA | Unshielded | 21.8Ohm Max | - | - | - | -55°C ~ 105°C | 1 kHz | - | Through Hole | - | 0.453" Dia x 0.900" L (11.51mm x 22.86mm) | - |
|
|
5900-333FIXED IND 33MH 130MA 25 OHM TH |
0 |
|
Datasheet |
5900 | Axial | Tray | Obsolete | Drum Core, Wirewound | Ferrite | 33 mH | ±10% | 130 mA | 140mA | Unshielded | 25Ohm Max | - | - | - | -55°C ~ 105°C | 1 kHz | - | Through Hole | - | 0.453" Dia x 0.900" L (11.51mm x 22.86mm) | - |
|
|
5900-393FIXED IND 39MH 120MA 31 OHM TH |
0 |
|
Datasheet |
5900 | Axial | Tray | Obsolete | Drum Core, Wirewound | Ferrite | 39 mH | ±10% | 120 mA | 130mA | Unshielded | 31Ohm Max | - | - | - | -55°C ~ 105°C | 1 kHz | - | Through Hole | - | 0.453" Dia x 0.900" L (11.51mm x 22.86mm) | - |
|
|
5900-473FIXED IND 47MH 100MA 40 OHM TH |
0 |
|
Datasheet |
5900 | Axial | Tray | Obsolete | Drum Core, Wirewound | Ferrite | 47 mH | ±10% | 100 mA | 120mA | Unshielded | 40Ohm Max | - | - | - | -55°C ~ 105°C | 1 kHz | - | Through Hole | - | 0.453" Dia x 0.900" L (11.51mm x 22.86mm) | - |
|
|
5900-563FIXED IND 56MH 100MA 45 OHM TH |
0 |
|
Datasheet |
5900 | Axial | Tray | Obsolete | Drum Core, Wirewound | Ferrite | 56 mH | ±10% | 100 mA | 110mA | Unshielded | 45Ohm Max | - | - | - | -55°C ~ 105°C | 1 kHz | - | Through Hole | - | 0.453" Dia x 0.900" L (11.51mm x 22.86mm) | - |
|

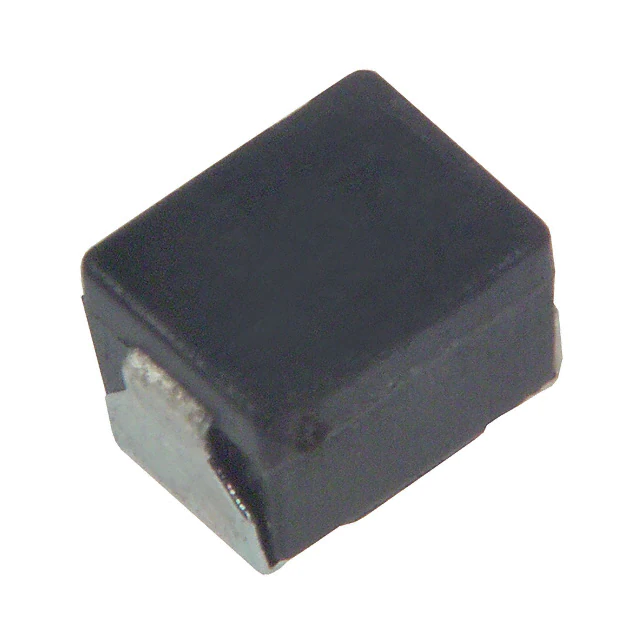

ELJ-NAR22KFFIXED IND 220NH 210MA 900MOHM SM |
0 |
|
Datasheet |
NA | 1210 (3225 Metric) | Tape & Reel (TR) | Obsolete | Wirewound | Non-Magnetic | 220 nH | ±10% | 210 mA | - | Unshielded | 900mOhm Max | 10 @ 25.2MHz | 280MHz | - | - | 1 MHz | - | Surface Mount | - | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.094" (2.40mm) |
|
|
ELJ-NAR27KFFIXED IND 270NH 200MA 1 OHM SMD |
0 |
|
Datasheet |
NA | 1210 (3225 Metric) | Tape & Reel (TR) | Obsolete | Wirewound | Non-Magnetic | 270 nH | ±10% | 200 mA | - | Unshielded | 1Ohm Max | 10 @ 25.2MHz | 250MHz | - | - | 1 MHz | - | Surface Mount | - | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.094" (2.40mm) |
|
|
ELJ-NAR33KFFIXED IND 330NH 190MA 1.1OHM SMD |
0 |
|
Datasheet |
NA | 1210 (3225 Metric) | Tape & Reel (TR) | Obsolete | Wirewound | Non-Magnetic | 330 nH | ±10% | 190 mA | - | Unshielded | 1.1Ohm Max | 10 @ 25.2MHz | 220MHz | - | - | 1 MHz | - | Surface Mount | - | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.094" (2.40mm) |
|
|
ELJ-NAR39KFFIXED IND 390NH 180MA 1.2OHM SMD |
0 |
|
Datasheet |
NA | 1210 (3225 Metric) | Tape & Reel (TR) | Obsolete | Wirewound | Non-Magnetic | 390 nH | ±10% | 180 mA | - | Unshielded | 1.2Ohm Max | 10 @ 25.2MHz | 200MHz | - | - | 1 MHz | - | Surface Mount | - | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.094" (2.40mm) |
|
|
ELJ-NAR47KFFIXED IND 470NH 175MA 1.4OHM SMD |
0 |
|
Datasheet |
NA | 1210 (3225 Metric) | Tape & Reel (TR) | Obsolete | Wirewound | Non-Magnetic | 470 nH | ±10% | 175 mA | - | Unshielded | 1.4Ohm Max | 10 @ 25.2MHz | 180MHz | - | - | 1 MHz | - | Surface Mount | - | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.094" (2.40mm) |
|
|
ELJ-NA1R0JFFIXED IND 1UH 125MA 2.1 OHM SMD |
0 |
|
Datasheet |
NA | 1210 (3225 Metric) | Tape & Reel (TR) | Obsolete | Wirewound | Non-Magnetic | 1 µH | ±5% | 125 mA | - | Unshielded | 2.1Ohm Max | 13 @ 7.96MHz | 120MHz | - | - | 1 MHz | - | Surface Mount | - | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.094" (2.40mm) |
|
|
ELJ-NA1R2JFFIXED IND 1.2UH 120MA 2.3OHM SMD |
0 |
|
Datasheet |
NA | 1210 (3225 Metric) | Tape & Reel (TR) | Obsolete | Wirewound | Non-Magnetic | 1.2 µH | ±5% | 120 mA | - | Unshielded | 2.3Ohm Max | 13 @ 7.96MHz | 110MHz | - | - | 1 MHz | - | Surface Mount | - | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.094" (2.40mm) |
|
ELJ-RE2N2DF2FIXED IND 2.2NH 500MA 90MOHM SMD |
0 |
|
Datasheet |
RE | 0603 (1608 Metric) | Tape & Reel (TR) | Obsolete | Multilayer | Non-Magnetic | 2.2 nH | ±0.3nH | 500 mA | - | Unshielded | 90mOhm Max | 8 @ 100MHz | 6GHz | - | -40°C ~ 85°C | 100 MHz | - | Surface Mount | 0603 (1608 Metric) | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0.031" (0.80mm) |
|
|
ELJ-RE2N7DF2FIXED IND 2.7NH 500MA 100MOHM SM |
0 |
|
Datasheet |
RE | 0603 (1608 Metric) | Tape & Reel (TR) | Obsolete | Multilayer | Non-Magnetic | 2.7 nH | ±0.3nH | 500 mA | - | Unshielded | 100mOhm Max | 8 @ 100MHz | 6GHz | - | -40°C ~ 85°C | 100 MHz | - | Surface Mount | 0603 (1608 Metric) | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0.031" (0.80mm) |
|
|
ELJ-RE3N3DF2FIXED IND 3.3NH 500MA 120MOHM SM |
0 |
|
Datasheet |
RE | 0603 (1608 Metric) | Tape & Reel (TR) | Obsolete | Multilayer | Non-Magnetic | 3.3 nH | ±0.3nH | 500 mA | - | Unshielded | 120mOhm Max | 9 @ 100MHz | 5.5GHz | - | -40°C ~ 85°C | 100 MHz | - | Surface Mount | 0603 (1608 Metric) | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0.031" (0.80mm) |
|
|
ELJ-RE3N9JF2FIXED IND 3.9NH 450MA 150MOHM SM |
0 |
|
Datasheet |
RE | 0603 (1608 Metric) | Tape & Reel (TR) | Obsolete | Multilayer | Non-Magnetic | 3.9 nH | ±5% | 450 mA | - | Unshielded | 150mOhm Max | 9 @ 100MHz | 5.5GHz | - | -40°C ~ 85°C | 100 MHz | - | Surface Mount | 0603 (1608 Metric) | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0.031" (0.80mm) |
|
|
ELJ-RE4N7JF2FIXED IND 4.7NH 450MA 170MOHM SM |
0 |
|
Datasheet |
RE | 0603 (1608 Metric) | Tape & Reel (TR) | Obsolete | Multilayer | Non-Magnetic | 4.7 nH | ±5% | 450 mA | - | Unshielded | 170mOhm Max | 9 @ 100MHz | 4.8GHz | - | -40°C ~ 85°C | 100 MHz | - | Surface Mount | 0603 (1608 Metric) | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0.031" (0.80mm) |
|
|
ELJ-RE5N6JF2FIXED IND 5.6NH 430MA 180MOHM SM |
0 |
|
Datasheet |
RE | 0603 (1608 Metric) | Tape & Reel (TR) | Obsolete | Multilayer | Non-Magnetic | 5.6 nH | ±5% | 430 mA | - | Unshielded | 180mOhm Max | 9 @ 100MHz | 4.6GHz | - | -40°C ~ 85°C | 100 MHz | - | Surface Mount | 0603 (1608 Metric) | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0.031" (0.80mm) |
|
|
ELJ-RE6N8JF2FIXED IND 6.8NH 430MA 200MOHM SM |
0 |
|
Datasheet |
RE | 0603 (1608 Metric) | Tape & Reel (TR) | Obsolete | Multilayer | Non-Magnetic | 6.8 nH | ±5% | 430 mA | - | Unshielded | 200mOhm Max | 9 @ 100MHz | 3.55GHz | - | -40°C ~ 85°C | 100 MHz | - | Surface Mount | 0603 (1608 Metric) | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0.031" (0.80mm) |
|
|
ELJ-RE8N2JF2FIXED IND 8.2NH 400MA 280MOHM SM |
0 |
|
Datasheet |
RE | 0603 (1608 Metric) | Tape & Reel (TR) | Obsolete | Multilayer | Non-Magnetic | 8.2 nH | ±5% | 400 mA | - | Unshielded | 280mOhm Max | 9 @ 100MHz | 3.5GHz | - | -40°C ~ 85°C | 100 MHz | - | Surface Mount | 0603 (1608 Metric) | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0.031" (0.80mm) |
