Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MLRF0603-0036KMIL CERAMIC CHIP INDUCTOR |
0 |
|
Datasheet |
MLRF0603 | 0603 (1608 Metric) | Tape & Reel (TR) | Active | - | Ceramic | 3.6 nH | ±10% | 1 A | - | Unshielded | 70mOhm Max | 22 @ 250MHz | 6GHz | - | -55°C ~ 125°C | 250 MHz | - | Surface Mount | 0603 | 0.071" L x 0.047" W (1.80mm x 1.20mm) | 0.040" (1.02mm) |
|
SD8328-2R5-RFIXED IND 2.5UH 6.6A 15.6MOHM SM |
0 |
|
Datasheet |
SD8328 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 2.5 µH | ±30% | 6.6 A | 4.5A | Shielded | 15.6mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.374" L x 0.327" W (9.50mm x 8.30mm) | 0.118" (3.00mm) |
|

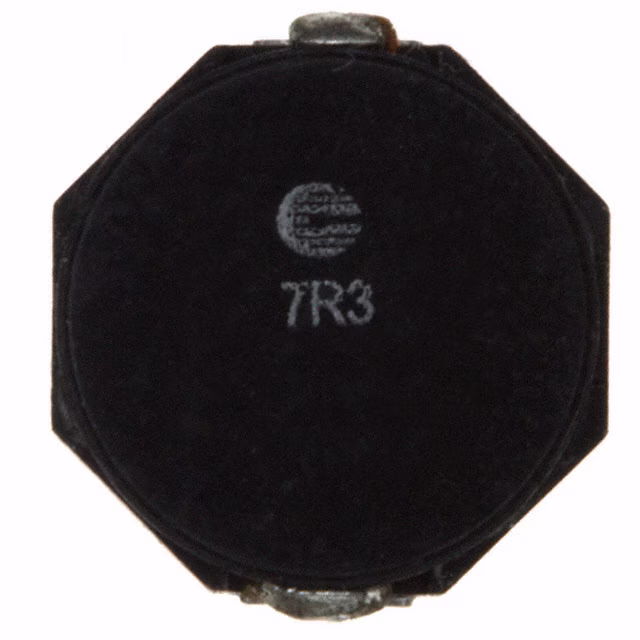

SD8328-7R3-RFIXED IND 7.3UH 3.4A 39 MOHM SMD |
0 |
|
Datasheet |
SD8328 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 7.3 µH | ±30% | 3.4 A | 2.9A | Shielded | 39mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.374" L x 0.327" W (9.50mm x 8.30mm) | 0.118" (3.00mm) |
|

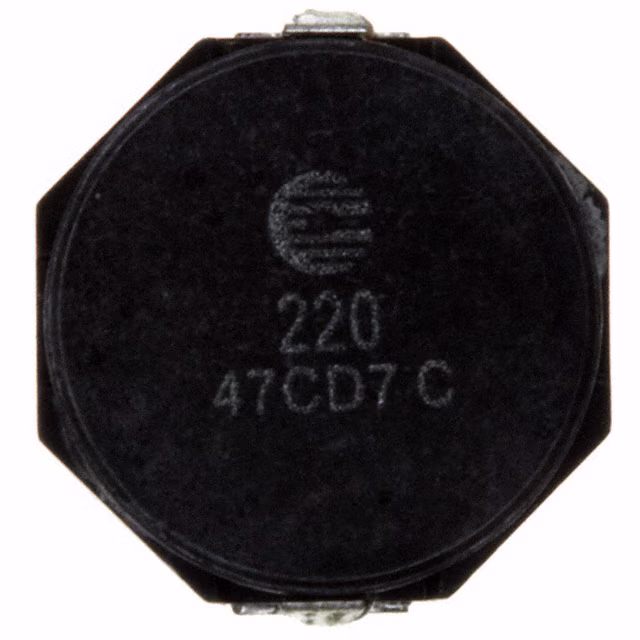

SD8328-220-RFIXED IND 22UH 1.85A 99 MOHM SMD |
0 |
|
Datasheet |
SD8328 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 22 µH | ±30% | 1.85 A | 1.7A | Shielded | 99mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.374" L x 0.327" W (9.50mm x 8.30mm) | 0.118" (3.00mm) |
|
|
TS1205-R68MFIXED IND 680NH 26A 1.8 MOHM SMD |
0 |
|
Datasheet |
TS1205 | Nonstandard | Tape & Reel (TR) | Obsolete | - | - | 680 nH | ±20% | 26 A | 22A | Shielded | 1.8mOhm Max | - | - | - | -25°C ~ 105°C | 100 kHz | - | Surface Mount | - | 0.500" L x 0.500" W (12.70mm x 12.70mm) | 0.220" (5.60mm) |
|
CTCH114F-331L330A RADIAL LEAD FIXED INDUCTOR |
11 |
|
Datasheet |
CTCH114F | Radial, Vertical Cylinder | Bulk | Active | - | - | 330 µH | ±15% | - | 1A | Unshielded | 520mOhm Max | - | - | - | - | 1 kHz | - | Through Hole | Radial | 0.394" Dia (10.00mm) | 0.567" (14.40mm) |
|
|
CTCH114F-103L10000A RADIAL LEAD FIXD INDUCTOR |
3 |
|
Datasheet |
CTCH114F | Radial, Vertical Cylinder | Bulk | Active | - | - | 10 mH | ±15% | - | 160mA | Unshielded | 16Ohm Max | - | - | - | - | 1 kHz | - | Through Hole | Radial | 0.394" Dia (10.00mm) | 0.567" (14.40mm) |
|
7447773470FIXED IND 47UH 1.3A 182 MOHM SMD |
2 |
|
- |
WE-PD Performance | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 47 µH | ±20% | 1.3 A | 1.7A | Shielded | 182mOhm Max | - | 10.3MHz | AEC-Q200 | -40°C ~ 150°C | 100 kHz | - | Surface Mount | 7345 | 0.291" L x 0.287" W (7.40mm x 7.30mm) | 0.177" (4.50mm) |
|
|
CTCH114F-681L680A RADIAL LEAD FIXED INDUCTOR |
1 |
|
Datasheet |
CTCH114F | Radial, Vertical Cylinder | Bulk | Active | - | - | 680 µH | ±15% | - | 690mA | Unshielded | 960mOhm Max | - | - | - | - | 1 kHz | - | Through Hole | Radial | 0.394" Dia (10.00mm) | 0.567" (14.40mm) |
|
CDRH105RNP-270NCFIXED IND 27UH 2.6A 69 MOHM SMD |
0 |
|
Datasheet |
CDRH105R | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 27 µH | ±30% | 2.6 A | 2.7A | Shielded | 69mOhm Max | - | - | - | -40°C ~ 100°C | 100 kHz | - | Surface Mount | - | 0.402" L x 0.394" W (10.20mm x 10.00mm) | 0.201" (5.10mm) |
|
ASPIAIG-F1040-470M-TFIXED IND 47UH 3A 167 MOHM SMD |
0 |
|
Datasheet |
ASPIAIG-F1 | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 47 µH | ±20% | 3 A | 4.5A | Shielded | 167mOhm Max | - | - | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 1040 | 0.433" L x 0.394" W (11.00mm x 10.00mm) | 0.157" (4.00mm) |
|
|
ASPIAIG-F1040-680M-TFIXED IND 68UH 2A 240 MOHM SMD |
0 |
|
Datasheet |
ASPIAIG-F1 | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 68 µH | ±20% | 2 A | 3A | Shielded | 240mOhm Max | - | - | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 1040 | 0.433" L x 0.394" W (11.00mm x 10.00mm) | 0.157" (4.00mm) |
|
SRP1265C-R47MFIXED IND 470NH 45A 1.2 MOHM SMD |
0 |
|
Datasheet |
SRP1265C | Nonstandard | Tape & Reel (TR) | Obsolete | - | Metal | 470 nH | ±20% | 45 A | 66A | Shielded | 1.2mOhm Max | 20 @ 100kHz | 62MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.531" L x 0.496" W (13.50mm x 12.60mm) | 0.256" (6.50mm) |
|
SRP1245C-R68MFIXED IND 680NH 32A 1.6 MOHM SMD |
0 |
|
Datasheet |
SRP1245C | Nonstandard | Tape & Reel (TR) | Obsolete | - | Metal | 680 nH | ±20% | 32 A | 54A | Shielded | 1.6mOhm Max | 20 @ 100kHz | 58MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.531" L x 0.496" W (13.50mm x 12.60mm) | 0.197" (5.00mm) |
|
|
SRP1265C-220MFIXED IND 22UH 10A 37 MOHM SMD |
0 |
|
Datasheet |
SRP1265C | Nonstandard | Tape & Reel (TR) | Obsolete | - | Metal | 22 µH | ±20% | 10 A | 12A | Shielded | 37mOhm Max | 20 @ 100kHz | 7MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.531" L x 0.496" W (13.50mm x 12.60mm) | 0.256" (6.50mm) |
|
|
SRP1265C-R22MFIXED IND 220NH 55A 600U OHM SMD |
0 |
|
Datasheet |
SRP1265C | Nonstandard | Tape & Reel (TR) | Obsolete | - | Metal | 220 nH | ±20% | 55 A | 105A | Shielded | 600µOhm Max | 10 @ 100kHz | 98MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.531" L x 0.496" W (13.50mm x 12.60mm) | 0.256" (6.50mm) |
|
|
SRP1245C-R36MFIXED IND 360NH 41A 0.83MOHM SMD |
0 |
|
Datasheet |
SRP1245C | Nonstandard | Tape & Reel (TR) | Obsolete | - | Metal | 360 nH | ±20% | 41 A | 80A | Shielded | 0.83mOhm Max | 20 @ 100kHz | 100MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.531" L x 0.496" W (13.50mm x 12.60mm) | 0.197" (5.00mm) |
|
|
SRP1245C-R22MFIXED IND 220NH 48A 0.55MOHM SMD |
0 |
|
Datasheet |
SRP1245C | Nonstandard | Tape & Reel (TR) | Obsolete | - | Metal | 220 nH | ±20% | 48 A | 95A | Shielded | 0.55mOhm Max | 15 @ 100kHz | 120MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.531" L x 0.496" W (13.50mm x 12.60mm) | 0.197" (5.00mm) |
|
|
SRP1265C-R68MFIXED IND 680NH 41A 1.5 MOHM SMD |
0 |
|
Datasheet |
SRP1265C | Nonstandard | Tape & Reel (TR) | Obsolete | - | Metal | 680 nH | ±20% | 41 A | 62A | Shielded | 1.5mOhm Max | 20 @ 100kHz | 44MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.531" L x 0.496" W (13.50mm x 12.60mm) | 0.256" (6.50mm) |
|
|
SRP1265C-R33MFIXED IND 330NH 50A 800U OHM SMD |
0 |
|
Datasheet |
SRP1265C | Nonstandard | Tape & Reel (TR) | Obsolete | - | Metal | 330 nH | ±20% | 50 A | 70A | Shielded | 800µOhm Max | 10 @ 100kHz | 72MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.531" L x 0.496" W (13.50mm x 12.60mm) | 0.256" (6.50mm) |
Fixed Inductors Electronic Components
Frequently Asked Questions
Q1: What products are included in Fixed Inductors?
This category includes related Fixed Inductors subcategories and electronic components from multiple manufacturers. Select a lower-level category to view available part numbers.
Q2: Can I request a quotation for Fixed Inductors components?
Yes. Send us the part numbers and required quantities, and our team will provide sourcing and quotation support.
Q3: Are datasheets and technical information available?
Yes. Datasheets and technical information are available on supported final product pages and product listings.
Q4: Do you support BOM sourcing?
Yes. We support BOM matching, component procurement and alternative sourcing for Fixed Inductors and other electronic components.
