Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MPI4040R1-3R3-RFIXED IND 3.3UH 2.2A 115MOHM SMD |
0 |
|
Datasheet |
MPI4040 | 1816 (4540 Metric) | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Metal Composite | 3.3 µH | ±20% | 2.2 A | 5.1A | Shielded | 115mOhm | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.175" L x 0.160" W (4.45mm x 4.06mm) | 0.047" (1.20mm) |
|
|
MPI4040R1-4R7-RFIXED IND 4.7UH 1.8A 180MOHM SMD |
0 |
|
Datasheet |
MPI4040 | 1816 (4540 Metric) | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Metal Composite | 4.7 µH | ±20% | 1.8 A | 3.8A | Shielded | 180mOhm | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.175" L x 0.160" W (4.45mm x 4.06mm) | 0.047" (1.20mm) |
|
|
MPI4040R1-6R8-RFIXED IND 6.8UH 1.5A 250MOHM SMD |
0 |
|
Datasheet |
MPI4040 | 1816 (4540 Metric) | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Metal Composite | 6.8 µH | ±20% | 1.5 A | 3.2A | Shielded | 250mOhm | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.175" L x 0.160" W (4.45mm x 4.06mm) | 0.047" (1.20mm) |
|
|
MPI4040R1-100-RFIXED IND 10UH 1.2A 370 MOHM SMD |
0 |
|
Datasheet |
MPI4040 | 1816 (4540 Metric) | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Metal Composite | 10 µH | ±20% | 1.2 A | 2.8A | Shielded | 370mOhm | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.175" L x 0.160" W (4.45mm x 4.06mm) | 0.047" (1.20mm) |
|
|
MPI4040R2-6R8-RFIXED IND 6.8UH 1.8A 158MOHM SMD |
0 |
|
Datasheet |
MPI4040 | 1816 (4540 Metric) | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Metal Composite | 6.8 µH | ±20% | 1.8 A | 3.4A | Shielded | 158mOhm | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.175" L x 0.160" W (4.45mm x 4.06mm) | 0.059" (1.50mm) |
|
|
MPI4040R2-100-RFIXED IND 10UH 1.5A 240 MOHM SMD |
0 |
|
Datasheet |
MPI4040 | 1816 (4540 Metric) | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Metal Composite | 10 µH | ±20% | 1.5 A | 3.1A | Shielded | 240mOhm | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.175" L x 0.160" W (4.45mm x 4.06mm) | 0.059" (1.50mm) |
|

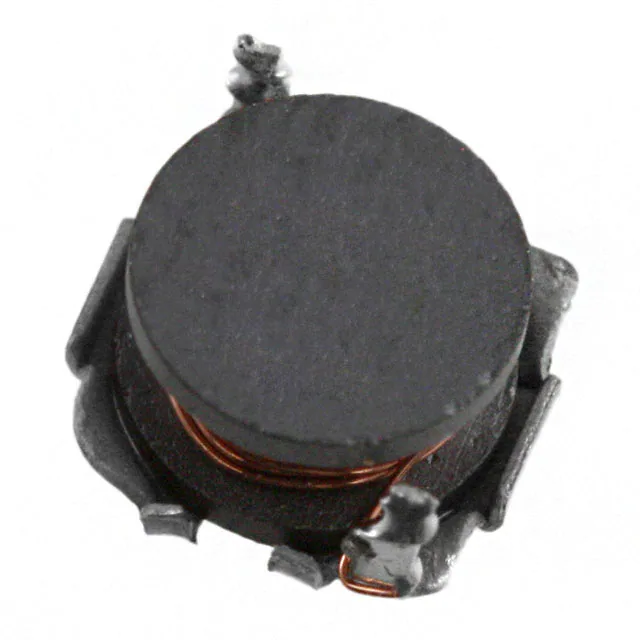

CDH115NP-220LCFIXED IND 22UH 2.1A 60 MOHM SMD |
0 |
|
Datasheet |
CDH115 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 22 µH | ±15% | 2.1 A | - | Unshielded | 60mOhm Max | - | - | - | -40°C ~ 100°C | 1 kHz | - | Surface Mount | - | 0.441" L x 0.433" W (11.20mm x 11.00mm) | 0.205" (5.20mm) |
|
CMD4D06NP-4R7MCFIXED IND 4.7UH 750MA 216MOHM SM |
0 |
|
Datasheet |
CMD | Nonstandard | Tape & Reel (TR) | Active | - | - | 4.7 µH | ±20% | 750 mA | - | Unshielded | 216mOhm Max | - | - | - | - | 100 kHz | - | Surface Mount | - | 0.169" L x 0.161" W (4.30mm x 4.10mm) | 0.031" (0.80mm) |
|
CDR7D43MNNP-270NCFIXED IND 27UH 1.25A 143.6 MOHM |
0 |
|
Datasheet |
CDR7D43MN | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 27 µH | ±25% | 1.25 A | 2.5A | Shielded | 143.6mOhm Max | - | - | - | -40°C ~ 105°C | 100 kHz | - | Surface Mount | - | 0.287" L x 0.287" W (7.30mm x 7.30mm) | 0.177" (4.50mm) |
|
VLF403210MT-2R2MFIXED IND 2.2UH 2.33A 66MOHM SMD |
0 |
|
Datasheet |
VLF-M | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 2.2 µH | ±20% | 2.33 A | 1.59A | Shielded | 66mOhm Max | - | - | - | -40°C ~ 105°C | 1 MHz | - | Surface Mount | - | 0.157" L x 0.126" W (4.00mm x 3.20mm) | 0.039" (1.00mm) |
|
|
VLF403210MT-100MFIXED IND 10UH 1.04A 310MOHM SMD |
0 |
|
Datasheet |
VLF-M | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 10 µH | ±20% | 1.04 A | 700mA | Shielded | 310mOhm Max | - | - | - | -40°C ~ 105°C | 1 MHz | - | Surface Mount | - | 0.157" L x 0.126" W (4.00mm x 3.20mm) | 0.039" (1.00mm) |
|
|
VLF403210MT-220MFIXED IND 22UH 680MA 720MOHM SMD |
0 |
|
Datasheet |
VLF-M | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 22 µH | ±20% | 680 mA | 460mA | Shielded | 720mOhm Max | - | - | - | -40°C ~ 105°C | 1 MHz | - | Surface Mount | - | 0.157" L x 0.126" W (4.00mm x 3.20mm) | 0.039" (1.00mm) |
|
MPX1D0840LR22FIXED IND 220NH 35.4A 1.5MOHM SM |
0 |
|
Datasheet |
METCOM MPX | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal Composite | 220 nH | ±20% | 35.4 A | 53A | Shielded | 1.5mOhm Max | - | - | - | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.341" L x 0.315" W (8.65mm x 8.00mm) | 0.157" (4.00mm) |
|
|
MPX1D0840LR68FIXED IND 680NH 22.4A 3.6MOHM SM |
0 |
|
Datasheet |
METCOM MPX | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal Composite | 680 nH | ±20% | 22.4 A | 30A | Shielded | 3.6mOhm Max | - | - | - | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.341" L x 0.315" W (8.65mm x 8.00mm) | 0.157" (4.00mm) |
|
|
MPX1D0840L1R0FIXED IND 1UH 20.8A 4.2 MOHM SMD |
0 |
|
Datasheet |
METCOM MPX | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal Composite | 1 µH | ±20% | 20.8 A | 28A | Shielded | 4.2mOhm Max | - | - | - | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.341" L x 0.315" W (8.65mm x 8.00mm) | 0.157" (4.00mm) |
|
|
MPX1D0840L470FIXED IND 47UH 2.8A 226.7MOHM SM |
0 |
|
Datasheet |
METCOM MPX | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal Composite | 47 µH | ±20% | 2.8 A | 3.5A | Shielded | 226.7mOhm Max | - | - | - | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.341" L x 0.315" W (8.65mm x 8.00mm) | 0.157" (4.00mm) |
|
HCM1A0703V2-3R3-RFIXED IND 3.3UH 5A 28.5 MOHM SMD |
0 |
|
Datasheet |
HCM1AV2 | Nonstandard | Tape & Reel (TR) | Active | - | Iron Powder | 3.3 µH | ±20% | 5 A | 7.5A | Shielded | 28.5mOhm Max | - | 25MHz | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.276" L x 0.260" W (7.00mm x 6.60mm) | 0.118" (3.00mm) |
|
|
HCM1A0703V2-8R2-RFIXED IND 8.2UH 3.5A 64 MOHM SMD |
0 |
|
Datasheet |
HCM1AV2 | Nonstandard | Tape & Reel (TR) | Active | - | Iron Powder | 8.2 µH | ±20% | 3.5 A | 4.8A | Shielded | 64mOhm Max | - | 14MHz | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.276" L x 0.260" W (7.00mm x 6.60mm) | 0.118" (3.00mm) |
|
|
HCM1A0703V2-6R8-RFIXED IND 6.8UH 3.6A 65 MOHM SMD |
0 |
|
Datasheet |
HCM1AV2 | Nonstandard | Tape & Reel (TR) | Active | - | Iron Powder | 6.8 µH | ±20% | 3.6 A | 5.6A | Shielded | 65mOhm Max | - | 16MHz | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.276" L x 0.260" W (7.00mm x 6.60mm) | 0.118" (3.00mm) |
|
|
HCM1A0703V2-R10-RFIXED IND 100NH 29A 0.8 MOHM SMD |
0 |
|
Datasheet |
HCM1AV2 | Nonstandard | Tape & Reel (TR) | Active | - | Iron Powder | 100 nH | ±20% | 29 A | 54A | Shielded | 0.8mOhm Max | - | 350MHz | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.276" L x 0.260" W (7.00mm x 6.60mm) | 0.118" (3.00mm) |
