Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PM4546.682NLTFIXED IND 6.8UH 1.5A 360MOHM SMD |
0 |
|
Datasheet |
PM4546.XXXNLT | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 6.8 µH | ±20% | 1.5 A | 1.7A | Unshielded | 360mOhm Max | - | - | AEC-Q200 | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.175" L x 0.160" W (4.45mm x 4.06mm) | 0.047" (1.20mm) |
|
AMQU001010401R0MA1INDUCTOR POWER |
0 |
|
Datasheet |
AMQx | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal | 1 µH | ±20% | 18 A | 20A | Shielded | 3.3mOhm Max | - | - | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.457" L x 0.402" W (11.60mm x 10.20mm) | 0.157" (4.00mm) |
|
FP1108L1-R105-RFIXED IND 105NH 64A 0.1 MOHM SMD |
0 |
|
Datasheet |
FP1108 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 105 nH | ±10% | 64 A | 72A | Unshielded | 0.1mOhm | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.433" L x 0.323" W (11.00mm x 8.20mm) | 0.327" (8.30mm) |
|
IMC1210BN121JFIXED IND 120UH 70MA 11 OHM SMD |
0 |
|
Datasheet |
IMC-1210 | 1210 (3225 Metric) | Bulk | Active | Drum Core, Wirewound | Ferrite | 120 µH | ±5% | 70 mA | - | Unshielded | 11Ohm Max | 15 @ 796kHz | 8MHz | - | -55°C ~ 125°C | 796 kHz | - | Surface Mount | 1210 | 0.126" L x 0.098" W (3.20mm x 2.49mm) | 0.095" (2.41mm) |
|
|
IMC1210BN151JFIXED IND 150UH 65MA 15 OHM SMD |
0 |
|
Datasheet |
IMC-1210 | 1210 (3225 Metric) | Bulk | Active | Drum Core, Wirewound | Ferrite | 150 µH | ±5% | 65 mA | - | Unshielded | 15Ohm Max | 15 @ 796kHz | 6.5MHz | - | -55°C ~ 125°C | 796 kHz | - | Surface Mount | 1210 | 0.126" L x 0.098" W (3.20mm x 2.49mm) | 0.095" (2.41mm) |
|
|
IMC1210BN181JFIXED IND 180UH 60MA 17 OHM SMD |
0 |
|
Datasheet |
IMC-1210 | 1210 (3225 Metric) | Bulk | Active | Drum Core, Wirewound | Ferrite | 180 µH | ±5% | 60 mA | - | Unshielded | 17Ohm Max | 15 @ 796kHz | 6MHz | - | -55°C ~ 125°C | 796 kHz | - | Surface Mount | 1210 | 0.126" L x 0.098" W (3.20mm x 2.49mm) | 0.095" (2.41mm) |
|
|
IMC1210BN221JFIXED IND 220UH 50MA 21 OHM SMD |
0 |
|
Datasheet |
IMC-1210 | 1210 (3225 Metric) | Bulk | Active | Drum Core, Wirewound | Ferrite | 220 µH | ±5% | 50 mA | - | Unshielded | 21Ohm Max | 15 @ 796kHz | 6MHz | - | -55°C ~ 125°C | 796 kHz | - | Surface Mount | 1210 | 0.126" L x 0.098" W (3.20mm x 2.49mm) | 0.095" (2.41mm) |
|
|
IMC1210EB121JFIXED IND 120UH 70MA 11 OHM SMD |
0 |
|
Datasheet |
IMC-1210 | 1210 (3225 Metric) | Bulk | Active | Drum Core, Wirewound | Ferrite | 120 µH | ±5% | 70 mA | - | Unshielded | 11Ohm Max | 15 @ 796kHz | 8MHz | - | -55°C ~ 125°C | 796 kHz | - | Surface Mount | 1210 | 0.126" L x 0.098" W (3.20mm x 2.49mm) | 0.095" (2.41mm) |
|
|
IMC1210EB151JFIXED IND 150UH 65MA 15 OHM SMD |
0 |
|
Datasheet |
IMC-1210 | 1210 (3225 Metric) | Bulk | Active | Drum Core, Wirewound | Ferrite | 150 µH | ±5% | 65 mA | - | Unshielded | 15Ohm Max | 15 @ 796kHz | 6.5MHz | - | -55°C ~ 125°C | 796 kHz | - | Surface Mount | 1210 | 0.126" L x 0.098" W (3.20mm x 2.49mm) | 0.095" (2.41mm) |
|
|
IMC1210EB181JFIXED IND 180UH 60MA 17 OHM SMD |
0 |
|
Datasheet |
IMC-1210 | 1210 (3225 Metric) | Bulk | Active | Drum Core, Wirewound | Ferrite | 180 µH | ±5% | 60 mA | - | Unshielded | 17Ohm Max | 15 @ 796kHz | 6MHz | - | -55°C ~ 125°C | 796 kHz | - | Surface Mount | 1210 | 0.126" L x 0.098" W (3.20mm x 2.49mm) | 0.095" (2.41mm) |
|
|
IMC1210EB221JFIXED IND 220UH 50MA 21 OHM SMD |
0 |
|
Datasheet |
IMC-1210 | 1210 (3225 Metric) | Bulk | Active | Drum Core, Wirewound | Ferrite | 220 µH | ±5% | 50 mA | - | Unshielded | 21Ohm Max | 15 @ 796kHz | 6MHz | - | -55°C ~ 125°C | 796 kHz | - | Surface Mount | 1210 | 0.126" L x 0.098" W (3.20mm x 2.49mm) | 0.095" (2.41mm) |
|
SD10-101-RFIXED IND 100UH 225MA 3.29OHM SM |
0 |
|
Datasheet |
SD | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 100 µH | ±20% | 225 mA | 236mA | Shielded | 3.29Ohm | - | - | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | - | 0.205" L x 0.205" W (5.20mm x 5.20mm) | 0.039" (1.00mm) |
|
|
SD10-150-RFIXED IND 15UH 613MA 442.9 MOHM |
0 |
|
Datasheet |
SD | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 15 µH | ±20% | 613 mA | 605mA | Shielded | 442.9mOhm | - | - | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | - | 0.205" L x 0.205" W (5.20mm x 5.20mm) | 0.039" (1.00mm) |
|
|
SD10-151-RFIXED IND 150UH 200MA 4.15OHM SM |
0 |
|
Datasheet |
SD | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 150 µH | ±20% | 200 mA | 195mA | Shielded | 4.15Ohm | - | - | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | - | 0.205" L x 0.205" W (5.20mm x 5.20mm) | 0.039" (1.00mm) |
|
|
SD10-1R5-RFIXED IND 1.5UH 1.6A 65.3MOHM SM |
0 |
|
Datasheet |
SD | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 1.5 µH | ±20% | 1.6 A | 1.91A | Shielded | 65.3mOhm | - | - | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | - | 0.205" L x 0.205" W (5.20mm x 5.20mm) | 0.039" (1.00mm) |
|

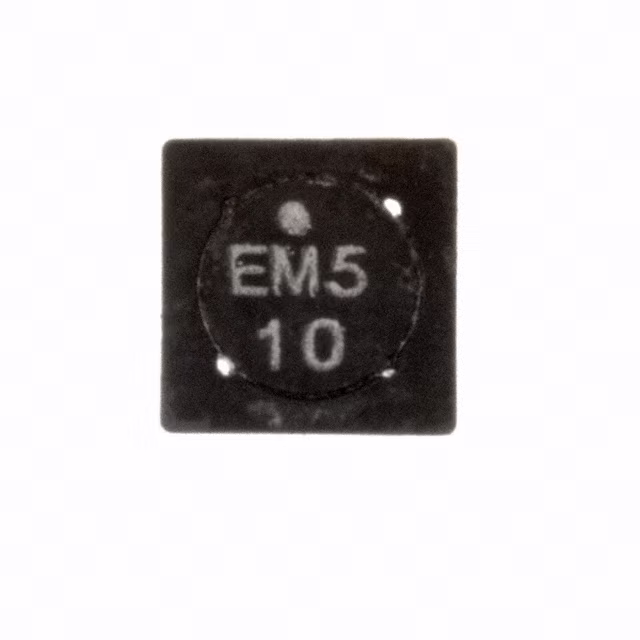

SD10-3R3-RFIXED IND 3.3UH 1.24A 107.8 MOHM |
0 |
|
Datasheet |
SD | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 3.3 µH | ±20% | 1.24 A | 1.31A | Shielded | 107.8mOhm | - | - | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | - | 0.205" L x 0.205" W (5.20mm x 5.20mm) | 0.039" (1.00mm) |
|

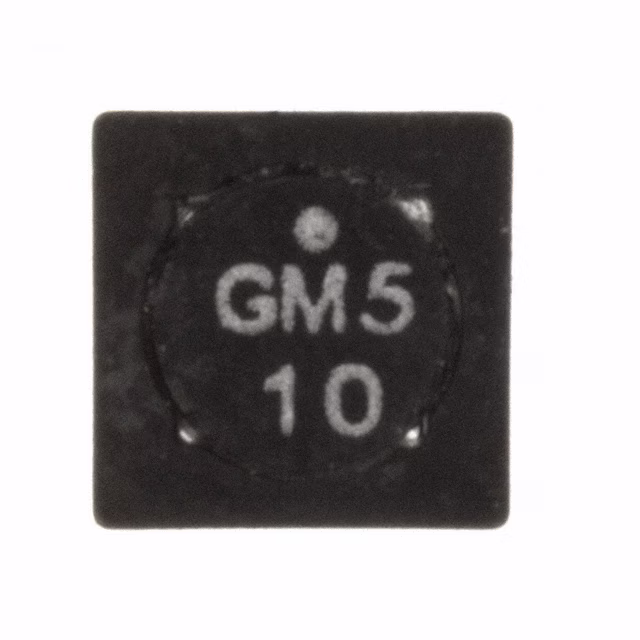

SD10-6R2-RFIXED IND 6.2UH 940MA 218MOHM SM |
0 |
|
Datasheet |
SD | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 6.2 µH | ±20% | 940 mA | 920mA | Shielded | 218mOhm | - | - | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | - | 0.205" L x 0.205" W (5.20mm x 5.20mm) | 0.039" (1.00mm) |
|
|
SD10-820-RFIXED IND 82UH 258MA 2.5 OHM SMD |
0 |
|
Datasheet |
SD | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 82 µH | ±20% | 258 mA | 261mA | Shielded | 2.5Ohm | - | - | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | - | 0.205" L x 0.205" W (5.20mm x 5.20mm) | 0.039" (1.00mm) |
|
|
SD10-8R2-RFIXED IND 8.2UH 800MA 260.7 MOHM |
0 |
|
Datasheet |
SD | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 8.2 µH | ±20% | 800 mA | 800mA | Shielded | 260.7mOhm | - | - | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | - | 0.205" L x 0.205" W (5.20mm x 5.20mm) | 0.039" (1.00mm) |
|
|
SD10-R47-RFIXED IND 470NH 2.59A 24.9 MOHM |
0 |
|
Datasheet |
SD | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 470 nH | ±20% | 2.59 A | 3.54A | Shielded | 24.9mOhm | - | - | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | - | 0.205" L x 0.205" W (5.20mm x 5.20mm) | 0.039" (1.00mm) |
Fixed Inductors Electronic Components
Frequently Asked Questions
Q1: What products are included in Fixed Inductors?
This category includes related Fixed Inductors subcategories and electronic components from multiple manufacturers. Select a lower-level category to view available part numbers.
Q2: Can I request a quotation for Fixed Inductors components?
Yes. Send us the part numbers and required quantities, and our team will provide sourcing and quotation support.
Q3: Are datasheets and technical information available?
Yes. Datasheets and technical information are available on supported final product pages and product listings.
Q4: Do you support BOM sourcing?
Yes. We support BOM matching, component procurement and alternative sourcing for Fixed Inductors and other electronic components.
