Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
1468362CFIXED IND 68UH 6.2A 32 MOHM TH |
127 |
|
Datasheet |
1400 | Radial, Vertical Cylinder | Tray | Active | Wirewound | - | 68 µH | ±15% | 6.2 A | - | Unshielded | 32mOhm Max | 32 @ 100kHz | 5.3MHz | - | -40°C ~ 85°C | 1 kHz | - | Through Hole | - | 1.043" Dia (26.50mm) | 0.610" (15.50mm) |
|
|
1433428CFIXED IND 330UH 2.8A 150 MOHM TH |
122 |
|
Datasheet |
1400 | Radial, Vertical Cylinder | Tray | Active | Wirewound | - | 330 µH | ±10% | 2.8 A | - | Unshielded | 150mOhm Max | 22 @ 50kHz | 2.5MHz | - | -40°C ~ 85°C | 1 kHz | - | Through Hole | - | 1.020" Dia (25.91mm) | 0.610" (15.50mm) |
|

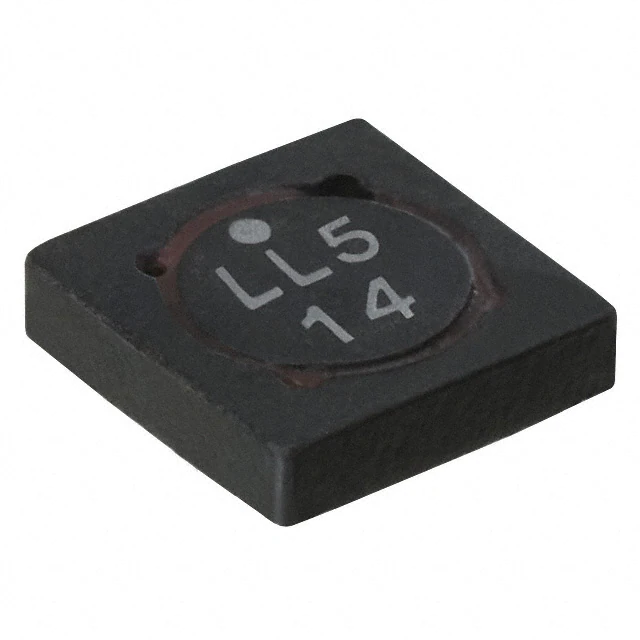

SD14-100-RFIXED IND 10UH 1.1A 205.8MOHM SM |
5,771 |
|
Datasheet |
SD | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 10 µH | ±20% | 1.1 A | 1.18A | Shielded | 205.8mOhm | - | - | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | - | 0.205" L x 0.205" W (5.20mm x 5.20mm) | 0.057" (1.45mm) |
|
B82477R4474M100FIXED IND 470UH 1.07A 605MOHM SM |
1,791 |
|
Datasheet |
B82477R4 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 470 µH | ±20% | 1.07 A | 1.35A | Shielded | 605mOhm Max | - | - | AEC-Q200 | -55°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.335" (8.50mm) |
|

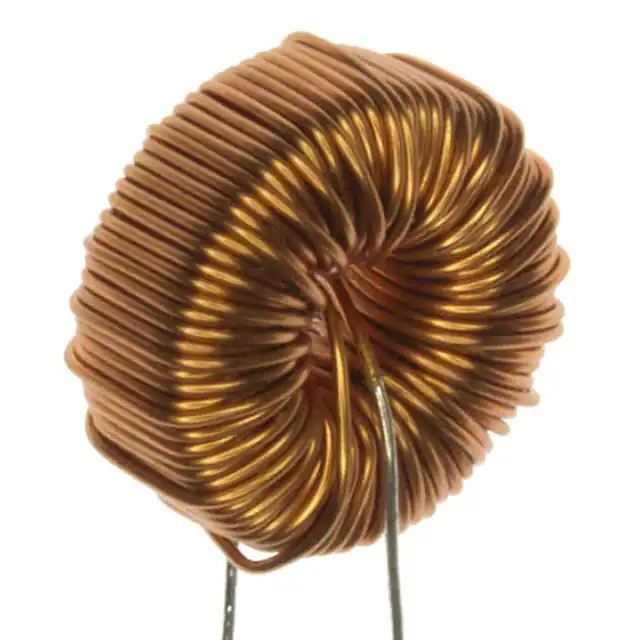

7447010FIXED IND 470UH 1A 225 MOHM TH |
587 |
|
Datasheet |
WE-FI | Radial, Vertical (Open) | Bulk | Active | Toroidal | Ferrite | 470 µH | ±20% | 1.6 A | - | Unshielded | 225mOhm Max | - | - | - | -40°C ~ 105°C | 10 kHz | - | Through Hole | - | 0.728" Dia x 0.374" W (18.50mm x 9.50mm) | - |
|

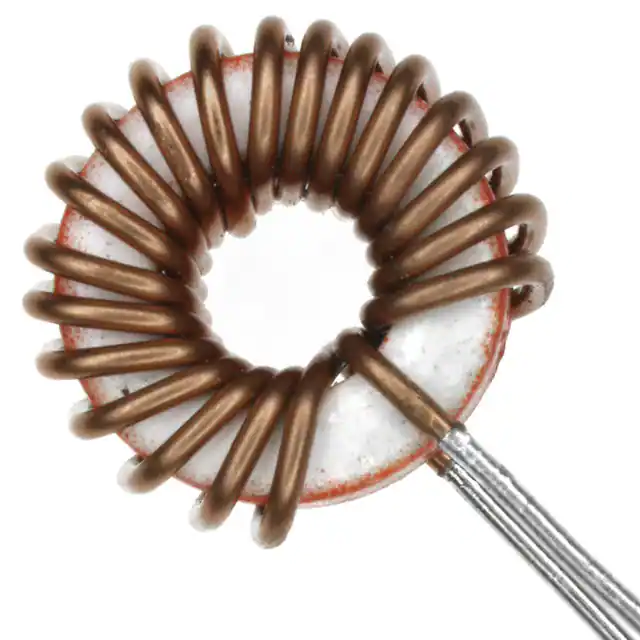

7447017FIXED IND 22UH 5A 15 MOHM TH |
279 |
|
Datasheet |
WE-FI | Radial, Vertical (Open) | Bulk | Active | Toroidal | Ferrite | 22 µH | ±20% | 5 A | - | Unshielded | 15mOhm Max | - | - | - | -40°C ~ 105°C | 10 kHz | - | Through Hole | - | 0.748" Dia x 0.413" W (19.00mm x 10.50mm) | - |
|
VLB10050HT-R15MFIXED IND 150NH 31A 0.35MOHM SMD |
1,734 |
|
Datasheet |
VLB | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 150 nH | ±20% | 31 A | 52A | Unshielded | 0.35mOhm Max | - | - | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | - | 0.386" L x 0.264" W (9.80mm x 6.70mm) | 0.197" (5.00mm) |
|
74439344012FIXED IND 1.2UH 10.3A 6.4MOHM SM |
943 |
|
Datasheet |
WE-XHMI | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal Composite | 1.2 µH | ±20% | 10.3 A | 26A | Shielded | 6.4mOhm | - | 55MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.262" L x 0.254" W (6.65mm x 6.45mm) | 0.130" (3.30mm) |
|
|
744393440018FIXED IND 180NH 20A 1.32MOHM SMD |
860 |
|
Datasheet |
WE-XHMI | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal Composite | 180 nH | ±20% | 20 A | 39A | Shielded | 1.32mOhm | - | 168MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.262" L x 0.254" W (6.65mm x 6.45mm) | 0.130" (3.30mm) |
|
7847227010FIXED IND 1UH 22.5A 2 MOHM SMD |
162 |
|
Datasheet |
WE-RCIS | Nonstandard | Tape & Reel (TR) | Active | - | - | 1 µH | ±20% | 22.5 A | 29A | Unshielded | 2mOhm | - | 213MHz | AEC-Q200 | -40°C ~ 150°C | 1 kHz | - | Surface Mount | - | 0.591" L x 0.394" W (15.00mm x 10.00mm) | 0.307" (7.80mm) |
|
PA4320.154NLTFIXED IND 150UH 2.3A 185MOHM SMD |
2,069 |
|
Datasheet |
PA4320 | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 150 µH | ±20% | 2.3 A | 2.6A | Shielded | 185mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.472" L x 0.472" W (12.00mm x 12.00mm) | 0.402" (10.20mm) |
|
|
PA4320.105NLTFIXED IND 1MH 1A 960 MOHM SMD |
486 |
|
Datasheet |
PA4320 | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 1 mH | ±20% | 1 A | 980mA | Shielded | 960mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.472" L x 0.472" W (12.00mm x 12.00mm) | 0.402" (10.20mm) |
|
HCTI-27-15.6FIXED IND 27UH 15.6A 8 MOHM TH |
476 |
|
Datasheet |
HCTI | Radial, Vertical (Open) | Tray | Active | Toroidal | - | 27 µH | ±15% | 15.6 A | - | Shielded | 8mOhm Max | - | - | - | -55°C ~ 105°C | 1 kHz | - | Through Hole | - | 1.280" Dia x 0.650" W (32.51mm x 16.51mm) | - |
|
IHLP6767GZER5R6M11FIXED IND 5.6UH 28A 4.44MOHM SMD |
241 |
|
Datasheet |
IHLP-6767GZ-11 | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 5.6 µH | ±20% | 28 A | 21A | Shielded | 4.44mOhm Max | - | 11.8MHz | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.675" L x 0.675" W (17.15mm x 17.15mm) | 0.276" (7.00mm) |
|

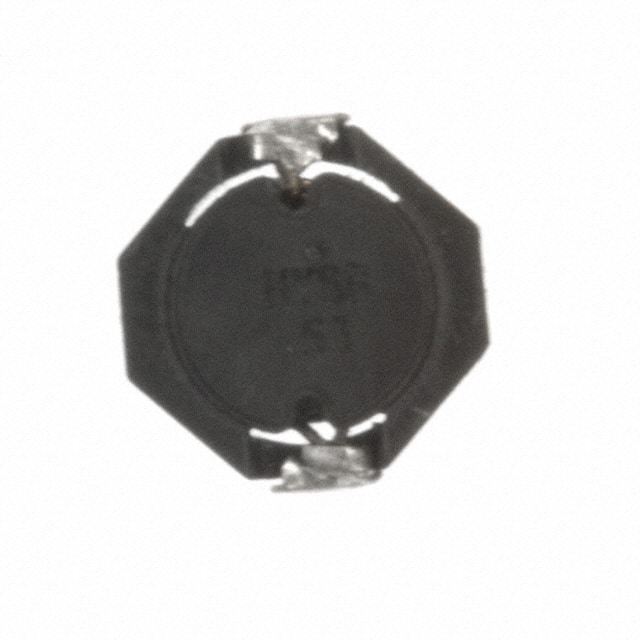

SD53-220-RFIXED IND 22UH 810MA 208MOHM SMD |
2,266 |
|
Datasheet |
SD53 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 22 µH | ±20% | 810 mA | 940mA | Shielded | 208mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.205" L x 0.205" W (5.20mm x 5.20mm) | 0.118" (3.00mm) |
|
744115FIXED IND 200UH 2.2A 180 MOHM TH |
940 |
|
Datasheet |
WE-SI | Radial, Vertical (Open) | Bulk | Active | Toroidal | Ferrite | 200 µH | ±20% | 2.2 A | 900mA | Unshielded | 180mOhm Max | - | 3MHz | - | -40°C ~ 105°C | 10 kHz | - | Through Hole | - | 0.709" Dia x 0.354" W (18.00mm x 9.00mm) | - |
|

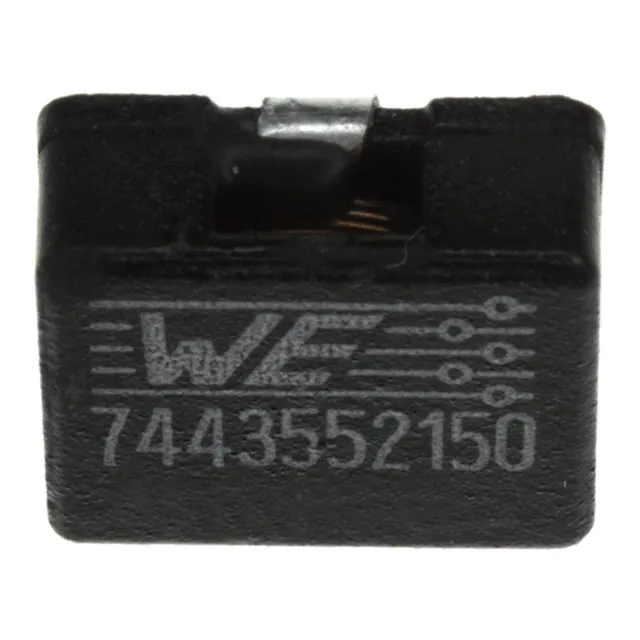

7443552150FIXED IND 1.5UH 14A 5.3 MOHM SMD |
1,399 |
|
Datasheet |
WE-HCI | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 1.5 µH | ±20% | 14 A | 17A | Shielded | 5.3mOhm | - | 63MHz | AEC-Q200 | -40°C ~ 155°C | 100 kHz | - | Surface Mount | 1040 | 0.413" L x 0.402" W (10.50mm x 10.20mm) | 0.165" (4.20mm) |
|
FP1008R7-R100-RFIXED IND 100NH 72A 0.12MOHM SMD |
1,358 |
|
Datasheet |
FP1008 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 100 nH | ±10% | 72 A | 84A | Shielded | 0.12mOhm | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.425" L x 0.323" W (10.80mm x 8.20mm) | 0.323" (8.20mm) |
|

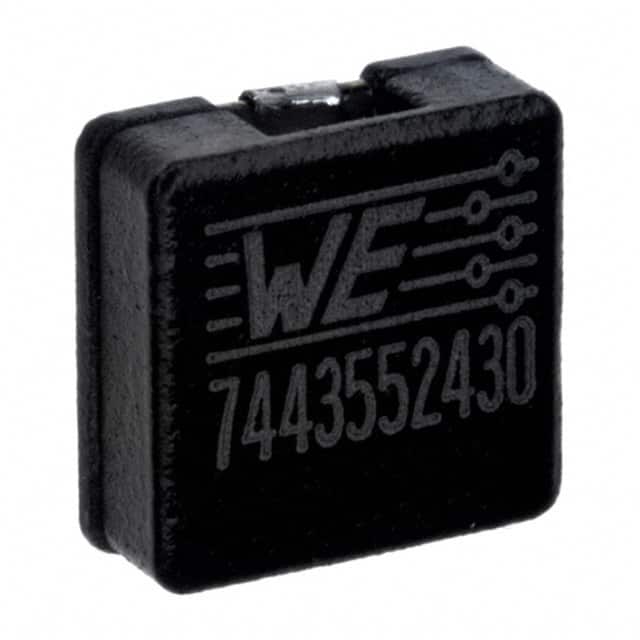

7443552430FIXED IND 4.3UH 8A 14.1 MOHM SMD |
988 |
|
Datasheet |
WE-HCI | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 4.3 µH | ±20% | 8 A | 8A | Shielded | 14.1mOhm | - | 33MHz | AEC-Q200 | -40°C ~ 155°C | 100 kHz | - | Surface Mount | 1040 | 0.413" L x 0.402" W (10.50mm x 10.20mm) | 0.165" (4.20mm) |
|
AIUR-15-471KFIXED IND 470UH 1.5A 330 MOHM TH |
1,050 |
|
Datasheet |
AIUR-15 | Radial, Vertical Cylinder (Open) | Bulk | Active | Drum Core, Wirewound | Ferrite | 470 µH | ±10% | 1.5 A | - | Unshielded | 330mOhm Max | - | - | - | -25°C ~ 85°C | 1 kHz | - | Through Hole | - | 0.709" Dia (18.00mm) | 0.787" (20.00mm) |
Fixed Inductors Electronic Components
Frequently Asked Questions
Q1: What products are included in Fixed Inductors?
This category includes related Fixed Inductors subcategories and electronic components from multiple manufacturers. Select a lower-level category to view available part numbers.
Q2: Can I request a quotation for Fixed Inductors components?
Yes. Send us the part numbers and required quantities, and our team will provide sourcing and quotation support.
Q3: Are datasheets and technical information available?
Yes. Datasheets and technical information are available on supported final product pages and product listings.
Q4: Do you support BOM sourcing?
Yes. We support BOM matching, component procurement and alternative sourcing for Fixed Inductors and other electronic components.
