Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PM2205.332NLTFIXED IND 3.3UH 11A 12.5MOHM SMD |
2,665 |
|
Datasheet |
PM2205.XXXNLT | Nonstandard | Tape & Reel (TR) | Active | - | - | 3.3 µH | ±20% | 11 A | 12.5A | Shielded | 12.5mOhm Max | - | - | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | SMD | 0.260" L x 0.252" W (6.60mm x 6.40mm) | 0.197" (5.00mm) |
|
FP1008R6-R100-RFIXED IND 100NH 74A 0.18MOHM SMD |
530 |
|
Datasheet |
FP1008 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 100 nH | ±10% | 74 A | 81A | Shielded | 0.18mOhm | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.425" L x 0.315" W (10.80mm x 8.00mm) | 0.315" (8.00mm) |
|
1532BFIXED IND 15UH 1A 170 MOHM TH |
2,966 |
|
Datasheet |
1532 | Axial | Bulk | Active | Wirewound | - | 15 µH | ±10% | 1 A | - | Unshielded | 170mOhm Max | 62 @ 2.5MHz | 33MHz | - | - | 2.5 MHz | - | Through Hole | - | 0.290" Dia x 0.875" L (7.37mm x 22.22mm) | - |
|

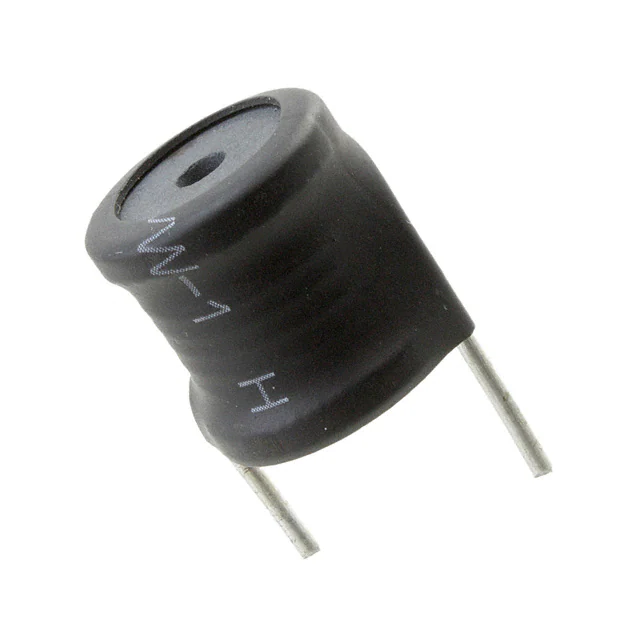

AIRD-02-101KFIXED IND 100UH 4A 80 MOHM TH |
796 |
|
Datasheet |
AIRD-02 | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | Ferrite | 100 µH | ±10% | 4 A | 10A | Unshielded | 80mOhm Max | - | - | - | -25°C ~ 85°C | 1 kHz | - | Through Hole | - | 0.827" Dia (21.00mm) | 0.827" (21.00mm) |
|
TCK-130FIXED IND 22UH 580MA 55MOHM SMD |
737 |
|
Datasheet |
- | Nonstandard | Bag | Active | - | - | 22 µH | ±15% | 580 mA | - | Unshielded | 55mOhm | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.138" L x 0.118" W (3.50mm x 3.00mm) | 0.106" (2.70mm) |
|
|
AIRD-02-561KFIXED IND 560UH 1.6A 388 MOHM TH |
540 |
|
Datasheet |
AIRD-02 | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | Ferrite | 560 µH | ±10% | 1.6 A | 4.1A | Unshielded | 388mOhm Max | - | - | - | -25°C ~ 85°C | 1 kHz | - | Through Hole | - | 0.827" Dia (21.00mm) | 0.827" (21.00mm) |
|
74437336033FIXED IND 3.3UH 4.1A 0.038OHM SM |
10,623 |
|
Datasheet |
WE-LHMI | 2-SMD | Tape & Reel (TR) | Active | Molded | Iron Powder | 3.3 µH | ±20% | 4.1 A | 10.9A | Shielded | 38mOhm Max | - | 27MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 5030 | 0.205" L x 0.205" W (5.20mm x 5.20mm) | 0.118" (3.00mm) |
|
|
74437336022FIXED IND 2.2UH 4.9A 0.035OHM SM |
6,263 |
|
Datasheet |
WE-LHMI | 2-SMD | Tape & Reel (TR) | Active | Molded | Iron Powder | 2.2 µH | ±20% | 4.9 A | 14A | Shielded | 35mOhm Max | - | 42MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 5030 | 0.205" L x 0.205" W (5.20mm x 5.20mm) | 0.118" (3.00mm) |
|
744316330FIXED IND 3.3UH 5.75A 18.5 MOHM |
3,084 |
|
Datasheet |
WE-HCI | 2-SMD | Tape & Reel (TR) | Active | Wirewound | - | 3.3 µH | ±20% | 5.75 A | 5.8A | Shielded | 18.5mOhm | - | 66MHz | AEC-Q200 | -40°C ~ 150°C | 100 kHz | - | Surface Mount | 5040 | 0.217" L x 0.209" W (5.50mm x 5.30mm) | 0.169" (4.30mm) |
|
|
744316150FIXED IND 1.5UH 9A 8.15 MOHM SMD |
2,774 |
|
Datasheet |
WE-HCI | 2-SMD | Tape & Reel (TR) | Active | Wirewound | - | 1.5 µH | ±20% | 9 A | 9A | Shielded | 8.15mOhm | - | 110MHz | AEC-Q200 | -40°C ~ 150°C | 100 kHz | - | Surface Mount | 5040 | 0.217" L x 0.209" W (5.50mm x 5.30mm) | 0.169" (4.30mm) |
|
|
74437336010FIXED IND 1UH 7.3A 0.014OHM SMD |
2,150 |
|
Datasheet |
WE-LHMI | 2-SMD | Tape & Reel (TR) | Active | Molded | Iron Powder | 1 µH | ±20% | 7.3 A | 14.2A | Shielded | 14mOhm Max | - | 60MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 5030 | 0.205" L x 0.205" W (5.20mm x 5.20mm) | 0.118" (3.00mm) |
|
|
744316560FIXED IND 5.6UH 4.5A 28.5MOHM SM |
565 |
|
Datasheet |
WE-HCI | 2-SMD | Tape & Reel (TR) | Active | Wirewound | - | 5.6 µH | ±20% | 4.5 A | 4.6A | Shielded | 28.5mOhm | - | 48MHz | AEC-Q200 | -40°C ~ 150°C | 100 kHz | - | Surface Mount | 5040 | 0.217" L x 0.209" W (5.50mm x 5.30mm) | 0.169" (4.30mm) |
|
|
744316022FIXED IND 220NH 20A 1.25MOHM SMD |
174 |
|
Datasheet |
WE-HCI | 2-SMD | Tape & Reel (TR) | Active | Wirewound | - | 220 nH | ±20% | 20 A | 25A | Shielded | 1.25mOhm | - | 507MHz | AEC-Q200 | -40°C ~ 150°C | 100 kHz | - | Surface Mount | 5040 | 0.217" L x 0.209" W (5.50mm x 5.30mm) | 0.169" (4.30mm) |
|
7687714102FIXED IND 1MH 400MA 3.2 OHM SMD |
164 |
|
Datasheet |
WE-PD HV | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 1 mH | ±20% | 400 mA | 550mA | Shielded | 3.2Ohm Max | - | 1.7MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.394" L x 0.394" W (10.00mm x 10.00mm) | 0.236" (6.00mm) |
|
1447385CFIXED IND 47UH 8.5A 21 MOHM TH |
1,953 |
|
Datasheet |
1400 | Radial, Vertical Cylinder | Tray | Active | Wirewound | - | 47 µH | ±15% | 8.5 A | - | Unshielded | 21mOhm Max | 33 @ 100kHz | 6.7MHz | - | -40°C ~ 85°C | 1 kHz | - | Through Hole | - | 1.055" Dia (26.80mm) | 0.610" (15.50mm) |
|
|
1447423CFIXED IND 470UH 2.3A 250 MOHM TH |
651 |
|
Datasheet |
1400 | Radial, Vertical Cylinder | Tray | Active | Wirewound | - | 470 µH | ±10% | 2.3 A | - | Unshielded | 250mOhm Max | 34 @ 50kHz | 2MHz | - | -40°C ~ 85°C | 1 kHz | - | Through Hole | - | 1.012" Dia (25.70mm) | 0.610" (15.50mm) |
|
|
1422435CFIXED IND 220UH 3.5A 96 MOHM TH |
354 |
|
Datasheet |
1400 | Radial, Vertical Cylinder | Tray | Active | Wirewound | - | 220 µH | ±10% | 3.5 A | - | Unshielded | 96mOhm Max | 22 @ 50kHz | 2.8MHz | - | -40°C ~ 85°C | 1 kHz | - | Through Hole | - | 1.028" Dia (26.10mm) | 0.610" (15.50mm) |
|
|
1415440CFIXED IND 150UH 4A 69 MOHM TH |
270 |
|
Datasheet |
1400 | Radial, Vertical Cylinder | Tray | Active | Wirewound | - | 150 µH | ±10% | 4 A | - | Unshielded | 69mOhm Max | 24 @ 50kHz | 3.4MHz | - | -40°C ~ 85°C | 1 kHz | - | Through Hole | - | 1.031" Dia (26.20mm) | 0.610" (15.50mm) |
|
|
1468420CFIXED IND 680UH 2A 300 MOHM TH |
231 |
|
Datasheet |
1400 | Radial, Vertical Cylinder | Tray | Active | Wirewound | - | 680 µH | ±10% | 2 A | - | Unshielded | 300mOhm Max | 23 @ 50kHz | 1.6MHz | - | -40°C ~ 85°C | 1 kHz | - | Through Hole | - | 1.012" Dia (25.70mm) | 0.610" (15.50mm) |
|
|
1410604CFIXED IND 10MH 400MA 4.34 OHM TH |
204 |
|
Datasheet |
1400 | Radial, Vertical Cylinder | Tray | Active | Wirewound | - | 10 mH | ±10% | 400 mA | - | Unshielded | 4.34Ohm Max | 51 @ 50kHz | 400kHz | - | -40°C ~ 85°C | 1 kHz | - | Through Hole | - | 0.988" Dia (25.10mm) | 0.610" (15.50mm) |
Fixed Inductors Electronic Components
Frequently Asked Questions
Q1: What products are included in Fixed Inductors?
This category includes related Fixed Inductors subcategories and electronic components from multiple manufacturers. Select a lower-level category to view available part numbers.
Q2: Can I request a quotation for Fixed Inductors components?
Yes. Send us the part numbers and required quantities, and our team will provide sourcing and quotation support.
Q3: Are datasheets and technical information available?
Yes. Datasheets and technical information are available on supported final product pages and product listings.
Q4: Do you support BOM sourcing?
Yes. We support BOM matching, component procurement and alternative sourcing for Fixed Inductors and other electronic components.
