Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
7447786147FIXED IND 47UH 1.4A 298 MOHM SMD |
777 |
|
Datasheet |
WE-PD Robust | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 47 µH | ±25% | 1.4 A | 800mA | Shielded | 298mOhm Max | - | 10MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.244" L x 0.232" W (6.20mm x 5.90mm) | 0.201" (5.10mm) |
|
7443320068FIXED IND 680NH 26A 1.85MOHM SMD |
773 |
|
Datasheet |
WE-HCC | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 680 nH | ±20% | 26 A | 38A | Shielded | 1.85mOhm Max | - | 108MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.476" L x 0.449" W (12.10mm x 11.40mm) | 0.394" (10.00mm) |
|
|
7443320220FIXED IND 2.2UH 18A 4.3 MOHM SMD |
733 |
|
Datasheet |
WE-HCC | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 2.2 µH | ±20% | 18 A | 23A | Shielded | 4.3mOhm Max | - | 64MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.476" L x 0.449" W (12.10mm x 11.40mm) | 0.394" (10.00mm) |
|
7447471102FIXED IND 1MH 600MA 1.5 OHM TH |
586 |
|
Datasheet |
WE-TIS | Radial, Vertical Cylinder | Tray | Active | Drum Core, Wirewound | Ferrite | 1 mH | ±20% | 600 mA | 400mA | Shielded | 1.5Ohm Max | - | 1.1MHz | - | -40°C ~ 125°C | 1 kHz | - | Through Hole | - | 0.433" Dia (11.00mm) | 0.453" (11.50mm) |
|
|
7447471471FIXED IND 470UH 850MA 700MOHM TH |
371 |
|
Datasheet |
WE-TIS | Radial, Vertical Cylinder | Tray | Active | Drum Core, Wirewound | Ferrite | 470 µH | ±20% | 850 mA | 500mA | Shielded | 700mOhm Max | - | 1.8MHz | - | -40°C ~ 125°C | 1 kHz | - | Through Hole | - | 0.433" Dia (11.00mm) | 0.453" (11.50mm) |
|
|
7447471470FIXED IND 47UH 3A 88 MOHM TH |
321 |
|
Datasheet |
WE-TIS | Radial, Vertical Cylinder | Tray | Active | Drum Core, Wirewound | Ferrite | 47 µH | ±20% | 3 A | 2.5A | Shielded | 88mOhm Max | - | 9MHz | - | -40°C ~ 125°C | 1 kHz | - | Through Hole | - | 0.433" Dia (11.00mm) | 0.453" (11.50mm) |
|
|
7447471331FIXED IND 330UH 1A 480 MOHM TH |
218 |
|
Datasheet |
WE-TIS | Radial, Vertical Cylinder | Tray | Active | Drum Core, Wirewound | Ferrite | 330 µH | ±20% | 1 A | 800mA | Shielded | 480mOhm Max | - | 2MHz | - | -40°C ~ 125°C | 1 kHz | - | Through Hole | - | 0.433" Dia (11.00mm) | 0.453" (11.50mm) |
|
7449152022FIXED IND 22NH 40A 0.55 MOHM SMD |
202 |
|
Datasheet |
WE-ACHC | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Air | 22 nH | ±20% | 40 A | - | Unshielded | 0.55mOhm Max | 280 @ 100MHz | 867MHz | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | 1212 | 0.472" L x 0.453" W (12.00mm x 11.50mm) | 0.260" (6.60mm) |
|
|
7447471221FIXED IND 220UH 1.3A 320 MOHM TH |
170 |
|
Datasheet |
WE-TIS | Radial, Vertical Cylinder | Tray | Active | Drum Core, Wirewound | Ferrite | 220 µH | ±20% | 1.3 A | 1A | Shielded | 320mOhm Max | - | 2.8MHz | - | -40°C ~ 125°C | 1 kHz | - | Through Hole | - | 0.433" Dia (11.00mm) | 0.453" (11.50mm) |
|
|
7447471101FIXED IND 100UH 1.6A 190 MOHM TH |
109 |
|
Datasheet |
WE-TIS | Radial, Vertical Cylinder | Tray | Active | Drum Core, Wirewound | Ferrite | 100 µH | ±20% | 1.6 A | 1.4A | Shielded | 190mOhm Max | - | 3.9MHz | - | -40°C ~ 125°C | 1 kHz | - | Through Hole | - | 0.433" Dia (11.00mm) | 0.453" (11.50mm) |
|
HCTI-220-5.8FIXED IND 220UH 5.8A 54 MOHM TH |
19,103 |
|
Datasheet |
HCTI | Radial, Vertical (Open) | Tray | Active | Toroidal | - | 220 µH | ±15% | 5.8 A | - | Shielded | 54mOhm Max | - | - | - | -55°C ~ 105°C | 1 kHz | - | Through Hole | - | 1.280" Dia x 0.650" W (32.51mm x 16.51mm) | - |
|
B82477R4223M100FIXED IND 22UH 4.45A 32 MOHM SMD |
3,984 |
|
Datasheet |
B82477R4 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 22 µH | ±20% | 4.45 A | 6.1A | Shielded | 32mOhm Max | - | - | AEC-Q200 | -55°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.335" (8.50mm) |
|
IHLP5050FDER150M5AFIXED IND 15UH 8.7A 25.68MOHM SM |
386 |
|
Datasheet |
IHLP-5050FD-5A | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 15 µH | ±20% | 8.7 A | 6.8A | Shielded | 25.68mOhm Max | - | 8.3MHz | AEC-Q200 | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.522" L x 0.508" W (13.26mm x 12.90mm) | 0.252" (6.40mm) |
|

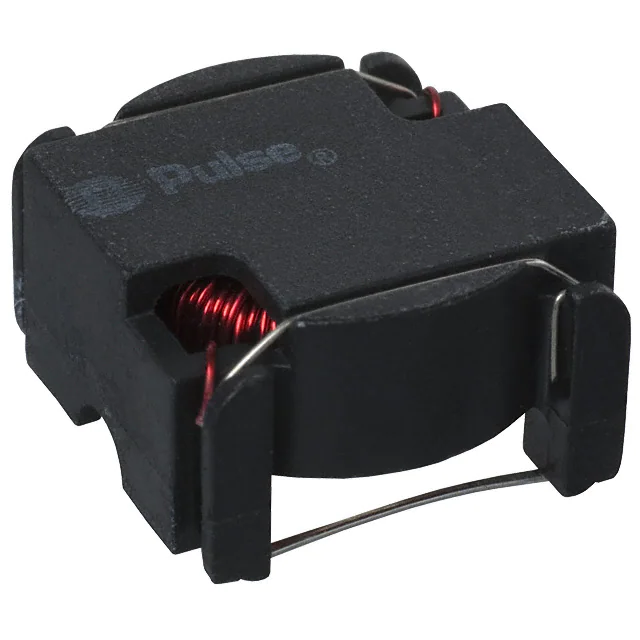

PE-53661NLFIXED IND 2.5UH 8A 8.3 MOHM SMD |
553 |
|
Datasheet |
SLIC | Nonstandard | Bulk | Active | Toroidal | - | 2.5 µH | - | 8 A | - | Unshielded | 8.3mOhm Max | - | - | - | -40°C ~ 130°C | - | - | Surface Mount | - | 0.570" L x 0.565" W (14.48mm x 14.35mm) | 0.360" (9.14mm) |
|
1025R-28KFIXED IND 2.2UH 415MA 400MOHM TH |
2,379 |
|
Datasheet |
1025R | Axial | Bulk | Active | Molded | Iron | 2.2 µH | ±10% | 415 mA | - | Unshielded | 400mOhm Max | 30 @ 7.9MHz | 115MHz | - | -55°C ~ 105°C | 7.9 MHz | - | Through Hole | - | 0.095" Dia x 0.250" L (2.41mm x 6.35mm) | - |
|
|
1025R-08KFIXED IND 330NH 830MA 220MOHM TH |
1,444 |
|
Datasheet |
1025R | Axial | Bulk | Active | Molded | Phenolic | 330 nH | ±10% | 830 mA | - | Unshielded | 220mOhm Max | 30 @ 25MHz | 410MHz | - | -55°C ~ 125°C | 25 MHz | - | Through Hole | - | 0.095" Dia x 0.250" L (2.41mm x 6.35mm) | - |
|
|
1025R-42KFIXED IND 8.2UH 160MA 2.7 OHM TH |
883 |
|
Datasheet |
1025R | Axial | Bulk | Active | Molded | Iron | 8.2 µH | ±10% | 160 mA | - | Unshielded | 2.7Ohm Max | 55 @ 7.9MHz | 55MHz | - | -55°C ~ 105°C | 7.9 MHz | - | Through Hole | - | 0.095" Dia x 0.250" L (2.41mm x 6.35mm) | - |
|
|
1025R-20KFIXED IND 1UH 390MA 1 OHM TH |
584 |
|
Datasheet |
1025R | Axial | Bulk | Active | Molded | Phenolic | 1 µH | ±10% | 390 mA | - | Unshielded | 1Ohm Max | 25 @ 25MHz | 230MHz | - | -55°C ~ 125°C | 25 MHz | - | Through Hole | - | 0.095" Dia x 0.250" L (2.41mm x 6.35mm) | - |
|
60B473CFIXED IND 47UH 10.5A 13 MOHM SMD |
267 |
|
Datasheet |
6000B | Nonstandard | Tray | Active | Wirewound | - | 47 µH | ±15% | 10.5 A | - | Unshielded | 13mOhm Max | - | 7.45MHz | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | - | 1.063" L x 0.768" W (27.00mm x 19.50mm) | 0.787" (20.00mm) |
|
|
B82477R4104M100FIXED IND 100UH 2.35A 120MOHM SM |
6,167 |
|
Datasheet |
B82477R4 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 100 µH | ±20% | 2.35 A | 2.9A | Shielded | 120mOhm Max | - | - | AEC-Q200 | -55°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.335" (8.50mm) |
Fixed Inductors Electronic Components
Frequently Asked Questions
Q1: What products are included in Fixed Inductors?
This category includes related Fixed Inductors subcategories and electronic components from multiple manufacturers. Select a lower-level category to view available part numbers.
Q2: Can I request a quotation for Fixed Inductors components?
Yes. Send us the part numbers and required quantities, and our team will provide sourcing and quotation support.
Q3: Are datasheets and technical information available?
Yes. Datasheets and technical information are available on supported final product pages and product listings.
Q4: Do you support BOM sourcing?
Yes. We support BOM matching, component procurement and alternative sourcing for Fixed Inductors and other electronic components.
