Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
74438356056FIXED IND 5.6UH 2.8A 81 MOHM SMD |
3,886 |
|
Datasheet |
WE-MAPI | 1616 (4040 Metric) | Tape & Reel (TR) | Active | Molded | Metal Composite | 5.6 µH | ±20% | 2.8 A | 4.6A | Shielded | 81mOhm Max | - | 20MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 4020 | 0.161" L x 0.161" W (4.10mm x 4.10mm) | 0.083" (2.10mm) |
|
78438356022FIXED IND 2.2UH 4.7A 35 MOHM SMD |
3,870 |
|
Datasheet |
WE-MAIA | Nonstandard | Tape & Reel (TR) | Active | Molded | Iron Alloy | 2.2 µH | ±20% | 4.7 A | 6.2A | Shielded | 35mOhm Max | - | 34MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | SMD | 0.161" L x 0.161" W (4.10mm x 4.10mm) | 0.083" (2.10mm) |
|
|
744383560033FIXED IND 330NH 9.6A 7.2MOHM SMD |
3,782 |
|
Datasheet |
WE-MAPI | 1616 (4040 Metric) | Tape & Reel (TR) | Active | Molded | Metal Composite | 330 nH | ±30% | 9.6 A | 12.4A | Shielded | 7.2mOhm Max | - | 115MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 4020 | 0.161" L x 0.161" W (4.10mm x 4.10mm) | 0.083" (2.10mm) |
|
|
744383560056FIXED IND 560NH 8.5A 8.4MOHM SMD |
2,198 |
|
Datasheet |
WE-MAPI | 1616 (4040 Metric) | Tape & Reel (TR) | Active | Molded | Metal Composite | 560 nH | ±30% | 8.5 A | 10.8A | Shielded | 8.4mOhm Max | - | 85MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 4020 | 0.161" L x 0.161" W (4.10mm x 4.10mm) | 0.083" (2.10mm) |
|
|
74438356012FIXED IND 1.2UH 5.8A 18 MOHM SMD |
2,151 |
|
Datasheet |
WE-MAPI | 1616 (4040 Metric) | Tape & Reel (TR) | Active | Molded | Metal Composite | 1.2 µH | ±20% | 5.8 A | 9A | Shielded | 18mOhm Max | - | 52MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 4020 | 0.161" L x 0.161" W (4.10mm x 4.10mm) | 0.083" (2.10mm) |
|
|
78438357082FIXED IND 8.2UH 2.8A 86MOHM SMD |
1,334 |
|
Datasheet |
WE-MAIA | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Iron Alloy | 8.2 µH | ±20% | 2.8 A | 5.2A | Shielded | 86mOhm Max | - | 17MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 4030 | 0.161" L x 0.161" W (4.10mm x 4.10mm) | 0.122" (3.10mm) |
|
|
78438356047FIXED IND 4.7UH 2.9A 76 MOHM SMD |
1,258 |
|
Datasheet |
WE-MAIA | Nonstandard | Tape & Reel (TR) | Active | Molded | Iron Alloy | 4.7 µH | ±20% | 2.9 A | 4.7A | Shielded | 76mOhm Max | - | 26MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | SMD | 0.161" L x 0.161" W (4.10mm x 4.10mm) | 0.083" (2.10mm) |
|
|
78438357010FIXED IND 1UH 7.4A 13.5MOHM SMD |
766 |
|
Datasheet |
WE-MAIA | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Iron Alloy | 1 µH | ±20% | 7.4 A | 9.6A | Shielded | 13.5mOhm Max | - | 59MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 4030 | 0.161" L x 0.161" W (4.10mm x 4.10mm) | 0.122" (3.10mm) |
|
|
78438357056FIXED IND 5.6UH 3.6A 51MOHM SMD |
544 |
|
Datasheet |
WE-MAIA | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Iron Alloy | 5.6 µH | ±20% | 3.6 A | 6A | Shielded | 51mOhm Max | - | 21MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 4030 | 0.161" L x 0.161" W (4.10mm x 4.10mm) | 0.122" (3.10mm) |
|

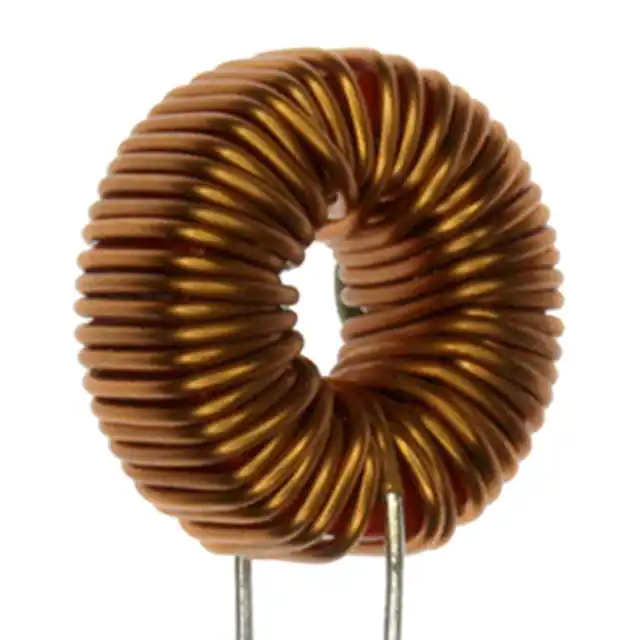

7447021FIXED IND 100UH 2A 80 MOHM TH |
308 |
|
Datasheet |
WE-FI | Radial, Vertical (Open) | Bulk | Active | Toroidal | Ferrite | 100 µH | ±20% | 2 A | - | Unshielded | 80mOhm Max | - | - | - | -40°C ~ 105°C | 10 kHz | - | Through Hole | - | 0.610" Dia x 0.315" W (15.50mm x 8.00mm) | - |
|
B82477P4392M000FIXED IND 3.9UH 8A 10 MOHM SMD |
275 |
|
Datasheet |
B82477P4 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 3.9 µH | ±20% | 8 A | 9.5A | Shielded | 10mOhm Max | - | - | AEC-Q200 | -55°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.335" (8.50mm) |
|

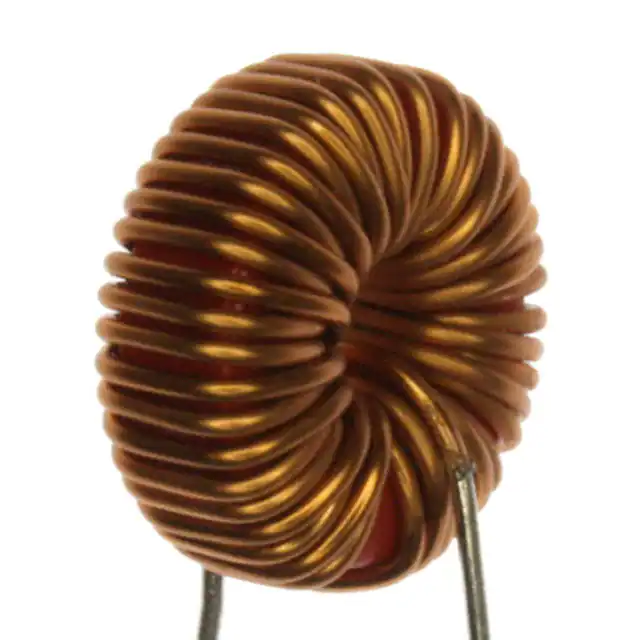

7447033FIXED IND 68UH 2A 55 MOHM TH |
241 |
|
Datasheet |
WE-FI | Radial, Vertical (Open) | Bulk | Active | Toroidal | Ferrite | 68 µH | ±20% | 2 A | - | Unshielded | 55mOhm Max | - | - | - | -40°C ~ 105°C | 10 kHz | - | Through Hole | - | 0.551" Dia x 0.276" W (14.00mm x 7.00mm) | - |
|

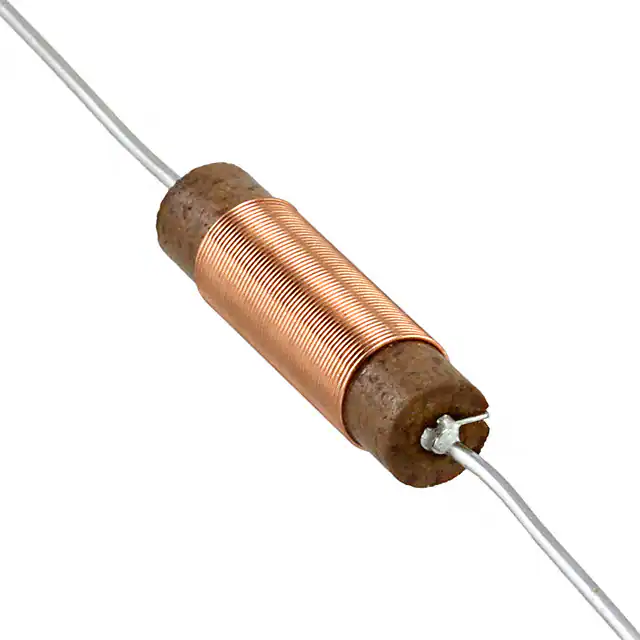

4612-RCFIXED IND 10UH 500MA 1.5 OHM TH |
1,777 |
|
Datasheet |
4600 | Axial | Bulk | Active | Wirewound | Phenolic | 10 µH | ±10% | 500 mA | - | Unshielded | 1.5Ohm Max | 36 @ 2.52MHz | 61MHz | - | -55°C ~ 125°C | 2.52 MHz | - | Through Hole | - | 0.270" Dia x 0.750" L (6.86mm x 19.05mm) | - |
|
32331CFIXED IND 330UH 780MA 215MOHM TH |
299 |
|
Datasheet |
3200 | Radial, Vertical, 4 Leads (Open) | Tray | Active | Toroidal | - | 330 µH | ±15% | 780 mA | - | Unshielded | 215mOhm Max | 3.2 @ 800kHz | 2.3MHz | - | -40°C ~ 125°C | 800 kHz | - | Through Hole | - | 0.846" L x 0.394" W (21.50mm x 10.00mm) | 0.945" (24.00mm) |
|
PA5003.332NLTFIXED IND 3.3UH 8.1A 23.1MOHM SM |
22,738 |
|
Datasheet |
PA5003.XXXNLT | Nonstandard | Tape & Reel (TR) | Active | Molded | Ferrite | 3.3 µH | ±20% | 8.1 A | 9.5A | Shielded | 23.1mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.217" L x 0.209" W (5.50mm x 5.30mm) | 0.122" (3.10mm) |
|
|
PA5003.152NLTFIXED IND 1.5UH 10.5A 11.2 MOHM |
4,177 |
|
Datasheet |
PA5003.XXXNLT | Nonstandard | Tape & Reel (TR) | Active | Molded | Ferrite | 1.5 µH | ±20% | 10.5 A | 14A | Shielded | 11.2mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.217" L x 0.209" W (5.50mm x 5.30mm) | 0.122" (3.10mm) |
|
PA4343.153NLTFIXED IND 15UH 9A 28 MOHM SMD |
3,806 |
|
Datasheet |
PA4343.XXXNLT | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 15 µH | ±20% | 9 A | 12.5A | Shielded | 28mOhm Max | - | - | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.551" L x 0.504" W (14.00mm x 12.80mm) | 0.256" (6.50mm) |
|
744711005FIXED IND 10UH 5A 15.1 MOHM TH |
3,620 |
|
Datasheet |
WE-SD | Radial, Horizontal Cylinder (Open) | Tray | Active | Drum Core, Wirewound | Ferrite | 10 µH | ±25% | 5 A | - | Unshielded | 15.1mOhm | - | 50MHz | - | -40°C ~ 150°C | 10 kHz | - | Through Hole | - | 0.272" Dia x 0.886" L (6.90mm x 22.50mm) | - |
|
ADL32VHC-100MPOC INDUCTOR, 10 UH, EIA 1210 |
3,272 |
|
Datasheet |
ADL32VHC | Horizontal, 4 PC Pad | Tape & Reel (TR) | Active | Wirewound | Ferrite | 10 µH | ±20% | 1 A | 950mA | Shielded | 310mOhm Max | - | 110MHz | AEC-Q200 | 150°C | 100 kHz | - | Surface Mount | Horizontal, 4 PC Pad | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.098" (2.50mm) |
|
|
PA5003.222NLTFIXED IND 2.2UH 9.7A 14.5MOHM SM |
2,704 |
|
Datasheet |
PA5003.XXXNLT | Nonstandard | Tape & Reel (TR) | Active | Molded | Ferrite | 2.2 µH | ±20% | 9.7 A | 10A | Shielded | 14.5mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.217" L x 0.209" W (5.50mm x 5.30mm) | 0.122" (3.10mm) |
Fixed Inductors Electronic Components
Frequently Asked Questions
Q1: What products are included in Fixed Inductors?
This category includes related Fixed Inductors subcategories and electronic components from multiple manufacturers. Select a lower-level category to view available part numbers.
Q2: Can I request a quotation for Fixed Inductors components?
Yes. Send us the part numbers and required quantities, and our team will provide sourcing and quotation support.
Q3: Are datasheets and technical information available?
Yes. Datasheets and technical information are available on supported final product pages and product listings.
Q4: Do you support BOM sourcing?
Yes. We support BOM matching, component procurement and alternative sourcing for Fixed Inductors and other electronic components.
