Fixed Inductors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

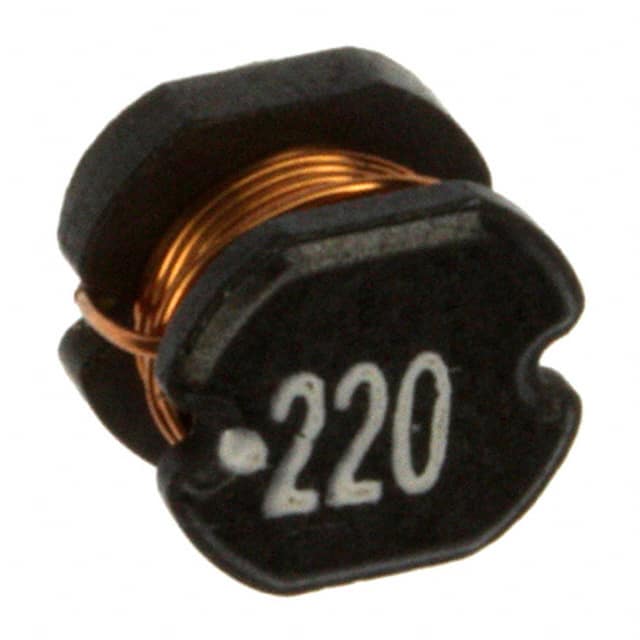

744774122FIXED IND 22UH 1.28A 180MOHM SMD |
5,402 |
|
Datasheet |
WE-PD2 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 22 µH | ±20% | 1.28 A | 1.53A | Unshielded | 180mOhm Max | - | 16MHz | - | -40°C ~ 125°C | 10 kHz | - | Surface Mount | - | 0.228" L x 0.205" W (5.80mm x 5.20mm) | 0.191" (4.85mm) |
|
744774112FIXED IND 12UH 2A 110 MOHM SMD |
3,436 |
|
Datasheet |
WE-PD2 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 12 µH | ±20% | 2 A | 1.94A | Unshielded | 110mOhm Max | - | 24MHz | - | -40°C ~ 125°C | 10 kHz | - | Surface Mount | - | 0.228" L x 0.205" W (5.80mm x 5.20mm) | 0.191" (4.85mm) |
|

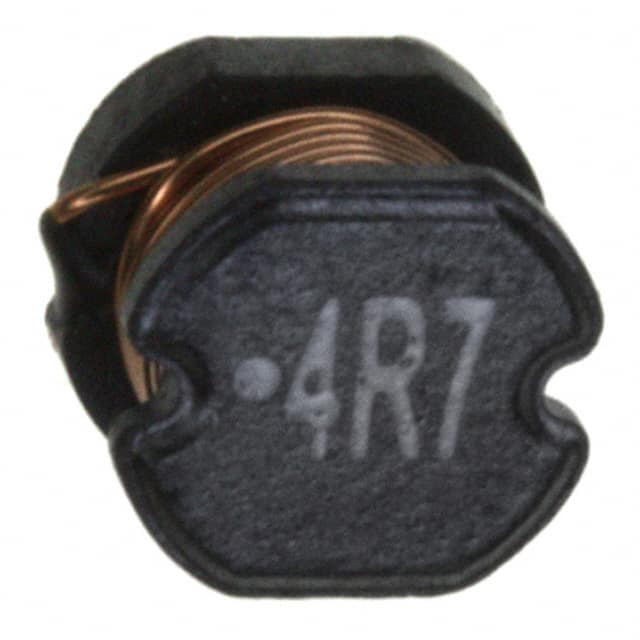

744774047FIXED IND 4.7UH 3A 71 MOHM SMD |
3,404 |
|
Datasheet |
WE-PD2 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 4.7 µH | ±20% | 3 A | 5.5A | Unshielded | 71mOhm Max | - | 33MHz | - | -40°C ~ 125°C | 10 kHz | - | Surface Mount | - | 0.228" L x 0.205" W (5.80mm x 5.20mm) | 0.191" (4.85mm) |
|
74477410FIXED IND 10UH 2.2A 100 MOHM SMD |
3,089 |
|
Datasheet |
WE-PD2 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 10 µH | ±20% | 2.2 A | 2.5A | Unshielded | 100mOhm Max | - | 26MHz | - | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.228" L x 0.205" W (5.80mm x 5.20mm) | 0.191" (4.85mm) |
|
UP1B-4R7-RFIXED IND 4.7UH 2.2A 54.4MOHM SM |
2,690 |
|
Datasheet |
UNI-PAC™ | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 4.7 µH | ±20% | 2.2 A | 2.6A | Unshielded | 54.4mOhm Max | - | - | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | - | 0.350" L x 0.240" W (8.89mm x 6.10mm) | 0.197" (5.00mm) |
|
744774168FIXED IND 68UH 640MA 460MOHM SMD |
2,229 |
|
Datasheet |
WE-PD2 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 68 µH | ±10% | 640 mA | 860mA | Unshielded | 460mOhm Max | - | 10MHz | - | -40°C ~ 125°C | 10 kHz | - | Surface Mount | - | 0.228" L x 0.205" W (5.80mm x 5.20mm) | 0.191" (4.85mm) |
|
744774022FIXED IND 2.2UH 4.6A 41 MOHM SMD |
1,841 |
|
Datasheet |
WE-PD2 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 2.2 µH | ±20% | 4.6 A | 8.2A | Unshielded | 41mOhm Max | - | 54MHz | - | -40°C ~ 125°C | 10 kHz | - | Surface Mount | - | 0.228" L x 0.205" W (5.80mm x 5.20mm) | 0.191" (4.85mm) |
|

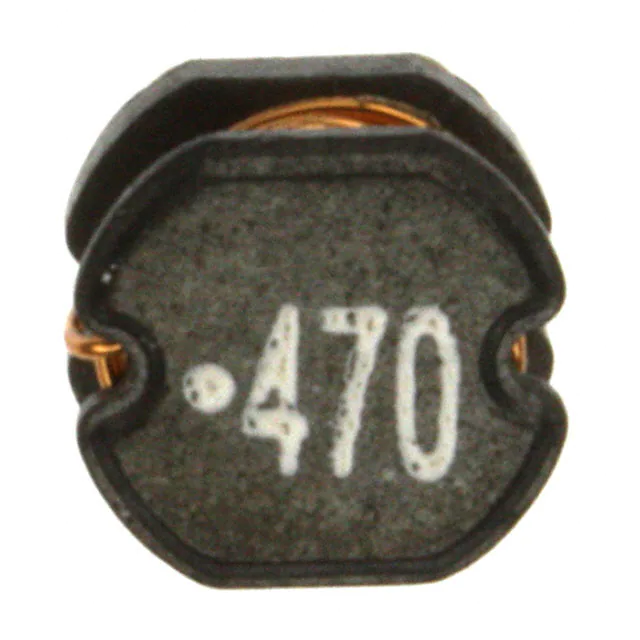

744774147FIXED IND 47UH 860MA 370MOHM SMD |
1,811 |
|
Datasheet |
WE-PD2 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 47 µH | ±15% | 860 mA | 1A | Unshielded | 370mOhm Max | - | 11.5MHz | - | -40°C ~ 125°C | 10 kHz | - | Surface Mount | - | 0.228" L x 0.205" W (5.80mm x 5.20mm) | 0.191" (4.85mm) |
|
744774222FIXED IND 220UH 420MA 1.57OHM SM |
1,800 |
|
Datasheet |
WE-PD2 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 220 µH | ±10% | 420 mA | 470mA | Unshielded | 1.57Ohm Max | - | 5MHz | - | -40°C ~ 125°C | 10 kHz | - | Surface Mount | - | 0.228" L x 0.205" W (5.80mm x 5.20mm) | 0.191" (4.85mm) |
|

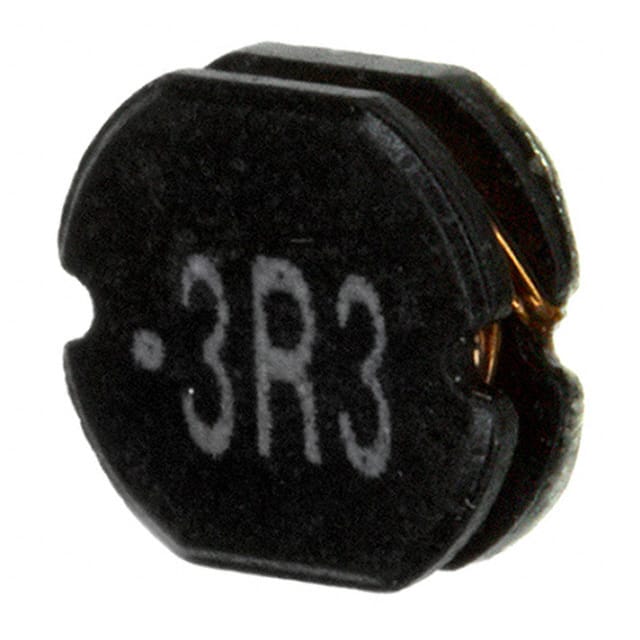

7447745033FIXED IND 3.3UH 3A 49 MOHM SMD |
1,681 |
|
Datasheet |
WE-PD2 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 3.3 µH | ±20% | 3 A | 3A | Unshielded | 49mOhm Max | - | 57MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.228" L x 0.205" W (5.80mm x 5.20mm) | 0.091" (2.30mm) |
|

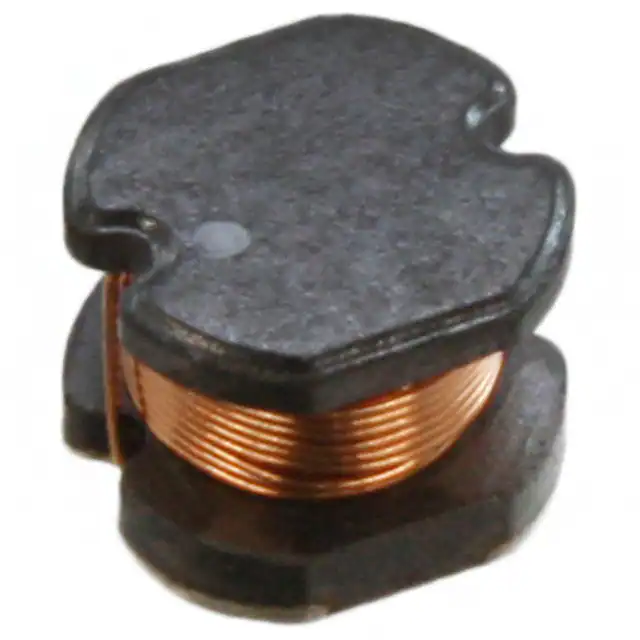

744774115FIXED IND 15UH 1.53A 140MOHM SMD |
1,399 |
|
Datasheet |
WE-PD2 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 15 µH | ±20% | 1.53 A | 1.9A | Unshielded | 140mOhm Max | - | 23MHz | - | -40°C ~ 125°C | 10 kHz | - | Surface Mount | - | 0.228" L x 0.205" W (5.80mm x 5.20mm) | 0.191" (4.85mm) |
|
8250-183K-RCFIXED IND 18MH 48MA 104 OHM TH |
978 |
|
Datasheet |
8250 | Axial | Bulk | Active | Drum Core, Wirewound | Ferrite | 18 mH | ±10% | 48 mA | 10mA | Shielded | 104Ohm Max | 50 @ 79kHz | 720kHz | - | -55°C ~ 105°C | 79 kHz | - | Through Hole | - | 0.164" Dia x 0.450" L (4.17mm x 11.43mm) | - |
|
8250-102K-RCFIXED IND 1MH 139MA 12.1 OHM TH |
866 |
|
Datasheet |
8250 | Axial | Bulk | Active | Drum Core, Wirewound | Ferrite | 1 mH | ±10% | 139 mA | 40mA | Shielded | 12.1Ohm Max | 65 @ 790kHz | 4.5MHz | - | -55°C ~ 105°C | 790 kHz | - | Through Hole | - | 0.164" Dia x 0.450" L (4.17mm x 11.43mm) | - |
|
FP1007R3-R30-RFIXED IND 300NH 61A 0.29MOHM SMD |
766 |
|
Datasheet |
FLAT-PAC, FP1007 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 300 nH | ±10% | 61 A | 35A | Unshielded | 0.29mOhm | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.402" L x 0.307" W (10.20mm x 7.80mm) | 0.295" (7.50mm) |
|
8250-104K-RCFIXED IND 100MH 22MA 484 OHM TH |
663 |
|
Datasheet |
8250 | Axial | Bulk | Active | Drum Core, Wirewound | Ferrite | 100 mH | ±10% | 22 mA | 3mA | Shielded | 484Ohm Max | 50 @ 79kHz | 320kHz | - | -55°C ~ 105°C | 79 kHz | - | Through Hole | - | 0.164" Dia x 0.450" L (4.17mm x 11.43mm) | - |
|
8250-103K-RCFIXED IND 10MH 50MA 93.1 OHM TH |
526 |
|
Datasheet |
8250 | Axial | Bulk | Active | Drum Core, Wirewound | Ferrite | 10 mH | ±10% | 50 mA | 14mA | Shielded | 93.1Ohm Max | 70 @ 250kHz | 1.3MHz | - | -55°C ~ 105°C | 250 kHz | - | Through Hole | - | 0.164" Dia x 0.450" L (4.17mm x 11.43mm) | - |
|

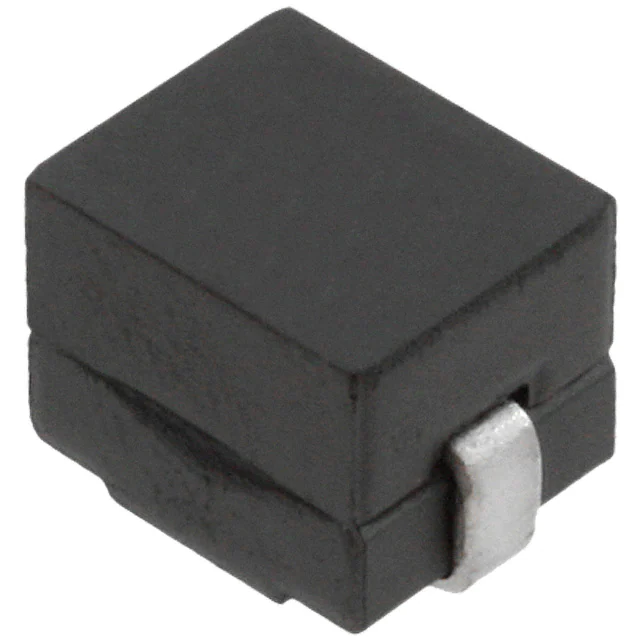

PA2607.231NLTFIXED IND 230NH 37A 0.29MOHM SMD |
515 |
|
Datasheet |
PA2607NL | Nonstandard | Tape & Reel (TR) | Active | - | - | 230 nH | ±15% | 37 A | 43A | Shielded | 0.29mOhm | - | - | - | -40°C ~ 130°C | 100 kHz | - | Surface Mount | - | 0.406" L x 0.301" W (10.31mm x 7.65mm) | 0.287" (7.30mm) |
|
|
PA2607.151NLTFIXED IND 150NH 41A 0.29MOHM SMD |
476 |
|
Datasheet |
PA2607NL | Nonstandard | Tape & Reel (TR) | Active | - | - | 150 nH | ±15% | 41 A | 72A | Shielded | 0.29mOhm | - | - | - | -40°C ~ 130°C | 100 kHz | - | Surface Mount | - | 0.406" L x 0.301" W (10.31mm x 7.65mm) | 0.291" (7.40mm) |
|
SRP1265CC-4R7MIND SMD 4.7UH 20A |
171 |
|
Datasheet |
SRP1265CC | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Carbonyl Powder | 4.7 µH | ±20% | 20 A | 31A | Shielded | 9.5mOhm Max | - | 17MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.531" L x 0.492" W (13.50mm x 12.50mm) | 0.256" (6.50mm) |
|
744307022FIXED IND 220NH 26A 0.00029OHM |
4,557 |
|
Datasheet |
WE-HCM | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Manganese Zinc Ferrite (MnZn) | 220 nH | ±20% | 26 A | 29.9A | Shielded | 0.29mOhm | - | 38MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 7070 | 0.276" L x 0.276" W (7.00mm x 7.00mm) | 0.295" (7.50mm) |
Fixed Inductors Electronic Components
Frequently Asked Questions
Q1: What products are included in Fixed Inductors?
This category includes related Fixed Inductors subcategories and electronic components from multiple manufacturers. Select a lower-level category to view available part numbers.
Q2: Can I request a quotation for Fixed Inductors components?
Yes. Send us the part numbers and required quantities, and our team will provide sourcing and quotation support.
Q3: Are datasheets and technical information available?
Yes. Datasheets and technical information are available on supported final product pages and product listings.
Q4: Do you support BOM sourcing?
Yes. We support BOM matching, component procurement and alternative sourcing for Fixed Inductors and other electronic components.
